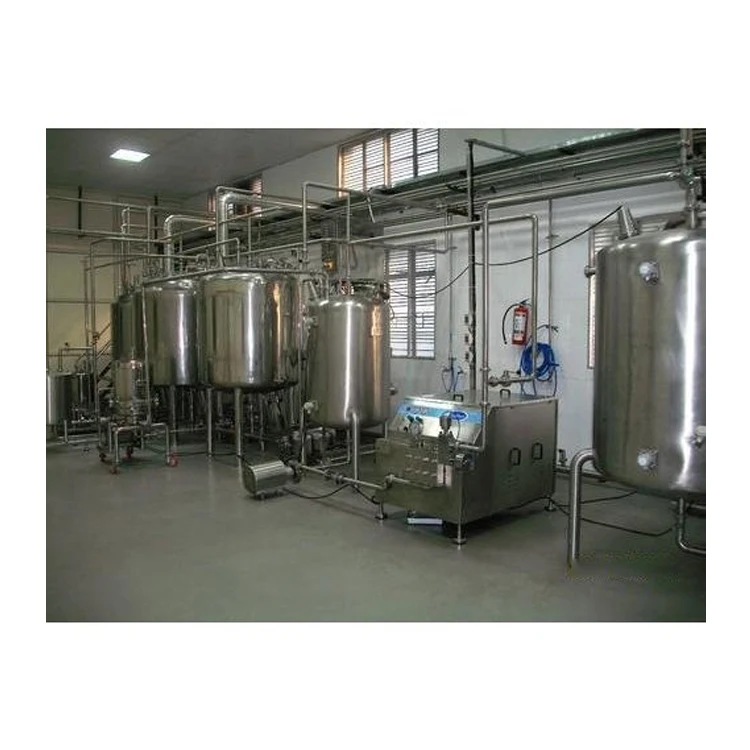

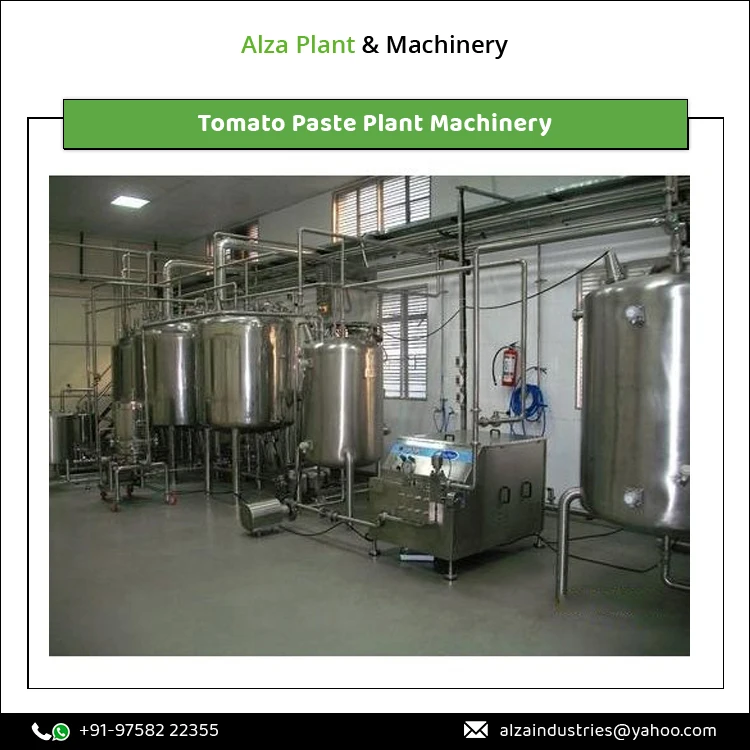

Stainless Steel Material Industrial Tomato Paste Concentrate Sauce Ketchup Pure Making Machine Production Line Processing Plant

Stainless Steel Material Industrial Tomato Paste Concentrate Sauce Ketchup Pure Making Machine Production Line Processing Plant

Multifunctional Fruit and Vegetable Washer
Multifunctional Fruit and Vegetable Washer is used for washing mangoes, litchi, tomato, carrot, and apple or leafy/root vegetables. The fruits or vegetables are subjected to strong water agitation for removal of dirt. A PE/SS chain outfeed conveyor carries the product to the next stage.
The machine can also be fitted with secondary fresh water spraying. Capacity of this washer is 500 kg/hr.

• Air Blower of 3 HP- To produce turbulence in water


• Pump 1 HP – To re-circulate the water into the washer


• Pump 0.5 HP-For spraying fresh water


• Geared Motor 1 HP- To rotate the conveyor


• Electrical Panel


• 200 ltr Horizontal Tank

Fruit Mill
Fruit Mill is used to crush seedless fruits/vegetables before pulping/juice extraction. It consists of a SS crushing chamber that has a crusher rotating at a high speed and inner wall of the chamber fitted with suitable serrations. All contact parts of the fruit mill is made up of food grade AISI 304 stainless steel. 3 HP motor is used in this fruit mill.

Steam Jacketed Cooking Kettle Tilting Type
This kettle is used for pre-heating the pulp. The steam jacketed kettle is mounted on a SS stand with tilting arrangement through worm gear/pinion. Jacket and pan is made of 10/10 s.w.g. stainless steel. The kettle is 2/3rd jacketed for uniform distribution of the heat. The tilting of kettle facilitates easy pouring of the preparation. Steam jacketed kettles are complete with pressure gauge, safety valve and steam trap. Capacity of this kettle is 100 Galons.

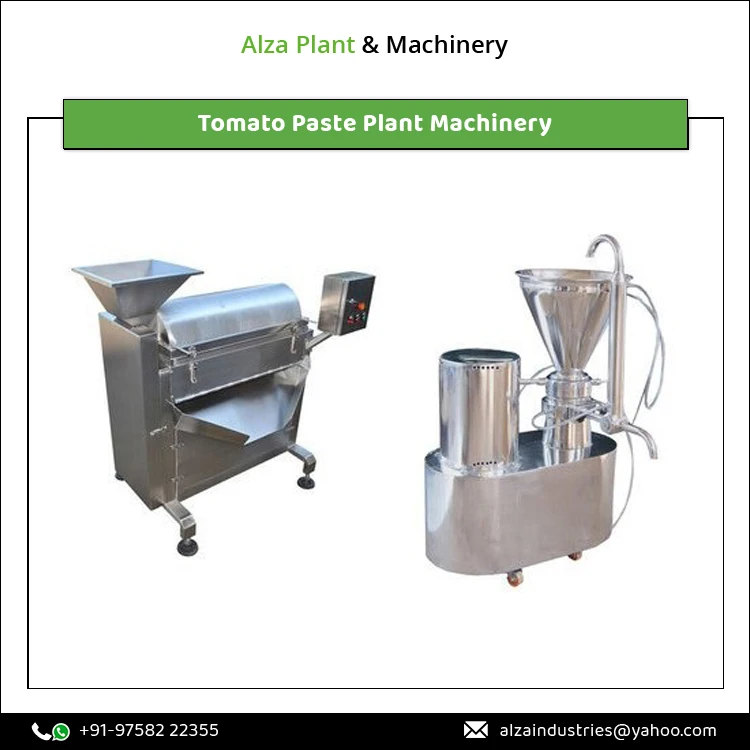

Fruit Pulper
This machine is used for skin removal, pulping & finishing of pulps from product like tomato, mango, pineapple, litchi, guava etc. The equipment incorporates rotor and brushes rotating at high speed which separates the stone, skin & pulp. The vegetable pulper unit consists of two nylon brushes which give a combined beating and brushing action. The gap between the sieve and brushes can be adjusted to suit different type of size and qualities of products to be pulped. The sieve is available and perforations of different sizes and is easily removable for cleaning. All parts of machine can be easily dismantled and reassembled for facility of inspection, proper washing, cleaning, and periodic maintenance. All contact parts of the fruit pulper is made up of food grade AISI 304 stainless steel. 3 HP motor is used in this fruit pulper.

Features:
The pulping machine is very compact and can be easily installed in a comparatively small space.
It's easy operation and maintenance requires no skilled labor to operate it.
It can be easily dismantled for cleaning, after operation, and quickly re-assembled.

Standard Accessories of Fruit Pulper:-
Motor Pulley
adjustable rail for motor mounting
one number Perforated round hole Screen which is fitted with machine

Steam Jacketed Cooking Kettle Tilting Type
This kettle is used for cooking the pulp with different ingredients. The steam jacketed kettle is mounted on a SS stand with tilting arrangement through worm gear/pinion. Jacket and pan is made of 10/10 s.w.g. stainless steel. The kettle is 2/3rd jacketed for uniform distribution of the heat. The tilting of kettle facilitates easy pouring of the preparation. Steam jacketed kettles are complete with pressure gauge, safety valve and steam trap. Capacity of this kettle is 100 Galons

Holding Tank
Holding tank is used for store Paste, Puree, juice etc. The tank consists of :

• SS-304 main shell cylindrical with conical bottom



• SS-304 removable type lid



• 1.5” bottom connection with suitable valve



• 4 nos supporting legs with bottom mounting plate



• Shell is of 2 mm SS 304 sheet



• Capacity 500 ltrs water holding.

Shear Pump
In an inline shear rotor–stator mixer, the rotor– stator array is contained in housing with an inlet at one end and an outlet at the other. The components to be mixed are drawn through the generator array in a continuous stream, with the whole acting as a centrifugal pumping device. Suction of this pump will be attached to the outlet of mixing tank & the discharge of the pump is with inlet.

Piston Filler Four Head
This machine is a Semi-Automatic Piston Type Filling Machine and is suitable to fill water, Oil, thick viscous liquids like Sauce, ketchup etc in glass bottle, pet bottle & preformed pouch. Machine is made of stainless steel, GMP standard. Filling valve is controlled by the electro- magnetic sensor, ensures filling accuracy. Machine is available in single as well as double filling head. This machine is attached with SS 304 hopper & Stand. This machines runs with pneumatic pressure.

LDO+CNG Fired Boiler 300 kg/hr

• Water tube once through steam boiler design for quick steam output.



• Designed for maximum efficiency, ease of operation and maintenance.



• Fully automatic burner suitable for pre- heated combustion air



• Use of standardized parts ensures easy availability of spare parts

Interconnecting MS/SS Pipeline & fittings

Air Compressor 1 HP

An air compressor’s primary goal is to develop pressurize air. Air compressor is used in to operate Piston Filler.

RO System 500 LPH

The RO System works on the principle of Reverse osmosis, also known as hyper-filtration. One of the finest techniques for treating water, reverse osmosis eliminates contaminants from water thus making it fit for drinking purpose and other commercial and industrial applications. The RO system is provided with sediment pre-filter and an activated carbon filter as the membranes are degraded by chlorine, bacterial attack, manganese, hydrogen sulfide and iron. The RO system consists of

• Raw Water Pump



• High Pressure Pump



• Pressure Sand Filter Vessel



• RO Membrane Element



• Activated Carbon Filter Vessel



• Antiscalant Dosing System



• Micron Cartridge Filter
