Japan made easily Proseven gel pads for flour mill machinery earthquake countermeasure
- Category: >>>
- Supplier: PROSEVEN CO. LTD.
Share on (10000006314251):
Product Overview
Description
Japan made easily Proseven gel pads for flour mill machinery earthquake countermeasure
- Outstanding flexibility and adhesion withstand vibration
- Will not damage the appearance of items
- Can be repeatedly washed and reused
Product Description

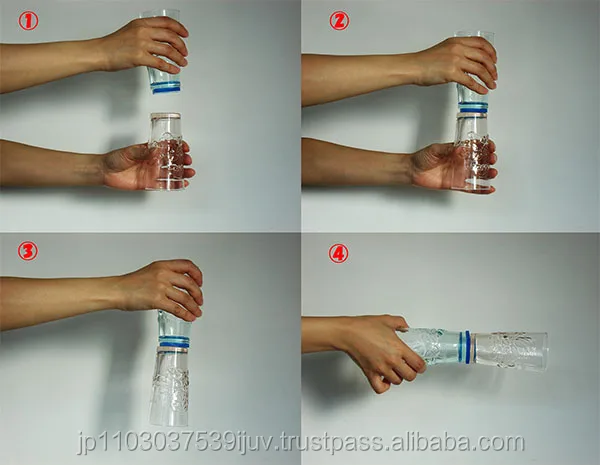

This new gel material boasts the qualities of both a liquid and a solid, adapting to a range of vibration forces.
Adhesive strength for a 50x50mm sized sheet is 888N (perpendicular) and 388N (horizontal), supports stainless steel
Service life: 5-7 years
Supports temperatures of: -20℃ to 75℃
https://www.youtube.com/watch?v=8PL9QFQiqqM
Made from 5mm thick polyurethane gel.
The image shows a dashboard outfitted with both sides of the protective film removed,
the mat installed, and a pen placed on it.
Vibration when the vehicle is in motion is cut and the pen does not slip.
The mat has passed certifications by public institution for safety standards.
These include RoHS, US inflammability tests, UL94, V-2, mold-resistance tests, et cetera.
For instance, the mat can be attached to a vase or other vessel to prevent it from
falling when children or pets bump into the vase.
| Model number | mat size (mm) | quantity | earthquake resistance (kg) | service life (year) |
| P-N30C | 30 x 30 | 4 | 40 | 5 to 7 |
| P-N40C | 40 x 40 | 4 | 64 | 5 to 7 |
| P-N50C | 50 x 50 | 4 | 100 | 5 to7 |
| P-N2016C | 20 x 20 | 16 | 64 | 5 to 7 |
| P-N1001C | 100 x 100 | 1 | 100 | 5 to 7 |
| package size (mm) | H (mm) | W (mm) | D (mm) | Weight (g) |
| P-N30C | 183 | 121 | 6 | 30 |
| P-N40C | 183 | 121 | 6 | 45 |
| P-N50C | 183 | 121 | 6 | 65 |
| P-N2016C | 183 | 121 | 6 | 45 |
| P-N1001C | 183 | 121 | 6 | 67 |
Offered in five types based on the mass of the item in question.
A set supports seismic load from 40 to 100kg.
The P-N1001C is a free size that can be cut to shape with scissors.
For packs of 10 or 100 units:
Twice-packed in reinforced cardboard
All steps, from production through crating, are handled in-house.

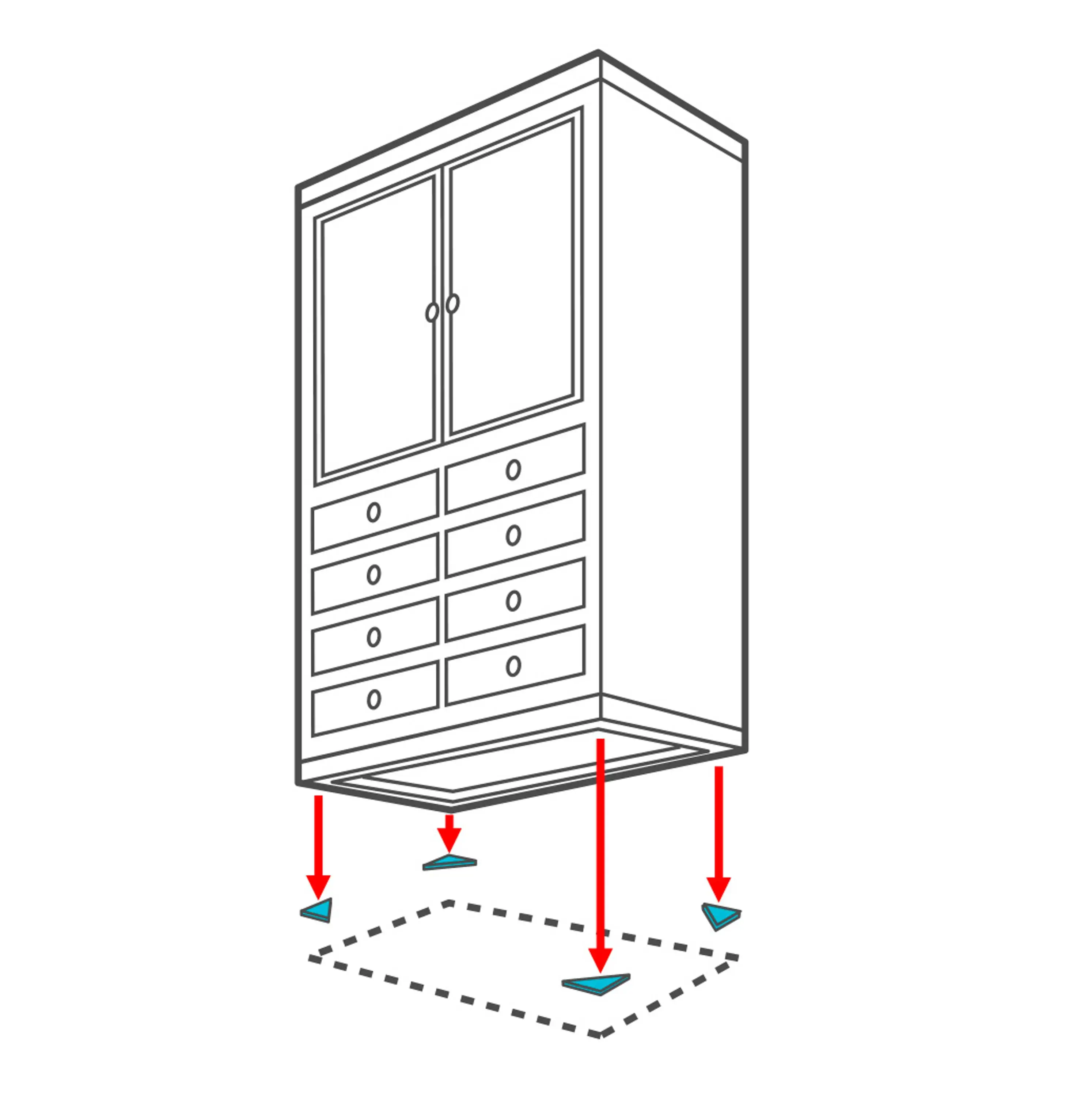

1. Remove any dust or dirt from the surface of the object and place of installation.
A dirty surface may cause decreased adhesion.
2. Remove one side of the protective film and attach to a flat surface.
3. Once the film has been smoothly adhered, remove the other side and attach the item.
4. After installation, do not touch the product for some time until it settles.
Note that the adhesive is very strong, so gently pull off from the edge inward.
Attempting to rapidly remove the product can cause breakage of the installed surface.
* If the backing fails to come off after gentle tugging, dip a hard plastic card
(e.g., an old credit card) in water and insert it between the mat and the object to remove more smoothly.
| Compatibility chart | |
| materials | adhesion |
| PP | Bad |
| PVC | Excellent |
| ABS | Excellent |
| PMMA | Excellent |
| PC | Excellent |
| Al | Good |
| SUS | Good |
| PE | Bad to Not recommended |
| Silicon resin | Not recommended |
| Fluorine treatment | Not recommended |
| Water repellent treatment, Anti-stain treatment | Not recommended |
Compatibility: if cellophane tape can be adhered to the target object, this product will adhere.
Used on a computer
Used on a vehicle
Product Uses
Office
Factory
Home
Car
Boat and Yacht
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer.
Q: Are your items made in Japan?
A: Yes, we are manufacturing at our factory in Japan.
Q: Can we ask a sample to verify the quality?
A: Yes, the first samples will be free, but the shipping and taxes should be on your side.
Q: How do you send samples?
A: We usually send samples by EMS.
Q: How do we order?
A: When you find an item that you would like to purchase, please send your order requirement to our email.
Q: What mode of payments do you accept?
A: We could accept PayPal and T/T.
Q: How do you send products?
A: We usually send products by DHL or EMS.
Company Information
Proseven Co., Ltd. has delivered safety and security to our customers since its establishment in 2000.
Since we are responsible for the manufacturing, packaging, and delivery of our earthquake resistant pads, we can even respond to individual requests and create original packages to accommodate.
Business Description: Development, production, and sales of earthquake resistance and anti vibration materials
Main Distributors: Electronic retail stores, home improvement construction and retail stores, DIY goods stores, hypermarkets, OEM
Export Experience: China, Korea, Peru, Indonesia
"Proseven" created from the lessons of the Great Hanshin-Awaji Earthquake
Proseven earthquake resistant pads have proven to be effective seismic measure in many fields, protecting not only human life, but also computer systems, furniture, works of art, electronic products, etc.
All of our funds were poured into the development of the original Proseven earthquake resistant pads, and it will continue to be further improved.
With your support, we strive to attain the position as a key material and further contribute to the safety of people all over the world.
