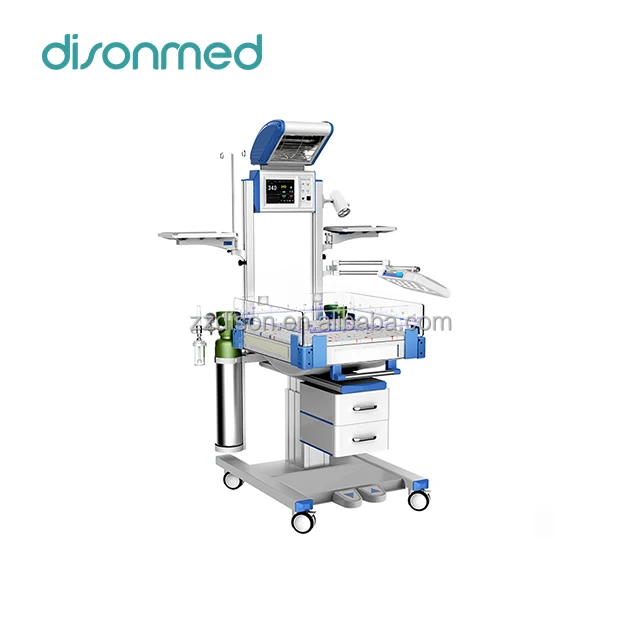

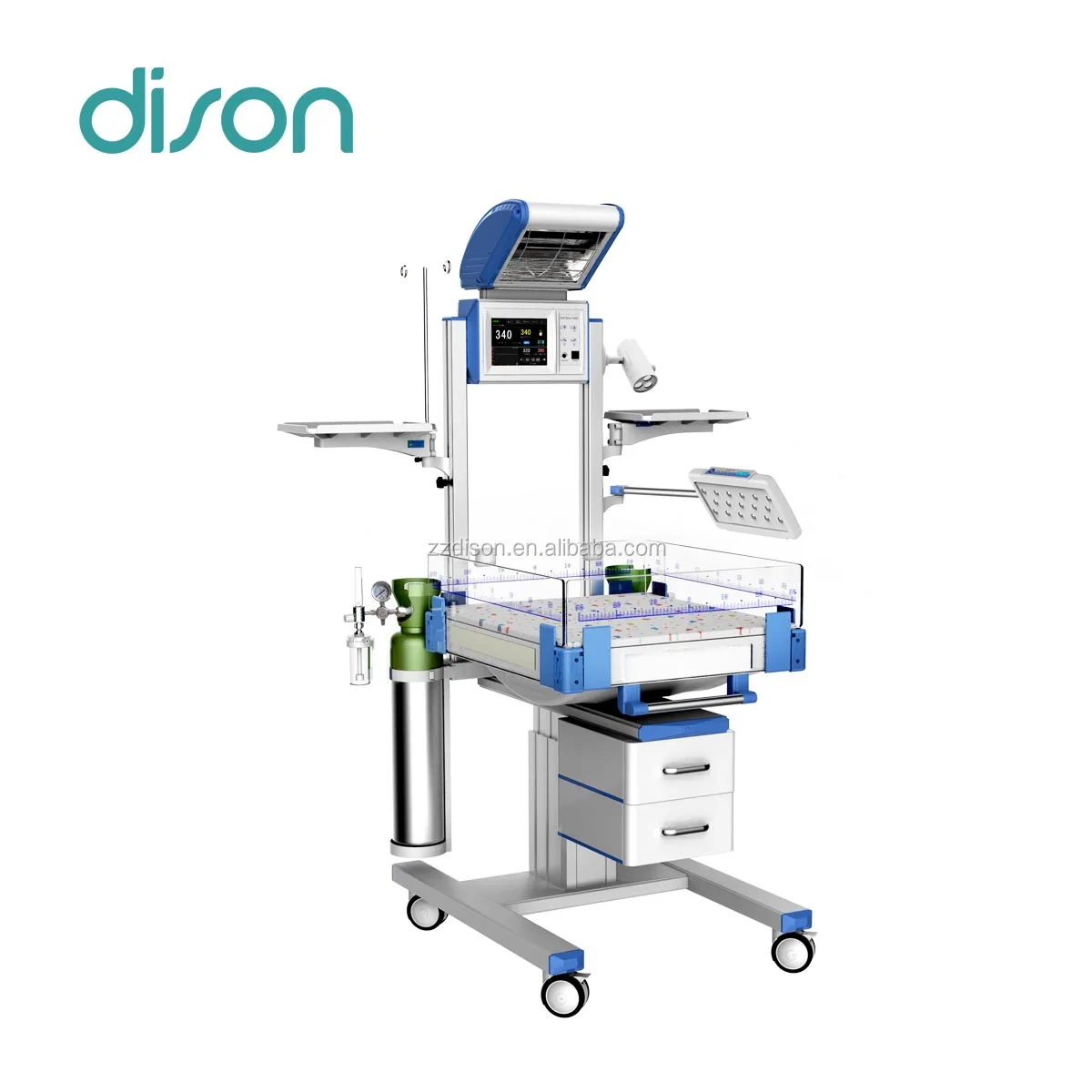

Dison/Infant radiant warmer BB 200standard

Product Overview

Description

Medical Hospital Infant Care Baby Infant Radiant Warmer







TOP SALE

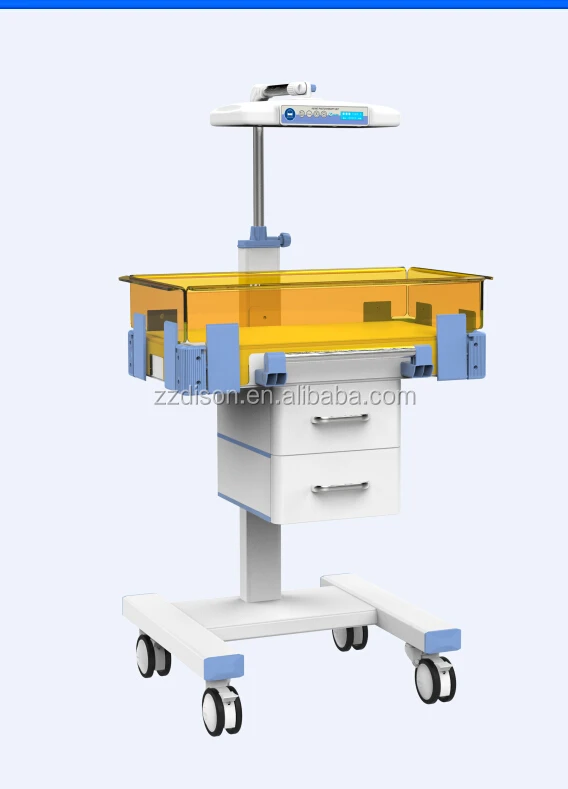

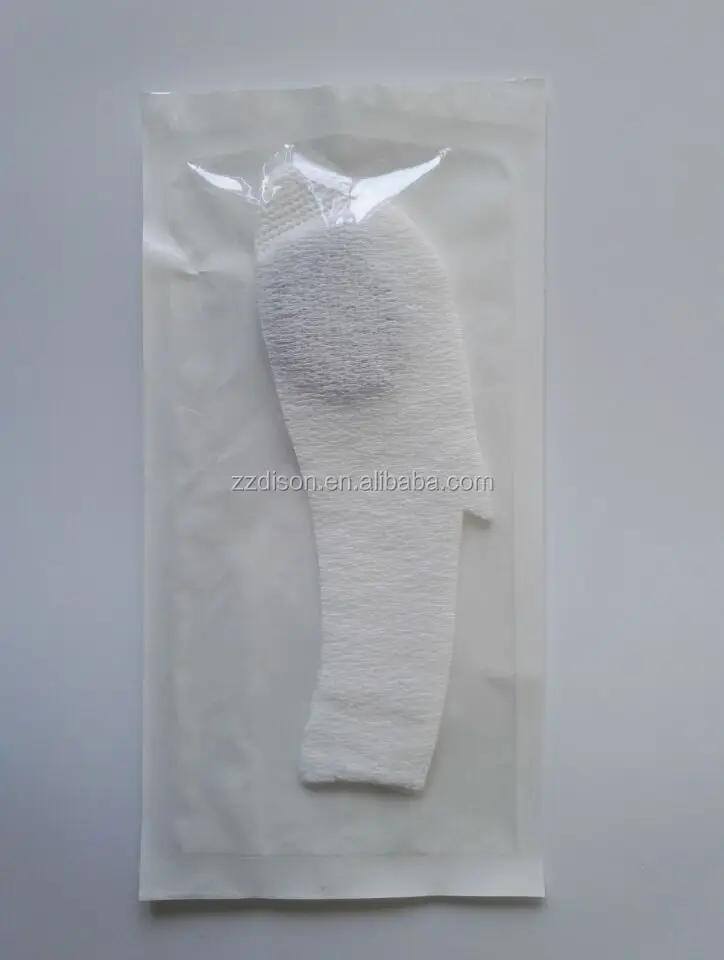

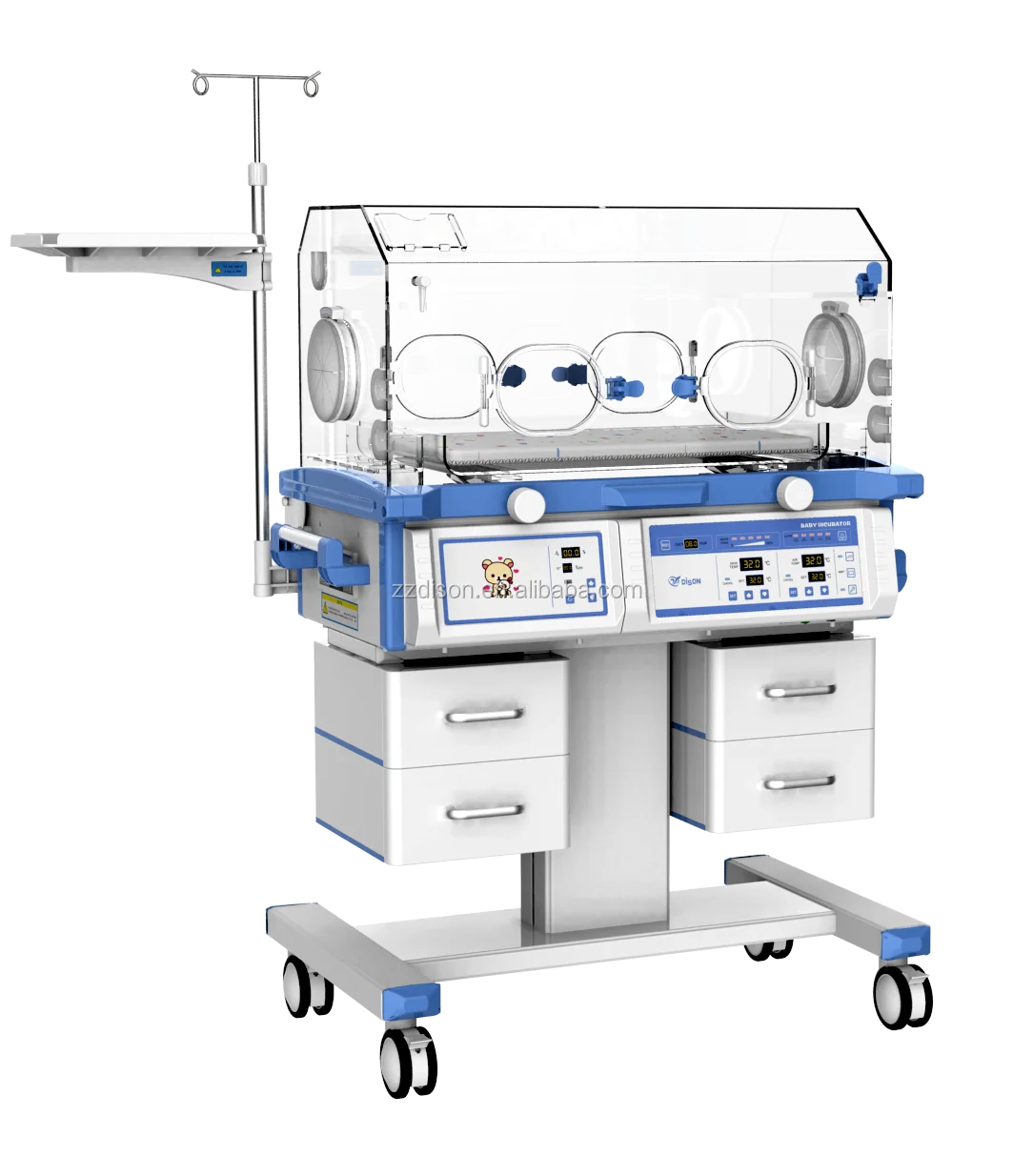

BABY INCUBATOR	BABY WARMER	LED PHOTOTHERAPY UNIT  BL-200	EYE PROTECTOR



feature & parameter



1. Microprocessor based servo controlled temperature system.

2. The microprocessor-controlled unit allows for three settings: Pre-warm, manual or automatic.

3. Alarm functions for safety includes: Power failure, temperature deviation, Temperature sensor failure, over temperature.

4. APGAR timer to record therapy time

5. Convenient X-ray cassette under infant bed

6. Tilt angle of infant bed is adjustable from panel

7. Observe light angle is adjustable

8. Transparent protector folded

9. Carbon steel heating head, the heating is quick and life-span is long

10. Alarms are audible and visual

11. A second thermal cut-out function for more safety

12. Skin temperature sensor failure protect function avoid over temperature

13. Temperature deviation can be amended in front panel directly

14.RS232

15.2 Infusion seal

16.2 Monitory tray & 2 drawer

17.8"torch screen

18.LED phototherapy unit

19.height adjustment

20.Oxygen supply system

21.Auxiliary Temperature

22.Luxurious silence castor



Technical data

1. Power supply: 110/220V 60/50Hz

2. Power input: ≤ 1000VA

3. Operating condition

An ambient Temperature: 18℃-30℃

An ambient Relative Humidity: 30--75 % RH

Atmospheric Pressure: 700~1060 hPa

An ambient Air Velocity <0.3m/s

4. Temperature control: 32~38℃

5. Temperature control accuracy: ≤ 0.5℃

6. Mattress temperature uniformity: <25℃

7. Skin temperature sensor accuracy: +/- 0.3℃

8. Warm-up time: ≤ 30min

9. Infant bed tilt angle: + 10degree;

10. APGAR timer range: ≤ 24h

11. Heater head horizontal: 90degree;

12. Mattress size: 67cm X 54cm

13. Distance from heater to mattress: 80cm

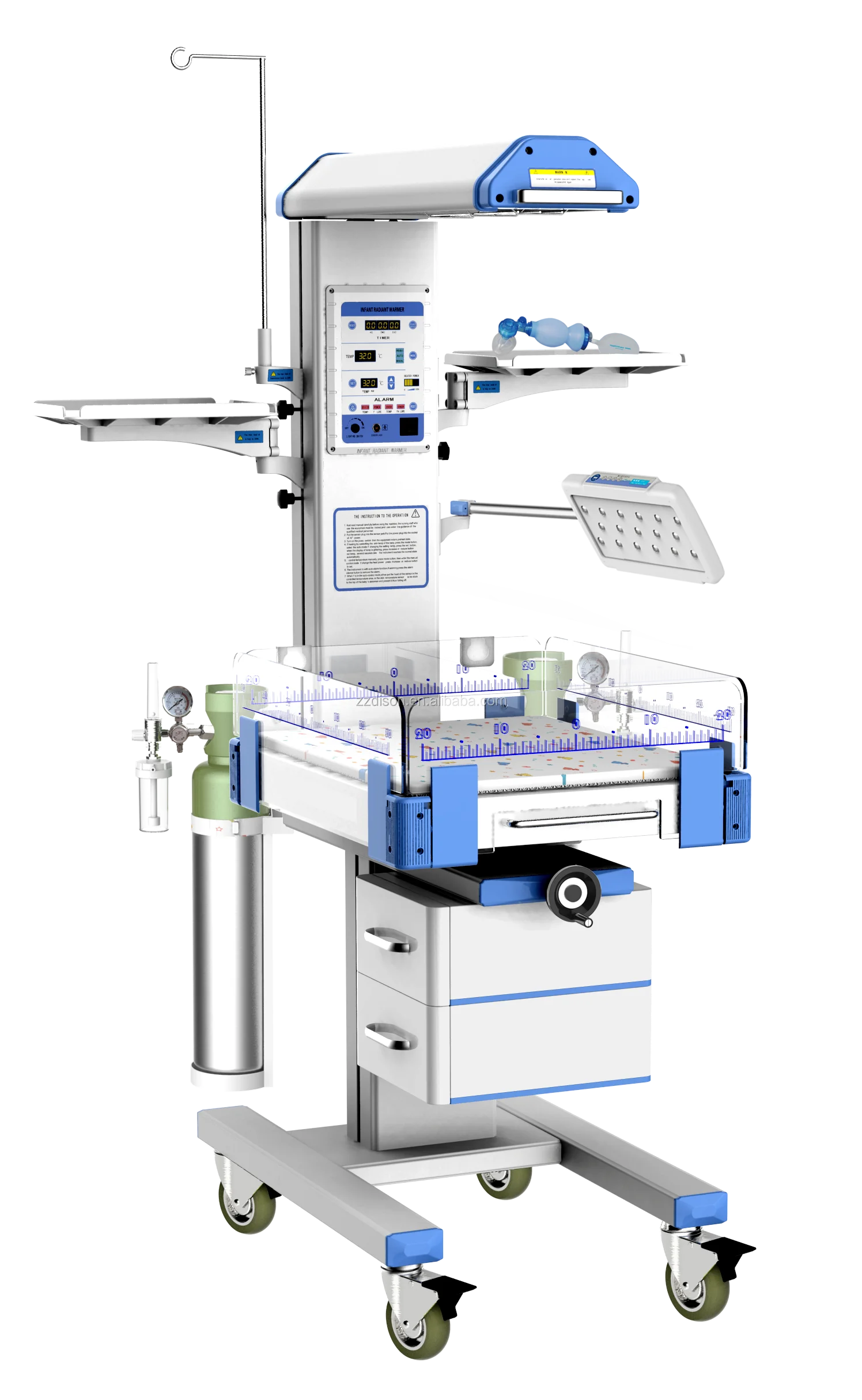

detailed images





packing & shipping



Each unit is packed one wooden case
Size: 120cmX 70cm X 96cm
Gross weight: ≤ 90kg

Delivery and storage

Environment Temp: -40--+55℃
Environment Relative Humidity: ≤ 95%
Atmospheric Pressure: 500~1060Hpa

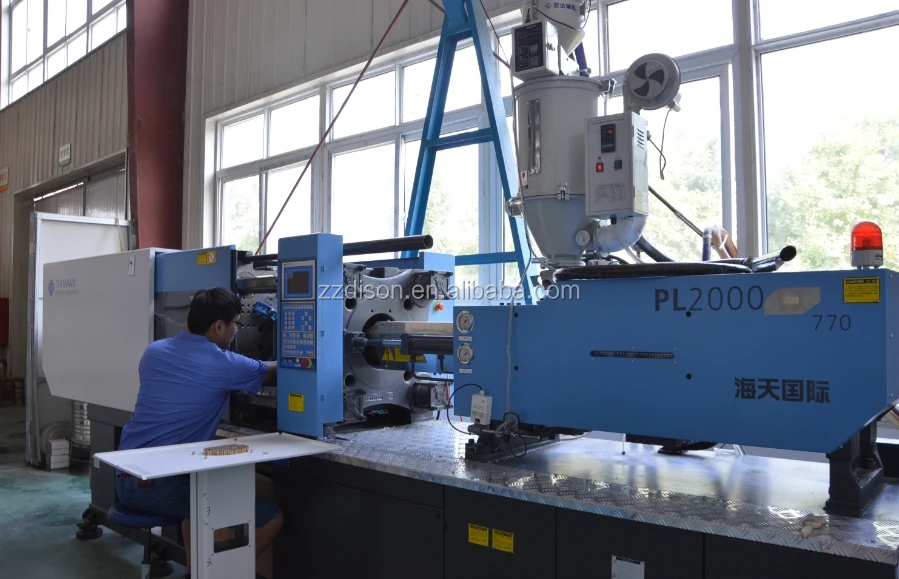

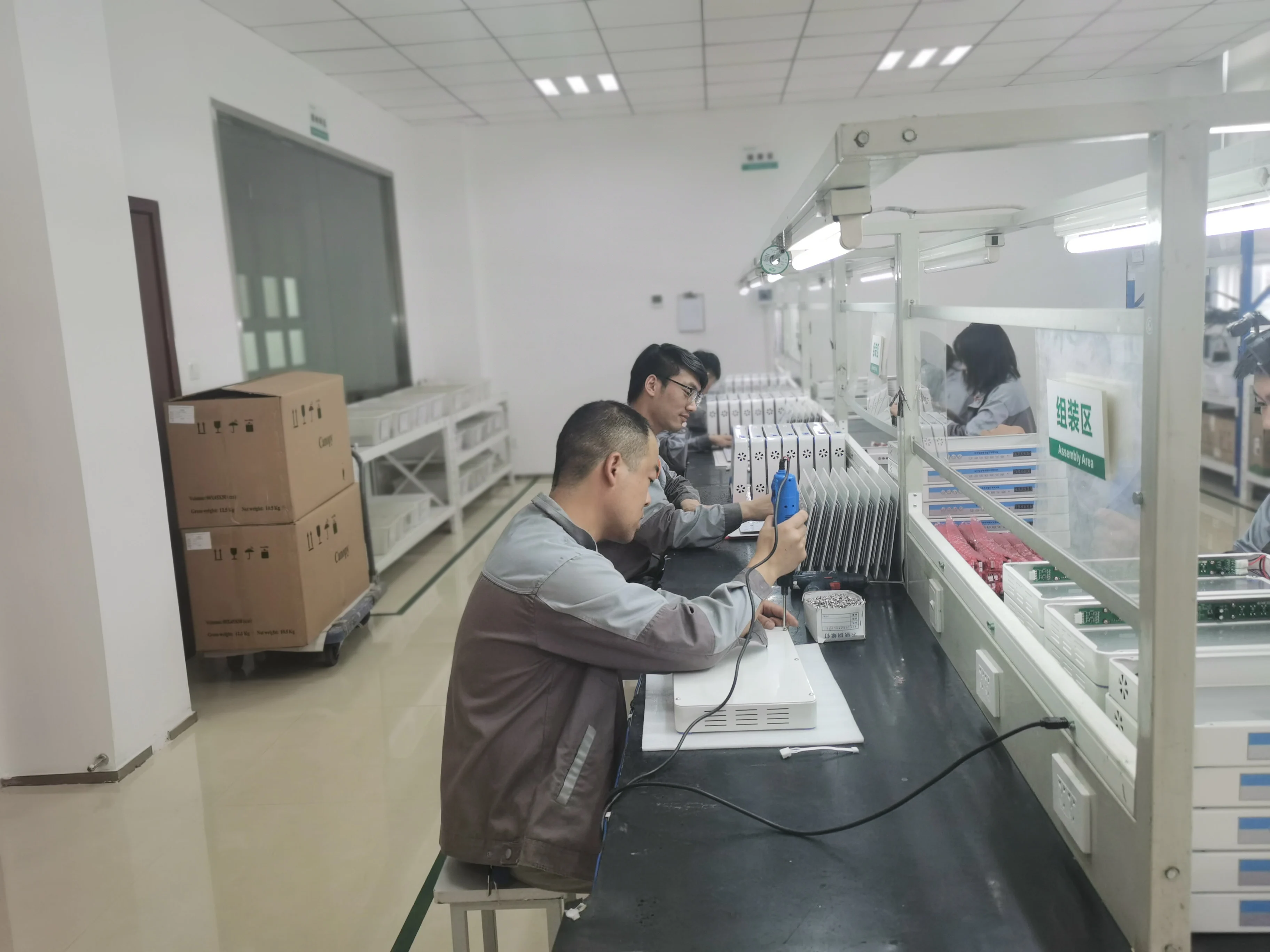

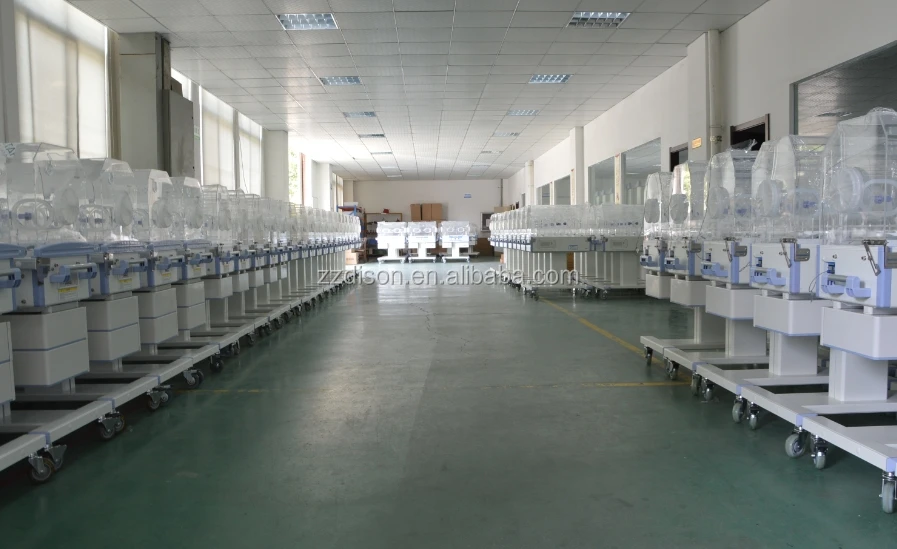

our company

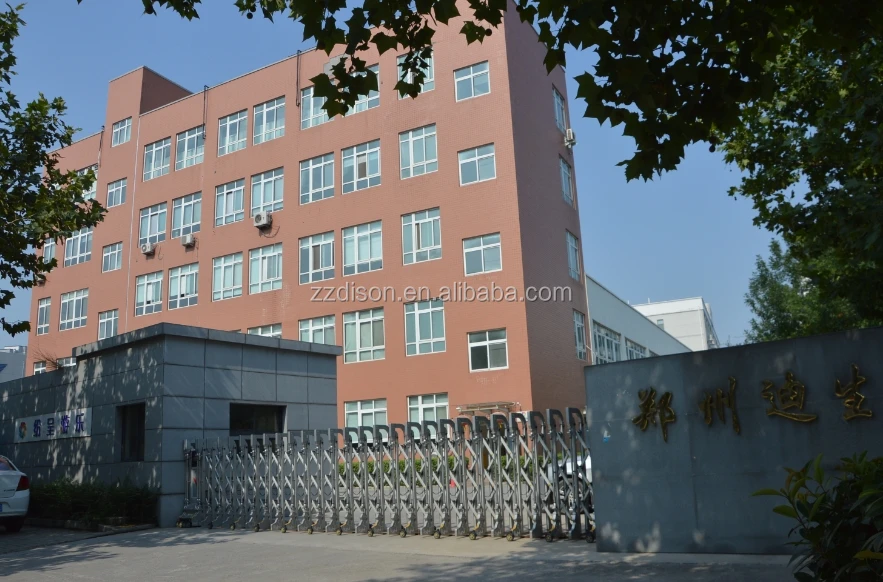

Zhengzhou Dison Instrument And Meter Co., Ltd, founded in 1997, is located in Zhengzhou Hi-Tech Industrial Development Zone of China. We are engaged in researching and manufacturing infant incubator, infant radiant warmer, infant phototherapy unit etc

With more than 13 years’ experience in infant healthcare , we We acquired CE, ISO9001 and ISO13485 certificates and our products have been sold to Asia, Mid-east, Africa, South America and so on. We will keep committing to innovating technology and striving for excellence. Dison sincerely looks forward to cooperating with friends from all over the world.

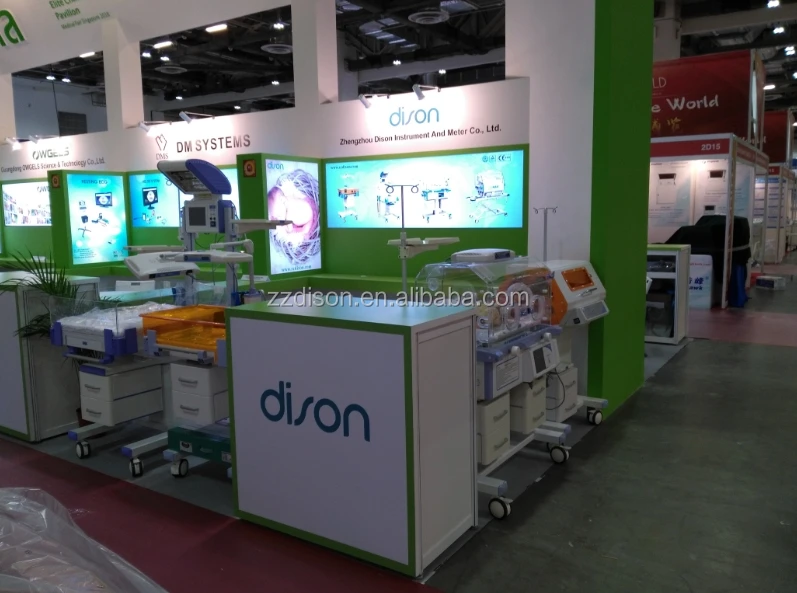

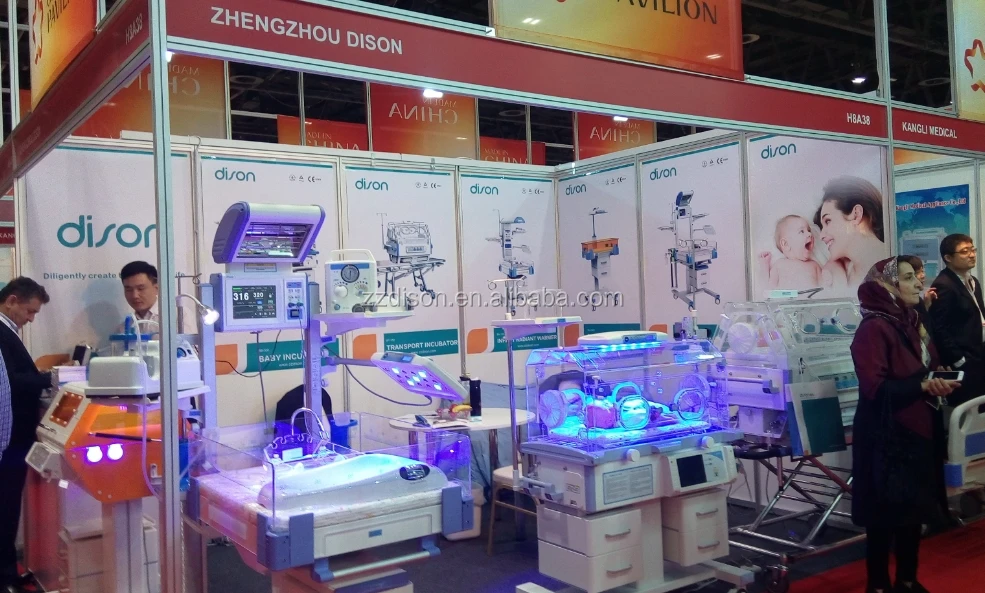

our exhibition
