NUCLEIC ACID EXTRACTION SYSTEM
YJ-48 is a high-quality nucleic acid extraction system. It is used for magnetic bead method to extract and purify sample nuclei c acid. It is easy to operate. It can process 48 samples at a time, and the ex traction volume is 20-1000μL. The extraction efficiency is greatly improved. The extracted nucleic acid has good integrity.
The operating platform is u niquely designed, with its own built-in air duct and ultraviolet sterilization , which can effectively avoid aerosol pollution. Running the instrument co mes with the edited program, and the extraction of high-purity viral nuclei c acid can be completed in 8-35 minutes. The operation is simple and fast.
The operating platform is u niquely designed, with its own built-in air duct and ultraviolet sterilization , which can effectively avoid aerosol pollution. Running the instrument co mes with the edited program, and the extraction of high-purity viral nuclei c acid can be completed in 8-35 minutes. The operation is simple and fast.

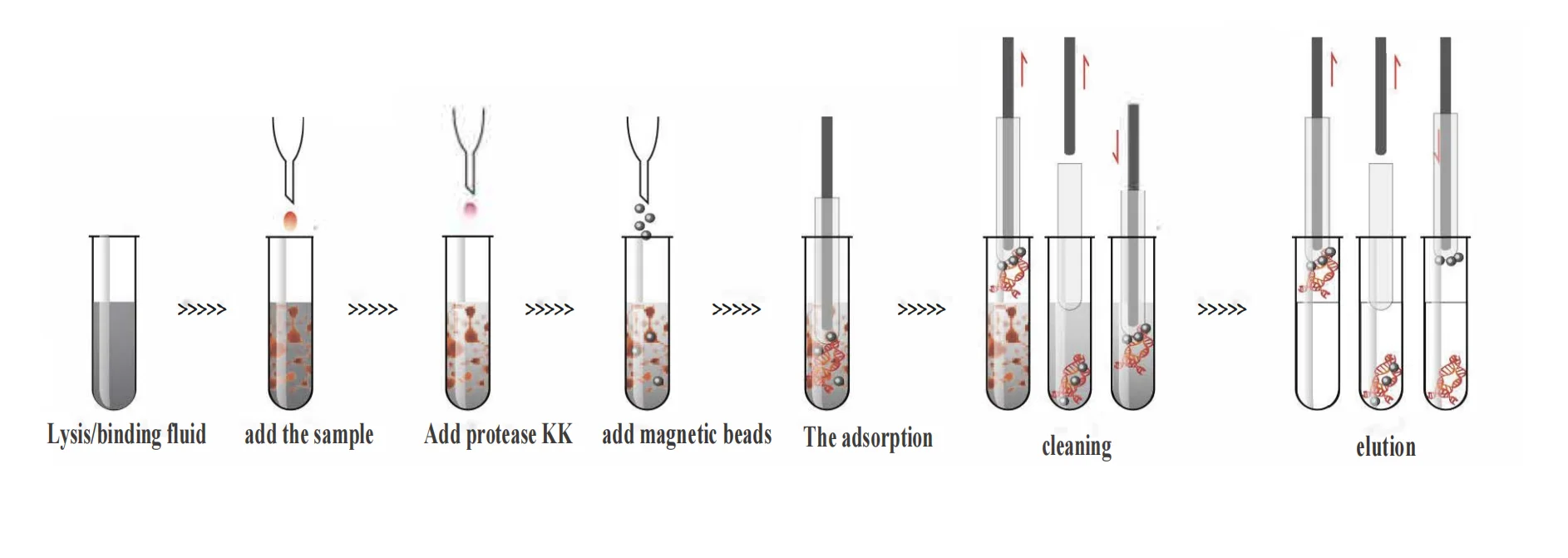

Working Principle:
The instrument's built-in heating function can better promote the sample cracking, releasing more nucleic acid.
Elution can also increase the yield of nucleic acid and improve the overall extraction efficiency
The instrument's built-in heating function can better promote the sample cracking, releasing more nucleic acid.
Elution can also increase the yield of nucleic acid and improve the overall extraction efficiency
PARAMETER | ||
Screen operation | 7-inch Android system touch screen, easy to use, bilingual operation in Chinese and English | |
Multi-mode operation | Scanning method, list method, shortcut, viewing method | |
Processing volume | 20μL-1000μL | |
Sample throughput | 1-48 | |
Magnetic bead recovery | ≥98% | |
Orifice Type | 96-well 2.2mL deep well plate | |
Difference between extraction wells | CV≤3% | |
Heating temperature | 2 independent 96-well V-shaped wrapping heating modules, the pyrolysis and elution temperature can be customized according to requirements (temperature range 0-99 °C), and the temperature sensing accuracy can reach 0.1 °C | |
Kind of reagent | Magnetic Bead Method Open Platform | |
Extraction time | 8-35min | |
Internal procedure | Can store >500 sets of programs | |
Program management | Powerful program editing function to meet the needs of different reagents, and can realize the import and export of USB programs | |
Shake mix | Shake up and down to mix evenly, and the three levels of low, medium and high can be adjusted. | |
Repeatability | ±0.05mm | |
Magnetic bar magnet | >4500gs | |
Flashlight | Long life multi-point LED | |
Disinfection/ Decontamination Methods | Independent professional UV sterilization | |
Input power | AC220V,50Hz,600W | |
