Low Price chicken Farm Cages layer Chicken Coop egg Chicken Cages High quality laying cage

Product Overview

Description

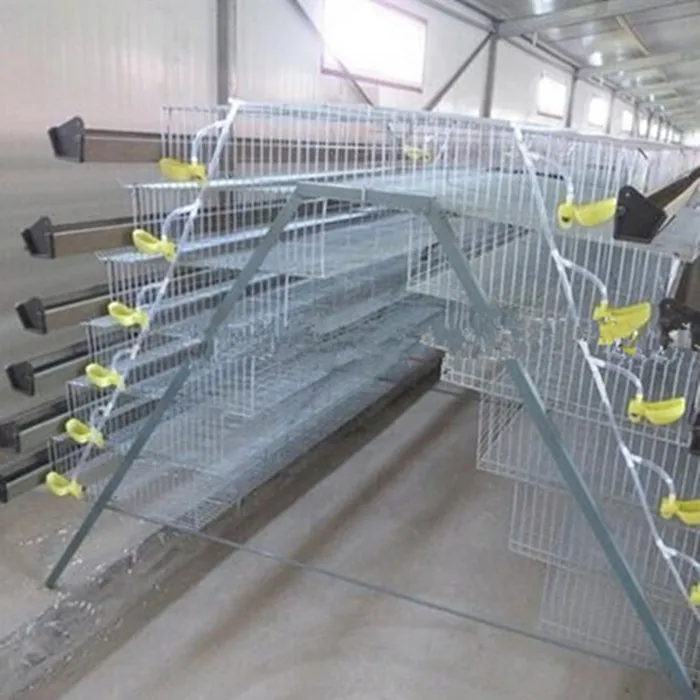

poultry cage factory provide you with high quality A type chicken cage



1.Material:low carbon steel wire 2.5mm-4mm

2.surface treatment:electro galvanized;hot dip galvanized(high quality galvanizing improves the lifespan of cage)

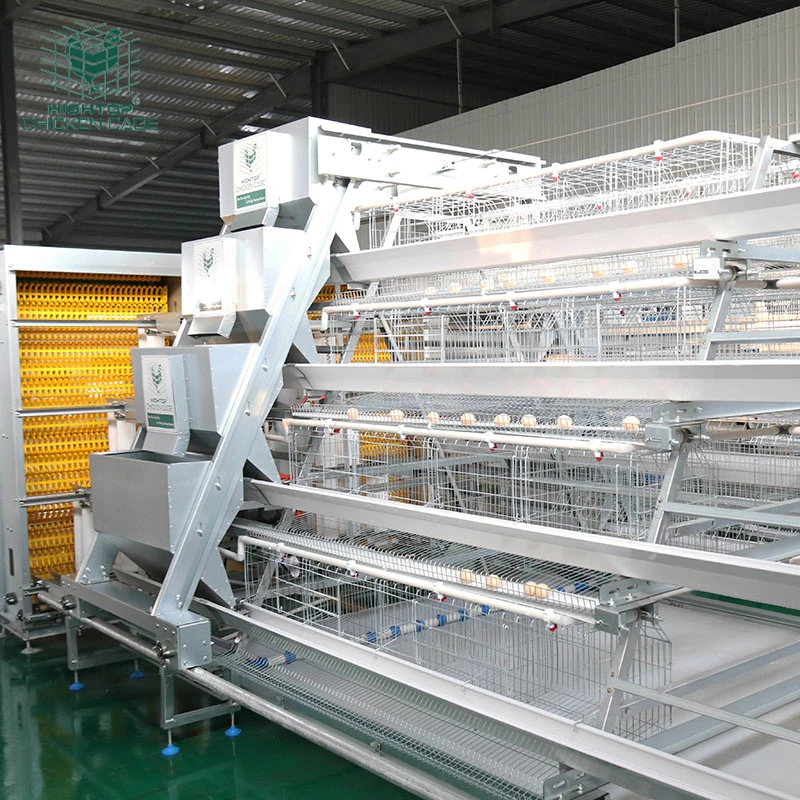

3.poultry farming equipment:

the automatic drinking system:PVC water pipe ;Nipple watering trough; water tank;water tank leg;PVC soft pipe;

the automatic feeding system:feeding trough

the electric automatic machine-manure removal system

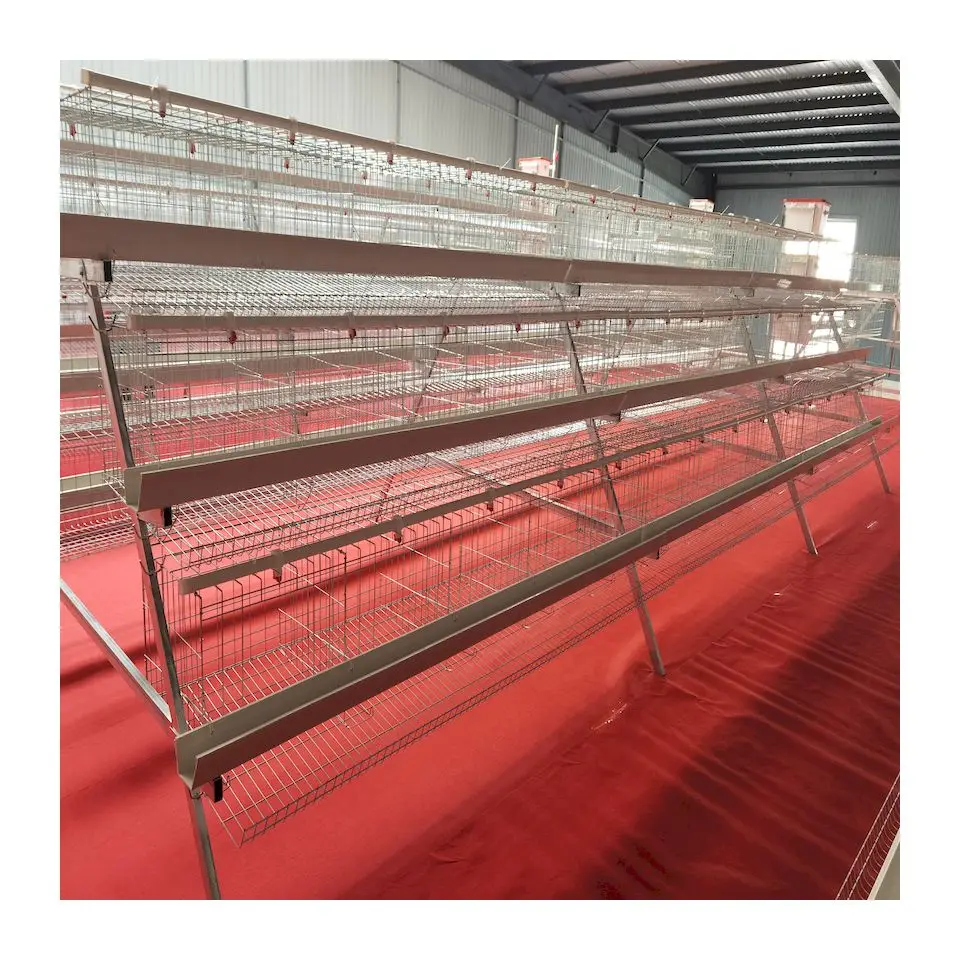

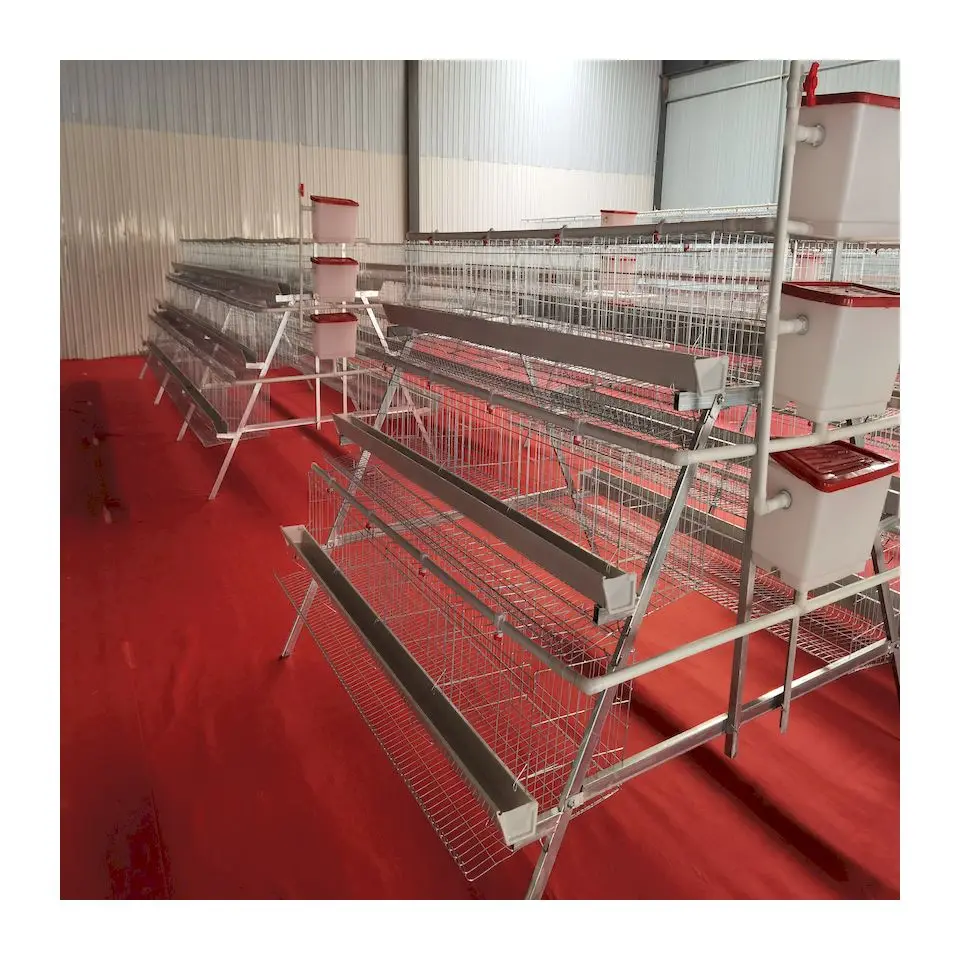

1. Cages for laying chicken

2. 3 -4 layers on each side( total 2 sides) of the frame

3. 8 nest on each layer

4. 4 chicks per cage

5. 96 -160 chicks per set

6. Mesh wire type ---- electro galvanzied wire mesh

7. Cage frame ---- hot galvanzied

8. the size per set : the total length : 2.0m-2.1m (cell No.4-5)

The width :2.1m as the hollow for manure

The high : 1.70m - 1.75m ( three floors )

9.The cage size : we can production according to cusromers requirement

Item	Installation Dimension(L*W*H)	A type	Contain		Cell Dimension(L*W*H)
A3L5D120	7.2*7.9*5.5 ft	3 layer 5 door	120 birds	30cells,4birds/cell	16.9*16.5*16.2 inch
A3L4D120	7.0*7.5*5.5 ft	3 layer 4 door	120 birds	24cells,5birds/cell	19.7*17.7*17.7 inch
A3L4D96	6.4*7.2*5.2 ft	3 layer 4 door	96 birds	24cells,4birds/cell	18.5*14.6*14.6 inch
A3L5D90	7.0*7.2*5.2 ft	3 layer 5 door	90 birds	30cells,3birds/cell	16.9*14.6*14.6 inch





10. Each cage accessories: drinking water, feeding trough, cage frame, PVC pipe, clip, each row cage has 3 water

tank.
