Factory high quality indoor seamless acoustical perforated gypsum ceiling panels sound plasterboards plasterboard
- Category: >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.Jiangyin Ltd.
Share on (10000006515156):
Product Overview
Description
DEGOTONE
Perforated Plasterboard Ceiling Tile Acoustic gypsum ceilings
Perforated Plasterboard Ceiling Tile Acoustic gypsum ceilings

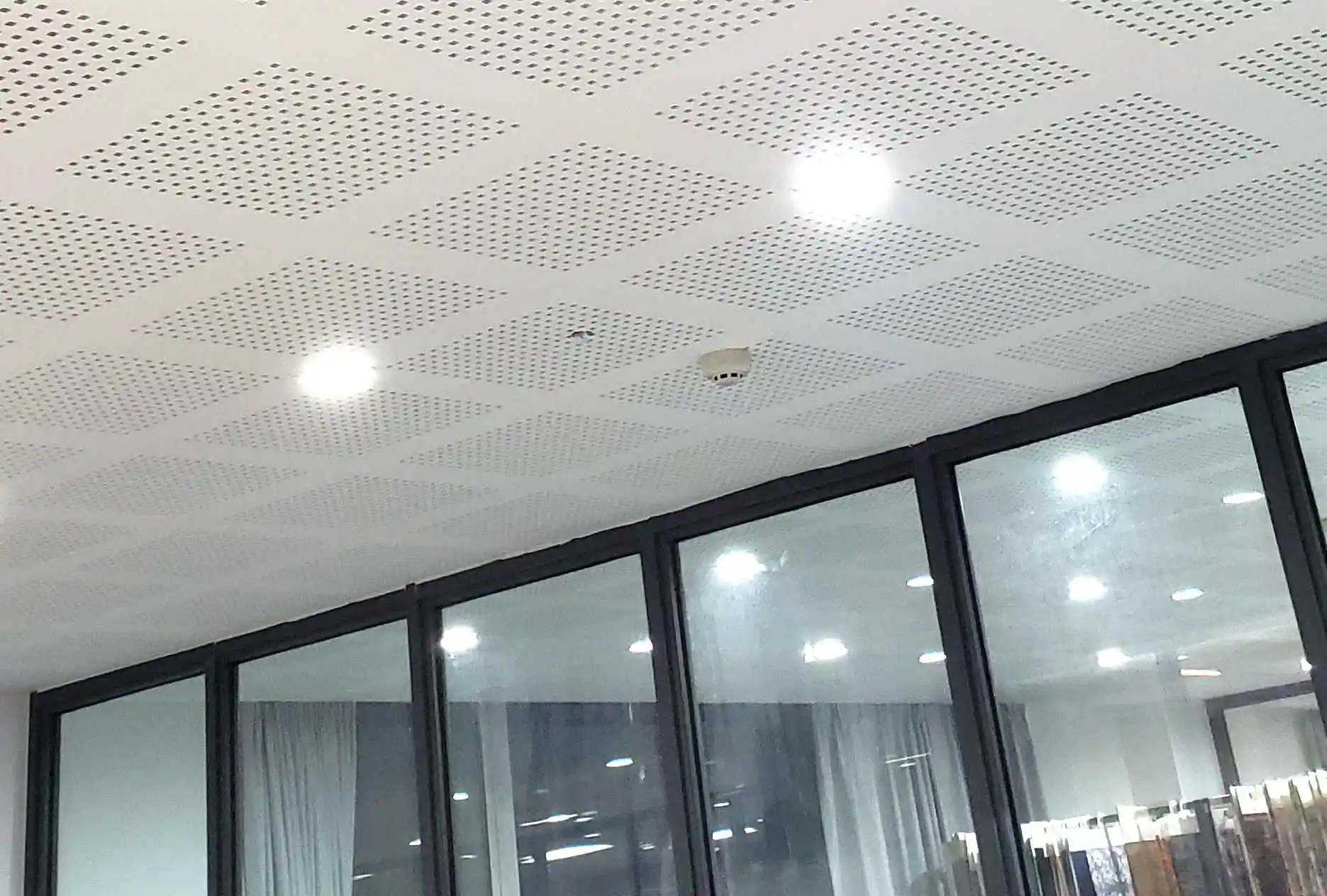

DEGOTONE boards bring a feeling of
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsumboards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsumboards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.
Perforated gypsum is a truly distinctive acoustic solution exclusive to Degotone® both absorb sound, allowing speech to carry without being distorted by echo or background noise.

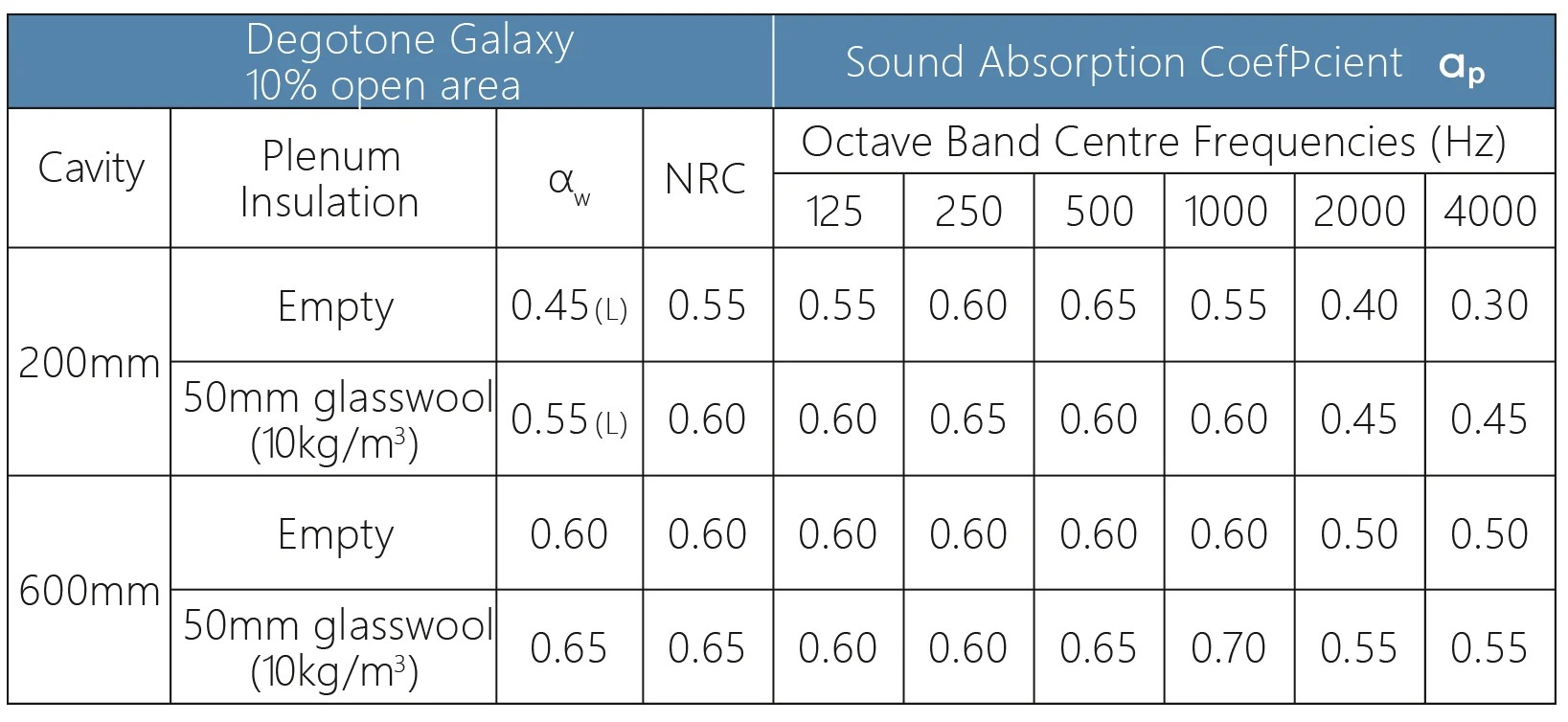

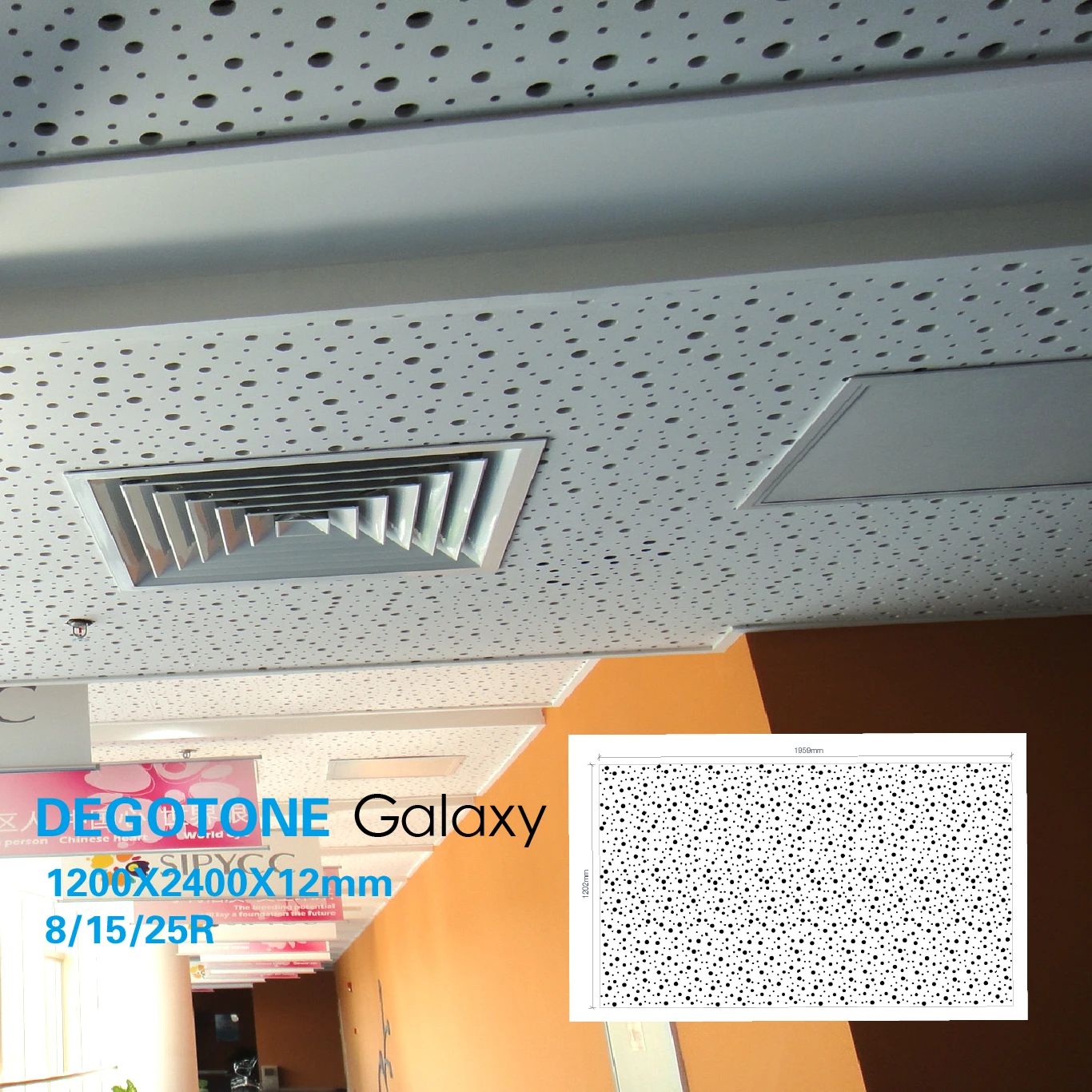

Degotone Galaxy (8-15-20 Super)

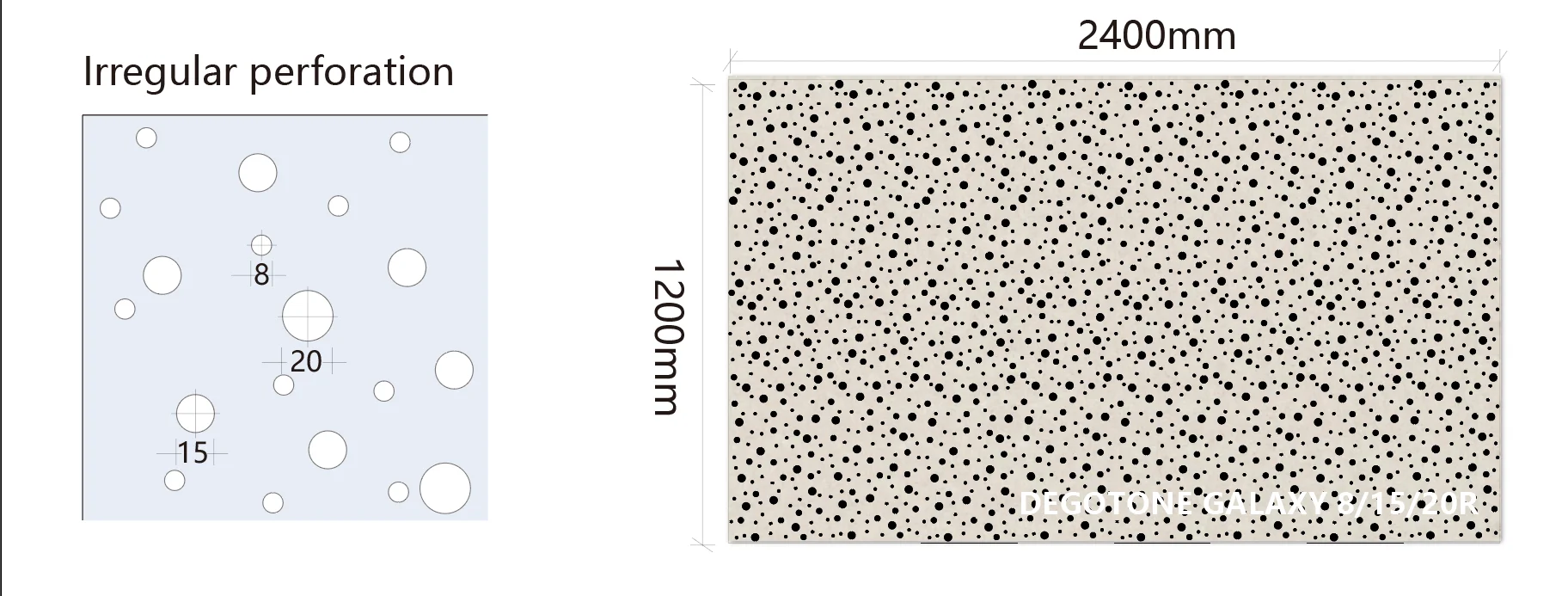

An irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area. Supplied with a white orblack acoustic fabric backing.
Size:2400X1200X12.5mm
Hole 8 15 20mm roud hole
Perforation rate：10%Sound absorption coefficient
αw= 0,50 Class D
Blace 32K wool
αw= 0,55 Class D

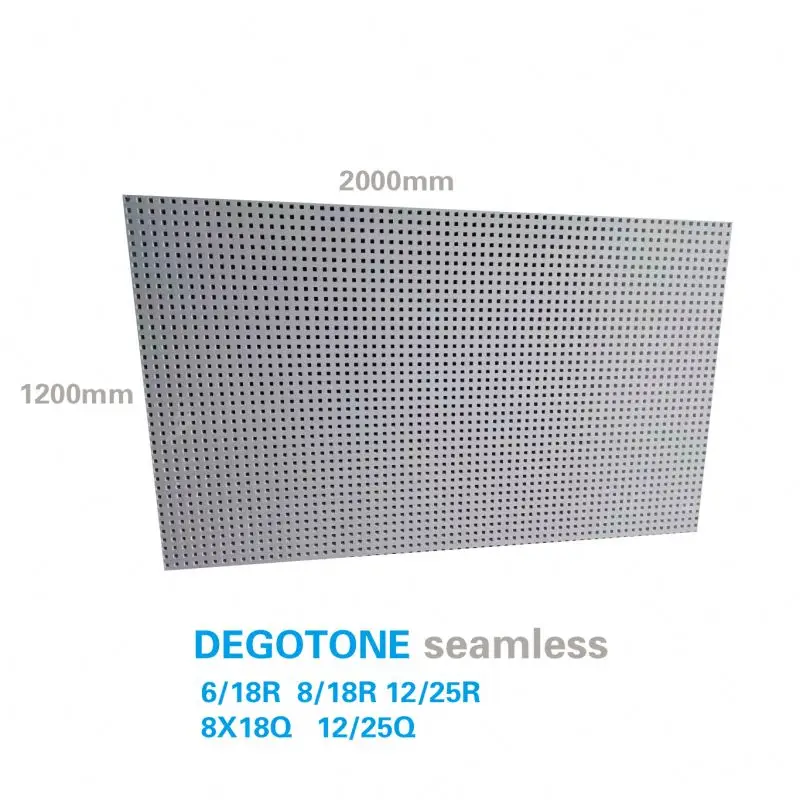

Degotone 8/18Q (Seamless)
DEGOTNE perforated plasterboard is a superior and modernacoustic solution that delivers a monolithic design due to its
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm

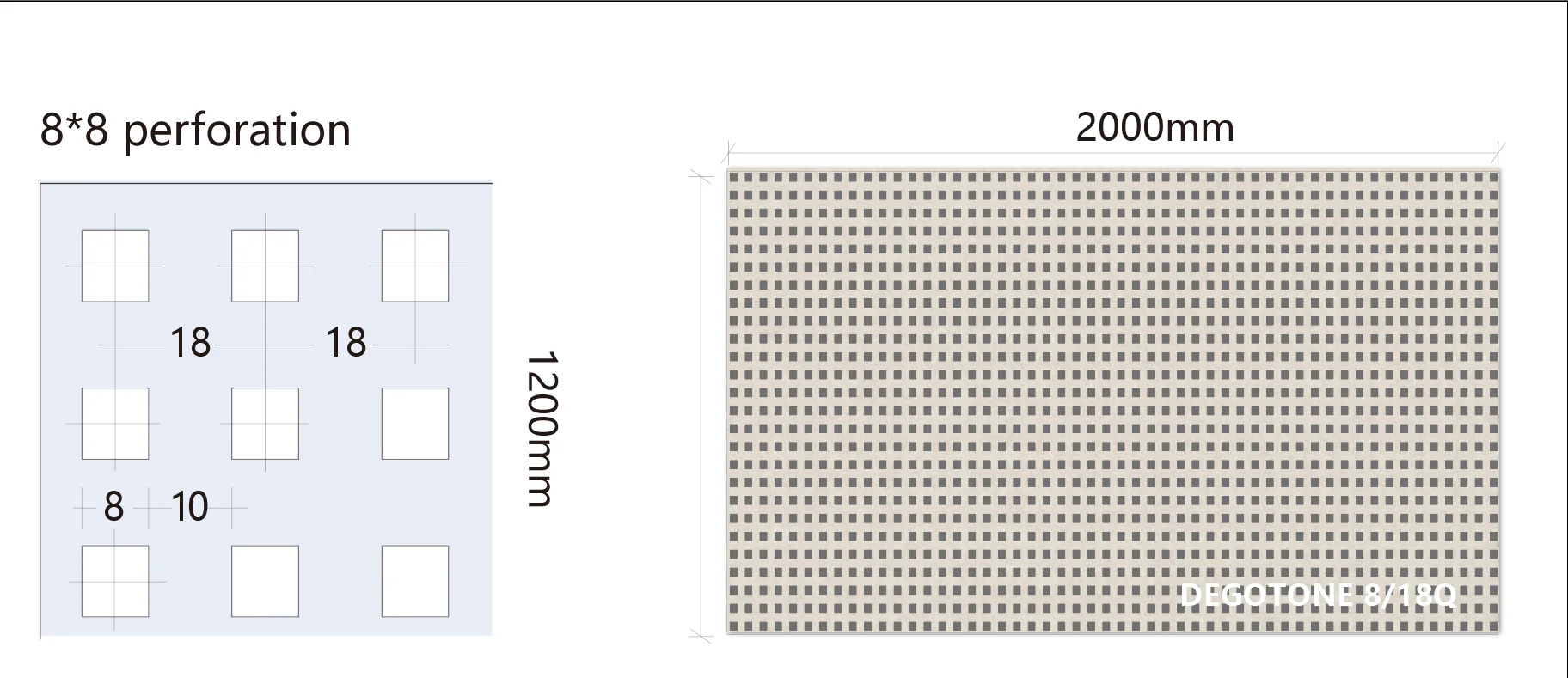

Square Q2000
Size:2000X1200X12.5mm
Hole :8X8 square CC 18mm
Hole :8X8 square CC 18mm
Perforation rate：18%
Sound absorption
αw= 0,65 Class D
Blace 32K wool
αw= 0,55 Class D

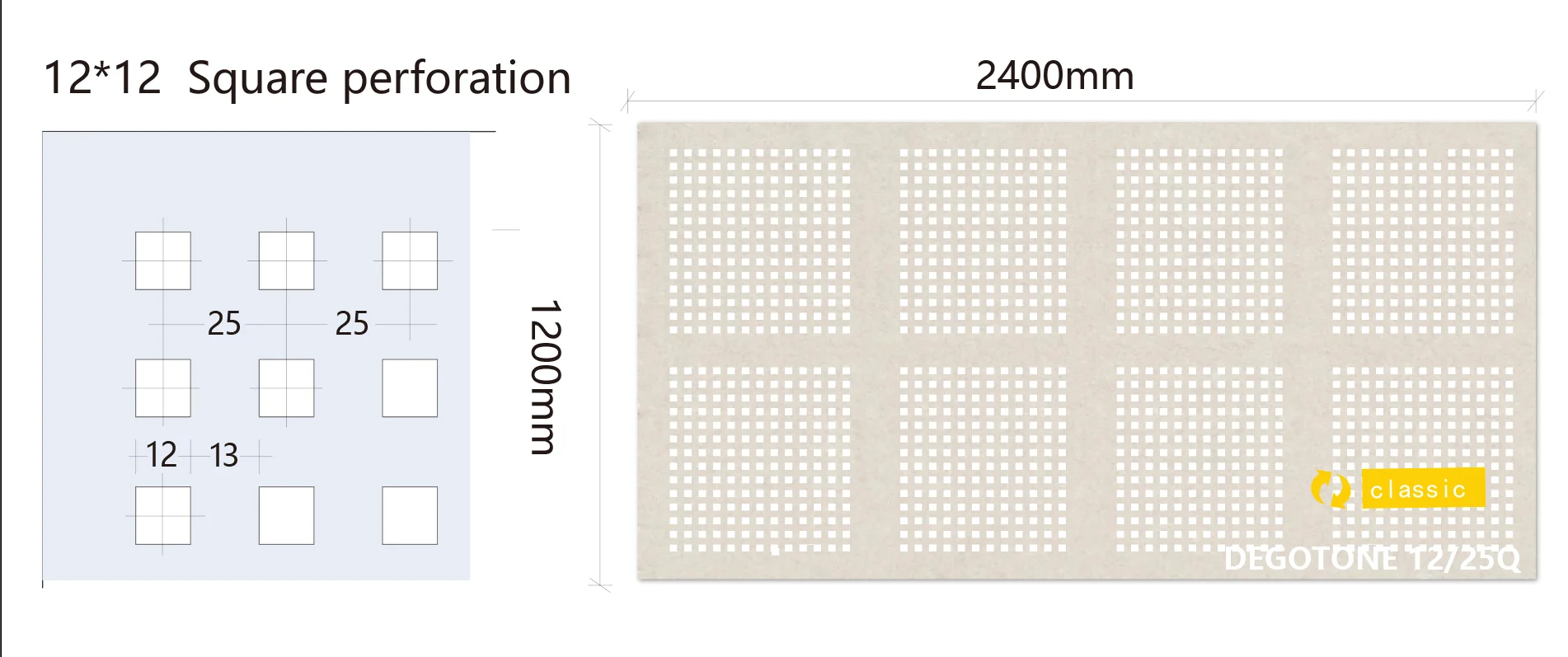

Degotone 12/25Q (Block)

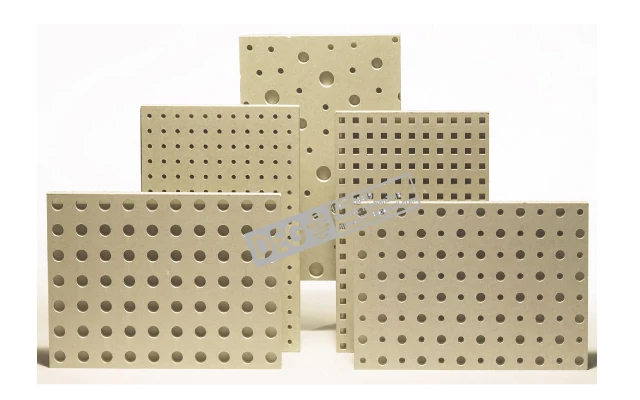

DEGO perforated plasterboard pattern Regularly arranged and divided into a variety of pattern blocks, hole types are round holes square holes micro holes hexagonal holes
Square Q2000 12/25Q
All ceilings in the Perforated Plasterboard ceiling have been designed for use on ceilings where an increased level of sound
attenuation and a high level of aesthetic appeal is required. The design features 8 large rectangular groupings per sheet, each
with 12X12mm square perforations at 25mm centres to provide an open area of 16%.
attenuation and a high level of aesthetic appeal is required. The design features 8 large rectangular groupings per sheet, each
with 12X12mm square perforations at 25mm centres to provide an open area of 16%.
Material: | High-strength plasterboard Gypsumboard | ||||||
Surface: | Ivory white （No paint） | ||||||
Color | White | ||||||
Hole | Round 6 812 15mm，squarel 8x8 10x10 12 x 12 mm. Micro M 3 x 3 mm | ||||||
Sizs： | 1200*2400mm，2000*12OOmm | ||||||
Thickness | 12.5mm | ||||||
Weight | 7.7kg/m2 | ||||||
Edge | Square ,Tegular | ||||||
Perforation rate | 9-21.3% | ||||||
Back | 45g/m2 Sound absorption fabric | ||||||
Fireproof class | A2 -s1d0 ,China | ||||||
Acoustic performance | αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB | ||||||
Moisture resistance | RH70 | ||||||
Suspension system | Ceiling grid (Ceiling T bar) | ||||||

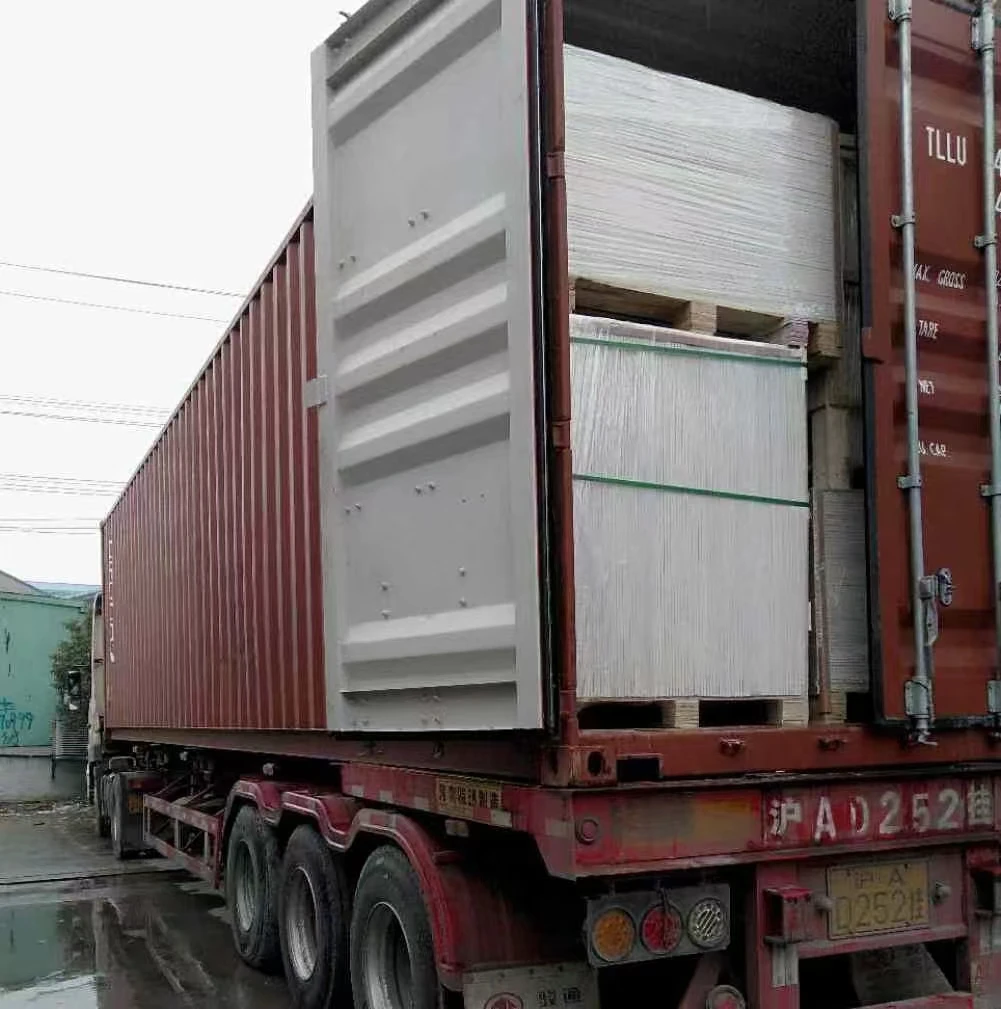

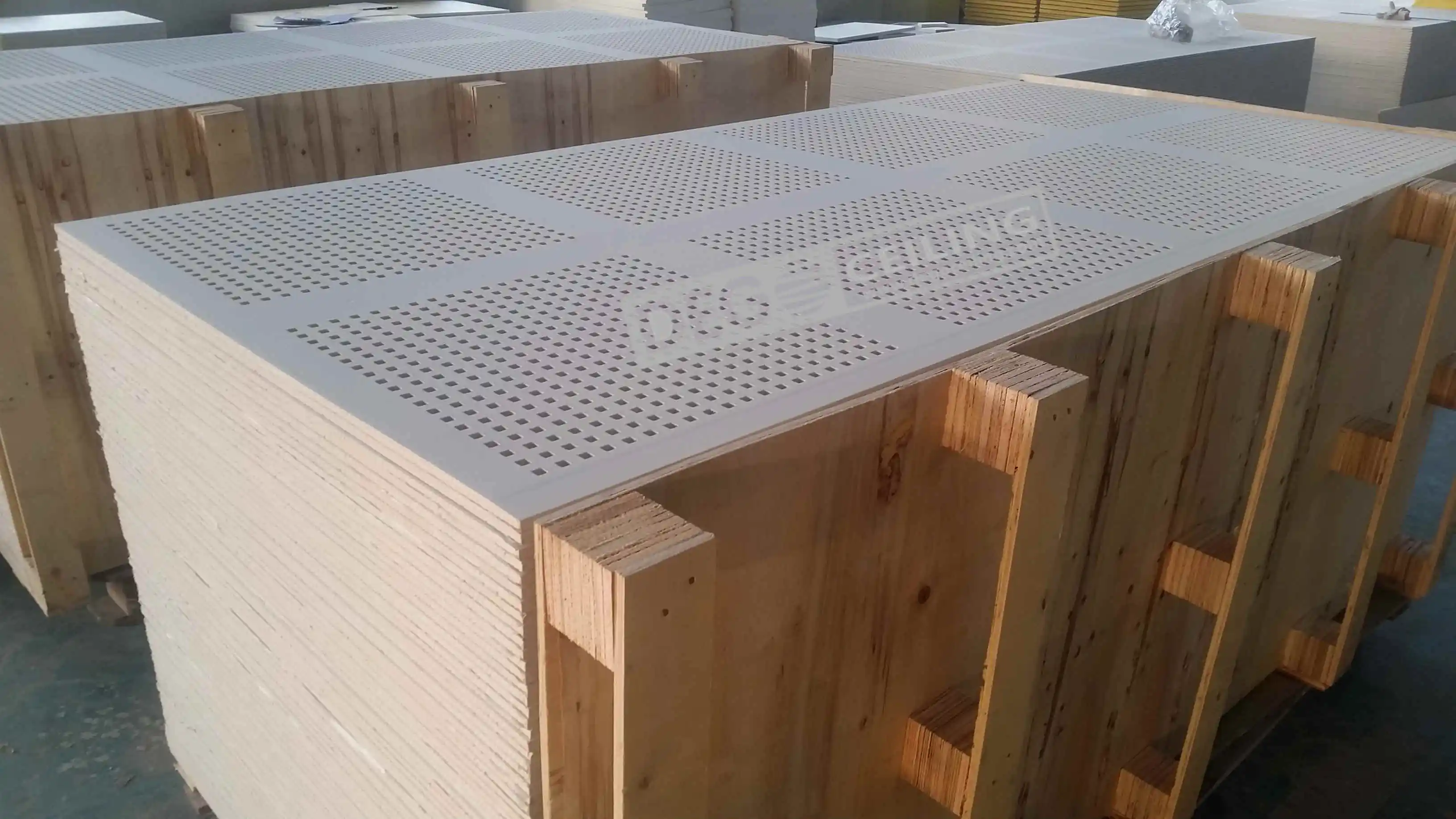

Loading
1555.2m2 40 pcs /20 GP 3110.4m2 1080 /40GP With wooden pallet
FOB SHANGHAI CHINA

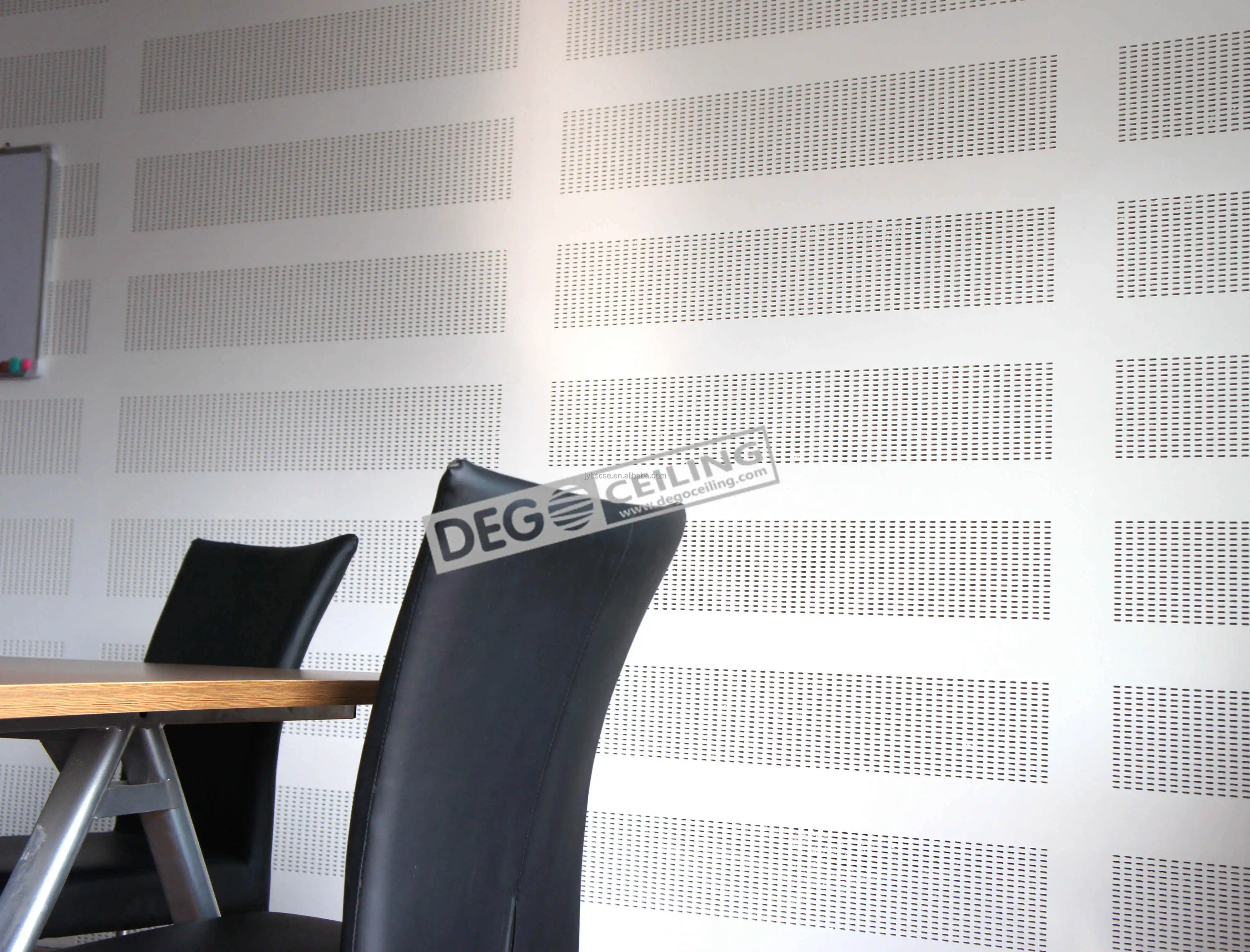

For Acoustic Wall

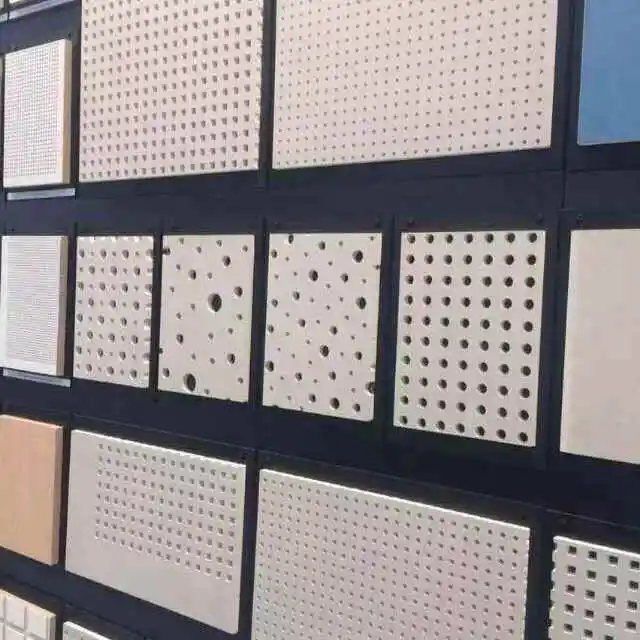

More Pattern

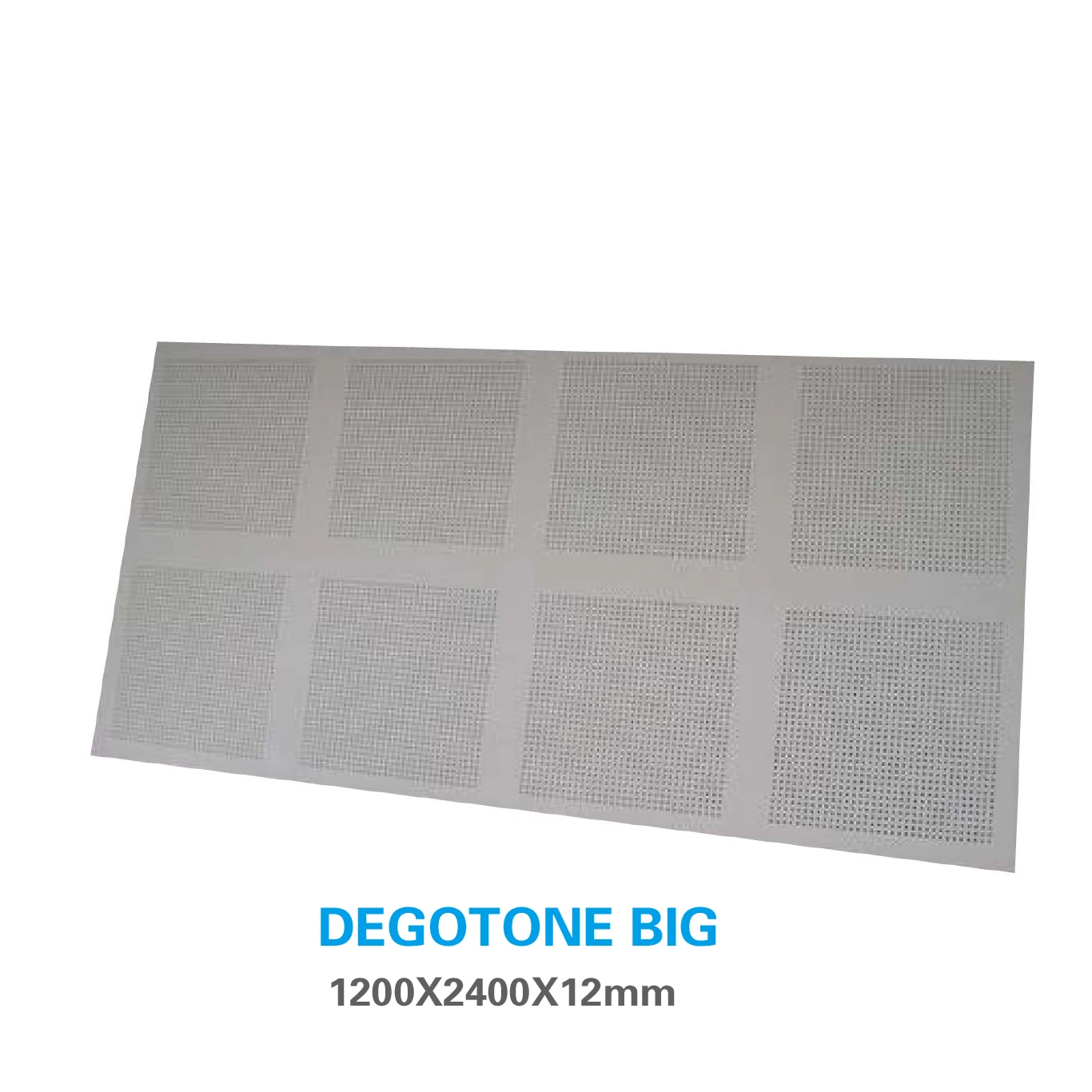

Square 12/25Q -2400
12mm Square features eight large square groupings per sheet, each with 400 x 12mm square perforations at 25mm centres, providing a
16% open area
16% open area

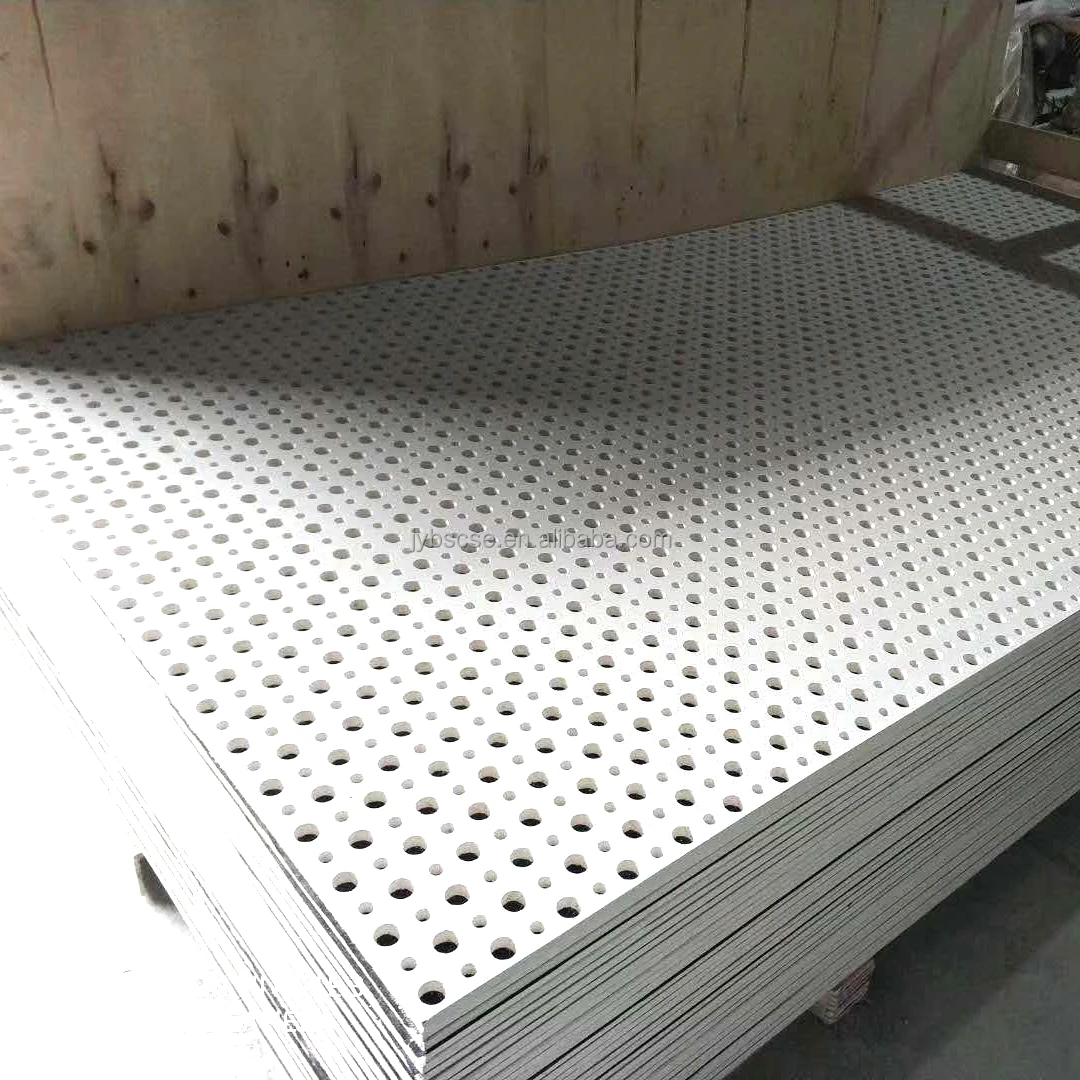

Round 15/30R-2400
Standard 6 mm12mm 15mm Round provides an economical aesthetic solution for ceilings or walls and acoustic performance is adequate for most situations where moderate levels of attenuation are required.
Square 12/25Q -2400H32
Gyptone 12mm Square Minigrid features eight large square groupings per sheet, each with nine mini grids of 16 x 12mm square perforations at 25mm centres. This subtle pattern provides an open area of 6%.

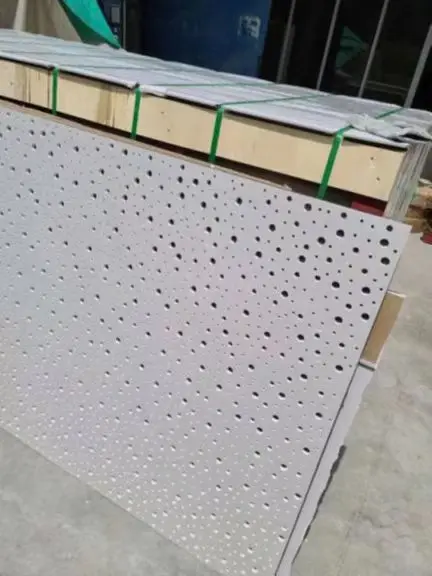

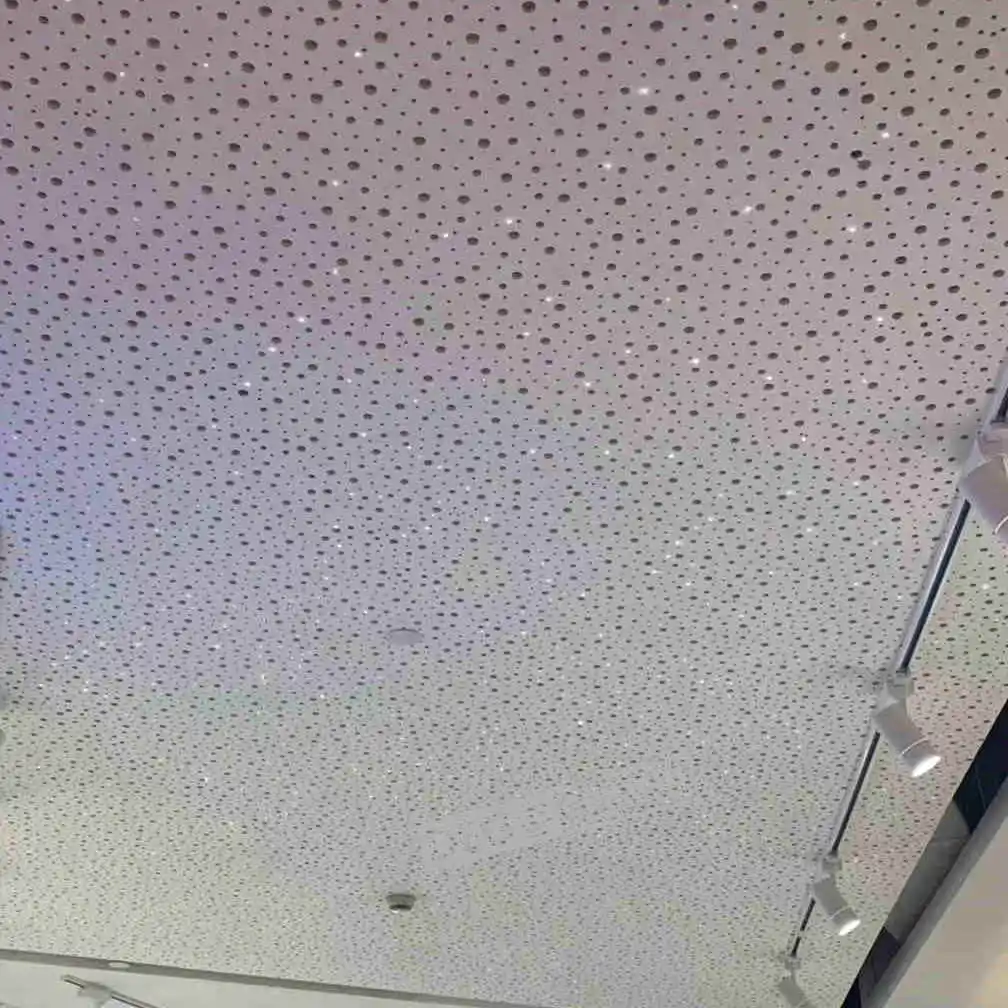

DEGOTONE Galaxy 8/15/20R
Galaxy features an irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area.
DEGOTONE Galaxy 12/20/35R
Degotone Galaxy’s seamless intricate pattern and acoustic performance is universally appealing to provide sound control and an
arresting aesthetic in public areas in commercial buildings.
arresting aesthetic in public areas in commercial buildings.
DEGOTONE Cross 12/20/50R
Rigitone Astral features a regularly staggered pattern consisting of 12mm and 20mm round perforations spaced at 25mm centres,
providing a 14.2% open area.
providing a 14.2% open area.
DEGO FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Mineral wool modular ceiling
Glass wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A2
Moisture resistance RH99
Fire performance A2
Moisture resistance RH99
Sound absorption NRC0.85
Stone Wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A1
Moisture resistance RH99
Moisture resistance RH99
Sound absorption NRC0.85
Gypsum Tiles
