TiMOTION TA2PAC AC Actuator For Ventilation System

TiMOTION’s TA2PAC is a linear actuator with an integrated AC/DC power supply. It is controlled by 1 neutral wire and 2 line wires (extension and retraction), making it ideal for automating ventilation systems in livestock farming.

General Features

•


  Max. load: 2,000N (push/pull)





•


  Max. speed at max. load: 7.5mm/s





•


  Max. speed at no load: 52mm/s





•


  Retracted length: >235mm (depending on chosen options)





•


  IP rating: IP66D





•


  Stroke: 20~1000mm





•


  Output signals: POT





•


  Voltage: 100~240V AC





•


  Operational temperature range: -25°C~+65°C





•


  Operational temperature range at full performance: -25°C~+45°C

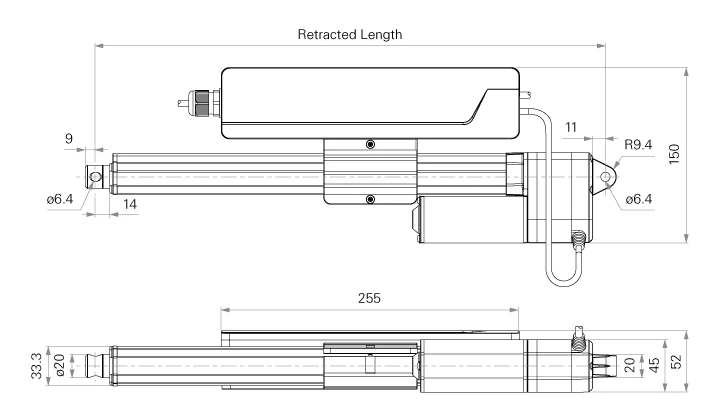

Standard Dimension (mm)
