Hong Kong Made Nano Mini Pleated Panel Filter Sterilizing hvac air filters AC Filter
- Category: >>>
- Supplier: Nanofil Filtration Technology Limited
Share on (10000006587700):
Product Overview
Description

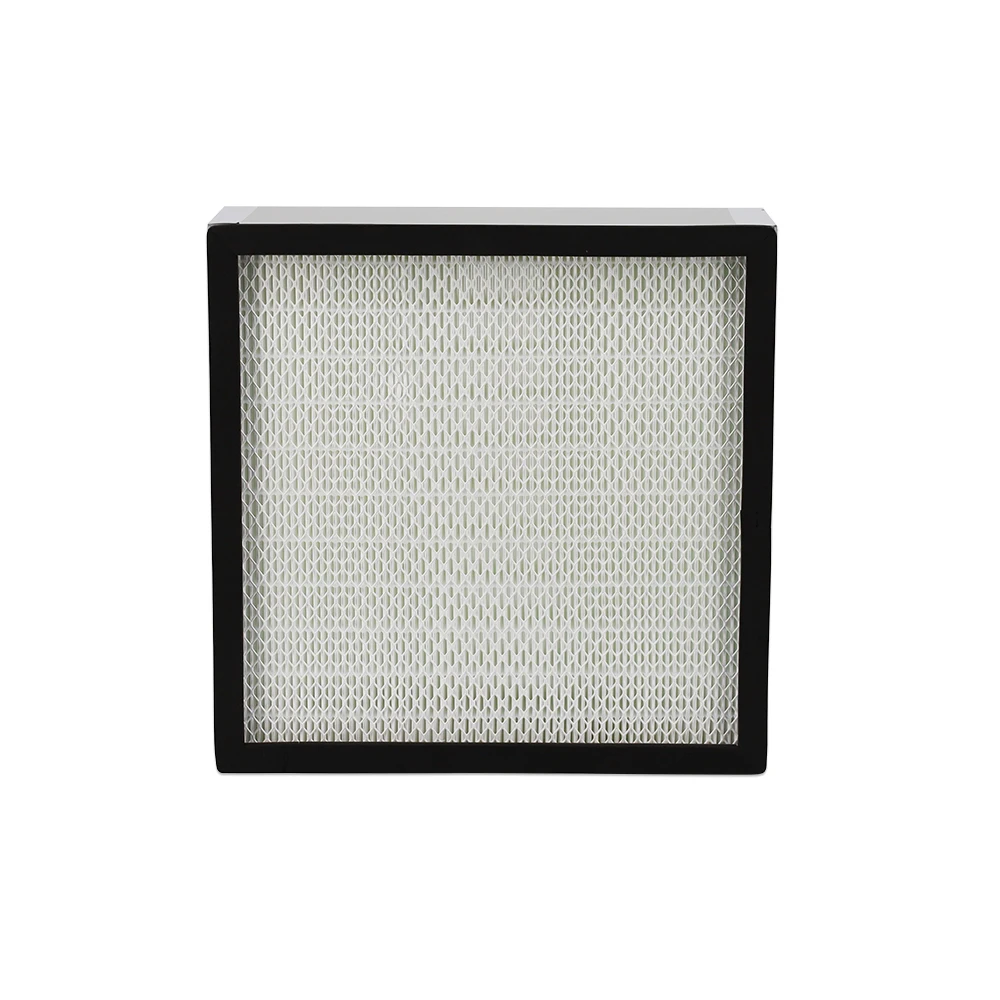

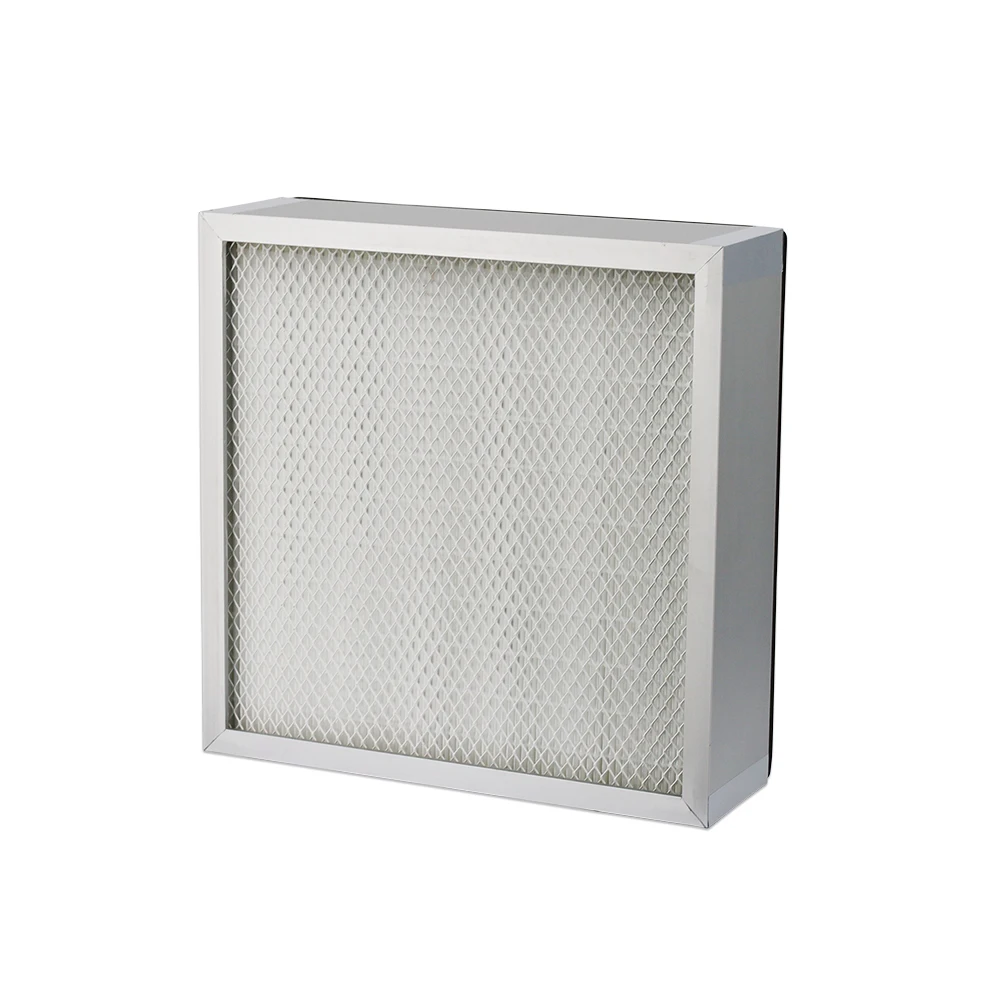

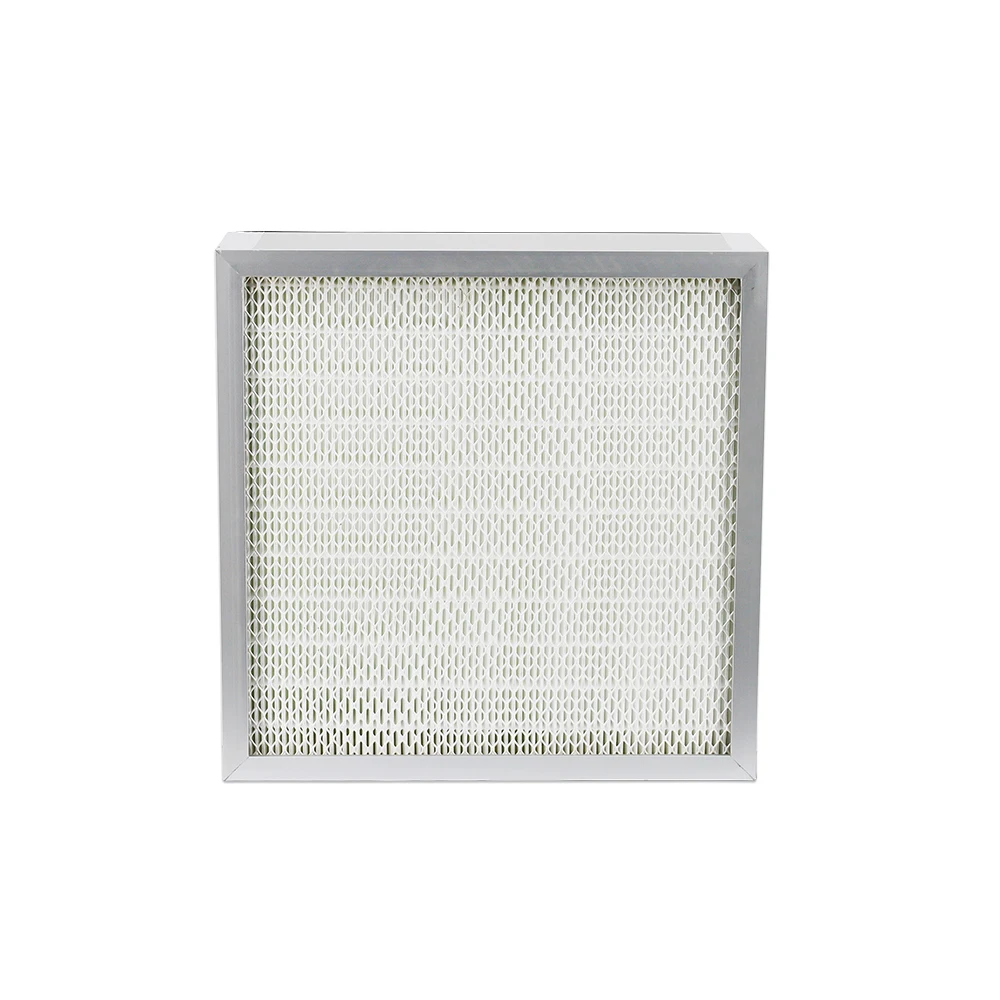

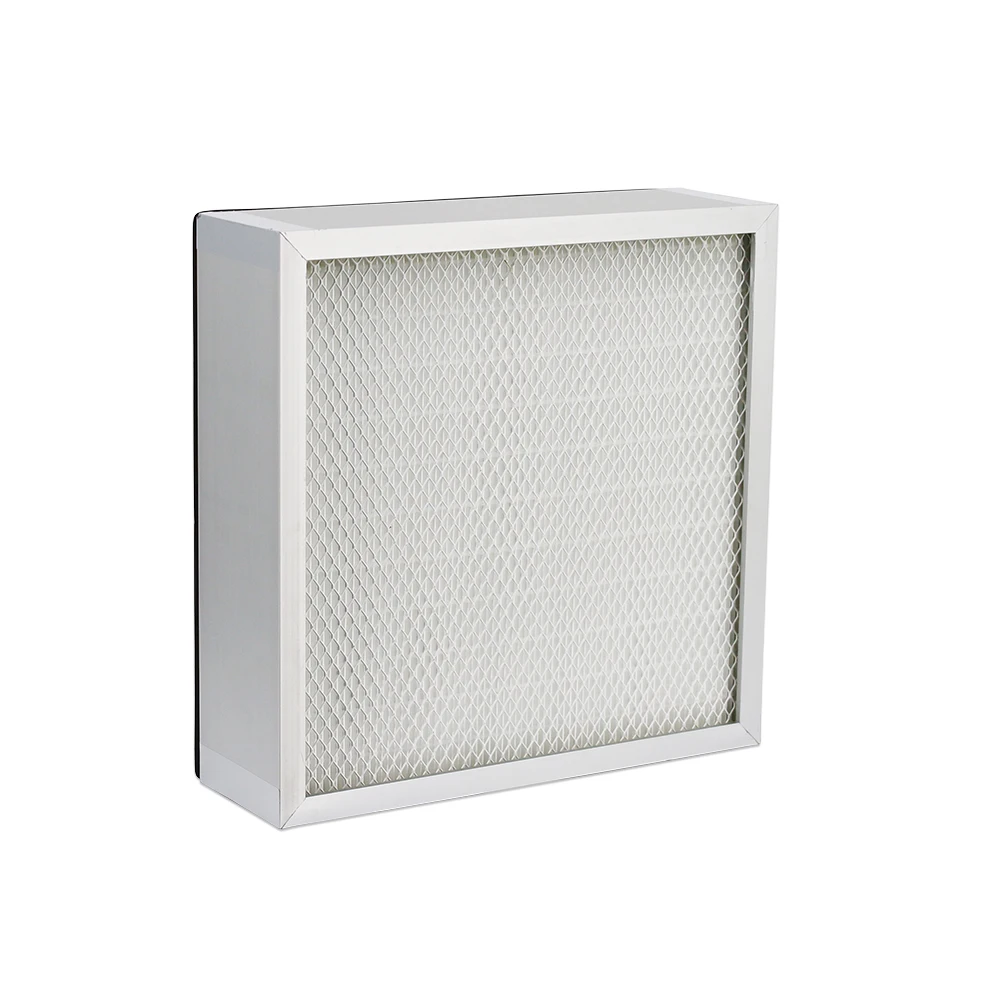

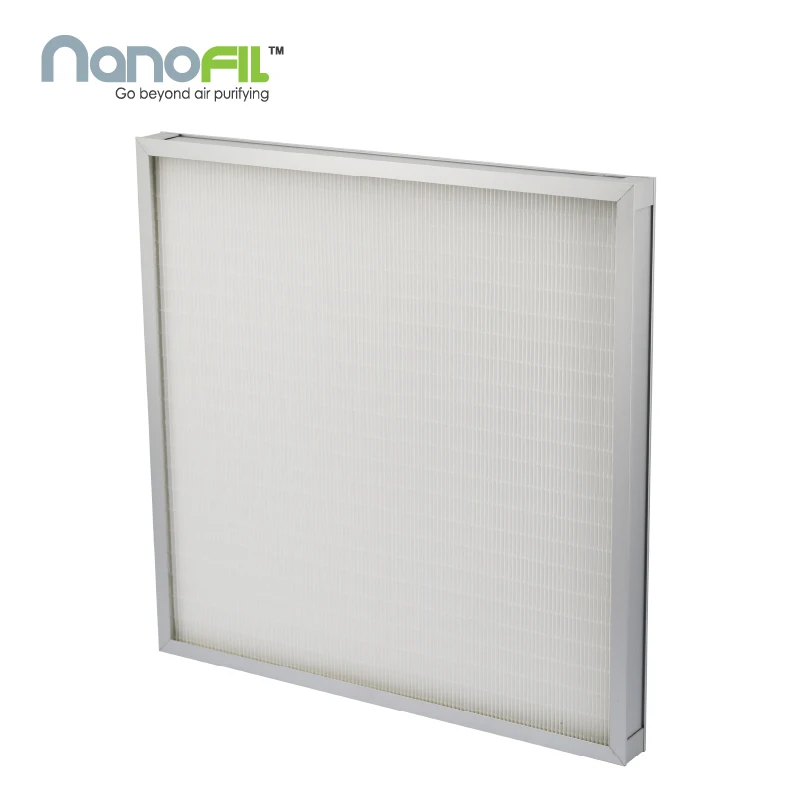

NanoFIL Mini-Pleated Panel Filter
Pleated panel filters are widely used in HVAC sector. NanoFIL pleated panel filters have superior technical properties due to a special production design – Pleated Technology allowing an optimal use of the maximal filtration area at low pressure drop even at high volume air flow.

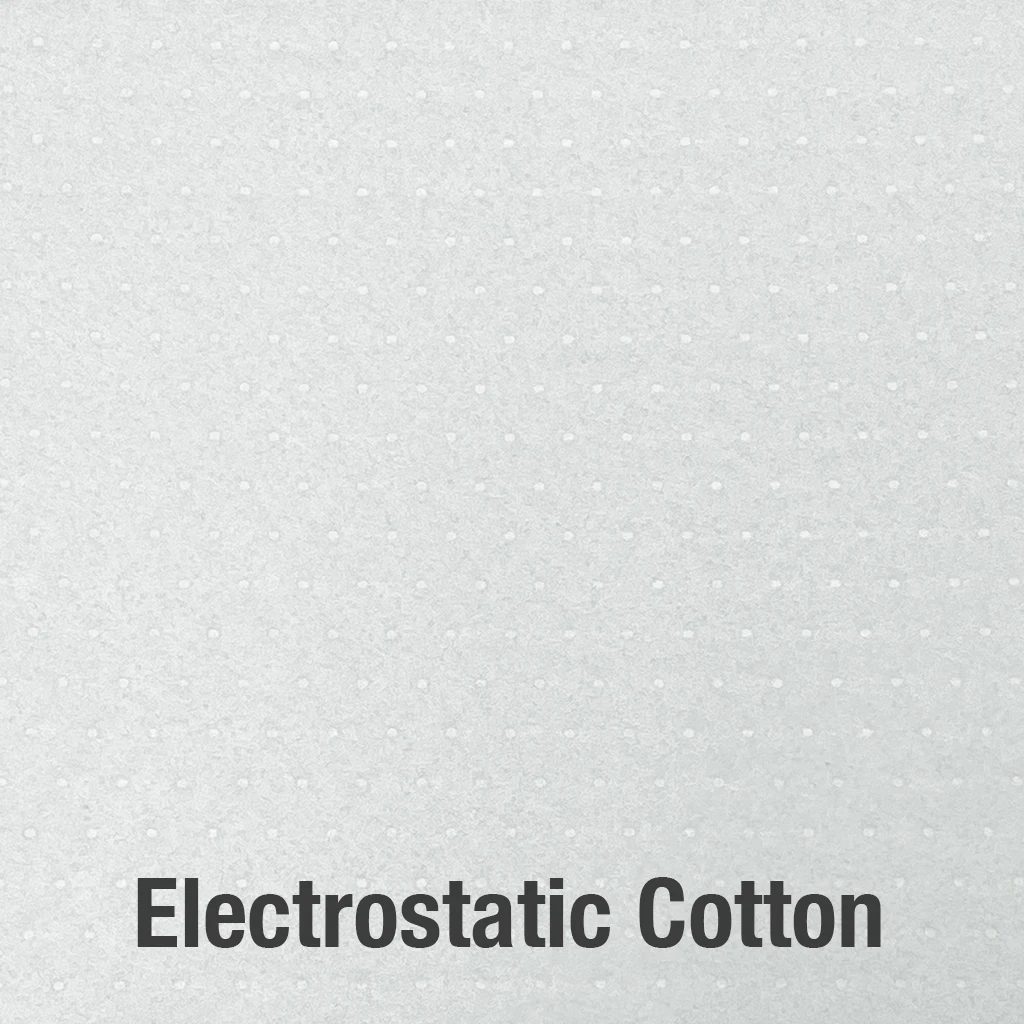

Pleated filter structure offers a high stability and reliable operation. High efficiency nanofiber and electrostatic composite layers combined with a special hot melt plastic pleat bonding system is used in the production of the pleat pack to create a perfect V-shape filter material, which ensures a full utilization of the filtration area and uniform dust spread over it, thus leading to extended filter lifespan.
Pleated filter structure offers a high stability and reliable operation. High efficiency nanofiber and electrostatic composite layers combined with a special hot melt plastic pleat bonding system is used in the production of the pleat pack to create a perfect V-shape filter material, which ensures a full utilization of the filtration area and uniform dust spread over it, thus leading to extended filter lifespan.
High rate of air permeability ensures a low resistance of air movement (low pressure drop) and efficient energy consumption readings for the HVAC equipment in which a filter is installed. All NanoFIL mini-pleated panel filters are featured with antimicrobial property.
Applications
NanoFIL Mini-Pleated Panel Filter Advantages
• 2-in-1 multi-functional: particulate, antimicrobial
• Effectively filter particulate matter and airborne allergen
• Large surface with high dust loading capacity
• Effectively filter particulate matter and airborne allergen
• Large surface with high dust loading capacity
Applications
Buildings, shopping malls, institutions
Product Specifications
Nanofil Nano MPP 02 series Special Panel Filter
1. Adopting NanoFIL nanofiber electrostatic spinning technology, verified by a third party, this filter can exterminate above 99.9% of bacteria and effectively filter PM 2.5 (fine inhalable particles, with diameters that are generally 2.5 micrometers and smaller) particles, including pollen, smoke and other allergens.
2. The filter has high efficiency and low resistance, which can effectively prevent air pollutants while ensuring ventilation.
3. MPP Air Purifier Filter can replace the original model air filter as consumer request.
2. The filter has high efficiency and low resistance, which can effectively prevent air pollutants while ensuring ventilation.
3. MPP Air Purifier Filter can replace the original model air filter as consumer request.
4. Nanofil antimicrobial mini-pleated panel filter have wide range of applications in central air conditioning ventilation systems, commercial buildings, institutions, shopping malls, hotels and etc.
5. Filtration efficiency: EN779 standard F6, F7 and F8.
Series | NanoFIL MPP |
Frame | Galvanized Steel, Aluminium, PVC |
Media | Synthetic, Nanofiber |
Efficiency | EN779 M6, F7, F8 |
Size | OEM ,Customizing is welcome |
Operating Temperature | Maximum 70ºC |
Relative Humidity | Maximum 99% RH |
Fire Rating | DIN53438-3 Class F1 |
Certification | Approved by HKFSD | ISO9001 | RoHS | China Invention Patent |
NanoFIL Filter Media

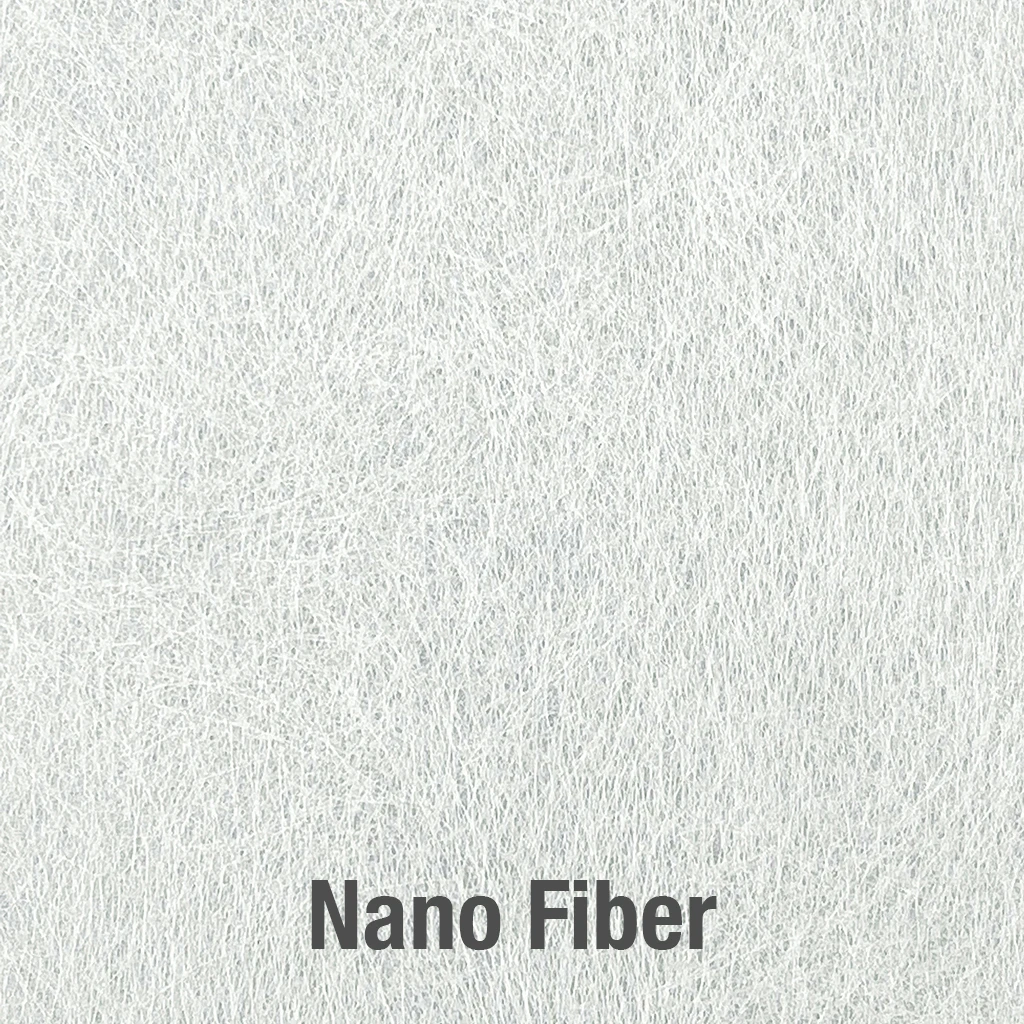

Nanofiber is our core technology featuring filtration, antibacterial, antiviral and other specific functions.
Non-woven fabric, such as PP and PET, which are polymer materials.
Activated Carbon is combined with hydrated aluminosilicate minerals to remove odour, formaldehyde and VOCs (Volatile Organic Compounds), etc.
Nanofil Filtration Technology Limited
is passionate about and devoted to research and development of nano-technology in air filter industry. We have our own nano filter manufacturing and R&D facilities in Hong Kong to strengthen our production, quality management and R&D capabilities in order to deliver the most sophisticated air filtration solutions and products to our customers.
Certification
AATCC TM100-2019
Q1. Can the filter be washed?
A: We do not recommend to wash NanoFIL filter. If the filter is loaded with dust after a period of use, replace it with a new one.
Q2. How often should I change the air purifier filter?
A: Generally 6-12 months, depending on various factors such as the surrounding air quality and manufacturer's recommendation.
Q3. Will installation of the filter affect the air flow of air purifier?
A: Effect will be minimal. NanoFIL filter is fabricated with state-of-the-art nano technology that has high filtration efficiency
and low pressure drop.
Q4. Does the filter have a shelf life?
A: When the filter is stored in a cool, dry place, away from direct sunlight, it shelf life is about 2 years.
A: We do not recommend to wash NanoFIL filter. If the filter is loaded with dust after a period of use, replace it with a new one.
Q2. How often should I change the air purifier filter?
A: Generally 6-12 months, depending on various factors such as the surrounding air quality and manufacturer's recommendation.
Q3. Will installation of the filter affect the air flow of air purifier?
A: Effect will be minimal. NanoFIL filter is fabricated with state-of-the-art nano technology that has high filtration efficiency
and low pressure drop.
Q4. Does the filter have a shelf life?
A: When the filter is stored in a cool, dry place, away from direct sunlight, it shelf life is about 2 years.
