Professional silicon double glazing glass sealing machine long selling
- Category: >>>
- Supplier: NSC Co. Ltd.
Share on (10000006597927):
Product Overview
Description
Products Description

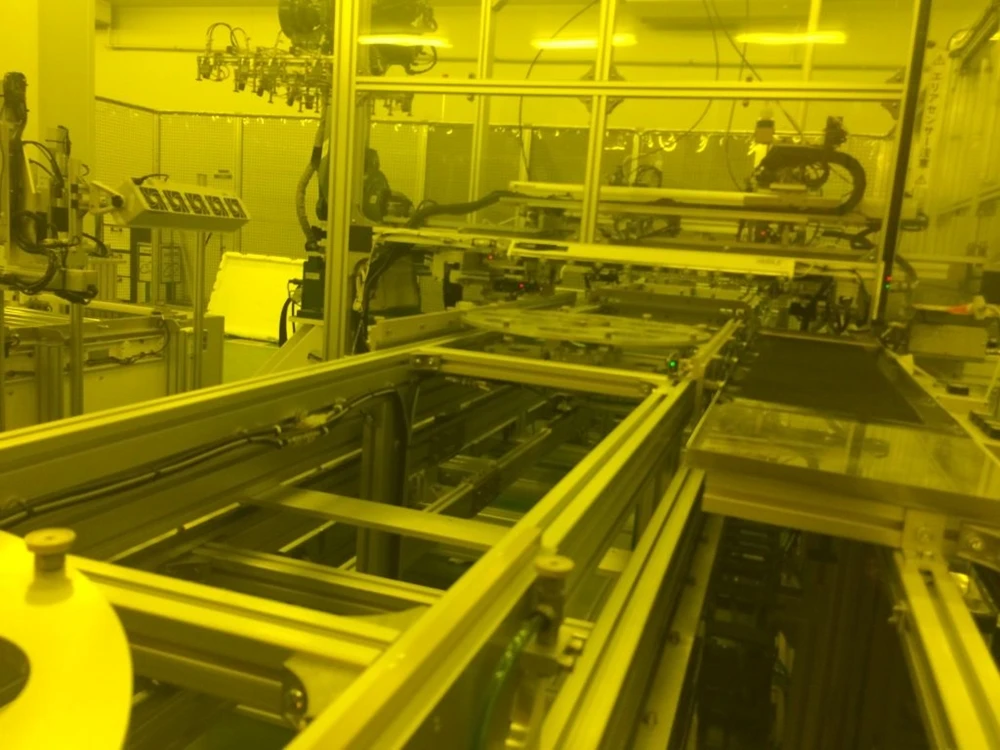

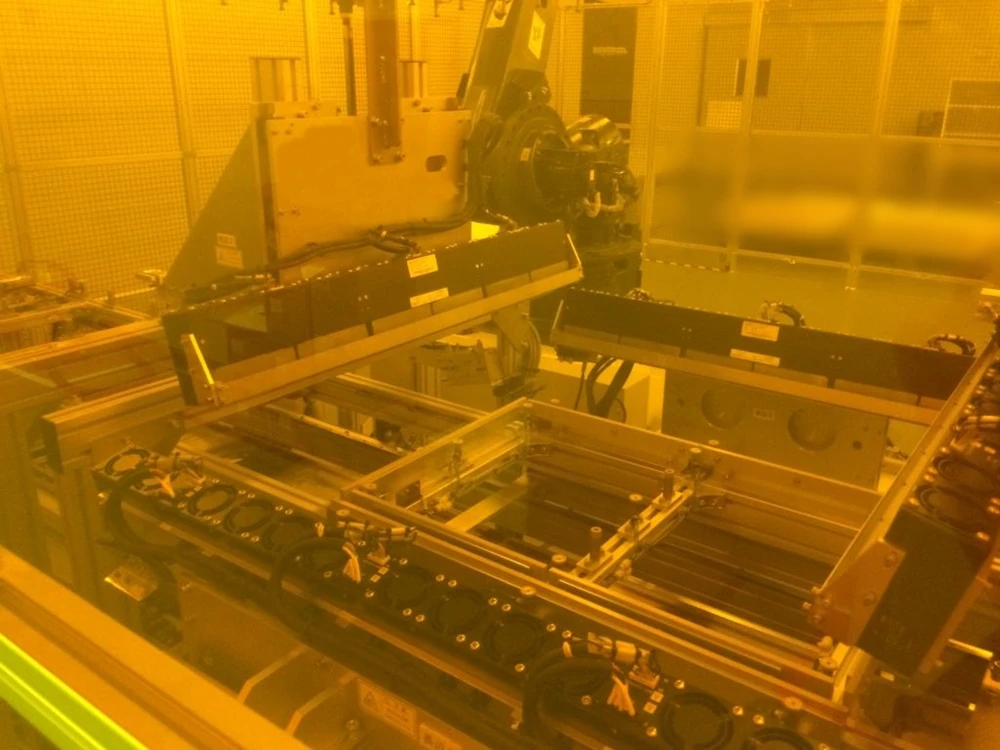

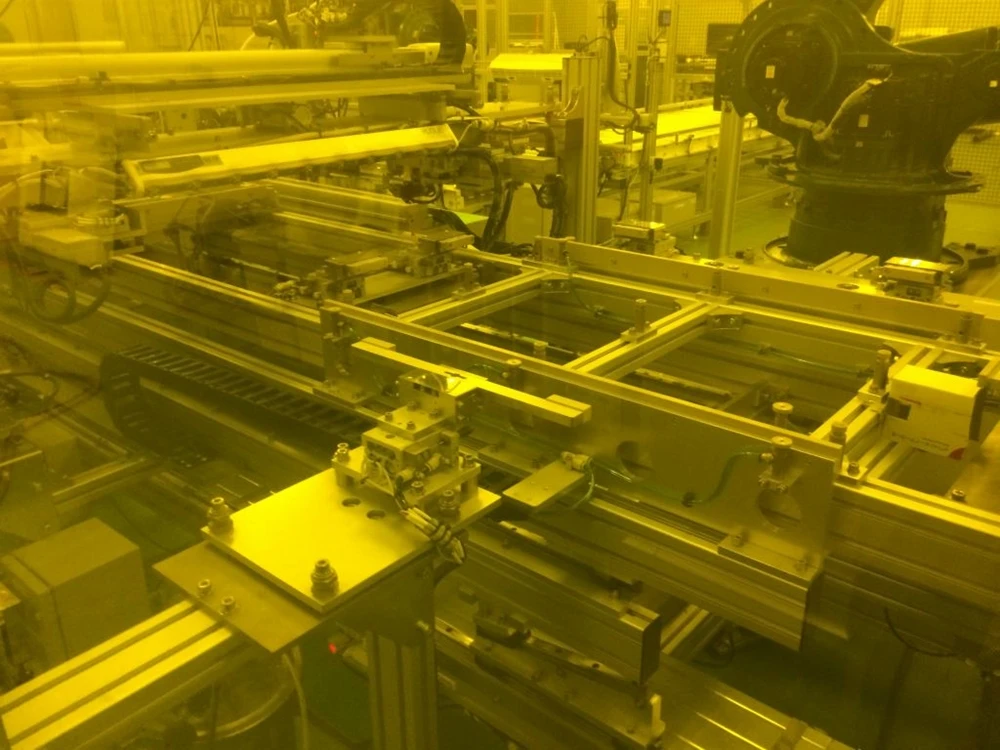

Automatic outer peripheral sealing machine for laminated glass
Equipment overview;
This machine is a machine that applies a substrate protective material to the glass etching process to make the LCD glass panel thinner.
While the product is transported horizontally, the protective material is applied and UV curing treatment is performed. It consists of LD unit (alignment function), automatic sealing application unit, post-application inspection unit, UV curing unit, final inspection unit, and ULD unit.
Installation environment;
Clean Room Class 1000 or more
Target product size; 1500x1850mm
Thickness; 0.5-1.0mm
Material of outer peripheral sealing; Ultra-high molecular polymer material
Equipment overview;
This machine is a machine that applies a substrate protective material to the glass etching process to make the LCD glass panel thinner.
While the product is transported horizontally, the protective material is applied and UV curing treatment is performed. It consists of LD unit (alignment function), automatic sealing application unit, post-application inspection unit, UV curing unit, final inspection unit, and ULD unit.
Installation environment;
Clean Room Class 1000 or more
Target product size; 1500x1850mm
Thickness; 0.5-1.0mm
Material of outer peripheral sealing; Ultra-high molecular polymer material
Available product size | 1500x1850 |
Production capacity | 30,000sheet/mth |
tact time | 72sec/sheet |
Company Profile
NSC ENGINEERING CO.,LTD.
Our predecessor, Shinwa Co., Ltd. was an device maker specializing in wet process chemical device established in 1978. In 2018, NSC Engineering was launched after receiving a business transfer from Shinwa.NSC Group is a specialist of metal and glass surface treatment that uses chemicals. In addition to 40 years of know-how in the design and manufacture of wet process devices, we have unique surface treatment technologies using inorganic, organic chemical and electrochemical.
Our main products are Photoresist coating/ developing/ etching/ stripping/ washing machines, and electropolishing machines.
