Product Overview
Description
Products Description
High quality and reliable automatic currency exchange machine, made in Japan.

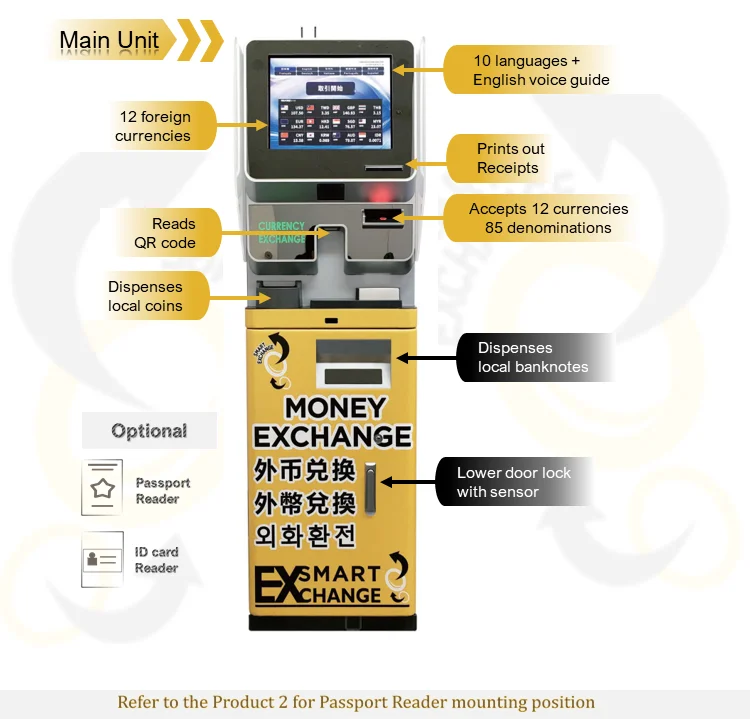

SMART EXCHANGE machine accepts more than 12 foreign currencies and dispense local currency (a local currency of where the machine is installed) in exchange.
In addition, it is equiped with the Side Unit component, which is installed on the either side of the Main Unit, whose function is to dispense up to 6 foreign currencies in exchange for local currency. This makes buying and selling of foreign currencies (2-way) possible.
The user-friendly features, multilingual (10 languages), and convenience have attracted many foreign travellers and locals in Japan in the past few years.
Accepts 12 foreign currencies among more than 130 currencies
Accepts 85 denominations of the specifed 12 currencies
Dispenses local currency (banknotes/coins) of a country/region where the machine is installed
Also dispenses up to 6 foreign currencies in exchange for local currency
There are 9 dispensing cassettes in total, each with 1000 notes capacity (a total of 9,000 banknotes can be stored)
There is 1 depositing cassette with 1200 notes capacity
Accepts 85 denominations of the specifed 12 currencies
Dispenses local currency (banknotes/coins) of a country/region where the machine is installed
Also dispenses up to 6 foreign currencies in exchange for local currency
There are 9 dispensing cassettes in total, each with 1000 notes capacity (a total of 9,000 banknotes can be stored)
There is 1 depositing cassette with 1200 notes capacity
Passport reader for compliance to AML and KYC
Multilingual (10 languages), plus English and Japanese voice guidance
Compact size for easier relocation
Use SSD for quite operation
Interactive screen touch for user interface
The remote monitoring system to monitor the machine status and logs all activites
Extra features can be added to meet client's requirements
Multilingual (10 languages), plus English and Japanese voice guidance
Compact size for easier relocation
Use SSD for quite operation
Interactive screen touch for user interface
The remote monitoring system to monitor the machine status and logs all activites
Extra features can be added to meet client's requirements
Convinient in sightseeing spots, hotels, airports, convinience stores, shopping malls, etc.
Can be installed without kiosk
Significantly cuts down the operational cost associated with traditional currency exchange shops/counters
Can operate 24/7
Can control exchangable amount per user, and sync information with other machines in a network
These machines are trusted and operated by international financial institutions
Can be installed without kiosk
Significantly cuts down the operational cost associated with traditional currency exchange shops/counters
Can operate 24/7
Can control exchangable amount per user, and sync information with other machines in a network
These machines are trusted and operated by international financial institutions
Main Unit Specifications | ||
Machine name | Automatic Foreign Currency Exchange Machine | |
Model | AES-KME-01 | |
Machine user | Foreign tourists and overseas returnees | |
Installation location | Indoor (away from direct sunlight and moisture) | |
Operation condition | Manned/unattended operation | |
Transaction method | Cash (foreign currencies to local currency and local currency to foreign currencies) | |
Communication with the server | Wired/wireless communication | |
External dimensions | 1506 mm (H) * 450 mm (W) * 500 mm (D) (excluding protrusions) | |
Weight | Approximately 208 kg (including installation plate with no coin/banknote) | |
Paint color | Two-tone (gray and silver) | |
Power supply input | 100 VAC 10% 50Hz/60Hz | |
Rated power consumption | Approximately 85 W | |
Input power plug | 3P power plug/3P twist-lock hook type (option) | |
Circuit breaker | Electrical leakage breaker | |
Ambient temperature range | 5 to 32 ˚C | |
Ambient humidity range | 25 to 85% (no condensation) | |
Storage temperature range | 0 to 35 ˚ C | |
Storage humidity range | 25 to 85% (no condensation) | |
Protection structure | IP20 | |
Installation structure | Installation plate and anchor bolts | |
Security structure | Japan Vending Machine Manufacturers Association Level 2 compliant | |
Compliance standard | VCCI Class A | |
PSE (Electric power application machinery and equipment: Exchange machine) | ||
Operation/maintenance side | Front access maintenance | |
Product lifespan | 5 years | |
Environmental consideration | RoHS Directive non-ompliant | |
Options | Barcode reader, non-contact card reader, magnetic card reader | |
Banknote reception unit | ||
Applicable banknotes | Approximately 85 denominations in 130 counties | |
Deposit method | 4 direction / lateral directions / individual sheet | |
Number of storable sheets | Approximately 1200 sheets (including an error depending on banknote status) | |
Retrieval method | Cassette type | |
Temporary banknote holding | 1 sheet | |
Banknote dispenser | ||
Payout method | Shutter type (longitudinal) | |
Number of storable sheets | Approximately 1000 sheets (per cassette) | |
Replenishing method | Cassette type | |
Number of payout sheets | Up to 50 sheets/transaction | |
Payout processing speed | 3 to 4 sheets/second | |
Reject function | Payout error reject | |
Number of cassettes | Standard: 2 cassettes Maximum: 3 cassettes | |
Coin dispenser | ||
Replenishing method | Cassette type (Refilling assist function) | |
Payout processing speed | 6 coins/second (per denomination) | |
Coin retrieval mechanism | Coin retrieval mechanism + coin retrieval safe box | |
Operation unit | ||
Display | 15 inch LCD (1024 x 768) | |
Operation method | Touch panel (capacitive type) | |
Movable mechanism | Operation position/maintenance position | |
Printer paper | ||
Paper width | 57.5±0.5 mm | |
Paper thickness | 59 μ m | |
Outer diameter | φ83 mm | |
Thermal paper model | TF50KS E2D (Nippon Paper Industries) | |
Paper roll dimensions | Inner diameter φ12 mm, outer diameter φ18 mm | |
Heat-sensitive surface | Outside | |
Side Unit Specifications | ||
Machine name | Automatic Foreign Currency Exchange Machine Side Unit Option | |
Model | AGS-KOP-SU06 | |
Installation location | Indoor (away from direct sunlight and moisture) | |
External dimensions | 1506 mm (H) * 350 mm (W) * 460 mm (D) (excluding protrusions) | |
Weight | Approx. 132 kg (including the weight of the installation plate) | |
Paint color | Two-tone (gray and silver) | |
Power supply input | 100 VAC ±10% 50Hz/60Hz (Power is supplied from the exchange machine main unit.) | |
Ambient temperature range | 5 to 32 ̊C | |
Ambient humidity range | 25 to 85% (no condensation) | |
Storage temperature range | 0 to 35 ̊C | |
Storage humidity range | 25 to 85% (no condensation) | |
Protection structure | IP20 | |
Installation structure | Installation plate (Fixed to the the main unit using the installation plate and top joint brackets) | |
Operation/maintenance side | Front-access maintenance | |
Product lifespan | 5 years | |
Environmental consideration | RoHS Directive compliant | |
Banknote dispenser | ||
Applicable banknotes | Overseas banknotes (shorter side: 79 mm max.) | |
Payout method | Shutter type (longitudinal) | |
Number of storable sheets | Approximately 1000 sheets (per cassette) | |
Replenishing method | Cassette type | |
Number of payout sheets | Up to 50 sheets/transaction | |
Payout processing speed | 3 to 4 sheets/second | |
Reject function | Payout error reject | |
Number of cassettes | Maximum: 6 cassettes | |
Company Profile
New currency exchange with social distancing
ActPro Co., Ltd was established in 2012 in Japan. We started automatic foreign currency exchange machine business in April 2016.
We have installed and operate more than 500 exchange machines, branded "SMART EXCHANGE", accross Japan. This is the largest fleet in the world. We started exporting to overseas in 2019. Hence, currenctly we also operate SMART EXCHANGE machines in Thailand,Indonesia, and Cambodia in partnership with locals.
We have installed and operate more than 500 exchange machines, branded "SMART EXCHANGE", accross Japan. This is the largest fleet in the world. We started exporting to overseas in 2019. Hence, currenctly we also operate SMART EXCHANGE machines in Thailand,Indonesia, and Cambodia in partnership with locals.
