1W 3535 High Power LED
AP3535F-1LEXX-RX
The LED is one of the smallest high power LED footprint available by All Brite,
has offered extended solid-state lighting design possibilities.
The LED is designed with All Brite own Patents and using copper leadframe,
the best thermal material of the world.
The LED qualifies as the JEDEC Level 1 MSL sensitivity level and
suitable for SMD process, Pb_free reflow soldering capability,
and full compliance with EU Reduction of Hazardous Substances (RoHS) legislation.
Product Description
Features
•100% foot print compatible with
Cree XP-C / XP-E / XP-G
•Best thermal material solution of the worldCree XP-C / XP-E / XP-G
•Best Moisture Sensitivity: JEDEC Level 1
•RoHS compliant
Applications
•Entertainment Lighting
•Commercial Lighting•Indoor Lighting
•Outdoor Lighting

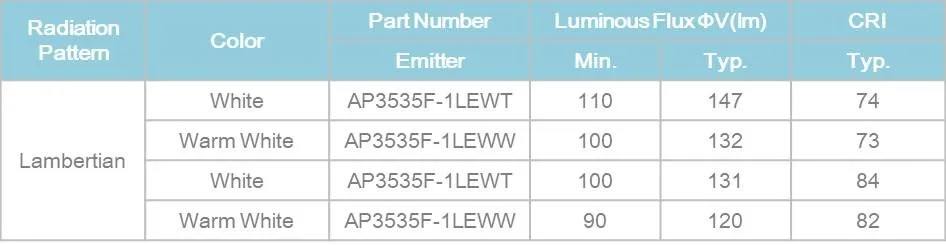

Flux Characteristics at 350mA, TJ= 25°C

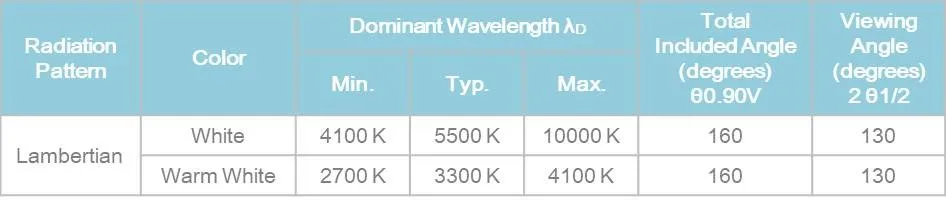

Optical Characteristics at 350mA, TJ= 25°C

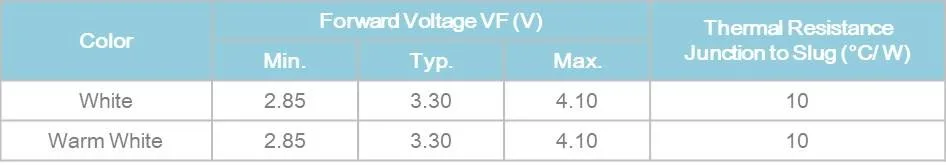

Electrical Characteristics at 350mA, TJ= 25°C

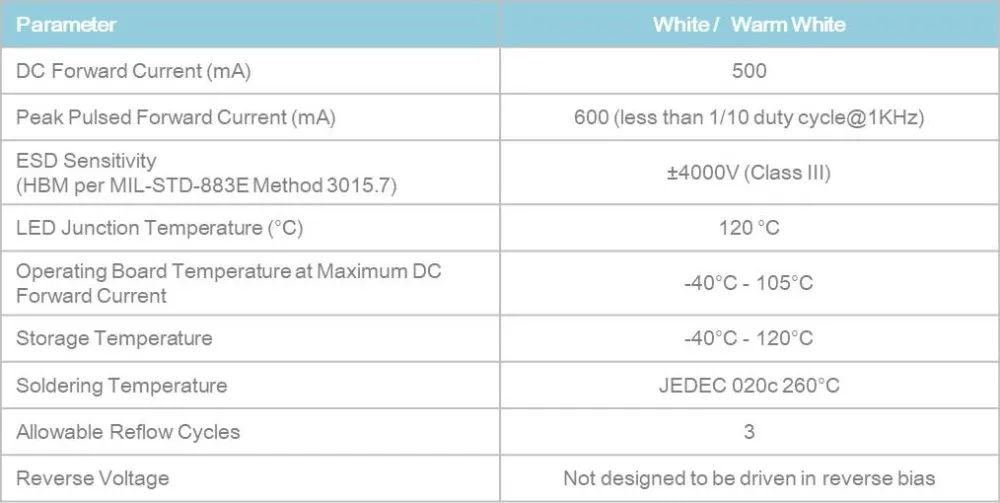

Absolute Maximum Ratings (Ta=25℃)

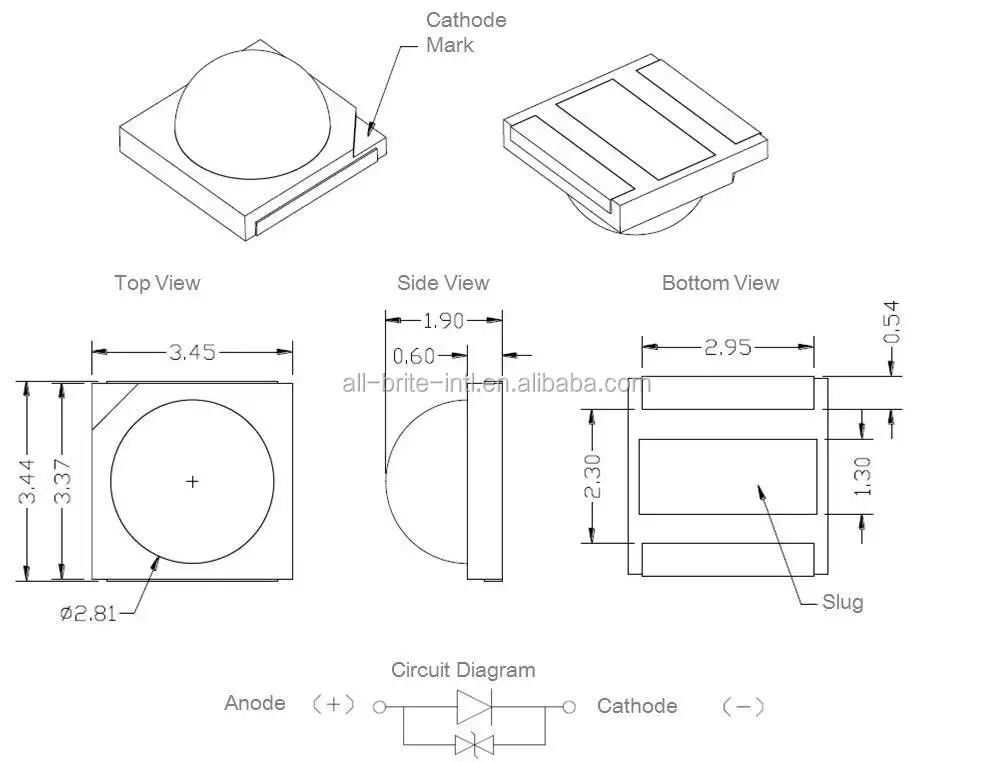

Mechanical Dimension
Emitter Reel Packaging
