Product Overview

Description





Products Description

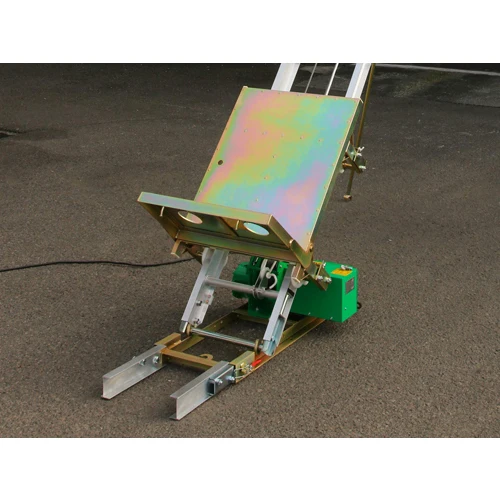

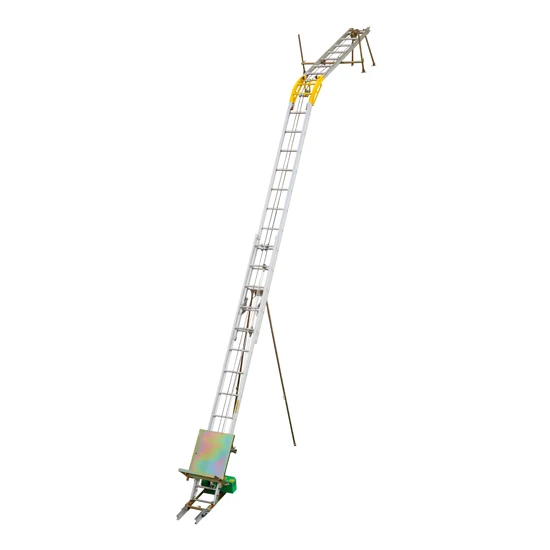

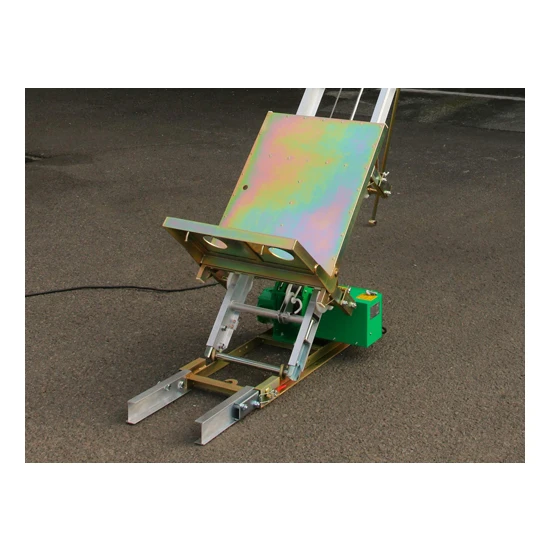

2Links Ladder Lift "NEW JUNP"
NJP-MD2N / MD7W2 / MD7T
Ladder lifts that are quick and easy to assemble and install.

The simple aluminum 2Links ladder lifts up and down quickly even on high roofs.
The length of the ladder can be adjusted for each step pitch.






Specification


Model
Rated Load (kg)
Lifting Speed(m/min)
Bed size
Winch
Weight (kg)
NJP-MD2N
125
23
W570×D310×H665
MD2N
133
NJP-MD7W2
135
30
W570×D310×H665
MD7W2
135
NJP-MD7T
135
30
W570×D310×H665
MD7T
135
Power supply:AC100V 50/60Hz



Winch specifications


Model
Rated Load
(kg)
Lifting Speed
(m/min)
Motor Output
(W)
Wire Rope
Operation Switch
Weight
(kg)



Quantity
Cord length
(m)

MD2N
150
23
650
Φ6×35m
1
3
24
MD7W2
160
30
935
Φ6×35m
2
5, 15
35
MD7T
160
10 30
935
Φ6×35m
2
5, 15
35


Certifications




Factory Information






Company Profile


TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
