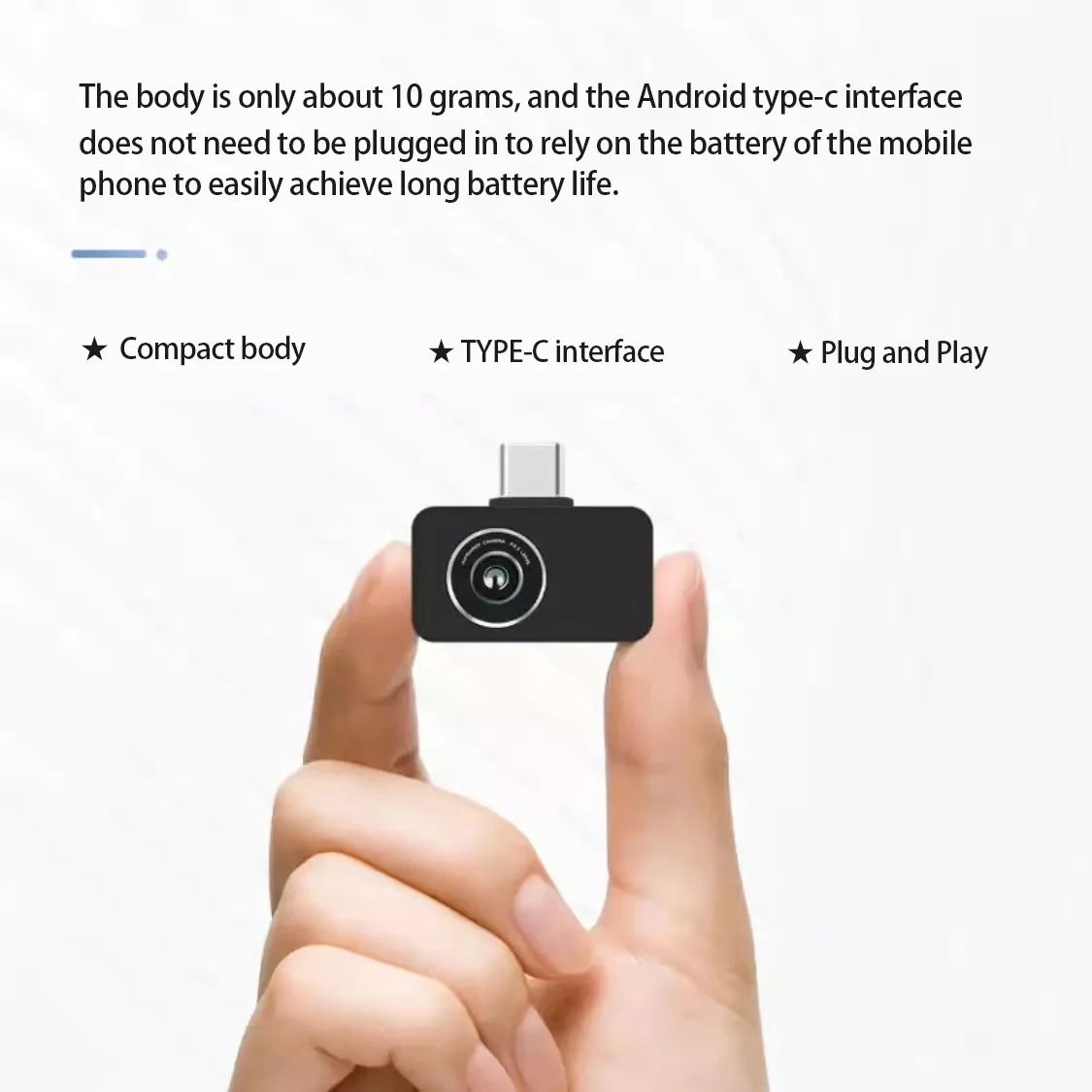

Mini portable infrared thermal imaging camera infrared camera for mobile phone
- Category: >>>
- Supplier: Dongguan Fenggang Xingangli Hardware Products Factory
Share on (10000006634505):
Product Overview
Description
Product Description
Specification
Resolution | 256*192 | |
Cell size | 12um | |
NETD | ≤50mK@25℃，F#1.0 | |
Working band | 8~14um | |
Performance | ||
Frame rate | 25Hz | |
Operating temperature | -10℃~55℃ | |
Storage temperature | -40℃~85℃ | |
Typical power consumption | 350mw | |
Processor | Falcon ASIC chip | |
Lens | ||
Focal length | 3.2mm | |
Aperture | F1.1 | |
Field of view | 56.0°(H)x42.2°(V)，71.3°(D) | |
Focus | Athermalized prime lens | |
Temperature measurement performance | ||
Temperature measurement range | -15℃~150℃ | |

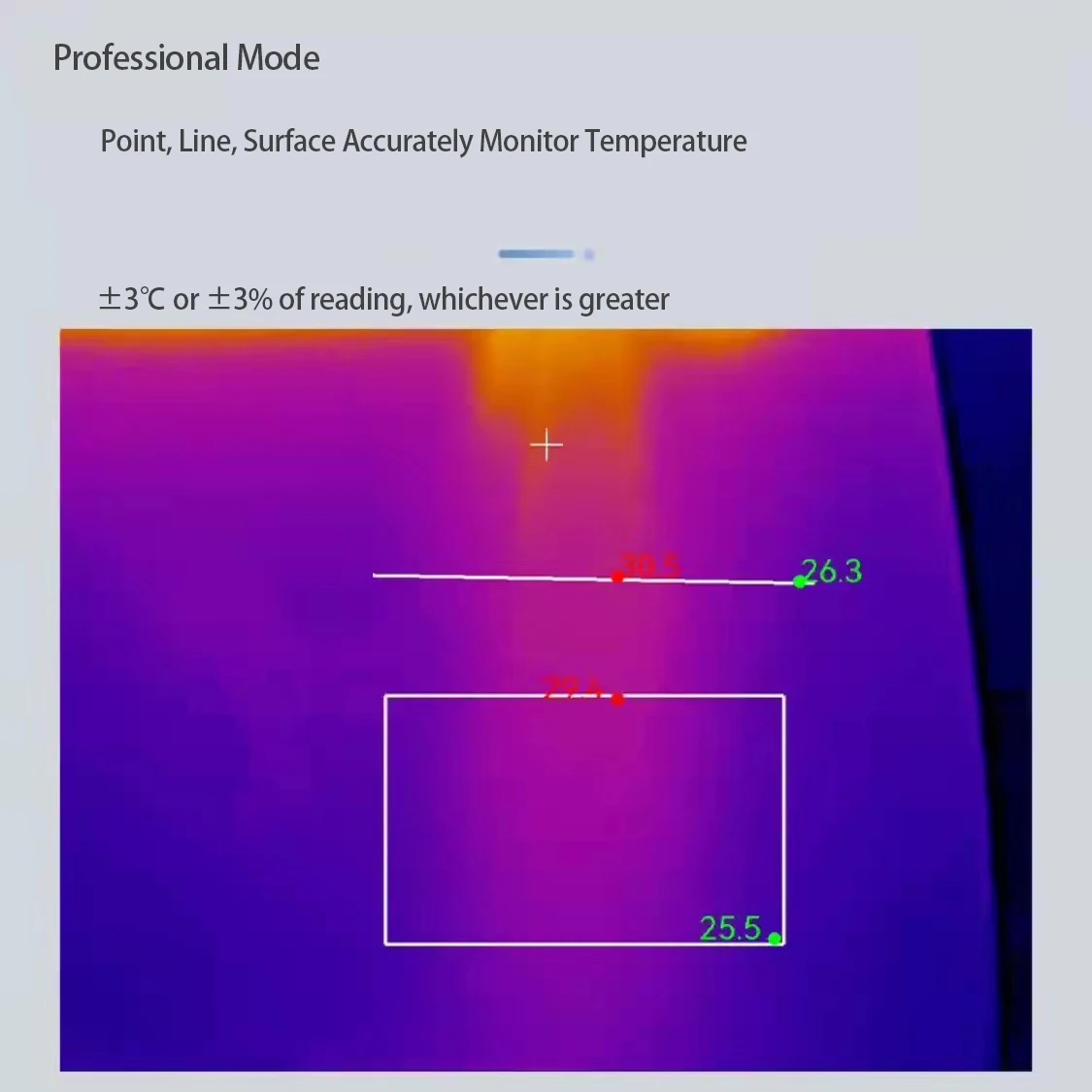

Temperature measurement error | ±3°C or ±3% of reading, whichever is greater | |
Temperature correction | Distance,ambient temperature,emissivity | |
