Product Overview
Description
Heat sink
Reference：Copper standard test piece measurement result | ||||||||||
Relative density, RD [%] | Thermal diffusivity, α [cm2/s] | Specific heat capacity, c [J/gK] | Thermal conductivity, λ [W/mK] | Memo | ||||||
Cu1020 | 100 | 1.14 | 0.329 | 391.94 | ※Cu1020 Oxygen free copper | |||||
Our MIM part | 97.5 | 1.109 | 0.305 | 381.28 | ||||||

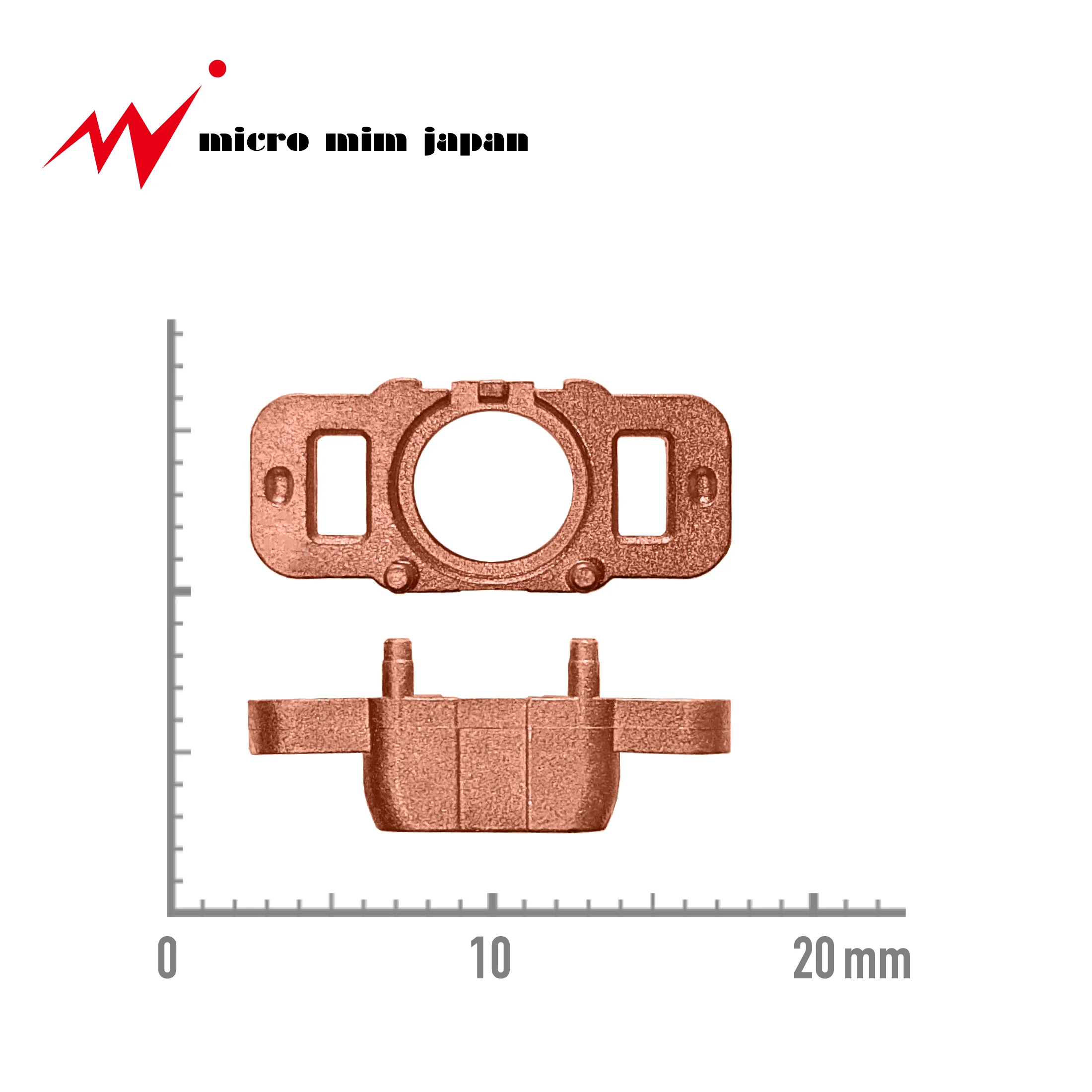

Part size : 6.4 x 14.6 x 5.7 | ||||||||||
Copper products are often employed as terminal or heat sink in the electronics industry due to its high
conductivity or thermal conductivity properties, respectively. Recently, a special nozzle for high-
temperature fluid injection is also made of Cu, where required strict control of both temperature and
injection.
It is increased the demand for smaller and more complicated designed copper product these days. In
conventional MIM, it is difficult to produce copper or copper alloy product because the mechanical
property or conductive property is affected negatively during the debinding and sintering process.
However, μ-MIM® technology optimised the binder system for copper production and realises the serial production of a copper product.
Surely, the tight tolerance requirement or complicated hollow design will be accepted as other material μ-MIM® production.
Additionally, originally developed diamond-copper composite, extra high thermal conductivity, serial production is also available.
Additionally, originally developed diamond-copper composite, extra high thermal conductivity, serial production is also available.
