  • Taiwan technology Automatic high speed four spindle nut tapping machine

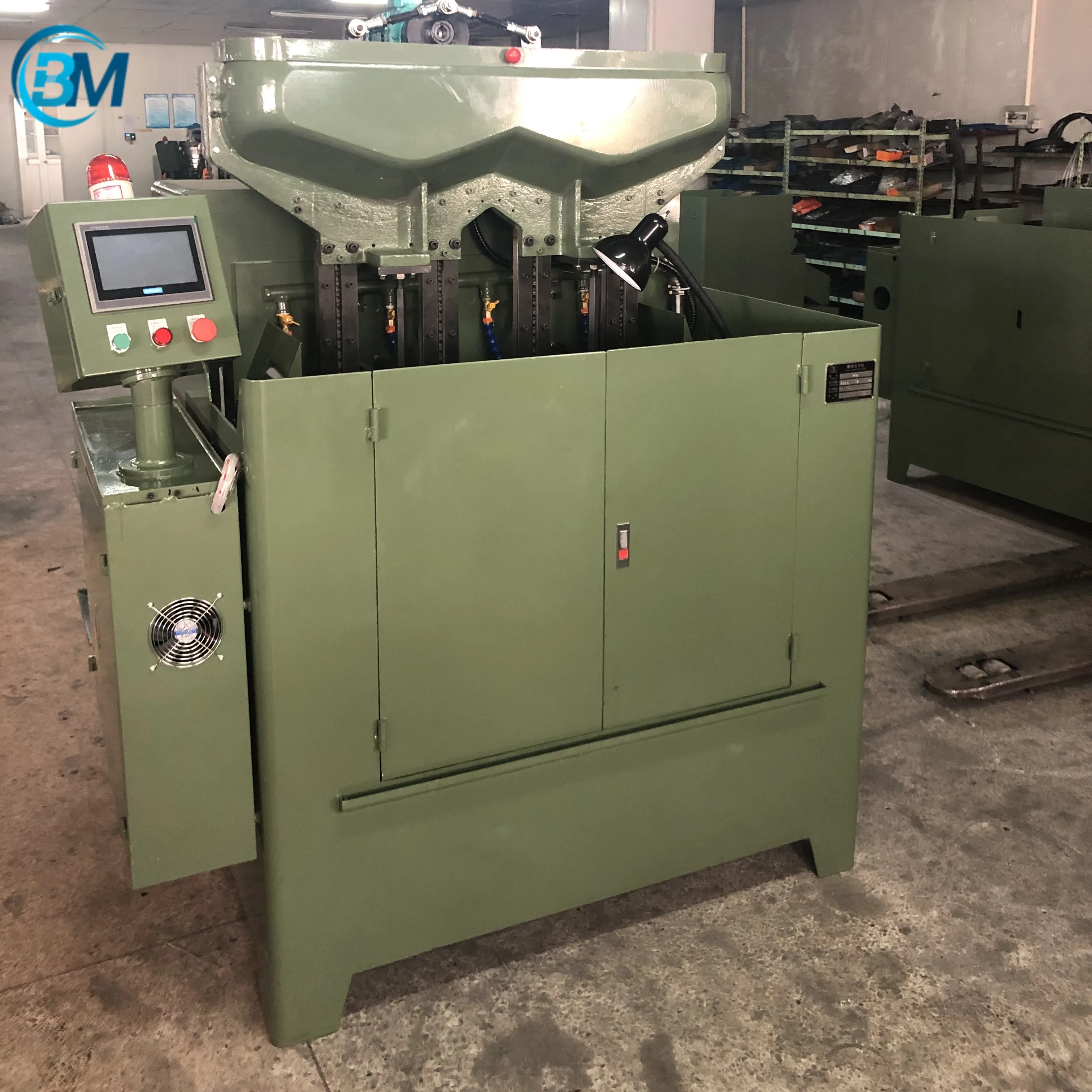

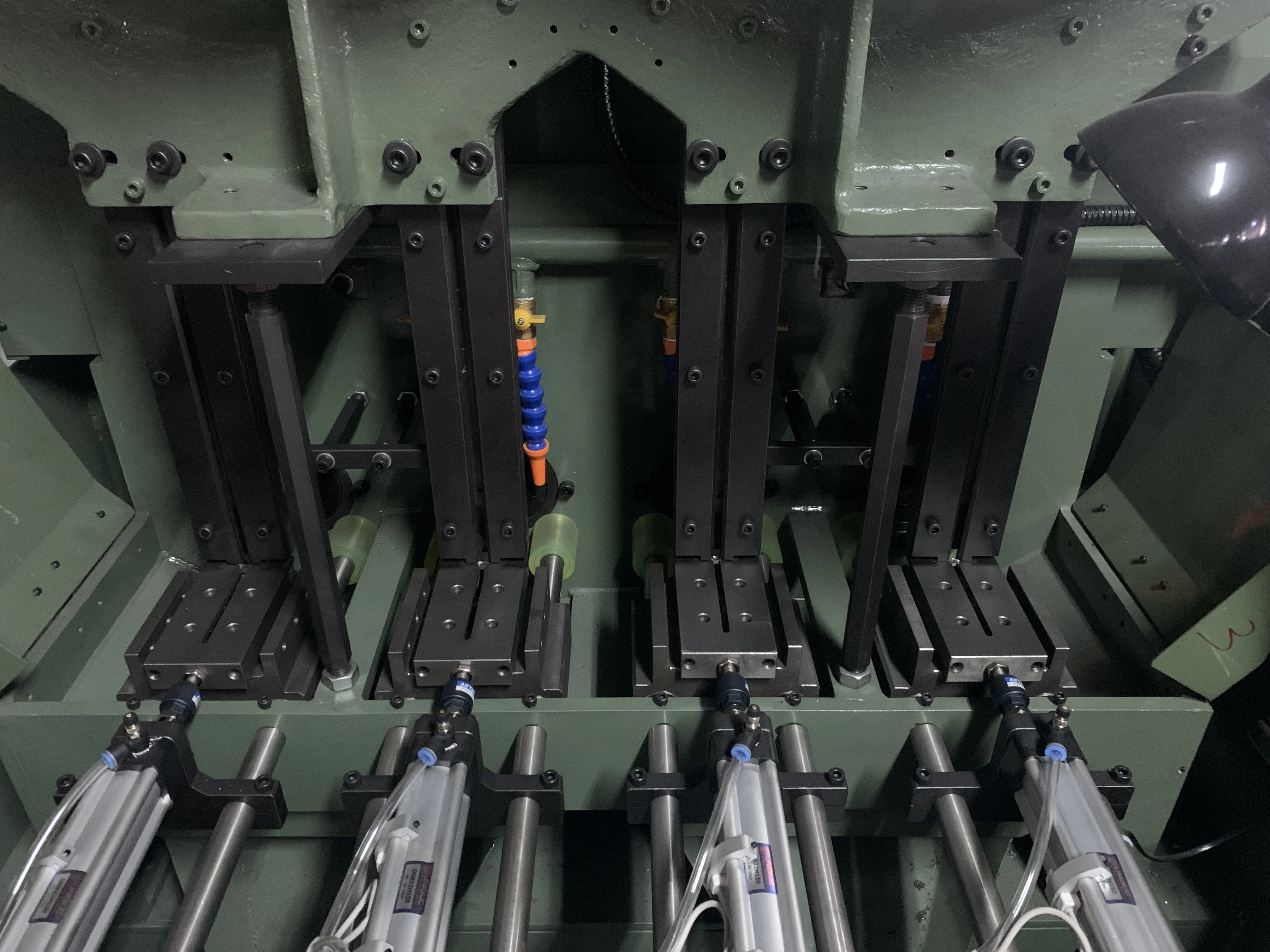

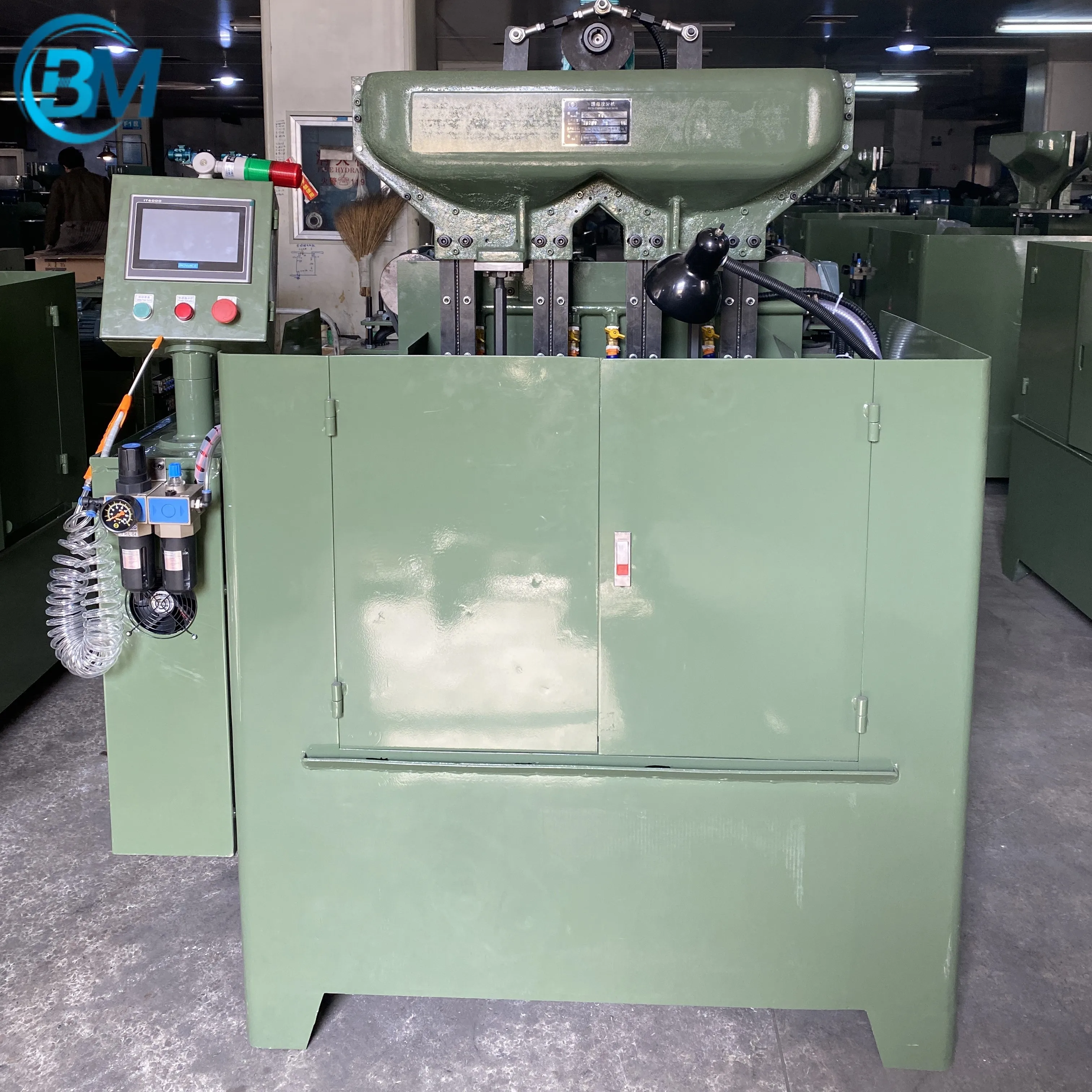

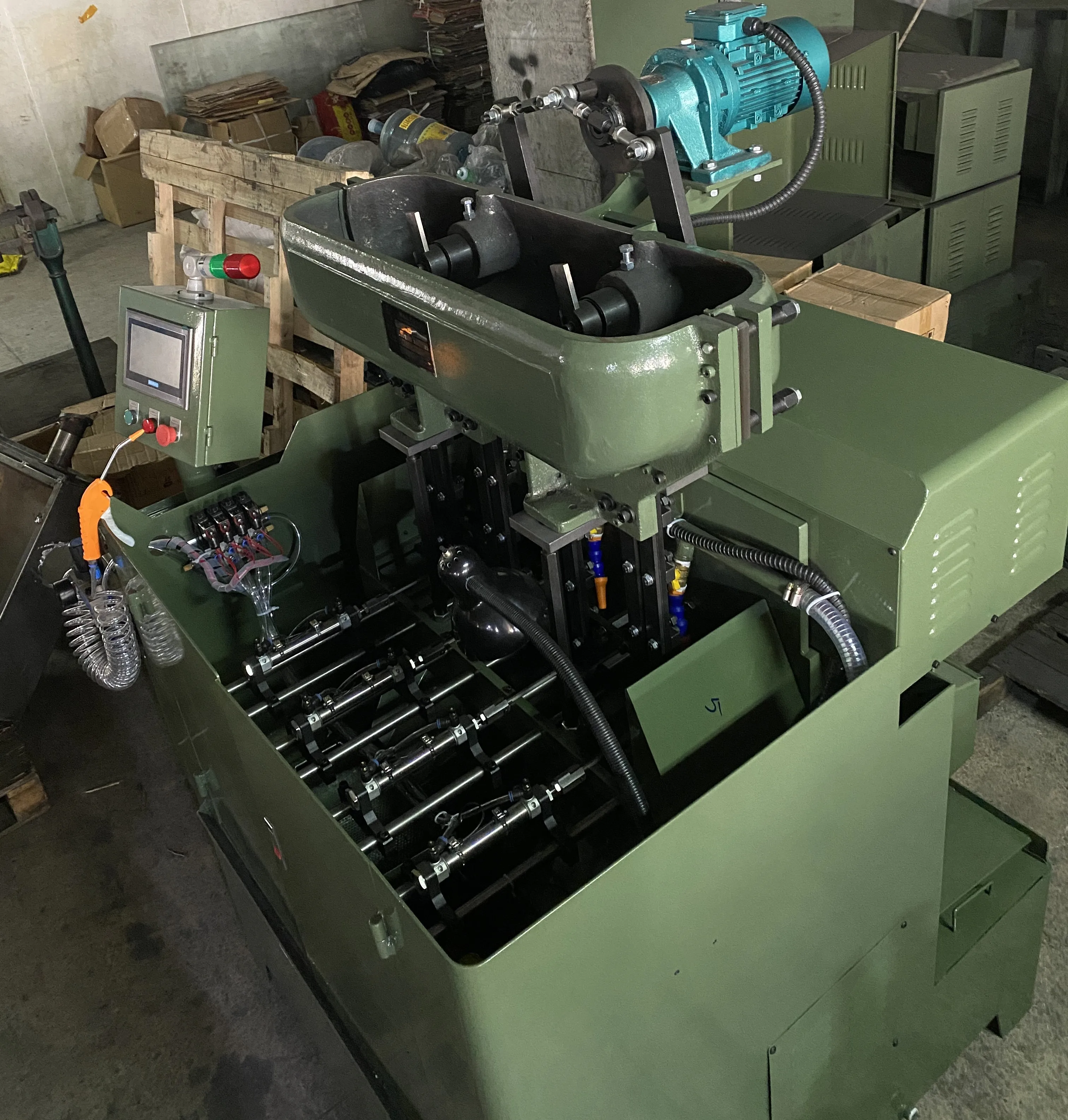

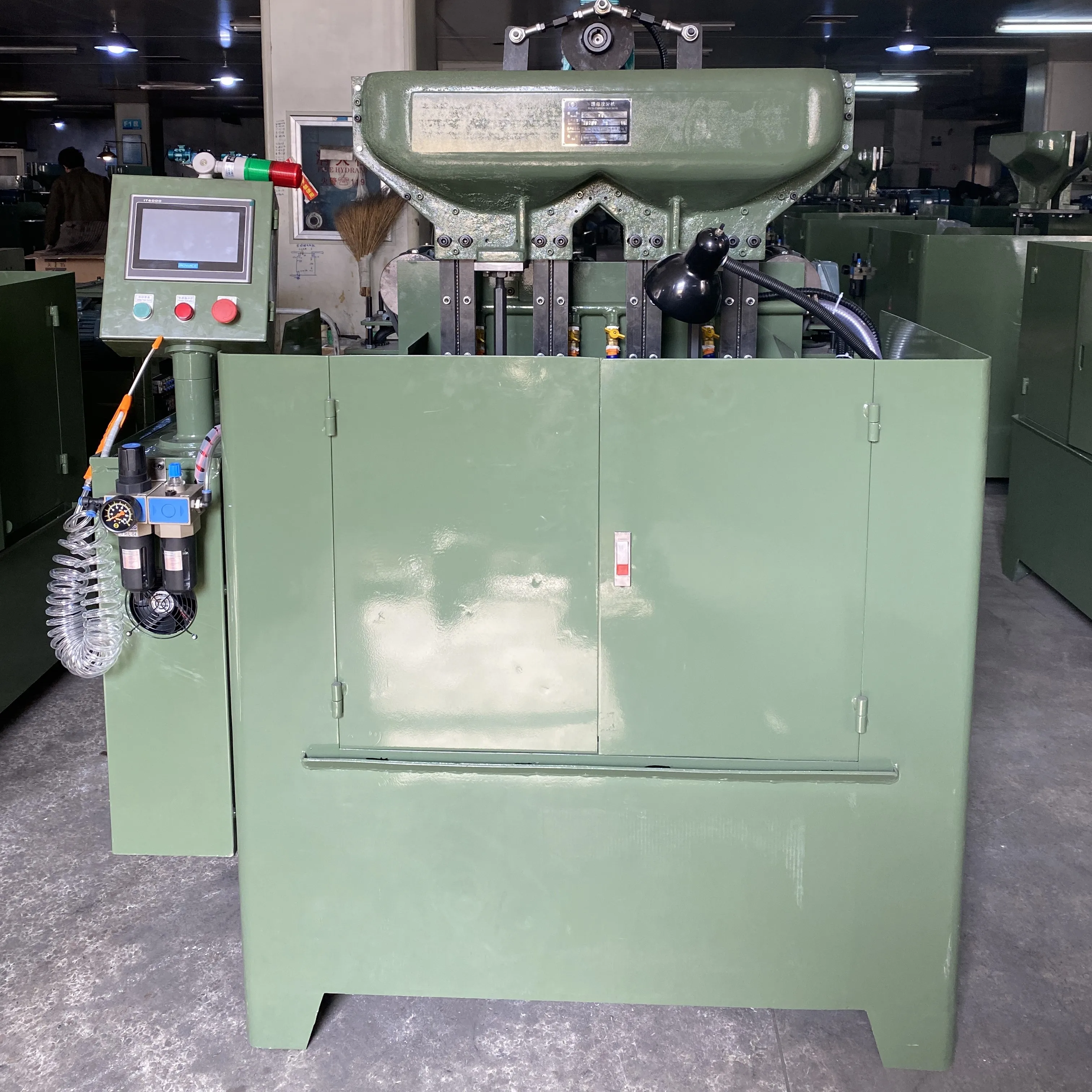

Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine
Taiwan technology Automatic high speed four spindle nut tapping machine

Taiwan technology Automatic high speed four spindle nut tapping machine

Share on (10000006672256):


Price:

Quantity:


Product Overview

Description



Product Description


Nut tapping machine can process internal threads or buckles on the inner side of the holes of various parts with through holes or blind holes of various specifications such as hex nuts and flange nuts.

The automatic nut tapping machine has the highest degree of automation. When working, as long as the nut blank is put into the vibrator or hopper, it can automatically feed, automatically position, automatically clamp, automatically tap, and automatically unload. One worker can operate multiple equipment at the same time. , high production efficiency, can significantly save labor costs.

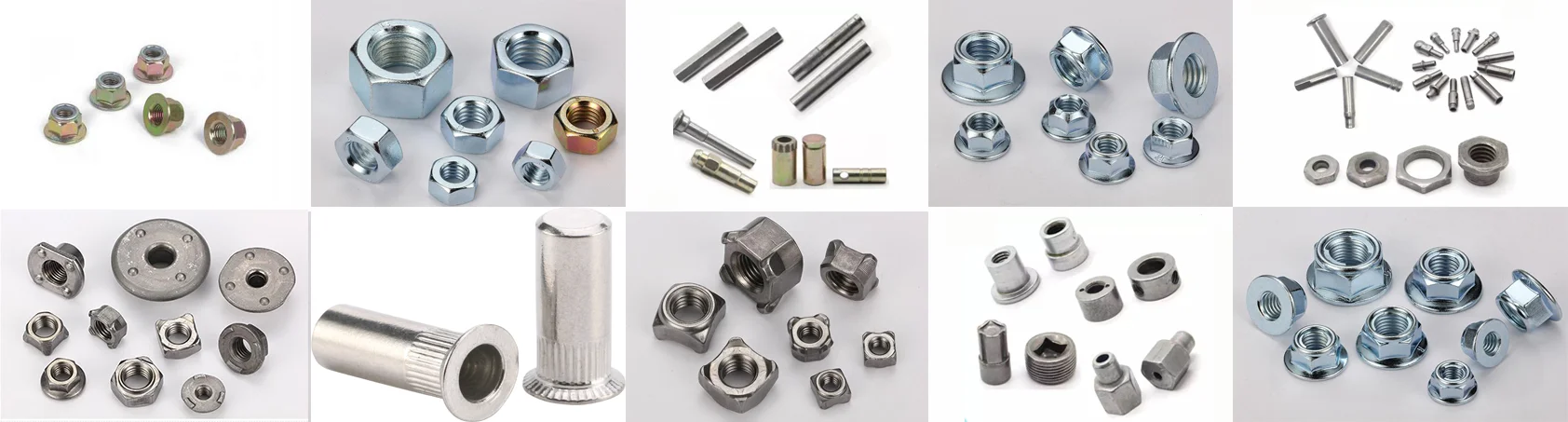

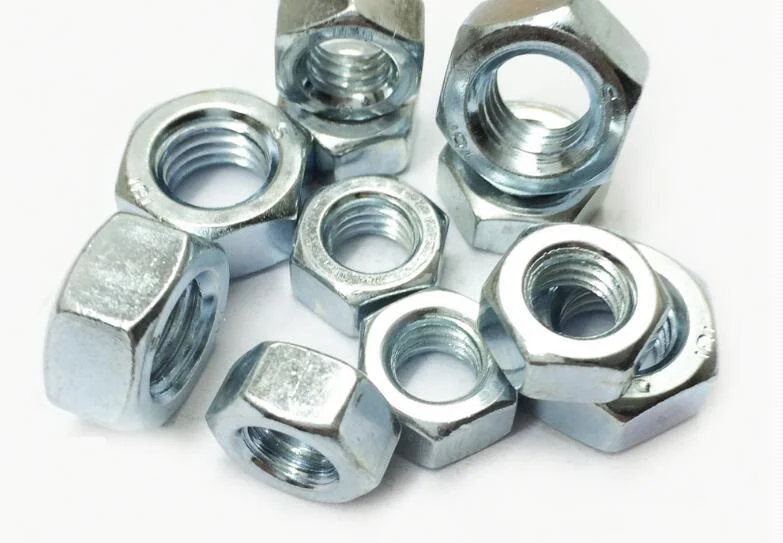

Products that tapped by the machine




Specification


MODEL
M14
M16
M18
M20
Spindle
4
4
4
4
Hex output(PCS/MIN)
100
80
75
65
Flange output(PCS/MIN)
80
60
55
45
Power of mine motor(KW)
1.5-6
2.2-6
2.2-6
2.2-8
Mixing motor power (KW)
0.55
0.75
0.75
1.1
Pump power(KW)
0.25
0.25
0.25
0.25
Pressure(pressure/kg)
3-4
4-5
4-5
4-6
Demension L*W*H(mm)
1500x1900x1750
1750x2100x1800
1750x2100x1800
1750x2100x1850
Net weight(KG)
1200
1280
1280
1400


We can offer M2- M36 nut tapping machine.




Email: Sophie@bmfastener.com
Tel/WhatsApp: +86-18606605063


Company profile


About us
Founded in April 2003, Ningbo Bysen Machinery Co., Ltd. which is located in Lijiaqiao Industrial Park, Ningbo, convenient transportation.
Our company specializes in the production and selling of Cold Forging Machine, Nut Maker, Bolt Maker, Part Former, Wire Drawing Machine, Heading Machine, Thread Rolling Machine, Spring Washer machine, and other series fasteners equipment, we can design complete sets of programs for fasteners manufacturers and fasteners mold product development.




Backed by rich experience and resources, we have earned trust from a great many clients abroad, we not only offer the machine but also the solutions and service.We have partners in India, Europe,Africa,America and Southeast Asia and are trusted by various hardware fastener manufacturers to become quality partners.










FAQ


Q1：What Should I Do if I Just Start a New Business?
A1: Contact us immediately, we provide free consultant pre-sales service. We can provide you: new-plant construction guidance, designing and manufacturing non-standard equipment, professional technical training and guidance on site.

Q2: Do You Only Manufacture Standard Machines?
A2:No, we not only design and manufacture standard machines, but also design and manufacture machines according to customers’ specifications, using top brand components. What’s more, some popular machines are in stock.

Q3: What is the Warranty?
A3:We provide 12-20 months free warranty, and free technical support for the whole life of any machine.

Q4: What Service Can You Provide Before Order?
A4:About the pre-sale service. We provide you professional answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you want visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.


For any questions about our equipment, please contact us!
Email: Sophie@bmfastener.com
Tel/WhatsApp: +86-18606605063
