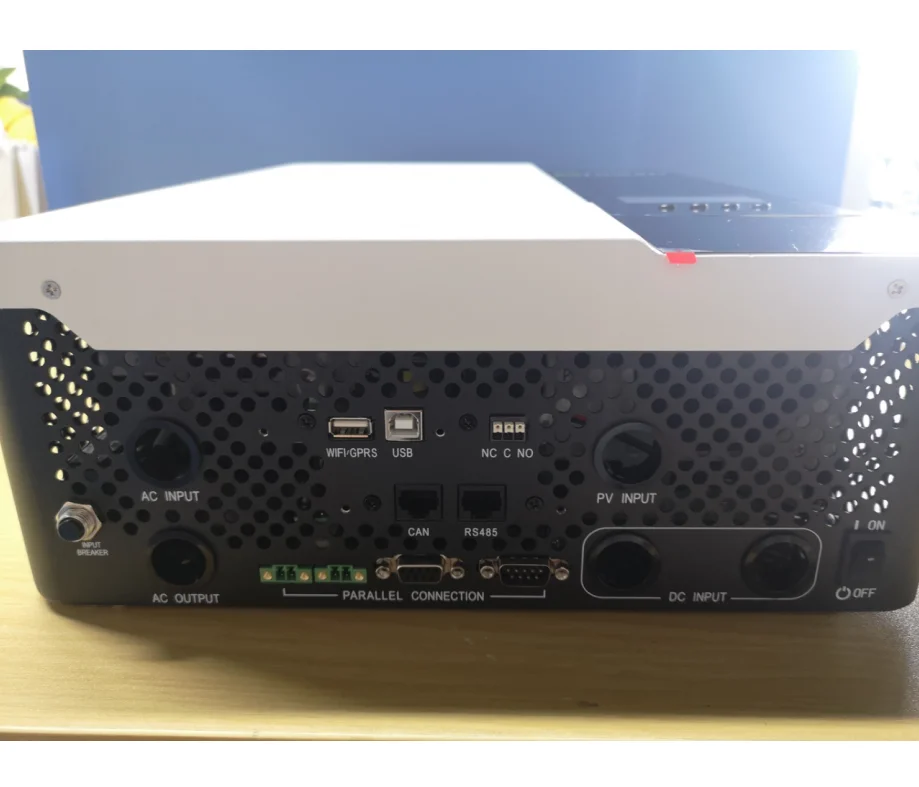

Growatt 5000ES 48VDC 5Kwa Off Grid Single Phase 98% Efficiency Parallel In 6 Units 5Kw Inverter
- Category: >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (10000006678506):

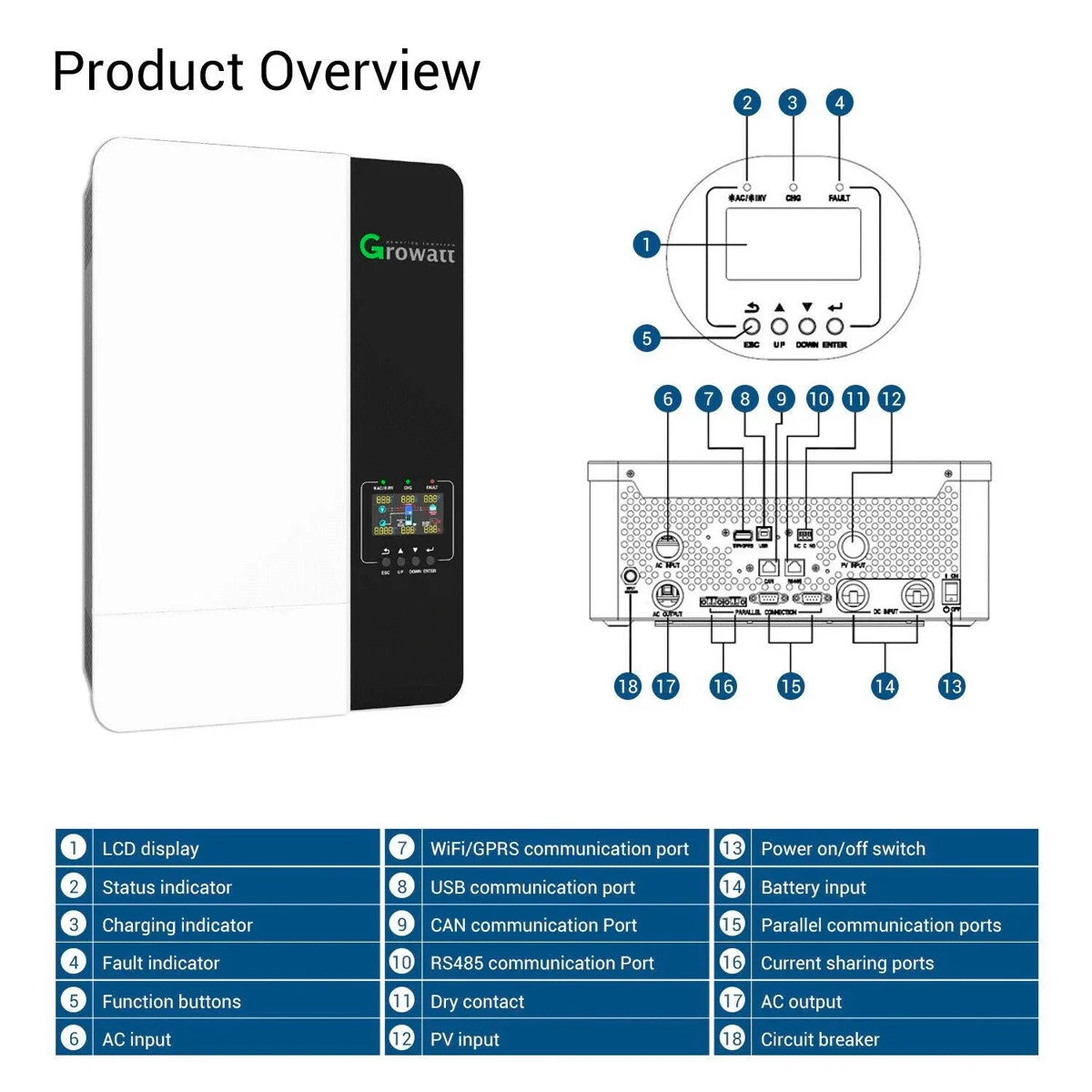

Product Overview
Description
Product Description

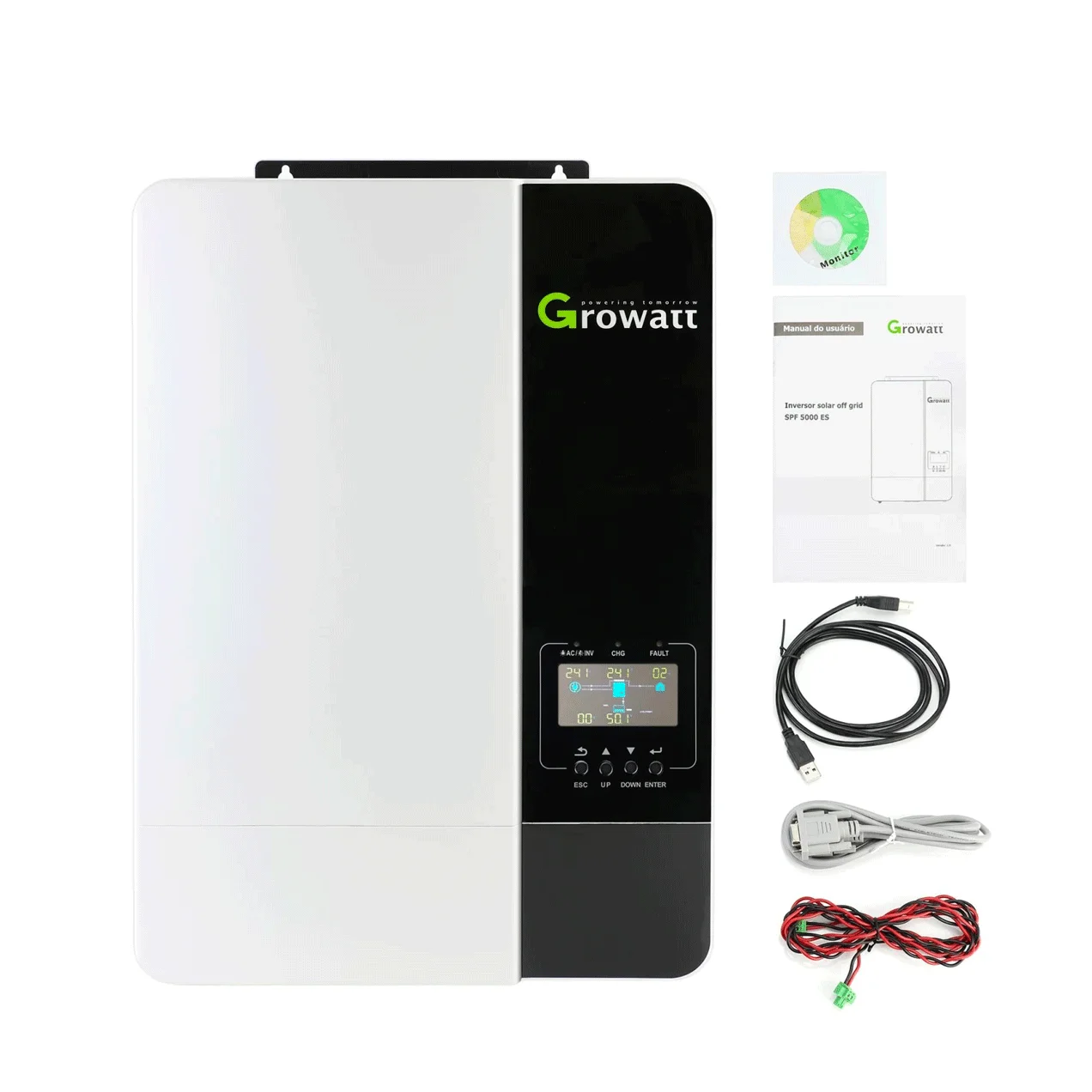

Configuration List

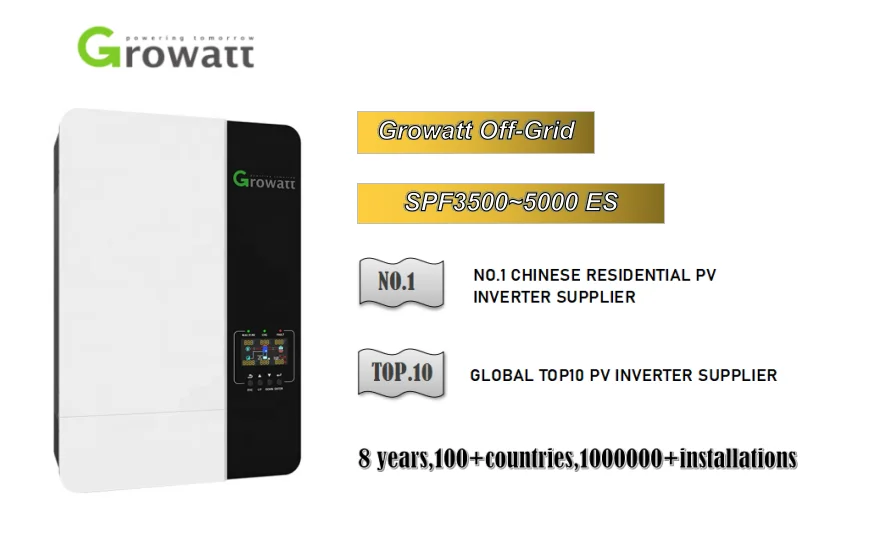

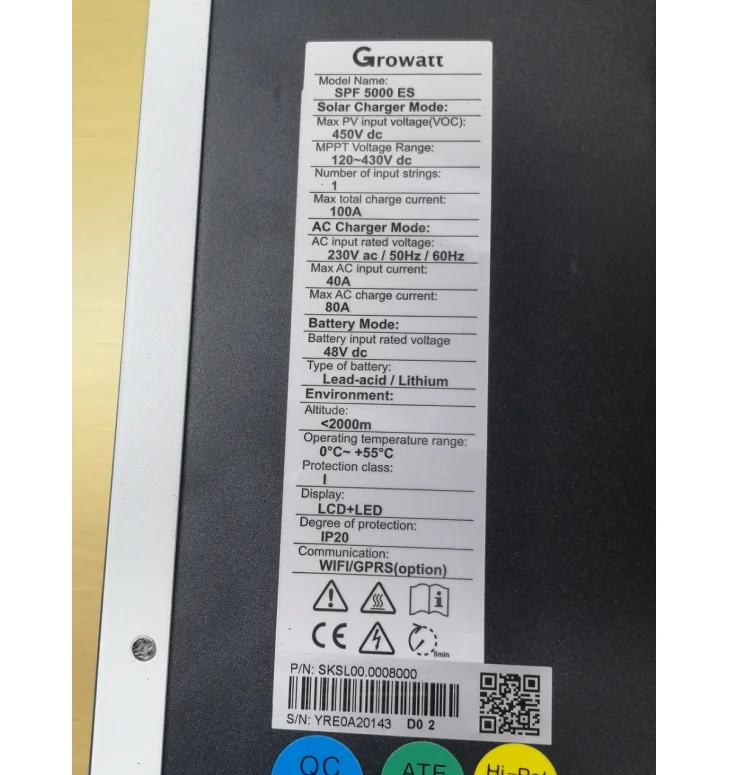

Datasheet | SPF 5000 ES | |
Battery voltage | 48VDC | |
INVERTER OUTPUT | ||
RATED POWER | 5000VA/ 5000W | |
Parallel Capability | Yes, 6 units | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 10000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure sine wave | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
SOLAR CHARGER | ||
Maximum PV Array Power | 5500W | |
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |
Maximum PV Array Open Circuit Voltage | 450VDC | |
Maximum Solar Charge Current | 100A | |
Maximum Efficiency | 97% | |
AC CHARGER | ||
Charge Current | 80A | |
AC Input Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50Hz/60Hz (Auto sensing) | |
PHYSICAL | ||
Dimension (D/W/H) in mm | 485/330/135 | |
Net Weight (kgs) | 12 | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | -15°C - 60°C | |

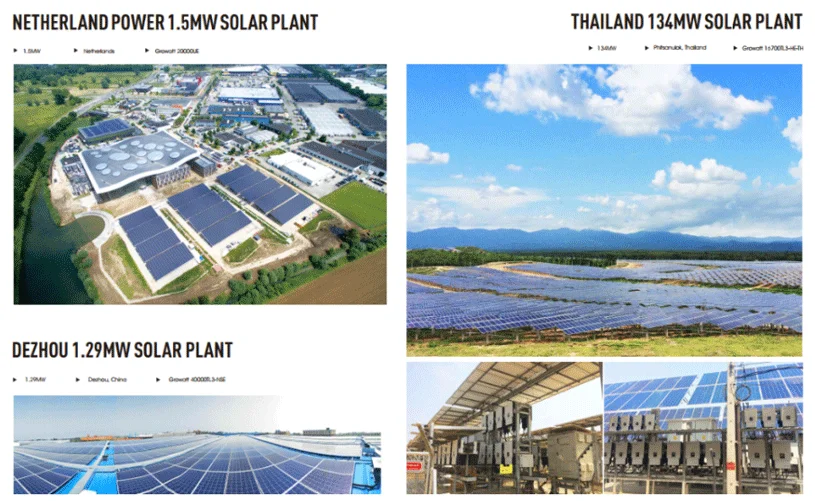

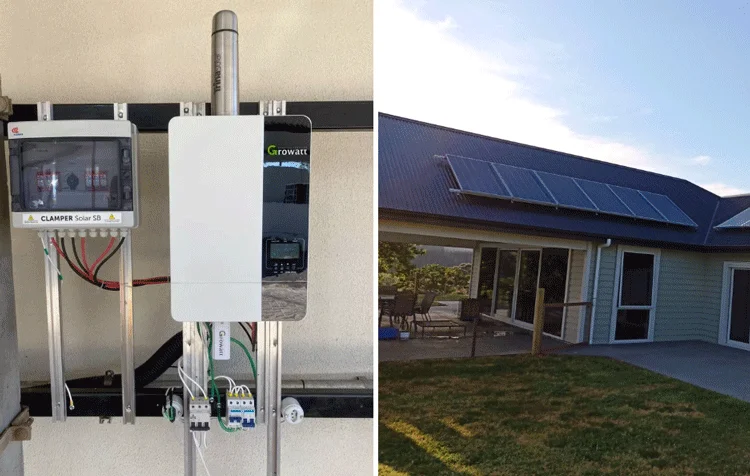

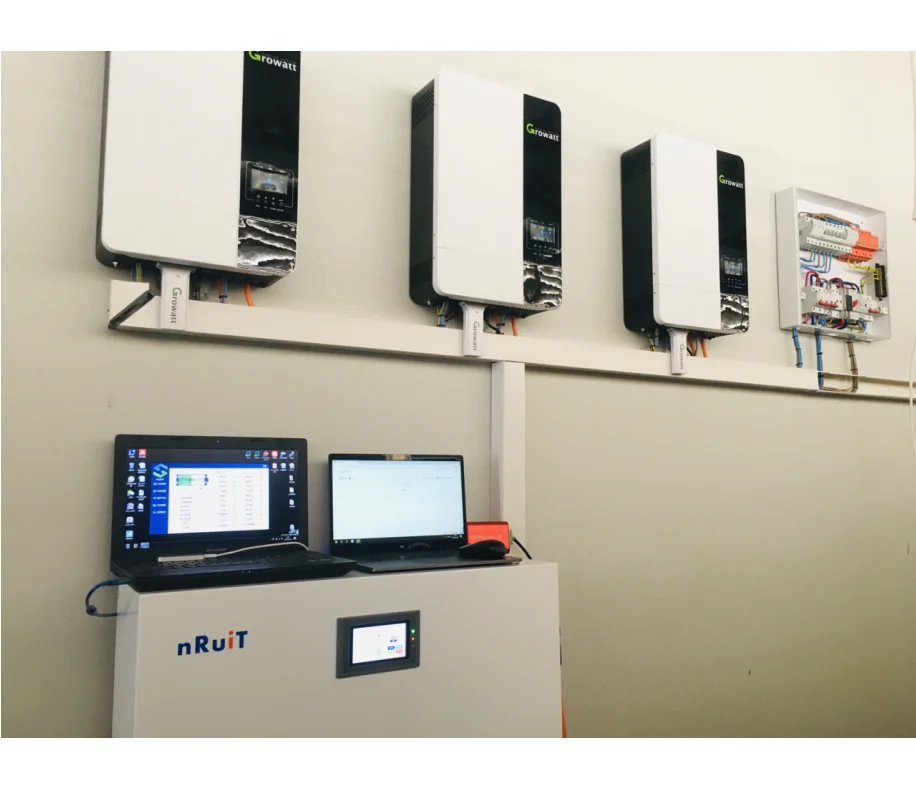

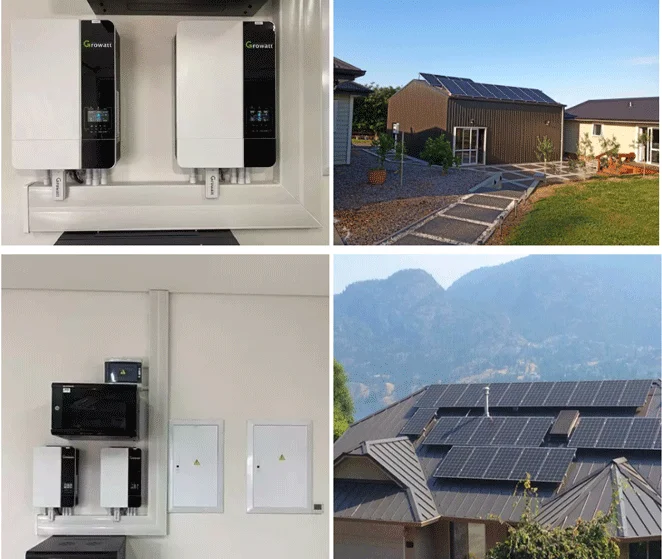

Projects
Growatt 5000ES 48VDC 5Kwa Off Grid Single Phase 98% Efficiency Parallel In 6 Units 5Kw Inverter
Deliver and Payment

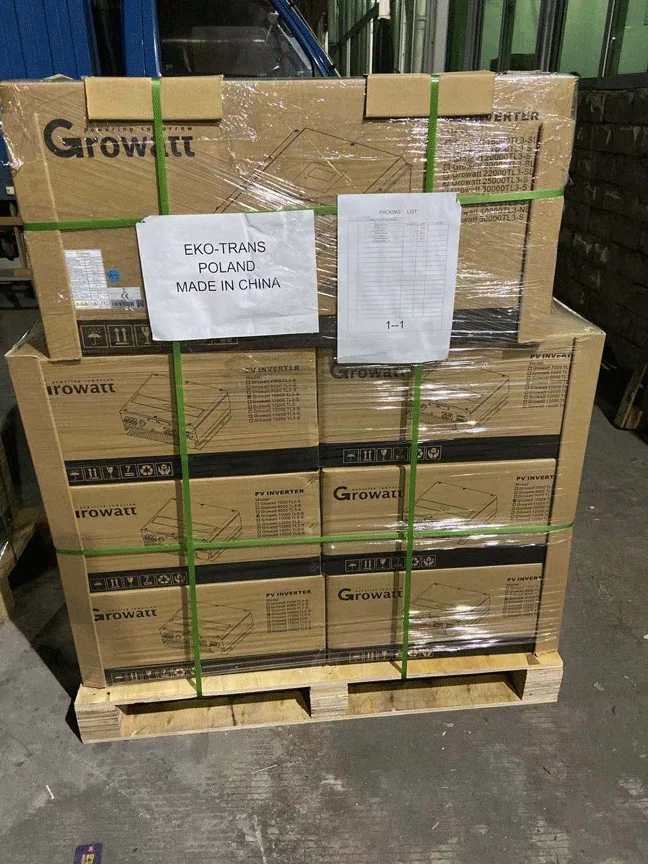

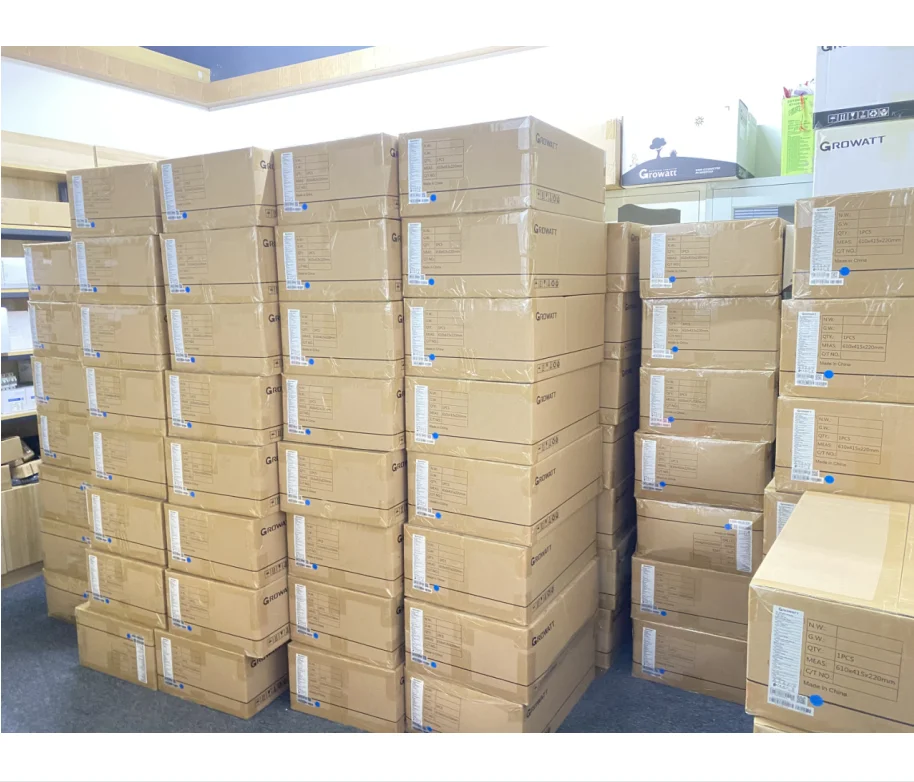

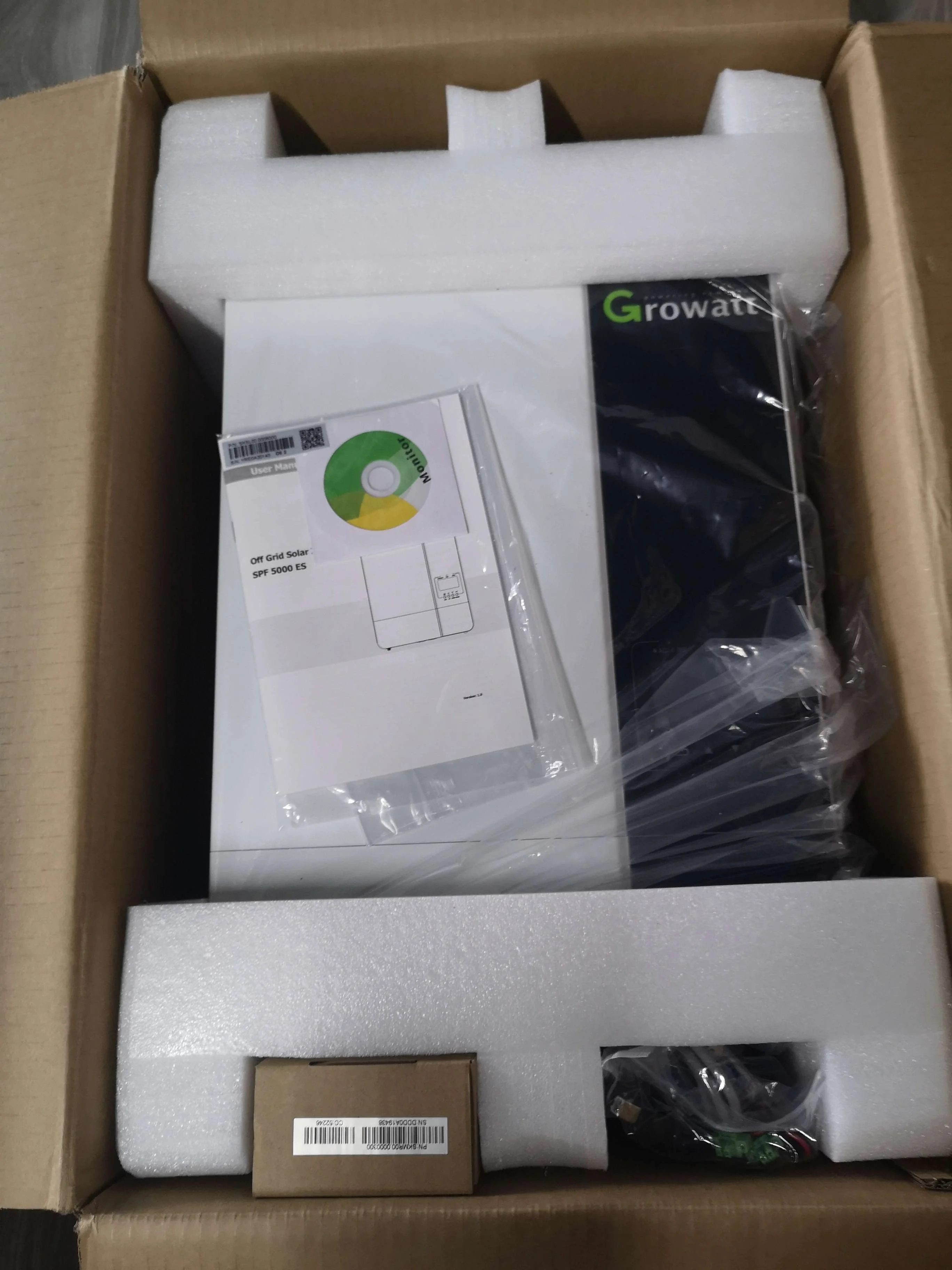

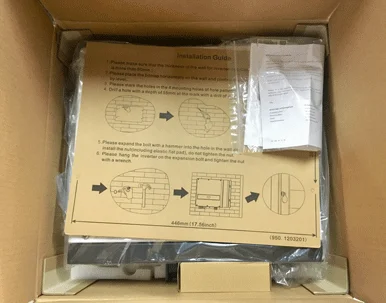

Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
We welcome use Trade Asurrance,you enjoy:
100% product quality protection
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% payment protection for your covered amount

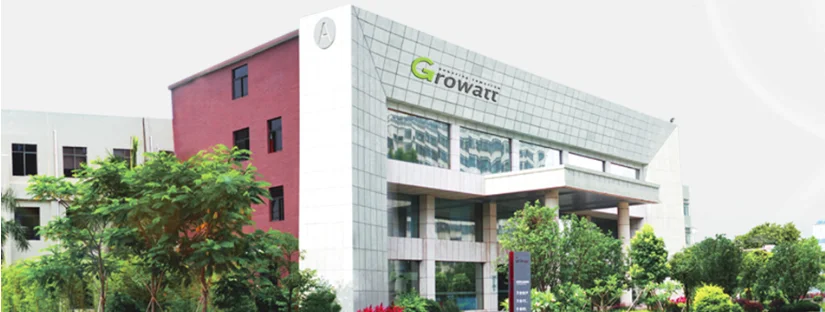

Our Company
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Our Partners
Exhibition
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
