Пневматические расширяющиеся валы, Воздушный вал, ролик

Product Overview

Description

Product Description

Lug (key)Type air expanding shaft  Peculiarity

1.Main body of the shaft utilize the hard chrome plating steel pipe;

2.It has aluminum sharps with flexible scalability;

3.Deploying high quality rubber bladder ;

4.Rapid aerating ;

5.Exhausting gas nozzle with good sealing effect;

6.Long service life;

7.It has removable shaft with simple maintenance.

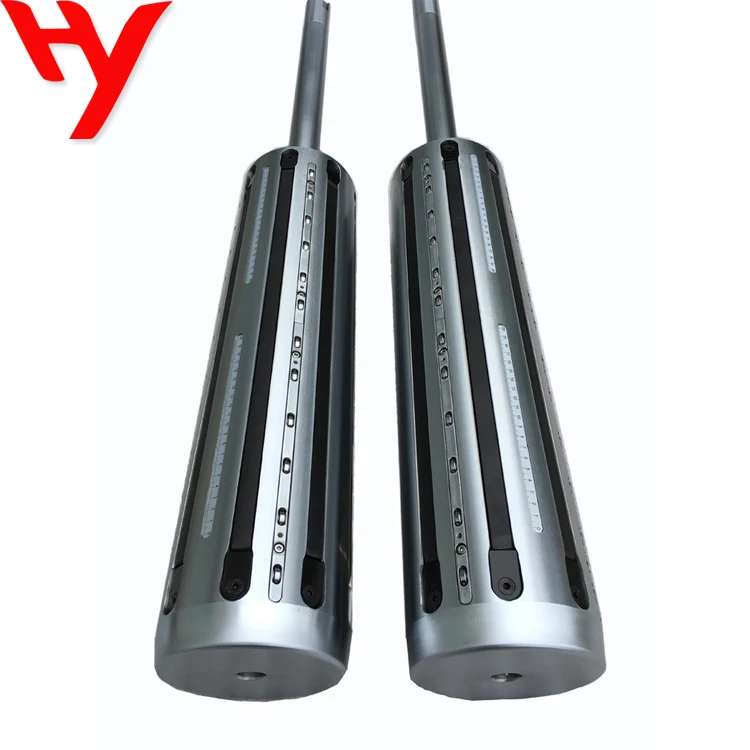

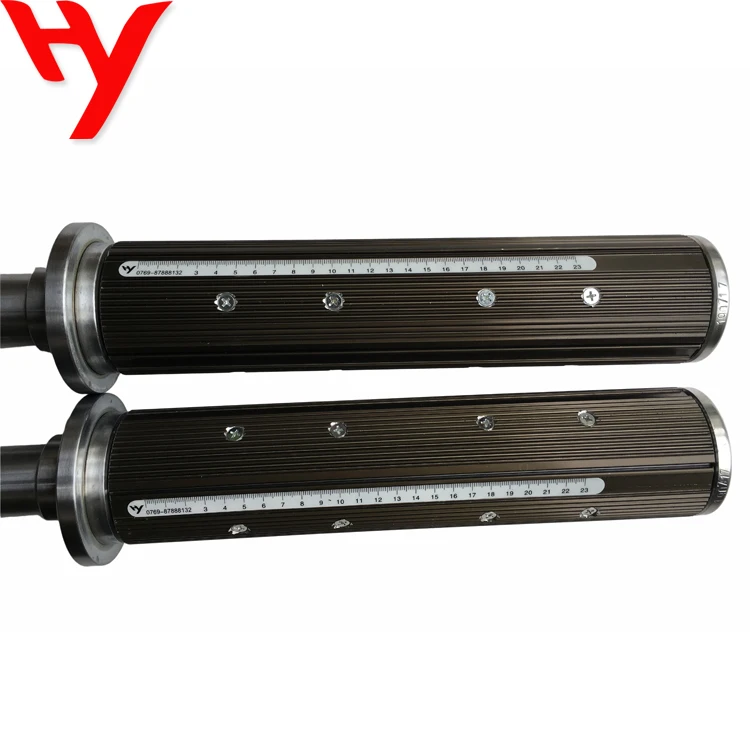

Leaf Type Air Shaft Features:

1.Leaf type air shaft is suitable for slitter, printer, rewinder, coating,

laminating and other needs higher roundness or surface take-up.

2.Shaft Body Material:45# Steel

3.Surface Material:Aluminum Leaf

4.Working Processing:Hard anodized

5.Delivery Time:10-12 working days

6.Minimum Order Quantity:1 Piece

7.Standard Loading Weight:600KG



The External Strip Shaft is ideal for light and medium duty unwind or rewind applications. Evenly spaced rows of continuous rubber lugs accomplish the gripping action in this type of shaft. The larger area of the external lug allows for a higher torque capacity. Total load carrying capacity is some what sacrificed as the outside body tube surface is machined away to allow for multiple "T" slots design to accommodate the rubber lug. The continuous lug design allows for the mounting of multiple cores of any width. The HuiYuan external strip lug shaft is simple in construction allowing for each external lug strip to be changed without dismantling the shaft.

For the right solution for your converting needs, consult with HuiYuan Manufacturing.
