Price:$0.65 - $0.80

Quantity:


Product Overview

Description



Product Overview


304/316 stainless steel wire rope full specifications
The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements. A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center. In material handling machinery, it is used for lifting, traction, tensioning and carrying. The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.


FEATURES AT A GLANCE


  1. The wire rope can transmit long-distance load.
  2. The bearing safety factor is large, and the use is safe and reliable.
  3. Light weight, easy to carry and transport.
  4. Able to withstand various loads and variable loads.
   5. It has high tensile strength, fatigue strength and impact toughness.
  6. Under high-speed working conditions, it is abrasion-resistant, shock-resistant and stable in operation.
  7. Good corrosion resistance, able to work normally in the harsh environment of various harmful media.
  8. Good softness, suitable for traction, pulling, strapping and other purposes.



Wire rope

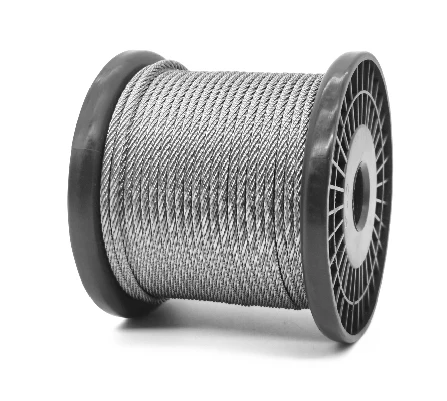

Stainless steel wire rope

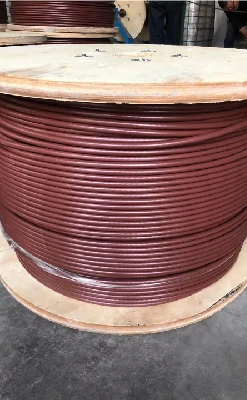

Plastic coated steel wire rope

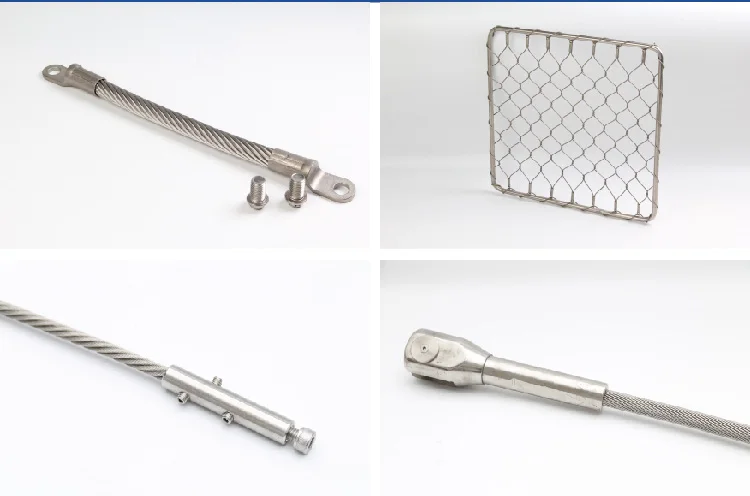

SIMILAR PRODUCTS






Successful Project


Wire rope guardrail
Wire rope suppression
Surface processing

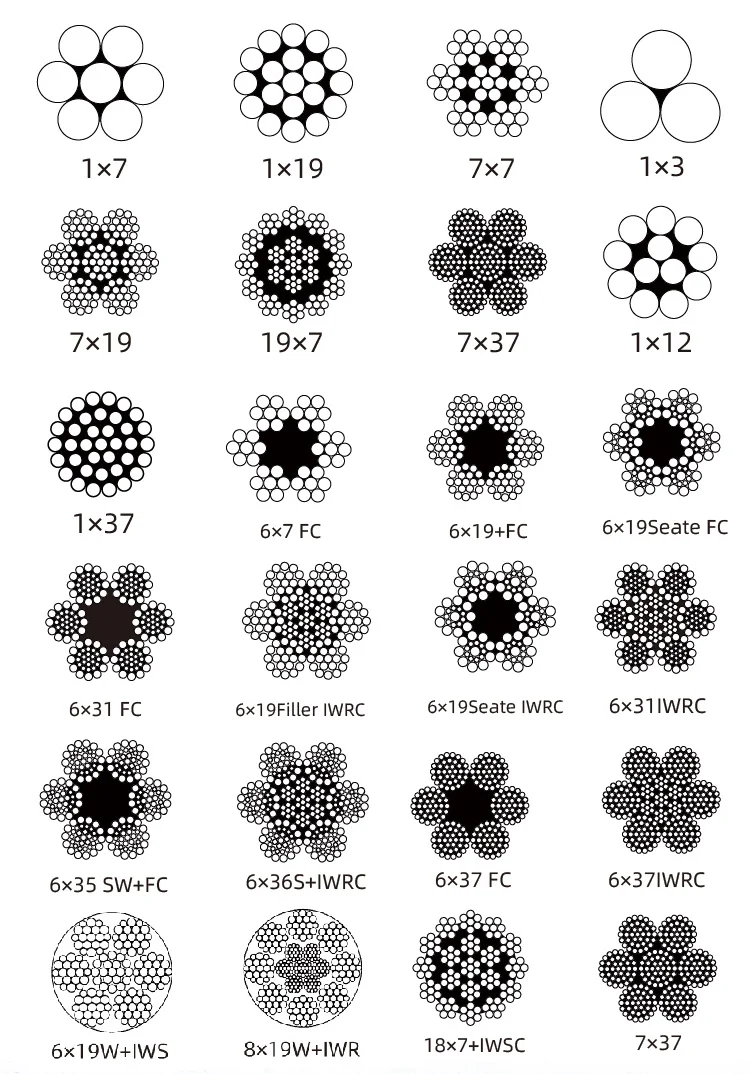

PRODUCT SPECIFICATIONS




Construction
Diameter (mm)
Approx.Weight (Kg/100m)
Approx.Meter (M/kg)
Min.Breaking Load (Kn)
Package (M/Reel)
7*7
0.5
0.09
1111.11
0.14
6000
0.6
0.15
689.66
0.27
4000
0.8
0.26
400.00
0.29
7000
1
0.39
256.41
0.56
5000
1.2
0.56
178.57
1.01
5000
1.5
0.88
113.64
1.37
2500
1.8
1.27
78.74
1.83
2000
2
1.57
63.69
2.25
2000
2.5
2.45
40.82
3.52
1000
3
3.53
28.33
5.07
1000
4
6.28
15.92
9.01
1000
5
9.82
10.18
14.09
1000
7*19
1
0.38
263.15
0.51
5000
1.5
0.85
117.65
1.17
2500
2
1.52
65.79
2.08
2000
2.5
2.38
42.02
3.25
1000
3
3.42
29.24
4.69
1000
4
3.09
16.42
8.33
1000
5
9.52
10.5
13.03
1000
6
13.71
7.29
18.76
1000
8
24.38
4.1
33.35
500
10
38.1
2.62
52.12
500
12
54.86
1.82
75.05
500
14
74.67
1.34
102.16
500
16
97.53
1.03
133.43
500
18
123.44
0.81
1688.88
500


PRODUCT CONFIGURATION


                 Raw material control

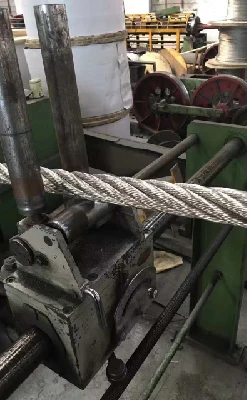

                  Production equipment

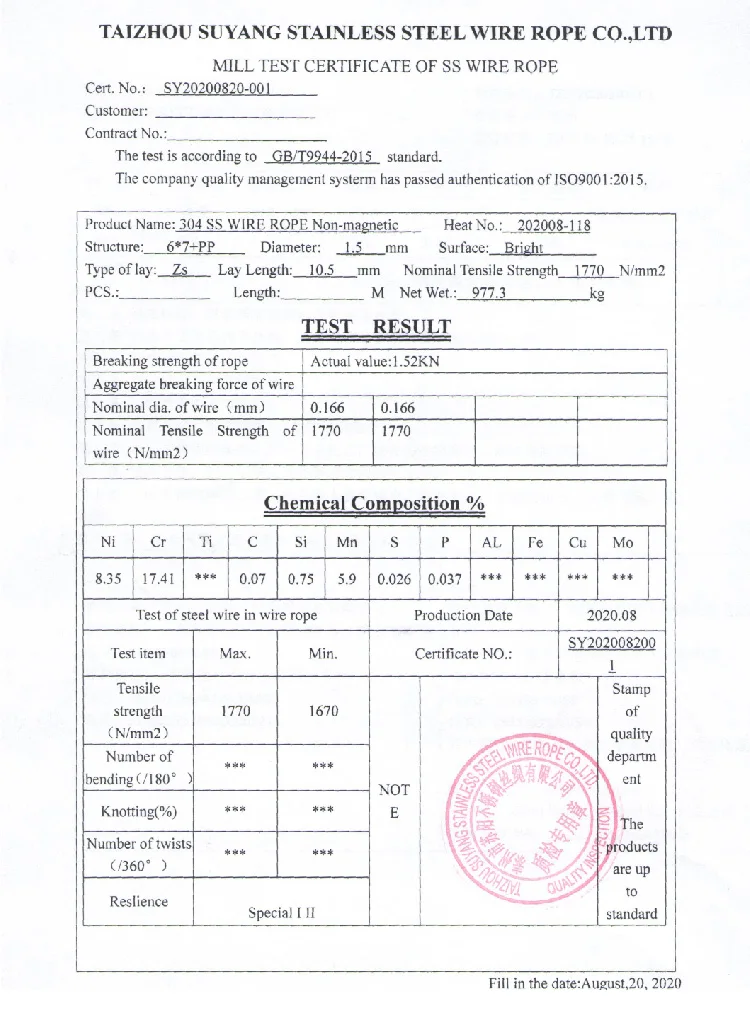

                   Testing Equipment


SALES AND SERVICE NETWORK




FAQ


Q1: Wonder if you accept small orders?
 A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.

 Q2: Can you send products to my country?
 A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

 Q3: Can you do OEM for me?
 A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

 Q4: What's your payment terms ?
 A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.

 Q5: How can I place the order?
 A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

 Q6: When can I get the quotation ?
 A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
