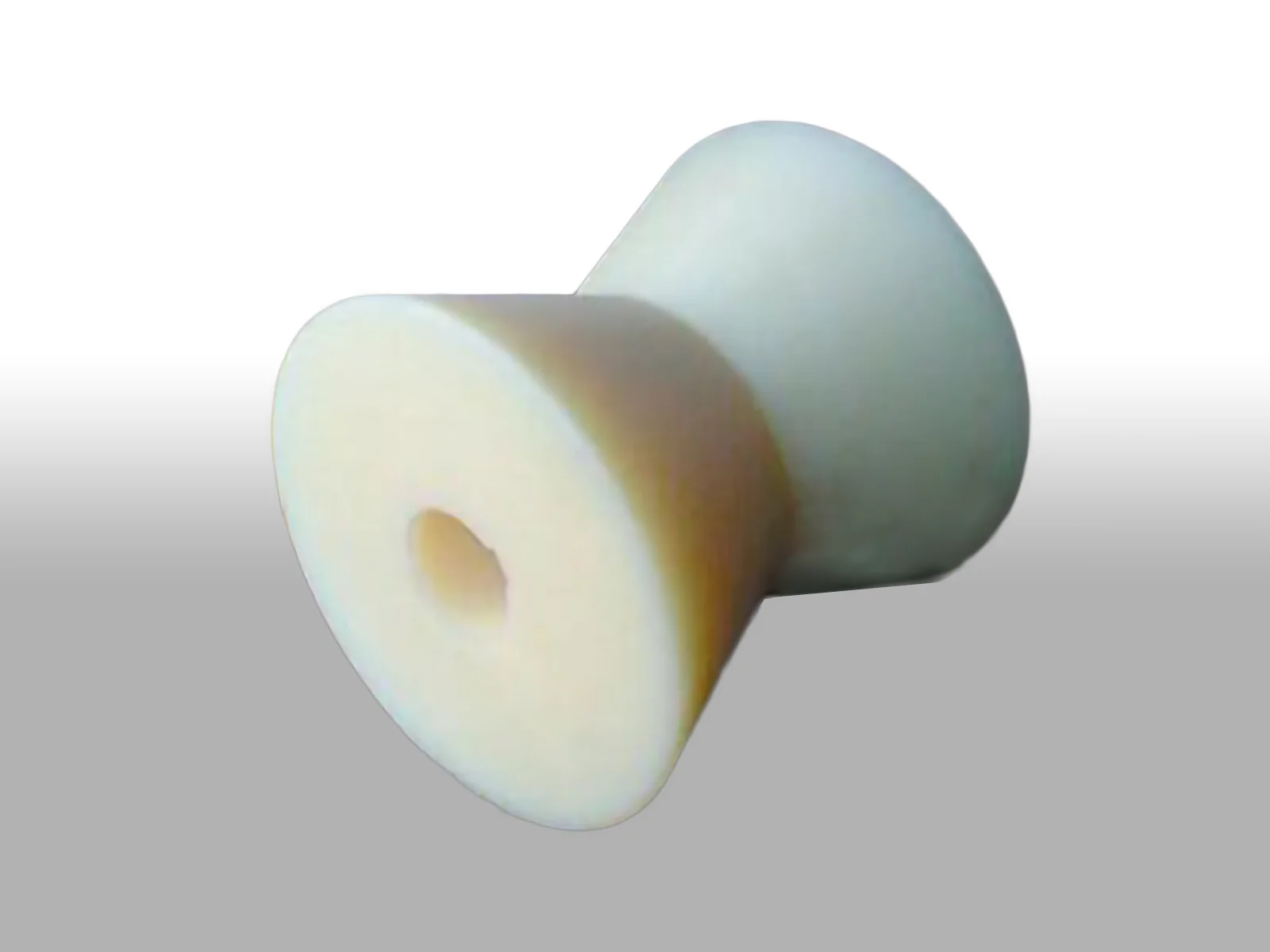

Steel pipe conveyor v roll wheels single urethane rubber rollers
- Category: >>>
- Supplier: Ohtsu-Chemical Co. Ltd
Share on (10000006761243):
Product Overview
Description
Products Description
V-roll is used in conveyor lines that carry steel pipes.
Several V-rolls are lined up, and the steel pipe passes through the V-shaped part.
It is a roller that is indispensable for transporting in steelworks.
Many V-rolls are installed on the conveyor line to move steel pipes.
Since V-roll drives, there is a key groove in the center of the roll.
Originally, urethane was lined on the iron core, but due to cost reduction, it became a single product made from MC nylon.
However, since it is inferior in abrasion resistance, and considering cutting down costs while maintaining the good properties of urethane (abrasion resistance), we had developed V-roll, a single urethane rubber product.
This product has high hardness (about JIS-A 99, JIS-D 70), and it is as hard as resin when touched. However, since it is a urethane rubber, it possesses elasticity, and exhibits abrasion resistance for specifications that allow steel pipes to pass through.
Also, it can be repaired after service since it is a single urethane product.
Several V-rolls are lined up, and the steel pipe passes through the V-shaped part.
It is a roller that is indispensable for transporting in steelworks.
Many V-rolls are installed on the conveyor line to move steel pipes.
Since V-roll drives, there is a key groove in the center of the roll.
Originally, urethane was lined on the iron core, but due to cost reduction, it became a single product made from MC nylon.
However, since it is inferior in abrasion resistance, and considering cutting down costs while maintaining the good properties of urethane (abrasion resistance), we had developed V-roll, a single urethane rubber product.
This product has high hardness (about JIS-A 99, JIS-D 70), and it is as hard as resin when touched. However, since it is a urethane rubber, it possesses elasticity, and exhibits abrasion resistance for specifications that allow steel pipes to pass through.
Also, it can be repaired after service since it is a single urethane product.
Steel pipe conveyor V-roll (Edge diameter x Center diameter x Length) | Mighty-Prene Material Code | Hardness (JIS-A) | Properties | |||
Standard sizes: ・200–400mm x 150–300mm x 200–400mm | LMD72 | 99 (D72) | ・Low temperature resistant ・Water resistant ・High load bearing ・Abrasion resistant | |||
LM2098 | 98 | ・Low temperature resistant ・Abrasion resistant ・High load bearing | ||||
LM2099 | 99 | |||||
*Please inquire if you have any request, such as size and material other than listed. | ||||||
Company Profile
A pioneer of urethane rubber technology and quality
Ohtsu Chemical Challenging Towards the Next Generation
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
