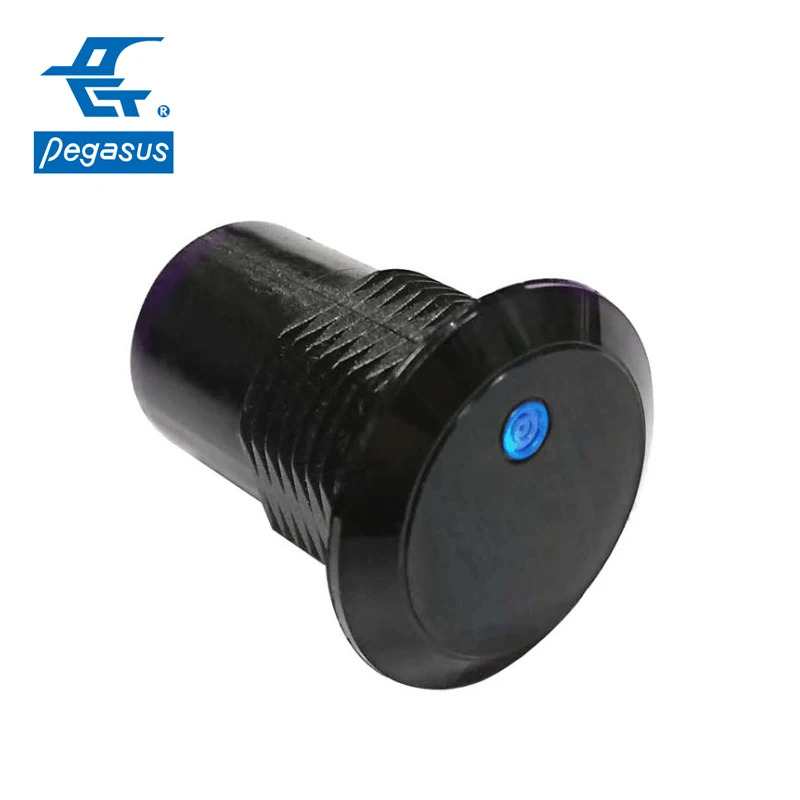

Mini size DC 10V~24V 22mm Touchless Infrared Sensor Switch

Product Overview

Description

Features

•Built-in micro controller for decoding infrared signal to avoid interference from the noise.

•With bi-color status LED (Power on: Red/ Proximity: Blue) / Optional: (Blue / Green).

•Adjustable proximity range: 4~15cm, depending on the reflection rate of different object.

•Support adjustable opening time 1~12 Sec.

•With N.C. and N.O. output.


Specifications

•Material : Polycarbonate fire & UV proof material

•Protection Level: IP65

•Power supply : DC 10V~24V

•Relay contact rating : 1A@30VDC, 0.3A@125VAC

•Current :

 Standby Current: 20mA@10VDC, 13mA@24VDC

  Operating Current: 47mA@10VDC, 28mA@24VDC

•Operating temperature: -20℃ ~ 75℃

•Life :

Electrical: Min. 100,000 operations at 1A 30VDC (at 0.5Hz)
                Min. 100,000 operations at 0.3A 125VAC (at 0.5Hz)
Mechanical: Min. 50,000,000 operations

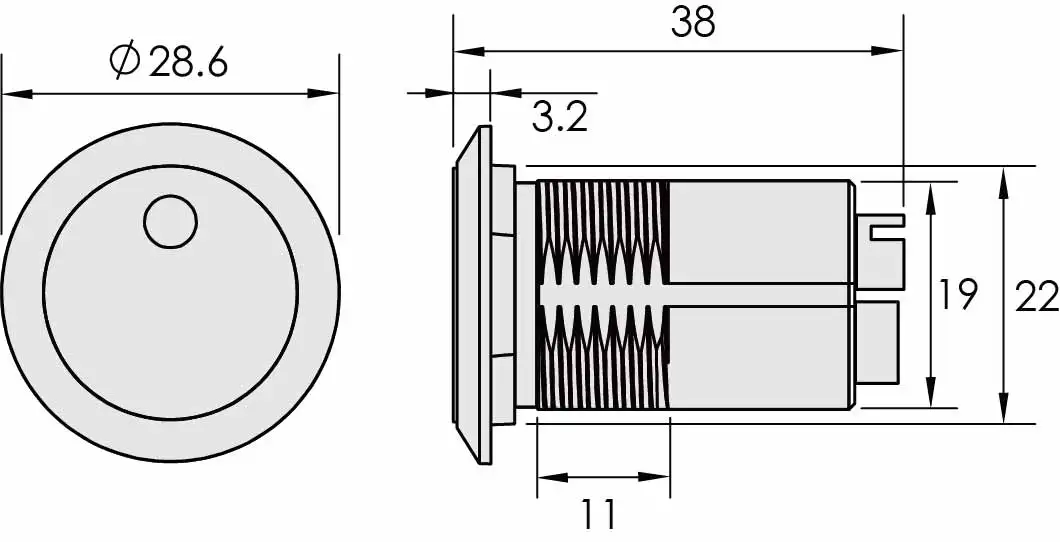

Dimension: Unit(mm)





We reserve the right to change the specification without prior notice or obligation!
