Product Overview

Description





YUK2300

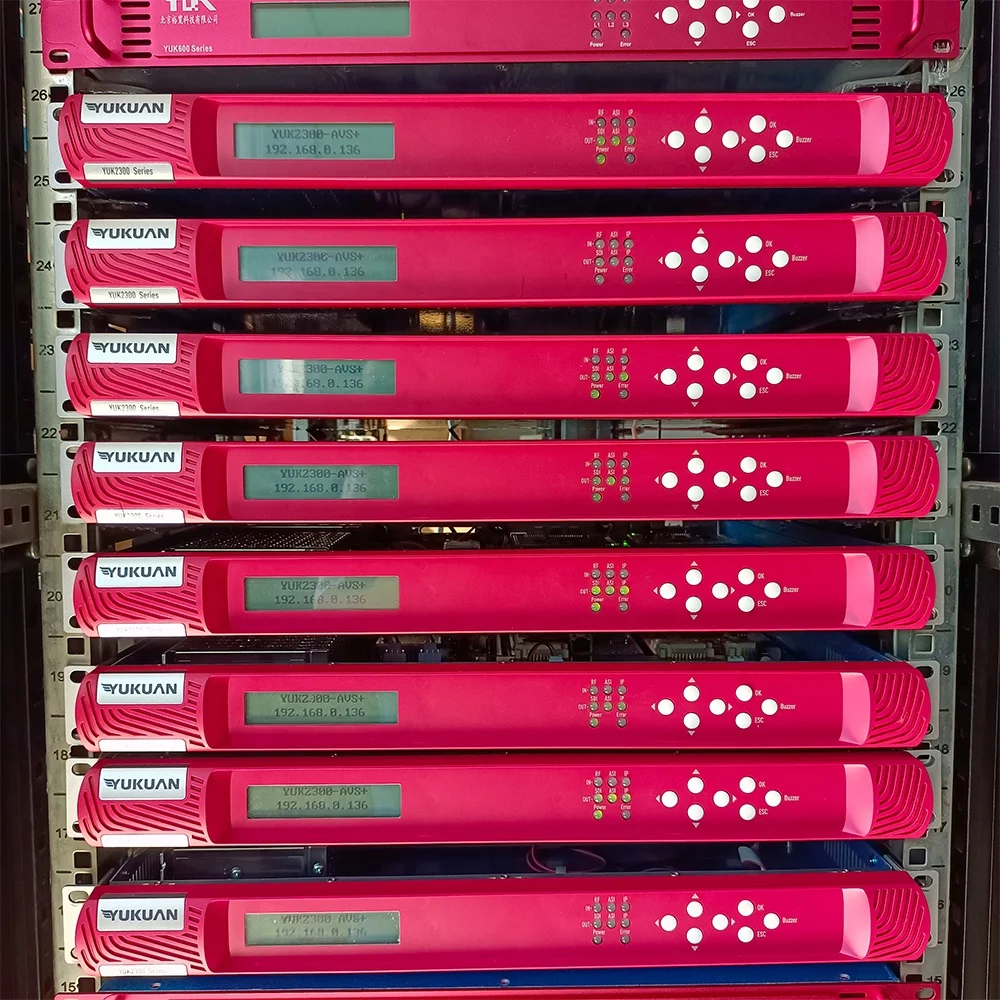

Digital TV Headend HEVC H.264 HD Satellite CI Descrambling IRD DVB S2 Professinal H265




Product Overview


YUK2300 DVB-S/S2/S2X integrated receiver decoder supports H.265 H.264 MPEG-2 AVS+ decoding. It supports RF ASI IP input, single channel HDMI HD/SD-SDI analog stereo AES/EBU ASI IP output. The device supports multiple resolutions of 1080P 1080I 720P 576I 480I and multiple audio of DRA AAC MPEG AC3 etc.


Product Feature


* Support multiple input RF IP ASI

* RF signal optional DVB-S/S2/S2X, DVB-C,DVB-T2/T, ISDBT,ATSC-T,DTMB

* Multiple output, HDMI SD/HD-SDI analog stereo AES/EBU ASI IP

* Support H.265 H.264 MPEG-2 AVS+ decoding

* Support DRA AAC MPEG-1AC3 passthrough

* Demodulator + descrambler +re-mux+ decoder in one device

* IP (4×MPTS & 64×SPTS) output over UDP and RTP, support unicast multicast

* 2 ASI input, 2 ASI independent output

* Two independent CAM cards, descrambling two different signals with multi programs

* CI descrambling supports Conax, NDS, Nagra, Cryptoworks, Irdeto, Mediaguard, Viaccess, and other conditional access systems.Adopt unique digital decoding technology and dual PCMCIA interface, receive various encrypted satellite cable terrestrial digital TV signals by replacing different PCMCIA modules.

* Support BISS-1 and BISS-E decryption

* Compatible with HD SD signals

* Resolution can be automatically identified or manually set

* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD

* Web network management based on B/S

* Support signal input strength, signal to noise ratio (SNR) dynamic display


Specification


RF Input(DVB-S/S2/S2X)
Standard
DVB-S compliant
DVB-S2/S2X compliant
VCM and ACM supported
Input
1×RF input,1×RF loop 75Ω
Input Frequency
950~2150MHz
Maximum Symbol Rate
(DVB-S2/S2X)
Normal(64800 bits) FECFRAME Symbol Rates:
QPSK 1-60MSps
8PSK 1-60MSps
16APSK 1-58MSps
32APSK 1-55MSps
64APSK 1-34MSps
Maximum Symbol Rate(DVB-S)
Symbol Rates: 1-54MSps
FEC
All ratios compatible with standards
LNB Power Supply
13V/18V/turn off, 22KHz
Half SyQuest Baseband
filler(Roll off factor)
0.35 for DVB-S
0.15 to 0.35 for DVB-S2
0.05 to 0.35 for DVB-S2X
Supported Code Rate
DVB-S:
QPSK: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8
DVB-S2:
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X:
64APSK: 11/15, 7/9, 4/5, 5/6
RF Input(DVB-C)
Standard
DVB-C
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
48~862MHz
Input Level
45~75dbuV
Modulation Mode
16/32/64/128/256QAM
RF Input(DVB-T/T2)
Standard
DVB-T/T2
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
44~1002MHz
Input Level
-25~ -100 dbm
Modulation
DVB-T：QPSK/16-QAM/64-QAM
DVB-T2：QaPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6MHz/7MHz/8MHz
Carrier Mode
DVB-T：2K/8K
DVB-T2：1K, 2K，4K，8K，16K，32K
Guard Interval
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/4，5/32，1/8，5/64，1/16，1/32，1/64，1/128
FEC
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/2，3/5，2/3，3/4，4/5，5/6
RF Input(ISDBT)
Standard
ISDBT
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
90~862MHz
Layer
A,B,C,ABC optional
RF Input(DMB-T)
Standard
DMB-T
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
146MHz~862MHz
Bandwidth
6MHz/7MHz/8MHz
ASI Input/Output
ASI Input Connector
2×BNC, 75Ω
ASI Output Connector
2×BNC, 75Ω, 2×ASI output independently
Executive Standard
DVB-ASI, EN50083-9
Output Bitrate
≤200Mb/s
TS Over IP
Connector
1×RJ45, 10/100/1000 Base-T
Effective Bitrate
600Mb/s
Frame Length
(1-7)×188 adjustable bytes
Transfer Protocol
UDP/RTP, support unicast multicast
Video Decoding
Video Decoding Format
H.265 HEVC/MPEG 4/H.264 AVC/MPEG-2/AVS+
4:2:0, 10 bit
Bitrate
512Kbps-20Mbps
Bitrate Control
VBR CBR optional
Resolution
576i/ 576p/ 720p/ 1080 50i/ 1080 60i
Audio Decoding
Audio Decoding Format
MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
Bitrate
64/128/256/384Kbps
Sampling Frequency
48/44.1/32KHz
Support volume adjustment, support SDI embedded audio
HD/SD-SDI Output
Connector
2×BNC,75Ω, SDI1 and SDI2 mirrored out
SD-SDI Output
SMPTE 259M, 270 Mb/s (10bit)
HD-SDI Output
SMPTE 292M, 1.485 Gbit/s (20bit)
Output Level
800mV+-20 p-p
HDMI Output
Connector
1×HDMI
Resolution and Frame Rate
1080p59.94/1080p50/1080i60/1080i50/
720p60/720p50/576p/576i/480p/480i
Embedded Audio
1 channel stereo
Audio Output
Connector
1-ch analog stereo audio and 1-ch AES/EBU
Audio Output Mode
Left, Right, Dual Mono, Stereo
Local and Remote Management
Connector
1×RJ45, 10/100/1000 Base-T
Remote Control
HTTP Web
Local Control
HTTP Web
Equipment Upgrade
IP
Physical Specifications
Dimension(L×W×H)
450mm×350mm×44mm
Weight
Net weight 6.3KG
Power
AC 90V～250V，50/60Hz
Power Consumption
24W (excluding LNB power supply)
Temperature Range
0 ~ 45℃(operation), -10 ~ 60℃(storage)
Humidity
10 ~ 90% (Non-condensing)


RF Input(DVB-S/S2/S2X)
Standard
DVB-S compliant
DVB-S2/S2X compliant
VCM and ACM supported
Input
1×RF input,1×RF loop 75Ω
Input Frequency
950~2150MHz
Maximum Symbol Rate
(DVB-S2/S2X)
Normal(64800 bits) FECFRAME Symbol Rates:
QPSK 1-60MSps
8PSK 1-60MSps
16APSK 1-58MSps
32APSK 1-55MSps
64APSK 1-34MSps
Maximum Symbol Rate(DVB-S)
Symbol Rates: 1-54MSps
FEC
All ratios compatible with standards
LNB Power Supply
13V/18V/turn off, 22KHz
Half SyQuest Baseband
filler(Roll off factor)
0.35 for DVB-S
0.15 to 0.35 for DVB-S2
0.05 to 0.35 for DVB-S2X
Supported Code Rate
DVB-S:
QPSK: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8
DVB-S2:
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X:
64APSK: 11/15, 7/9, 4/5, 5/6
RF Input(DVB-C)
Standard
DVB-C
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
48~862MHz
Input Level
45~75dbuV
Modulation Mode
16/32/64/128/256QAM
RF Input(DVB-T/T2)
Standard
DVB-T/T2
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
44~1002MHz
Input Level
-25~ -100 dbm
Modulation
DVB-T：QPSK/16-QAM/64-QAM
DVB-T2：QaPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6MHz/7MHz/8MHz
Carrier Mode
DVB-T：2K/8K
DVB-T2：1K, 2K，4K，8K，16K，32K
Guard Interval
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/4，5/32，1/8，5/64，1/16，1/32，1/64，1/128
FEC
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/2，3/5，2/3，3/4，4/5，5/6
RF Input(ISDBT)
Standard
ISDBT
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
90~862MHz
Layer
A,B,C,ABC optional
RF Input(DMB-T)
Standard
DMB-T
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
146MHz~862MHz
Bandwidth
6MHz/7MHz/8MHz
ASI Input/Output
ASI Input Connector
2×BNC, 75Ω
ASI Output Connector
2×BNC, 75Ω, 2×ASI output independently
Executive Standard
DVB-ASI, EN50083-9
Output Bitrate
≤200Mb/s
TS Over IP
Connector
1×RJ45, 10/100/1000 Base-T
Effective Bitrate
600Mb/s
Frame Length
(1-7)×188 adjustable bytes
Transfer Protocol
UDP/RTP, support unicast multicast
Video Decoding
Video Decoding Format
H.265 HEVC/MPEG 4/H.264 AVC/MPEG-2/AVS+
4:2:0, 10 bit
Bitrate
512Kbps-20Mbps
Bitrate Control
VBR CBR optional
Resolution
576i/ 576p/ 720p/ 1080 50i/ 1080 60i
Audio Decoding
Audio Decoding Format
MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
Bitrate
64/128/256/384Kbps
Sampling Frequency
48/44.1/32KHz
Support volume adjustment, support SDI embedded audio
HD/SD-SDI Output
Connector
2×BNC,75Ω, SDI1 and SDI2 mirrored out
SD-SDI Output
SMPTE 259M, 270 Mb/s (10bit)
HD-SDI Output
SMPTE 292M, 1.485 Gbit/s (20bit)
Output Level
800mV+-20 p-p
HDMI Output
Connector
1×HDMI
Resolution and Frame Rate
1080p59.94/1080p50/1080i60/1080i50/
720p60/720p50/576p/576i/480p/480i
Embedded Audio
1 channel stereo
Audio Output
Connector
1-ch analog stereo audio and 1-ch AES/EBU
Audio Output Mode
Left, Right, Dual Mono, Stereo
Local and Remote Management
Connector
1×RJ45, 10/100/1000 Base-T
Remote Control
HTTP Web
Local Control
HTTP Web
Equipment Upgrade
IP
Physical Specifications
Dimension(L×W×H)
450mm×350mm×44mm
Weight
Net weight 6.3KG
Power
AC 90V～250V，50/60Hz
Power Consumption
24W (excluding LNB power supply)
Temperature Range
0 ~ 45℃(operation), -10 ~ 60℃(storage)
Humidity
10 ~ 90% (Non-condensing)


RF Input(DVB-S/S2/S2X)
Standard
DVB-S compliant
DVB-S2/S2X compliant
VCM and ACM supported
Input
1×RF input,1×RF loop 75Ω
Input Frequency
950~2150MHz
Maximum Symbol Rate
(DVB-S2/S2X)
Normal(64800 bits) FECFRAME Symbol Rates:
QPSK 1-60MSps
8PSK 1-60MSps
16APSK 1-58MSps
32APSK 1-55MSps
64APSK 1-34MSps
Maximum Symbol Rate(DVB-S)
Symbol Rates: 1-54MSps
FEC
All ratios compatible with standards
LNB Power Supply
13V/18V/turn off, 22KHz
Half SyQuest Baseband
filler(Roll off factor)
0.35 for DVB-S
0.15 to 0.35 for DVB-S2
0.05 to 0.35 for DVB-S2X
Supported Code Rate
DVB-S:
QPSK: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8
DVB-S2:
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X:
64APSK: 11/15, 7/9, 4/5, 5/6
RF Input(DVB-C)
Standard
DVB-C
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
48~862MHz
Input Level
45~75dbuV
Modulation Mode
16/32/64/128/256QAM
RF Input(DVB-T/T2)
Standard
DVB-T/T2
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
44~1002MHz
Input Level
-25~ -100 dbm
Modulation
DVB-T：QPSK/16-QAM/64-QAM
DVB-T2：QaPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6MHz/7MHz/8MHz
Carrier Mode
DVB-T：2K/8K
DVB-T2：1K, 2K，4K，8K，16K，32K
Guard Interval
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/4，5/32，1/8，5/64，1/16，1/32，1/64，1/128
FEC
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/2，3/5，2/3，3/4，4/5，5/6
RF Input(ISDBT)
Standard
ISDBT
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
90~862MHz
Layer
A,B,C,ABC optional
RF Input(DMB-T)
Standard
DMB-T
Input
1×RF input, 1×RF loop, 75Ω
Input Frequency
146MHz~862MHz
Bandwidth
6MHz/7MHz/8MHz
ASI Input/Output
ASI Input Connector
2×BNC, 75Ω
ASI Output Connector
2×BNC, 75Ω, 2×ASI output independently
Executive Standard
DVB-ASI, EN50083-9
Output Bitrate
≤200Mb/s
TS Over IP
Connector
1×RJ45, 10/100/1000 Base-T
Effective Bitrate
600Mb/s
Frame Length
(1-7)×188 adjustable bytes
Transfer Protocol
UDP/RTP, support unicast multicast
Video Decoding
Video Decoding Format
H.265 HEVC/MPEG 4/H.264 AVC/MPEG-2/AVS+
4:2:0, 10 bit
Bitrate
512Kbps-20Mbps
Bitrate Control
VBR CBR optional
Resolution
576i/ 576p/ 720p/ 1080 50i/ 1080 60i
Audio Decoding
Audio Decoding Format
MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
Bitrate
64/128/256/384Kbps
Sampling Frequency
48/44.1/32KHz
Support volume adjustment, support SDI embedded audio
HD/SD-SDI Output
Connector
2×BNC,75Ω, SDI1 and SDI2 mirrored out
SD-SDI Output
SMPTE 259M, 270 Mb/s (10bit)
HD-SDI Output
SMPTE 292M, 1.485 Gbit/s (20bit)
Output Level
800mV+-20 p-p
HDMI Output
Connector
1×HDMI
Resolution and Frame Rate
1080p59.94/1080p50/1080i60/1080i50/
720p60/720p50/576p/576i/480p/480i
Embedded Audio
1 channel stereo
Audio Output
Connector
1-ch analog stereo audio and 1-ch AES/EBU
Audio Output Mode
Left, Right, Dual Mono, Stereo
Local and Remote Management
Connector
1×RJ45, 10/100/1000 Base-T
Remote Control
HTTP Web
Local Control
HTTP Web
Equipment Upgrade
IP
Physical Specifications
Dimension(L×W×H)
450mm×350mm×44mm
Weight
Net weight 6.3KG
Power
AC 90V～250V，50/60Hz
Power Consumption
24W (excluding LNB power supply)
Temperature Range
0 ~ 45℃(operation), -10 ~ 60℃(storage)
Humidity
10 ~ 90% (Non-condensing)

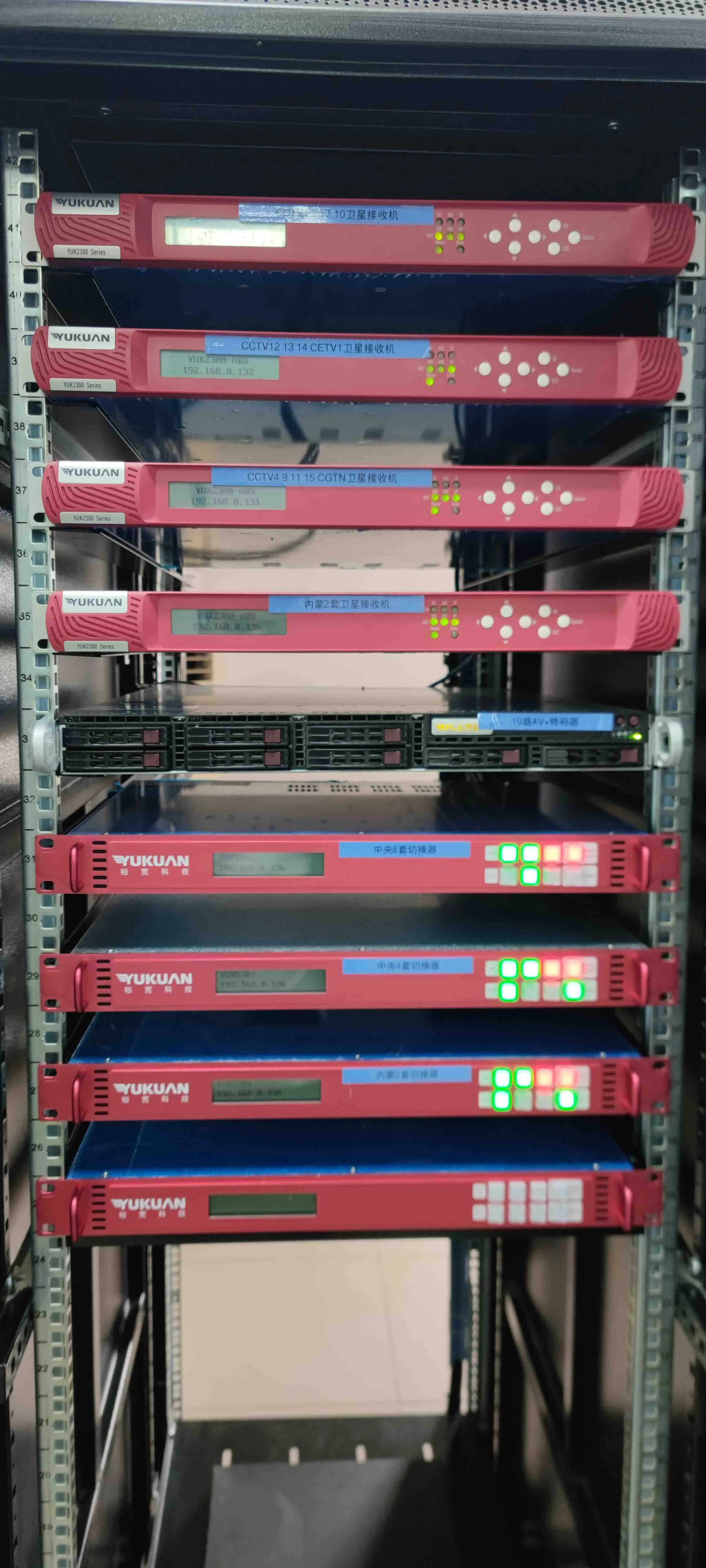

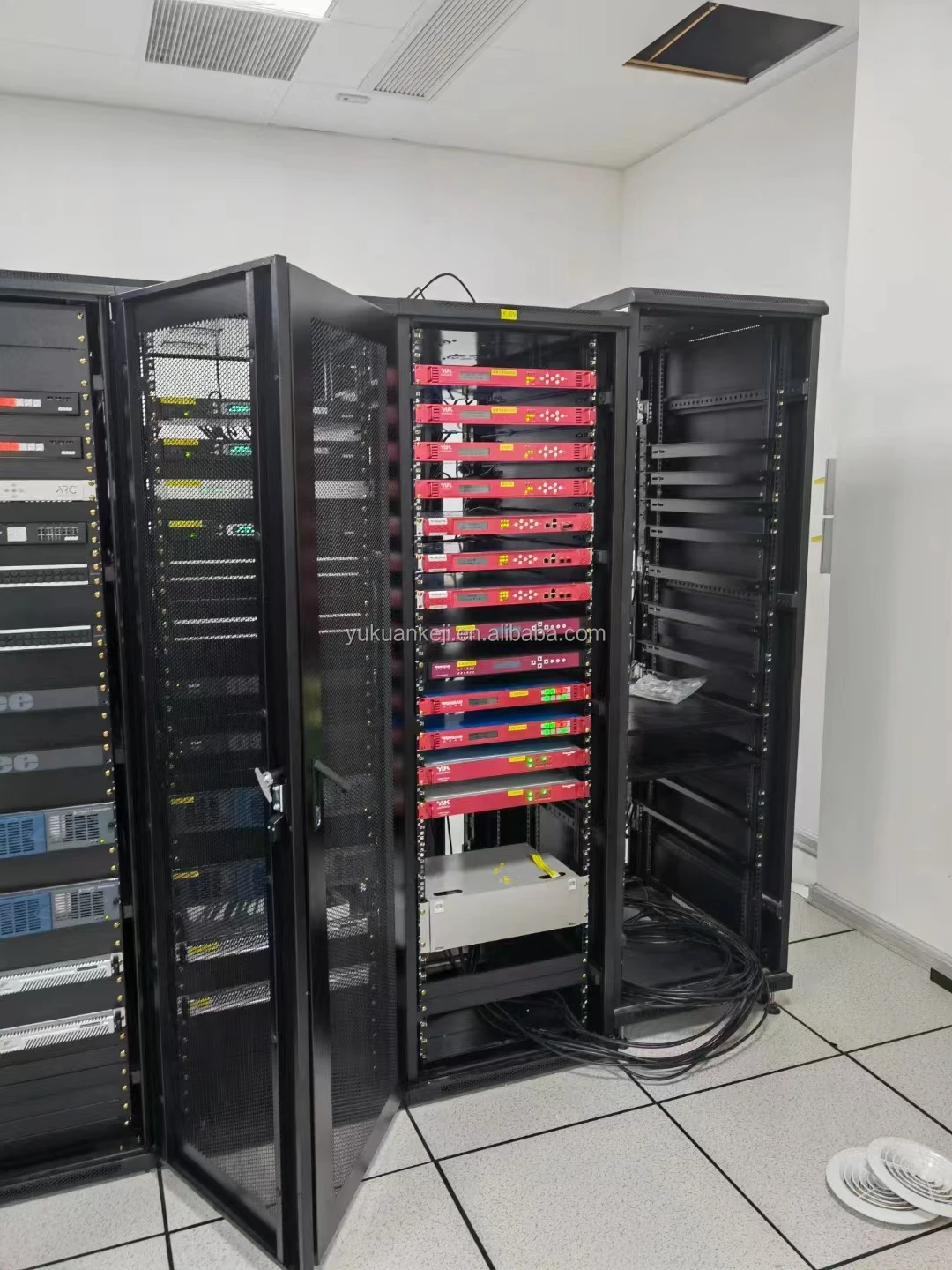

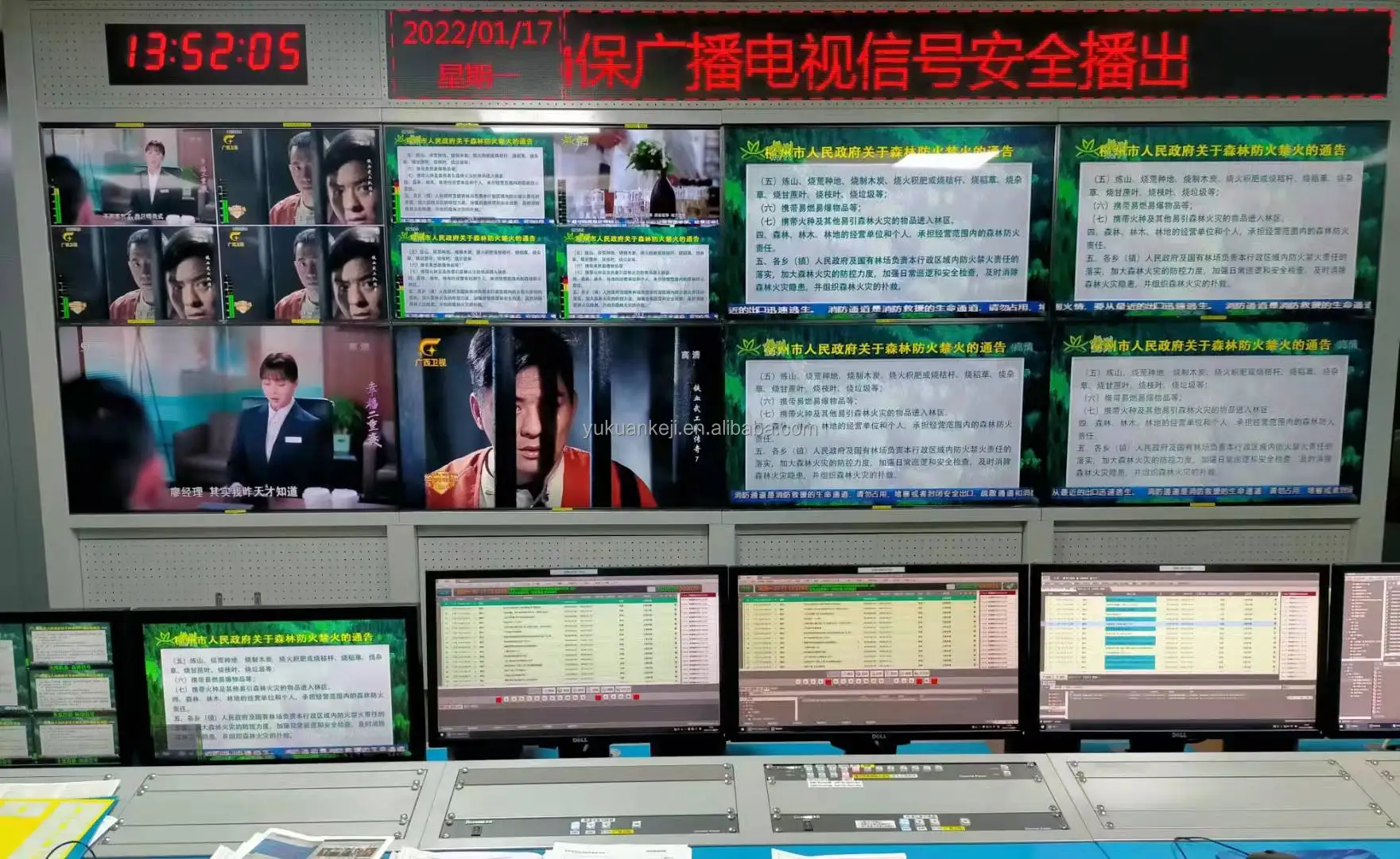

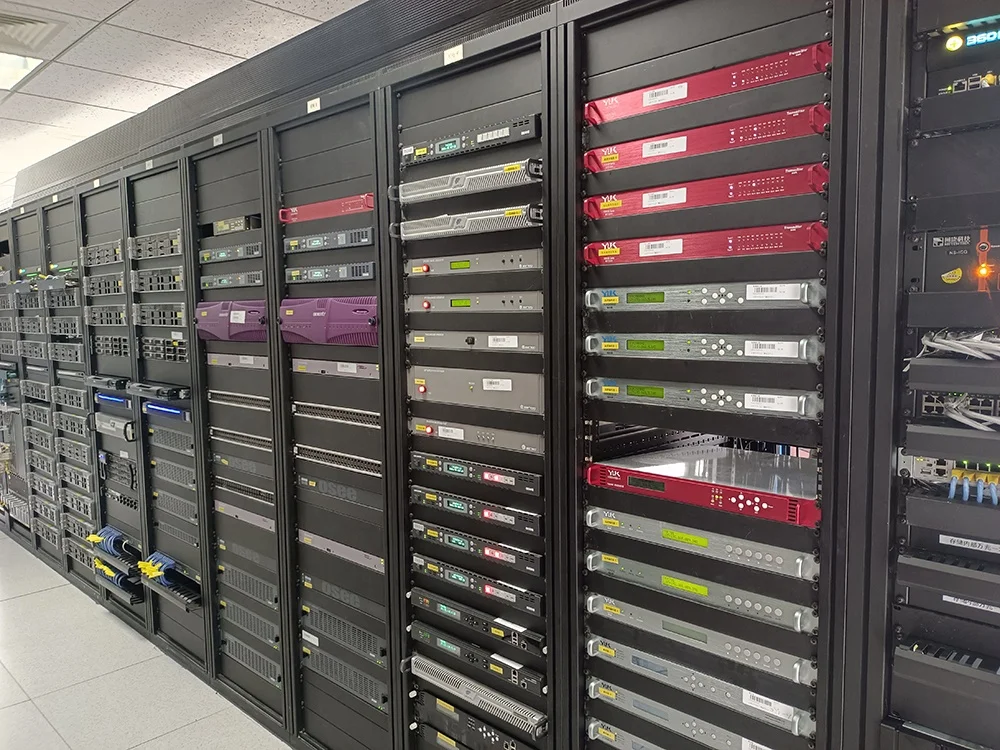

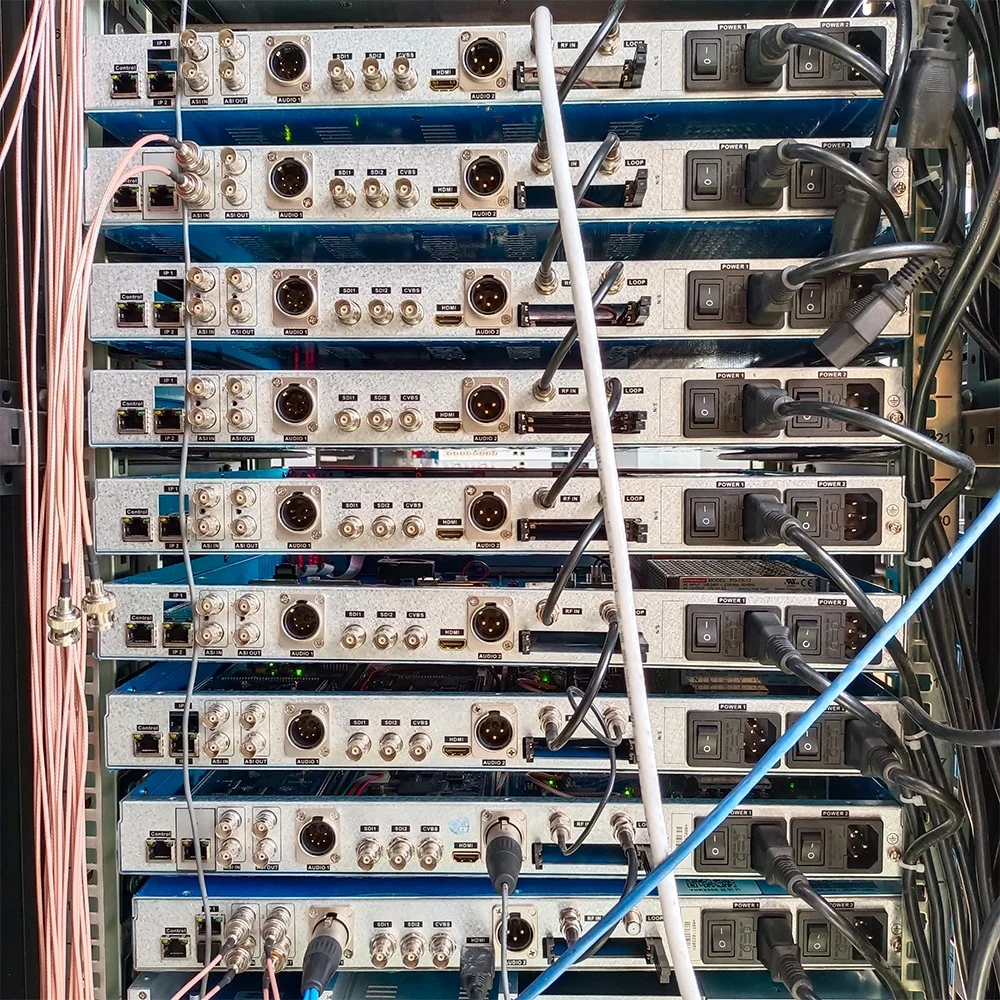

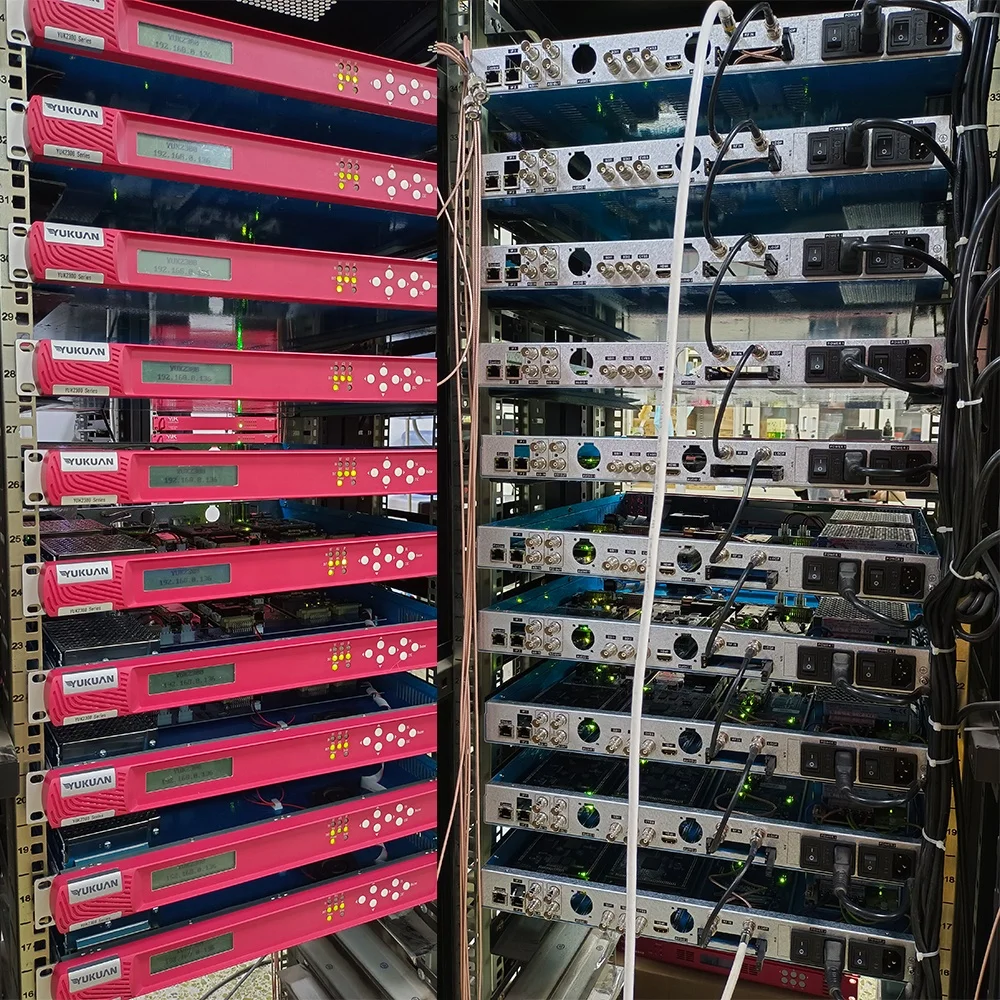

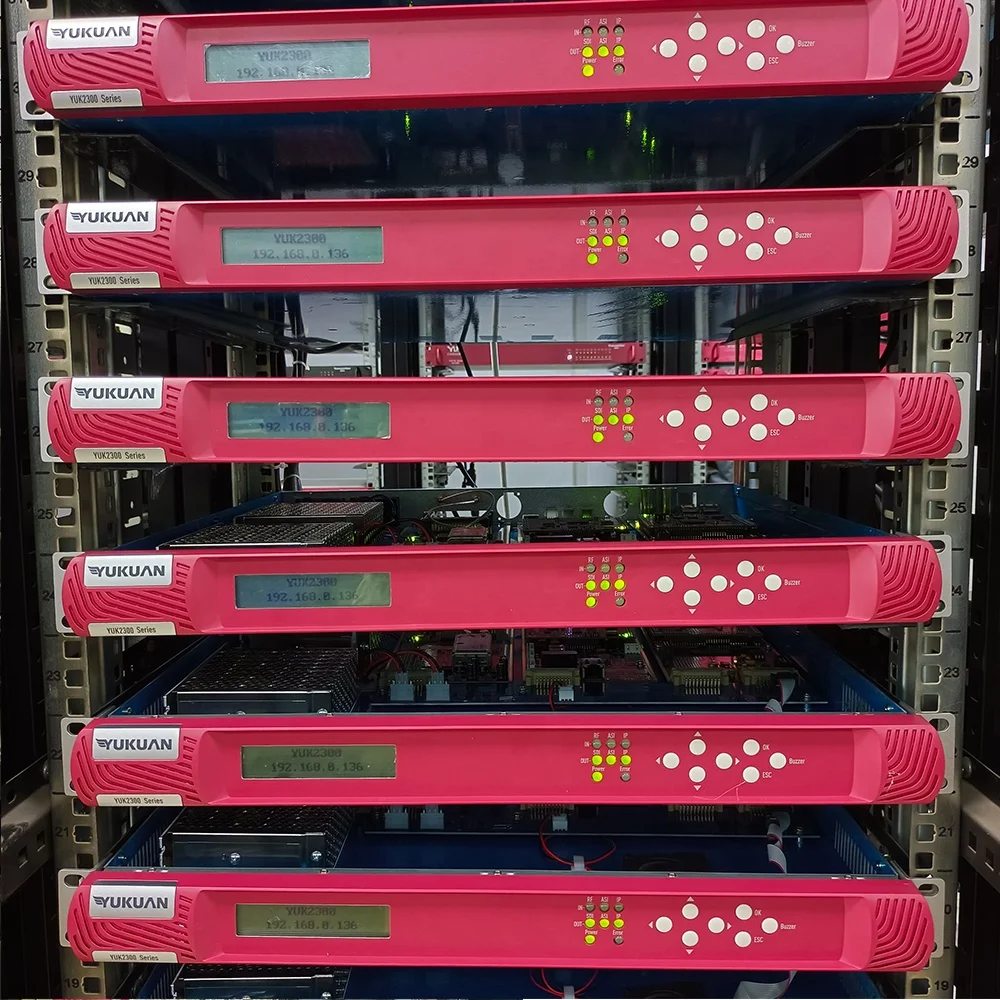

Project Case


























To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




We Recommend

New Arrivals

New products from manufacturers at wholesale prices

0.2049 s.
