RBS020902 Roll Ball SMD Vibration Sensor Upside Down Detection Switch
- Category: >>>
- Supplier: ONCQUE CORPORATION
Share on (10000007012872):
Product Overview
Description
Product Description
Function
- Horizontal Tilt Detecting
- Vertical Rotation Detecting
- Shock Detecting
Specification

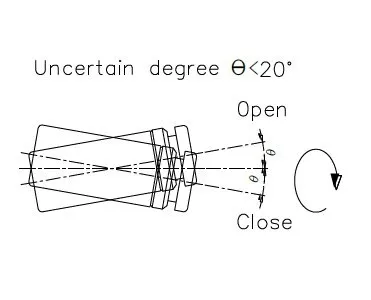

Tilt Angle : θ < 20°
Type: SMD
Suitable to use for Horizontal PCB
Switch State: Normal Open
Type: SMD
Suitable to use for Horizontal PCB
Switch State: Normal Open
Description: Ball-Contact
Feature
● Tiny size, suitable for a small space.
● Wing-shaped terminals, a feature enables the half body of the sensor switch to be buried into PCB.
● Gold-plated ball and terminals, low possibility of oxidization.
● All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
● Simple ON and OFF signals, easy for design.
● RoHS compliance, an ideal substitute for mercury switch.
● A more economical tilt and rotation detection option than IC design solution.
Current / Voltage Suggested
Input Current (mA) | Operating Voltage (V) | Condition |
1.0 | 5 | -- |
Electrical Characteristics
Contact Rating | 10mA, 5VDC |
Contact Resistance | 10Ω max. |
Insulation Resistance | 50MΩ min. at 100VDC |
Dielectric Strength | 50VDC min. for 1 minute |
Capacitance | 5pF max. |
Conductive Rate | 85% min. |
Mechanical Characteristics
IR Reflow | Peak temp.=255~260℃ |
Operating Temperature | -25°C to 85°C |
Storage Temperature | -40°C to 85°C |
Humidity | 40°C / 95% RH |
Mechanical Life | 2 Hz, horizontal 1,000,000 times |
Electrical Life | 100,000 times |
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
Dimension & Packing

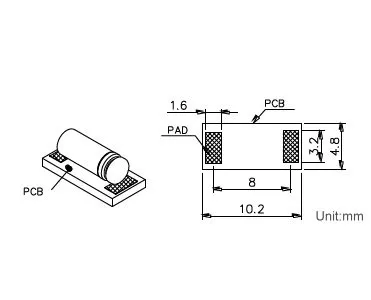

Dimension of RBS20902T
All made in TAIWAN and EXAMINED before shipment
Packing of RBS020902 _ PE Bag
All made in TAIWAN and EXAMINED before shipment
Package | Quantity | Total Q'ty | Dimension(mm) |
PE Bag | 2,000 pcs | 2,000 pcs | 205L*145W |
Inner Box | 10 PE Bag | 20,000 pcs | 348L*191W*85H |
Carton | 3 Boxes | 60,000 pcs | 364L*278W*213H |

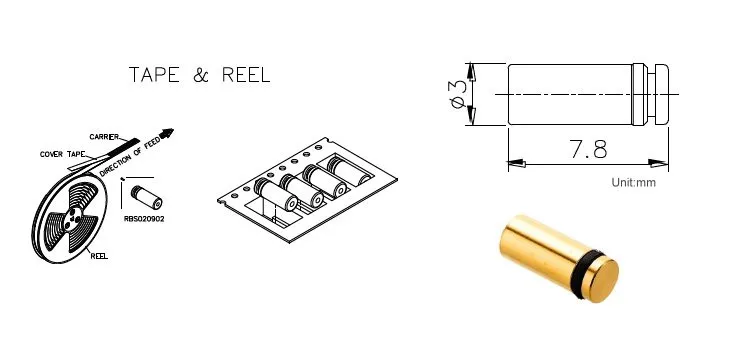

Packing of RBS020902T _ Tape & Reel
All made in TAIWAN and EXAMINED before shipment
Package | Quantity | Total Q'ty | Dimension(mm) |
Tape & Reel | 2,500 pcs | 2,500 pcs | φ330*25H |
Inner Box | 2 Reels | 5,000 pcs | 355L*340W*68H |
Carton | 4 Boxes | 20,000 pcs | 373L*358W*309H |
