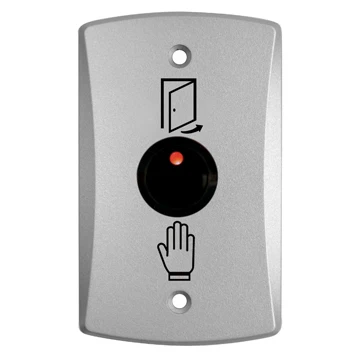

Waterproof DC/AC 10V~24V Infrared Sensor Switch No Touch Button For Door Access Control System Support adjustable opening time

Product Overview

Description

Features

•Built-in micro controller for decoding infrared signal to avoid interference from the noise.
•With bi-color status LED (Power on: Red/ Proximity: Blue). Optional: (Blue / Green)

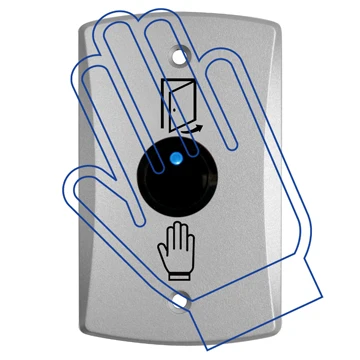

•Adjustable proximity range: 3~15cm, depending on the reflection rate of different object.
•Support adjustable opening time 0.5~20 Sec.or latched ON or OFF output.
•With N.C. and N.O. output.
•With CE certification.

Specifications

DIMENSIONS	5(plate)/34(total depth) x 75(W) x 115(L)mm
HOLE DISTANCE	83mm
MATERIAL	Face plate: Zinc alloy / IR sensor : Polycarbonate fire & UV proof material
PROTECTION LEVEL	IR sensor:IP65
POWER SUPPLY	DC/AC 10~24V
CURRENT	DC	Standby Current: 19mA@10VDC, 12mA@24VDC Operating Current: 45mA@10VDC, 26mA@24VDC
AC	Standby Current: 34mA@10VAC, 26mA@24VAC Operating Current: 74mA@10VAC, 51mA@24VAC
RELAY CONTACT RATING	1A@30VDC, 0.3A@125VAC
OPERATING TEMPERATURE	-20℃ ~ 75℃
LIFE	Electrical: Min. 100,000 operations at 1A 30VDC (at 0.5Hz)                  Min. 100,000 operations at 0.3A 125VAC (at 0.5Hz) Mechanical: Min. 50,000,000 operations



Dimension: Unit(mm/inch)


Example Applications

How to assembly










We reserve the right to change the specification without prior notice or obligation!
