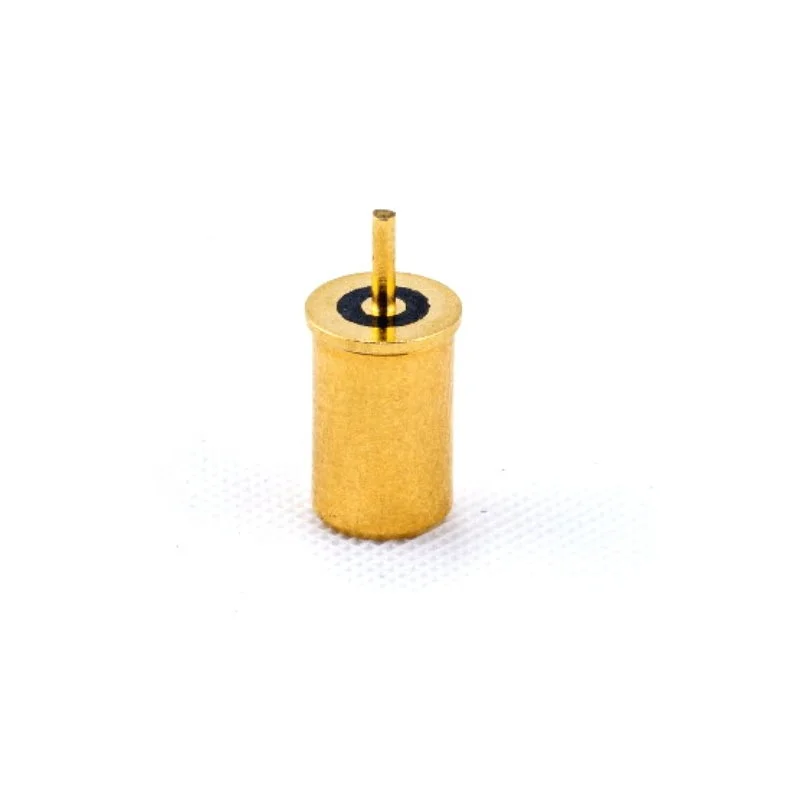

Low Oxidization VBS020601Centrifugal Force Sensor Switch
- Category: Other Switches >>>
- Supplier: ONCQUE CORPORATION
Share on (10000007026834):
Product Overview
Description
Product Description
Function
1. Centrifugal Force detecting
2. Single Axis Vibration detecting
Specification
Suitable for horizontal and vertical PCB.
Switch State: Normal Open
Trigger Force Between 1.5G to 5 G
Suitable Production Process: DIPFeature
● Tiny size, suitable for small space.
● Gold-plated ball and terminals, low possibility of oxidization.
● Use of high quality springs, vibration sensitivity is good.
● Using the technology of insert molding to withstand the force between the base and the terminal.
● All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
● Simple ON and OFF signals, easy for design.
● Suitable for IC trigger for signal.
● RoHS compliance, an ideal substitute for mercury switch.
Patent
● U.S.A. Patent No. US 6,555,772 B1
● U.S.A. Patent No. US 7,332,685 B1
Current/Voltage Suggested
Input Current (mA) | Operating Voltage (V) | Condition |
1.0 | 5 | -- |
Electrical Characteristics
Contact Rating | 10 mA , 5 VDC |
Contact Resistance | 10 Ω max. |
Insulation Resistance | 1000 MΩ min.,100 VDC |
Dielectric Strength | 500 VDC min., 1 minute |
Capacitance | 5 pF max. |
Mechanical Characteristics
Operating Temperature | -40°C to 125°C |
Storage Temperature | -50℃ to 150℃ |
Humidity | 40℃ / 95%RH |
Mechanical Life | 2Hz, horizontal 1,000,000 times |
Electrical Life | 100,000 times |
Dimension & Packing
Packing of VBS020601
All MADE IN TAIWAN and EXAMINED before shipment
Package | Quantity | Total Q’ty | Dimension(mm) |
PE bag | 1,000 pcs | 1,000 pcs | 127L*178W |
Inner box | 10 PE bags | 10,000 pcs | 360L*200W*90H |
Carton | 3 Boxes | 30,000 pcs | 360L*280W*230H |
