Omnidirectional Tilt Switch RBS07 for Horizontal Vertical PCB installed
- Category: >>>
- Supplier: ONCQUE CORPORATION
Share on (10000007057789):
Product Overview
Description
Product Description
RBS07 series
45° Tilt detecting within a 360° radius / Up-Side Down detecting
● Switch state: Normal Close
● Housing made of high insulation plastic material, free from electric conduction and rust problem.
● Gold-plated ball and terminals, low possibility of oxidization.
● All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
● Simple ON and OFF signals, easy for design.
● RoHS compliance, an ideal substitute for mercury switch.
● A more economical tilt and rotation detection option than IC design solution.
● All made in Taiwan and examined before shipment.
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
RBS070310
Function
● 45° tilt detecting within a 360° radius
● 45° tilt detecting within a 360° radius
● Up-Side Down detecting P.C.B direction :Horizontal PCB
Production Process :DIP
Production Process :DIP

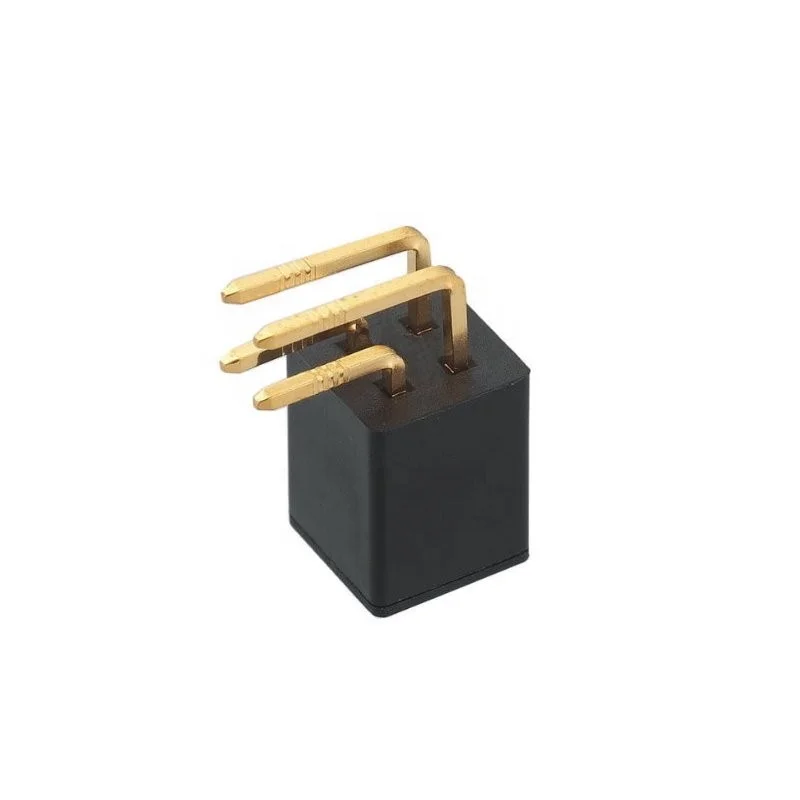

RBS070410
Function
●45° Tilt detecting within a 360° radius

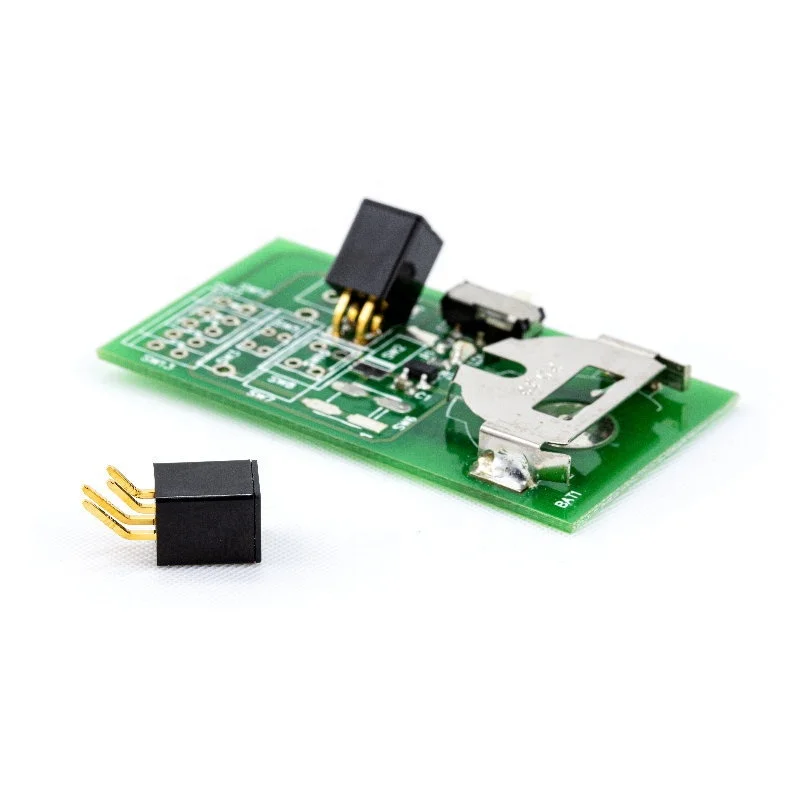

●Up-Side Down detecting P.C.B direction :Vertical PCB
Production Process :DIP
●45° Tilt detecting within a 360° radius
●Up-Side Down detecting P.C.B direction :Vertical PCB
Production Process :DIP

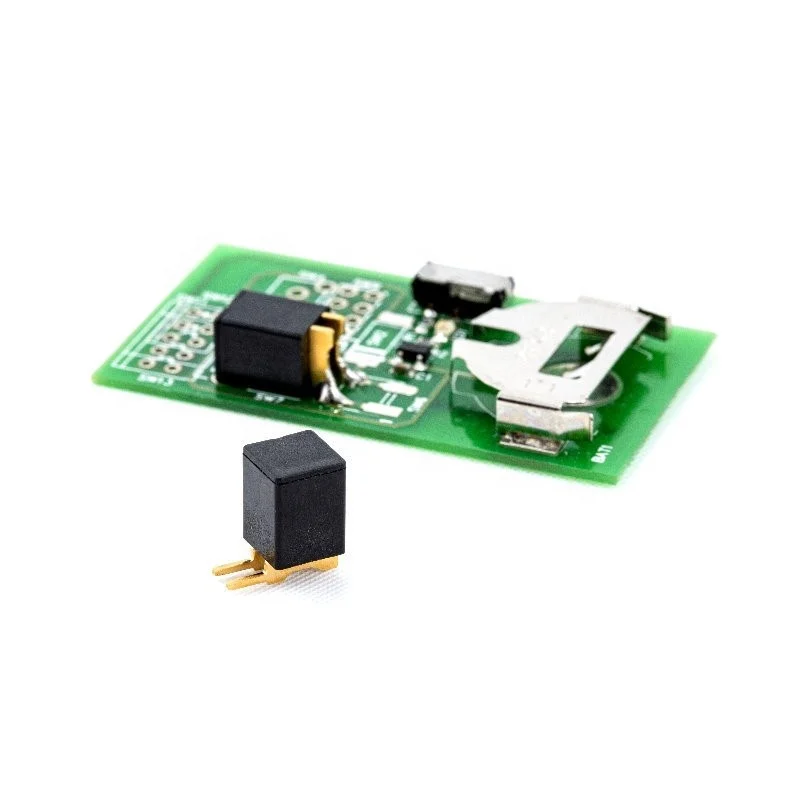

Function
●45° Tilt detecting within a 360° radius●Up-Side Down detecting
P.C.B direction :
Horizontal and Vertical PCB.

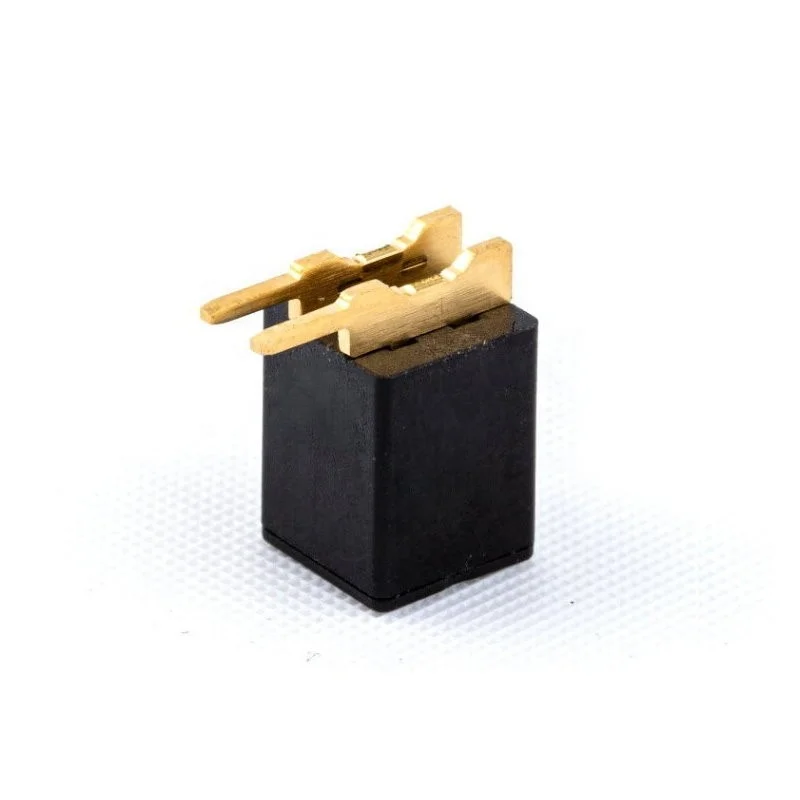

Production Process :SMD
RBS070500T are resistant to magnetization.
Function
●45° Tilt detecting within a 360° radius●Up-Side Down detecting
P.C.B direction :Vertical PCB
Production Process :DIP
RBS070600 are resistant to magnetization.
Model | RBS070310 | RBS070410 | RBS070500 | RBS070600 |
Angle | 45° | 45° | 45° | 45° |
Switch State | DIP Normal Close | DIP Normal Close | SMD Normal Close | DIP Normal Close |
Dimension(mm) | 6.5*6.5*8.5 | 6.5*6.5*8.5 | 6.5*6.5*8.5 | 6.5*6.5*8.5 |
PCB direction | Horizontal PCB | Vertical PCB | Horizontal / Vertical PCB | Vertical PCB |
IR Reflow | -- | -- | Peak temp=255~260°C | -- |
Feature | -- | -- | Resistant to magnetization | Resistant to magnetization |
