Advance International Dust Collector Bag Filter Bag for industrial

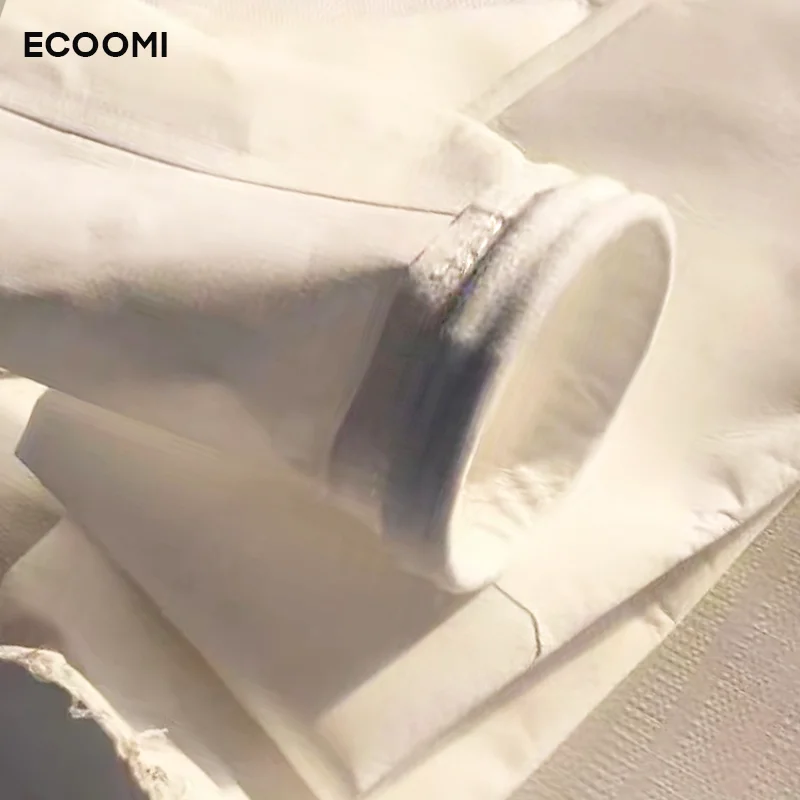

US Air Model PTFE Membrane Filter Bag

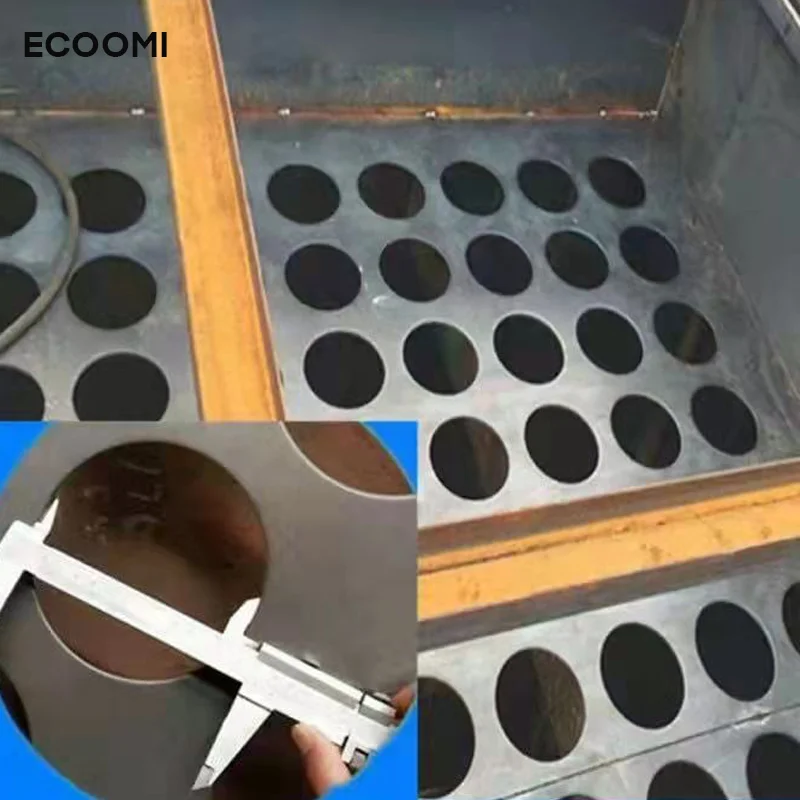

Offers same or better performance than OEM brands. Universal sizing fits pulse jet baghouse with 5" cell plate and 121" length. PTFE Membrane Filter Bag is one of the most economical low temp filter bag medias used in the dust collection industry because of its reliable performance in a broad range of applications and availability. This media is used in industries including food manufacturing, woodworking, metalworking, building products, and energy. Polyester is one option if you are continuously operating between ambient – 275 degrees Fahrenheit, and have less than 10% moisture.

Applications

Power Generation / Powder Coating / Paper, Pulp & Woodworking / Paints & Pigments Cement / Mining & Rock Products    Asphalt & Aggregate / Chemicals & Pharmaceuticals / Metals & Foundry  / Food & Beverages / Custom OEM Applications



Specifications

Type	Top Load Filter Bag
Diameter	6 in
Length	121 in

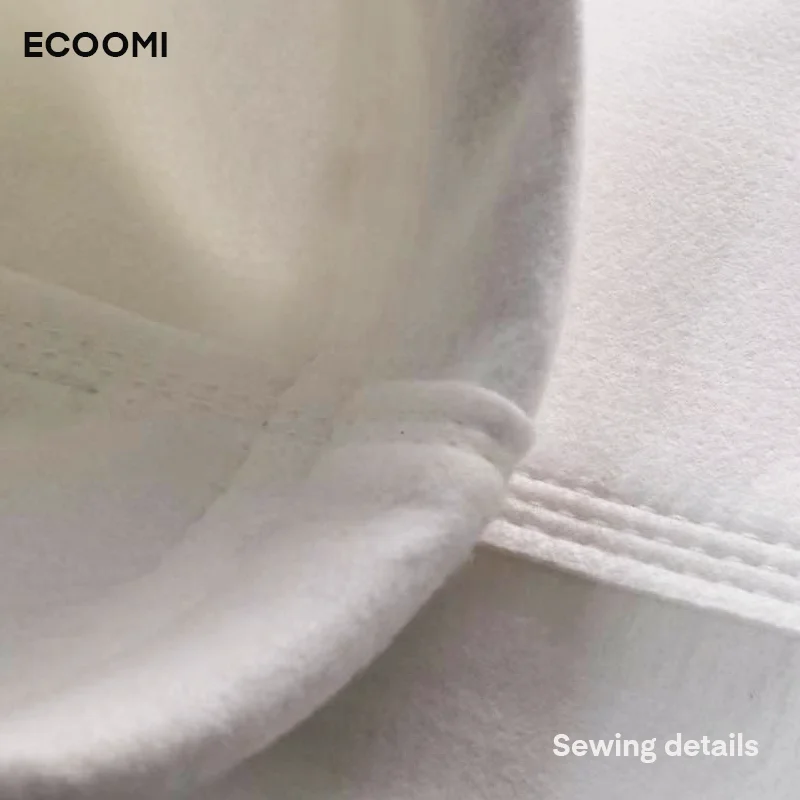

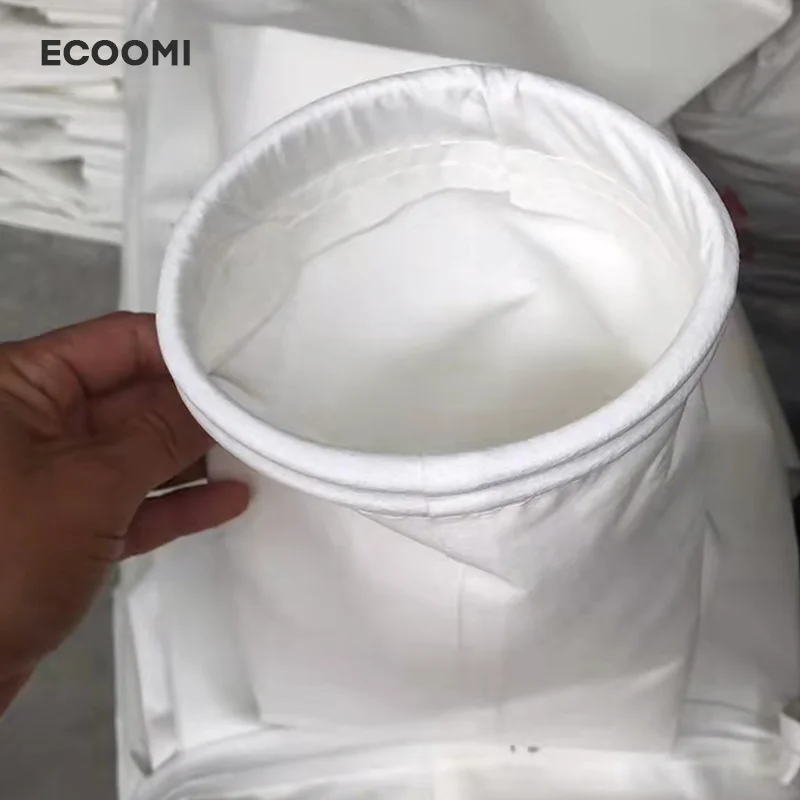

Top Construction	Double Beaded Snap Band

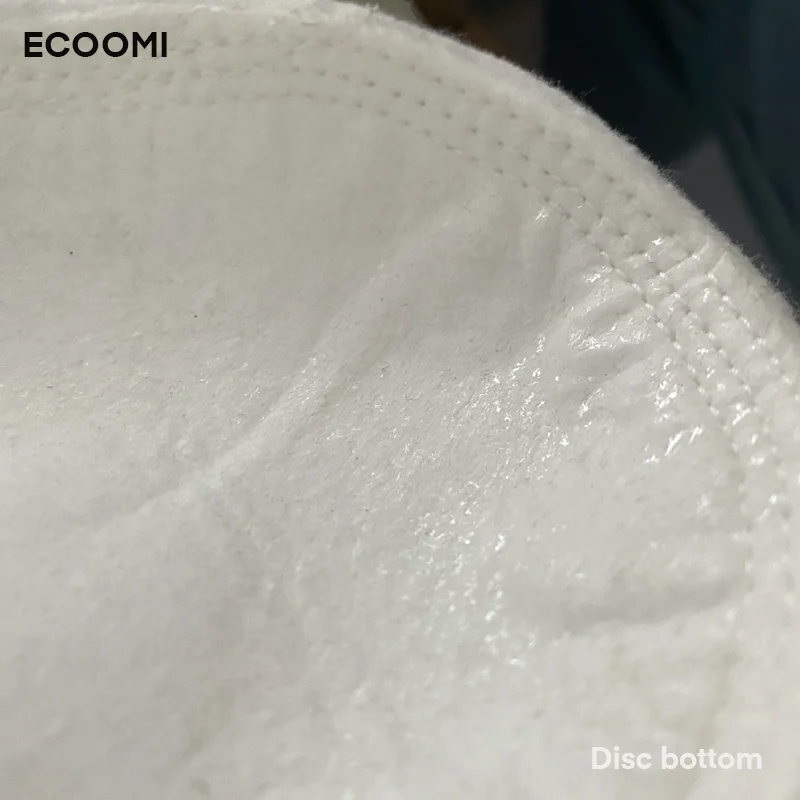

Bottom Construction	Disc Bottom
Weight	16 oz
Material	Polyester Felt with Polytetrafluoroethylene (PTFE) Membrane
Finish	Singed
Fabric Area Weight	16.2 oz/yd²± 5 %
Thickness	0.06 to 0.07 in
Mean Air Permeability at 0.5" Water (H2O)	7 to 16 cfm/sf/min
Machine Direction (MD) Breaking Strength	>290 psi
Cross Machine Direction (CMD) Breaking Strength	>320 psi
Operating Temperature	<265 ºF
Maximum Recommended Continuous Temperature	265 ºF
Maximum Recommended Surge Temperature	300 ºF



Specifications

1. About MOQ

We accept small orders. No strict principle for standard sizes, but 50pcs for non-standard dimensions or types.

2.  Sample terms

We can provide a free sample according to your custom needs, but express cost is covered by your side. We also recommend if you can send us a sample before we made it to reduce the risk.

3. Lead time

2 weeks for 20ft container, 3-4 weeks for a 40ft container.

4. What is your product line

Covers purifier filters, automotive filters, industrial filters, air filter materials.

We can also sell semi-finished products and raw materials base on your need.

5. About packing

Basically, we use plastic bag cover the product and use carton outside to better protect it. Of course, we can also do according to customers' requirement.

6. How's the after-sale service?

We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order, you just ask them to deliver us for combine container, we’ll do this favor to arrange everything very well.
