Automatic oral Film Pouch Bag Packing Machine
- Category: >>>
- Supplier: Shanghai Aligned Machinery Manufacture & Trade Co. Ltd.
Share on (10000007063981):
Product Overview
Description

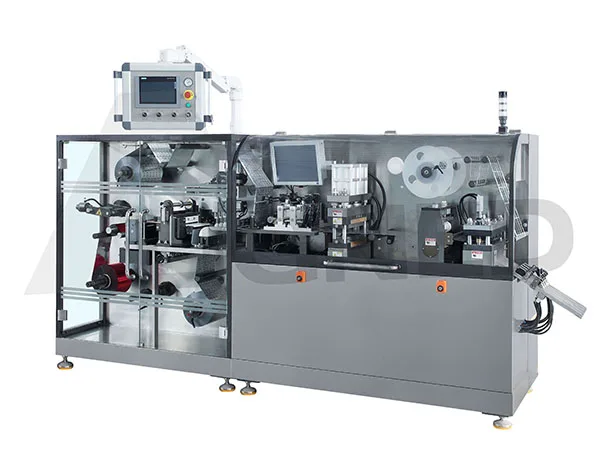

KFM-230V Automatic Oral Thin Film Pouch Bag Packing Machine
The machine is ideal for packing film strips into pouch, such as oral dissolving films, mint strips, adhesive patch, etc,, having advantages of safe take-away medicine, easy to apply, handle and store,dampness proof, perfect sealing design, strong shading, flexible bag design in shape,size and color.
A. This machine uses split module construction. During transport and cleaning, the module can be removed separately for easy operation.
B.The main motor using frequency control, according to the length of the trip and the size of the product to set the corresponding number of blanking.
C.Adopts manipulator holding the traction mechanism, smooth operation, accurate synchronization, in the range of any adjustable, that is: strip size could be designed in the range arbitrarily.
D.All parts in contact with the material are made of stainless steel and non-toxic materials and meet "GMP" requirements.

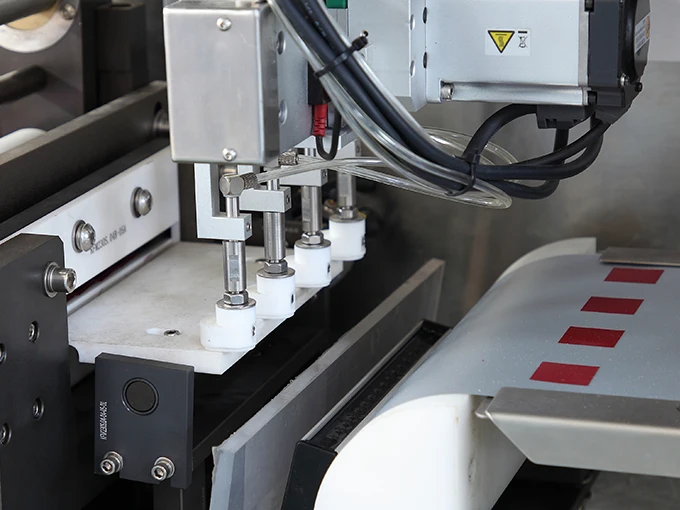

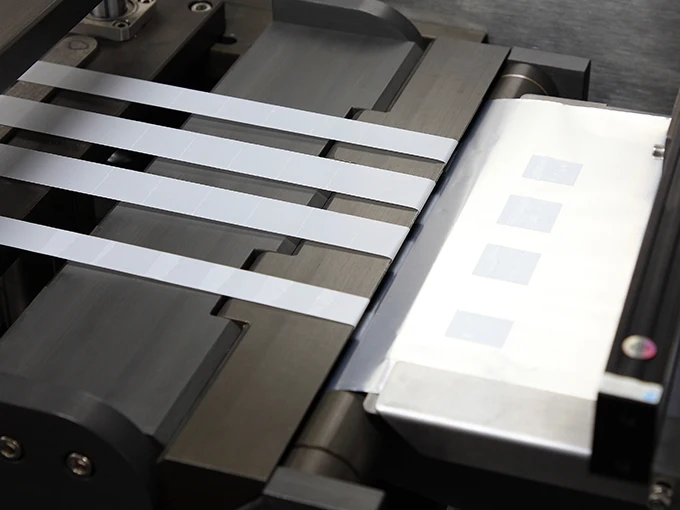

E.Slitting and crosscutting integrated, the material can be precisely divided into a single sheet-like products, and then use the sucker to accurately locate and move the material to the packaging film, laminated, heat sealing, punching, and then output, whole process achieves the integration of product line packaging.

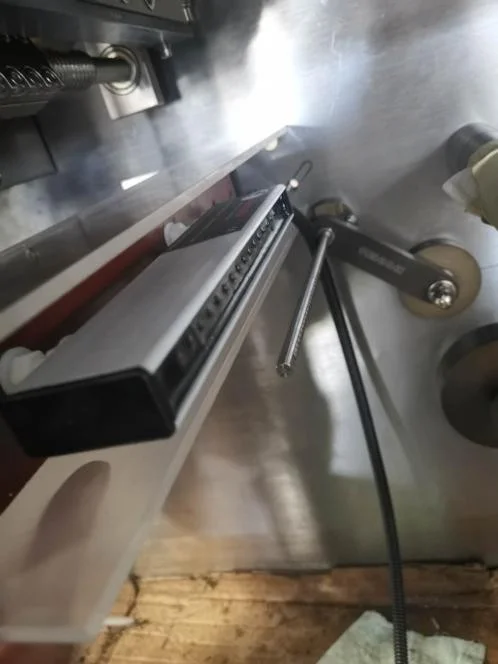

Auto film static charger and eliminator (Keenz brand, Japanese origin)
The function of auto film static eliminator is to remove static from film while peel off, and auto film static charger is to prevent oral film moving, which fit the base film tightly

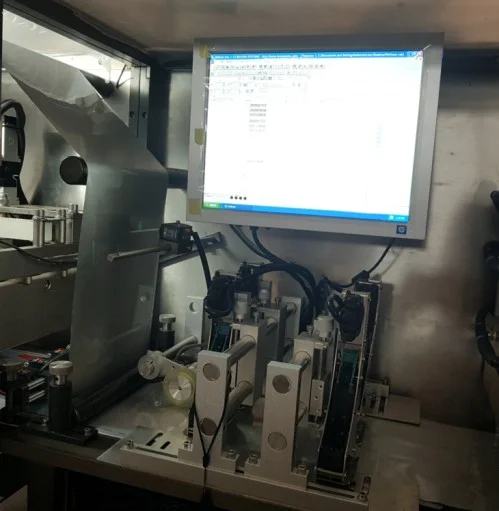

Ink jet printer installed with 4 jet heads, quick dry ink cartridge, suitable for printing 4 lines letter
It’s easier to change the Printing characters,
such as date & batch number and image by computer.

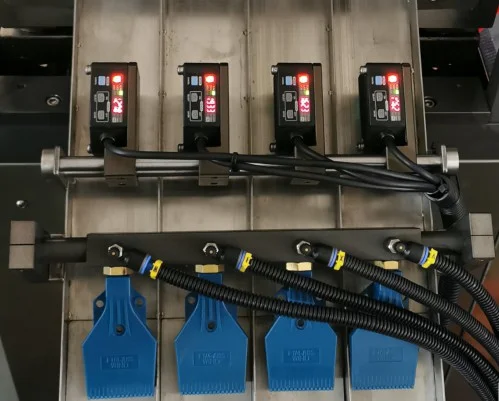

Auto output pouch detection and rejection device
Four sets photo cells is to detect unqualified output pouch rejection
Items | Parameter |
Model | KFM-230V |
Maximum Punching Speed (standard 45 × 70 × 0.1mm) | AL foil 5-40 times / min |
Packing Film Width | 200-260 mm |
Materials Width | 100-140 mm |
Heat Sealing Heating Power | 1.5KW |
Power and Total Power | Three-phase five lines 380V 50/60HZ，5.8KW |
Main Motor Power | 1.5KW |
Air Pump Volume Flow | ≥0.25m3/min |
Packing Material Heat-seal Composite Film Thickness | 0.03-0.05mm |
Overall Dimensions （L*W*H ) | 3400X920X2000mm |
Machine Package Size （L*W*H ) | 3420X1080X2200mm |
Total Weight | 2400Kg |
Roll Packaging Material | PET / aluminum / PE composite film |
Thickness | 0.02-0.05 |
Reel Diameter | 70-76mm |
Outer Diameter of Roll | 250mm |

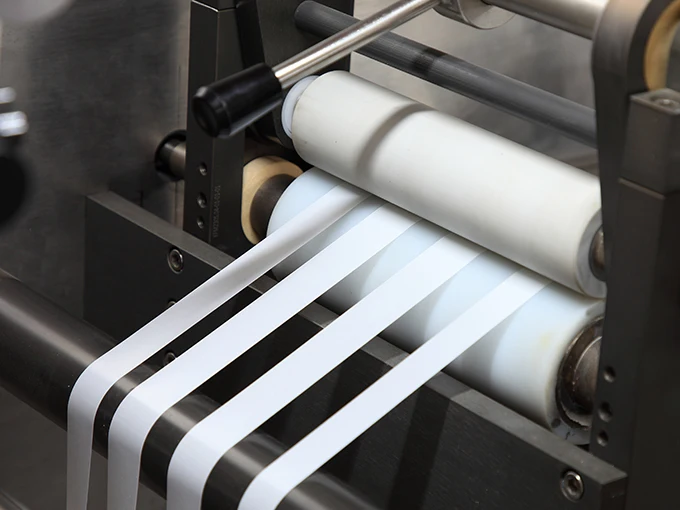

Automatic Slitting and Drying Machine
Automatic slitting and drying machine, used for an intermediate process equipment, works on film peeling from mylar carrier, film drying to keep uniform, slitting process and rewinding process, that ensures its proper adaption to next packing process.
