OncQue RBS380100 Optical Anti Tilt Sensor Switch for Horizontal Mount PCB

FUNCTIONS

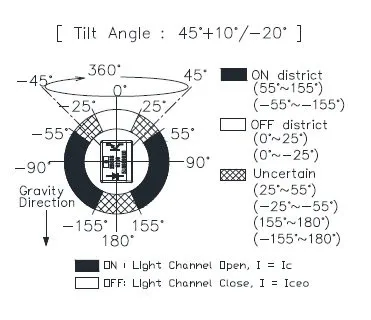

- Tilt Angles: 45° within a 360° radius
- Suitable for vertical PCB

- Vibration Detecting

APPLICATIONS

-  Rotation detection for LCD monitor
-  Automatically shut off for home appliances
-  Automatically shut off for Sporting equipment
-  Alarm system
-  Anti-theft / Anti-tamper devices
-  Being motion detection (personal locator)
-  Wake up systems for power saving, such like remote controllers
-  Earthquake Detecting

FEATURES

- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Detecting with photo transistors, generating highly reliable and stable signals.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.

- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and vibration detection option than IC design solution.
- All made in Taiwan and examined before shipment.

Current / Voltage Suggested

Mechanical Characteristics

Notes
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

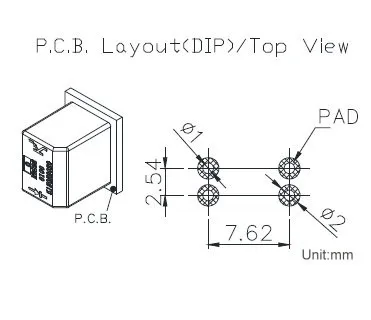

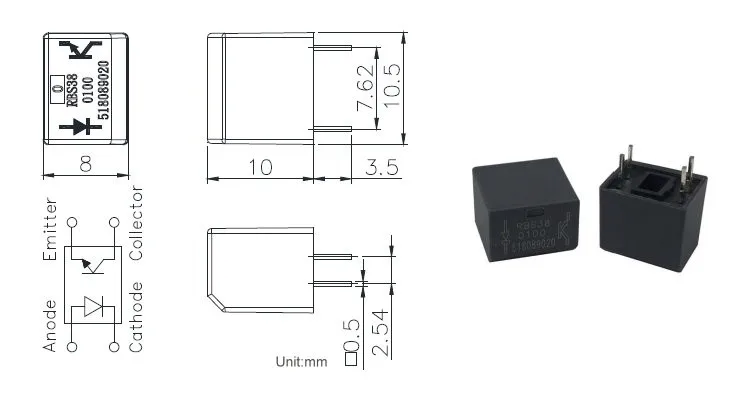

Dimension of RBS380100
All Made in TAIWAN and EXAMINED before shipment

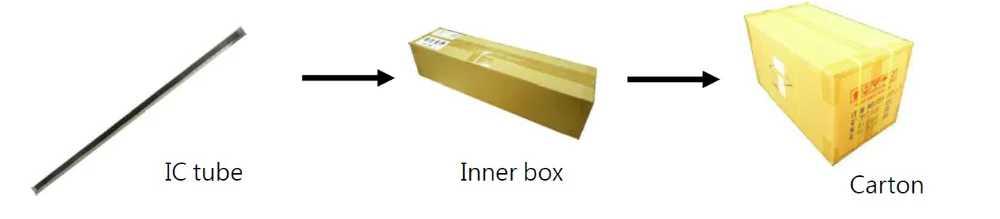

Packing of RBS380100
All Made in TAIWAN and EXAMINED before shipment
