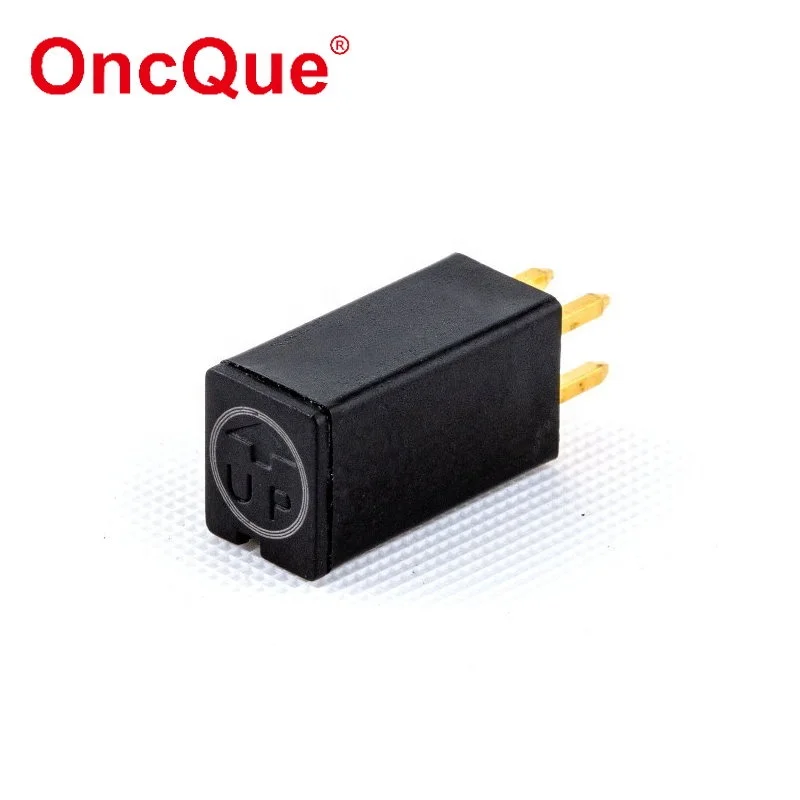

RBS040101 Roll Ball Tilt Switch with Reliable Test Item

Function
- Horizontal Tilt detecting
- Vertical Up-Side Down detecting

Specification

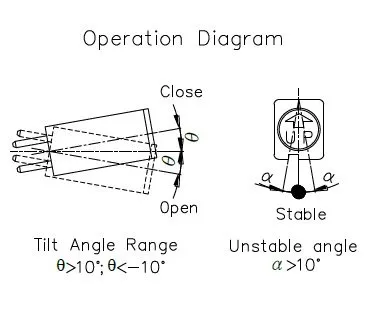

Tilt Angle range : θ > 10° , θ < -10°
Stable position : α> 10°

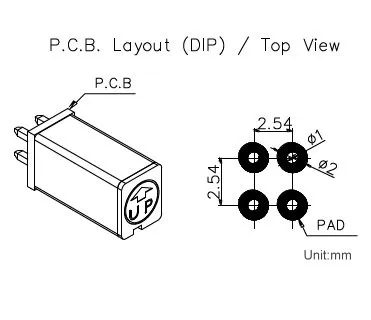

Type : DIP

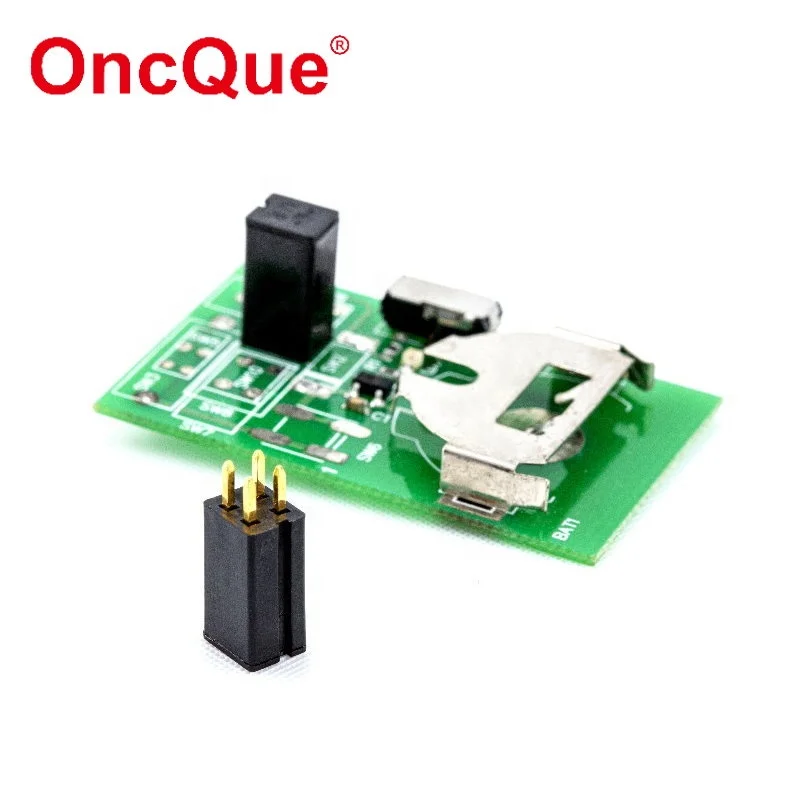

Suitable to use for Vertical PCB
Switch State : Normal Open
Description: Ball-Contact

Feature
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.

Current / Voltage Suggested

Electrical Characteristics

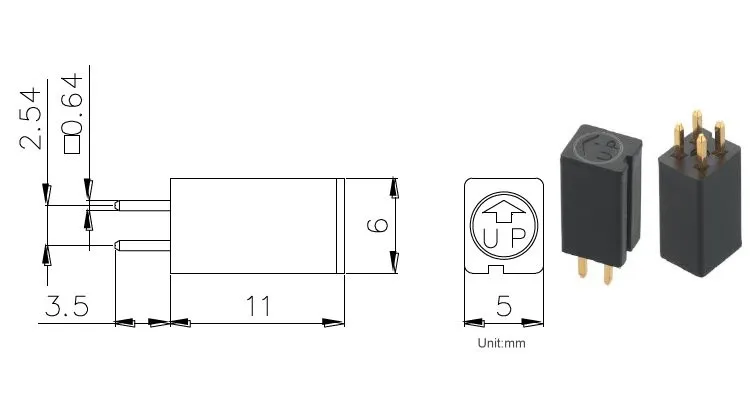

Mechanical Characteristics

_Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

All MADE IN TAIWAN and EXAMINED before shipment

Packing of RBS040101
All MADE IN TAIWAN and EXAMINED before shipment
