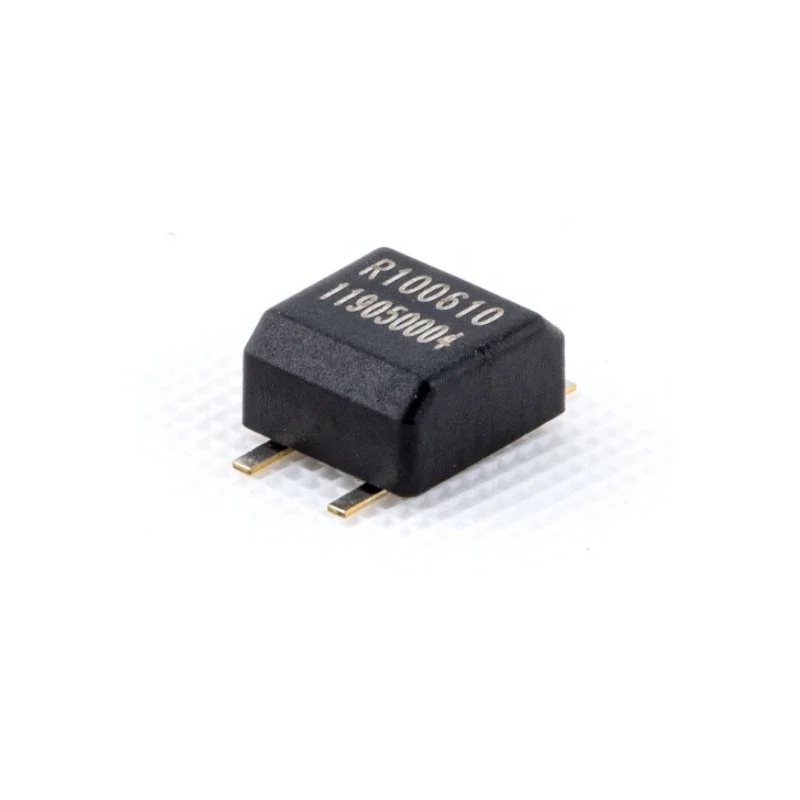

RBS100610T Smart Electronic Home Appliance SMD tilt switch
- Category: >>>
- Supplier: ONCQUE CORPORATION
Share on (10000007079742):
Product Overview
Description
Product Description
Function
25° Tilt detecting for 4 directions in horizontal position
Specification

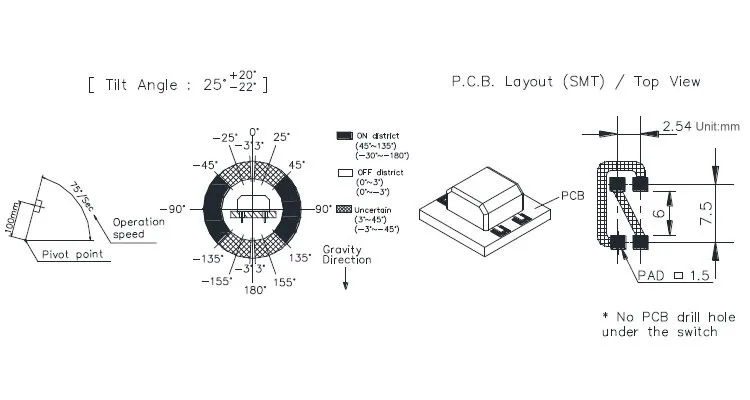

Tilt Angle : 25°+ 20°- 22°
Type : SMD
Suitable to use for Horizontal PCB
Switch State : Normal Open
Description: Ball-Contact
Feature
- Small size & compact space.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Terminals and balls are gold plated to enhance the life.
- All plastic material subject to industrial purpose meets high temperature and fireproof function.
- Simple switch signal, easy for circuit design.
- Comply with RoHS, complete replacement of mercury switch and meet environmental protection.
- More economic than IC design.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Terminals and balls are gold plated to enhance the life.
- All plastic material subject to industrial purpose meets high temperature and fireproof function.
- Simple switch signal, easy for circuit design.
- Comply with RoHS, complete replacement of mercury switch and meet environmental protection.
- More economic than IC design.
Current / Voltage Suggested
Input Current (mA) | Operating Voltage (V) | Condition |
1.0 | 5 - 12 | -- |
Electrical Characteristics
Contact Rating | 10 mA,5VDC |
Contact Resistance | 50 Ω max. |
Insulation Resistance | 50 MΩ min. At 100 VDC |
Dielectric Strength | 50 VDC min. for 1 minute |
Capacitance | 5pF max |
Conductive Rate | 85% min |
Mechanical Characteristics
Operating Temperature | -25°C to 85°C |
Storage Temperature | -40°C to 85°C |
Humidity | 40°C / 95% RH |
Mechanical Life | 2 Hz horizontal 1,000,000 times |
Electrical Life | 100,000 times |
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained from our sales offices. Normally, all products are supplied under our standard conditions.
Dimension & Packing

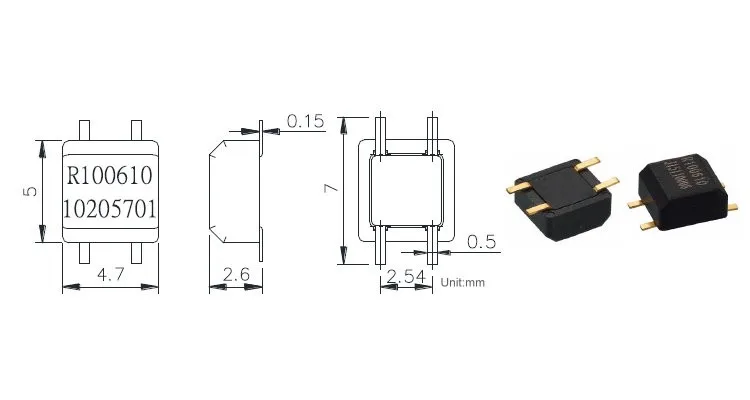

Dimension of RBS100610T
All made in TAIWAN and EXAMINED before shipment
Packing of RBS100610T
All made in Taiwan and Examined before shipment
Package | Quantity | Total Q'ty | Dimension(mm) |
Tape & Reel | 2,500 pcs | 2,500 pcs | φ330*12.5H |
Inner Box | 2 Reels | 5,000 pcs | 355L*340W*68H |
Carton | 4 Boxes | 20,000 pcs | 373L*358W*309H |
Related Product
Function:
Tilt Angle detecting / Rotation detecting / Vibration detecting
Type: DIP/ SMD
Switch state: Normal Close / Normal Open

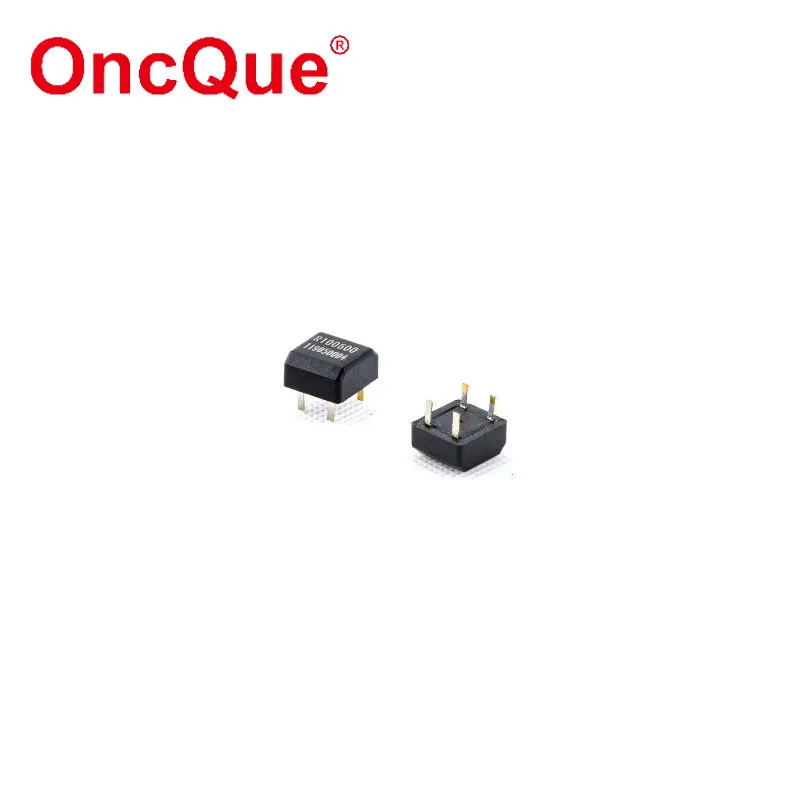

Function:
