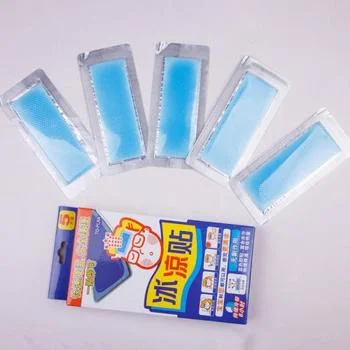

New Lab Automatic Oral Thin Film Poultice Production Machine
- Category: >>>
- Supplier: Shanghai Aligned Machinery Manufacture & Trade Co. Ltd.
Share on (10000007087886):
Product Overview
Description
OZM-120 Lab Automatic Oral Thin Film Making Machine

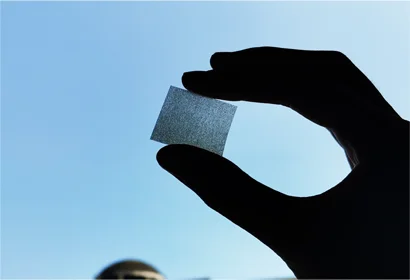

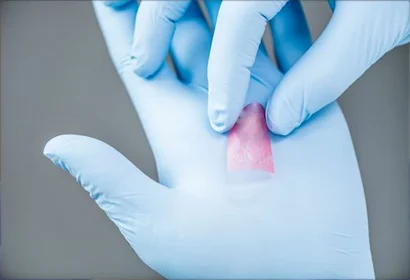

The film making machine is a special equipment that evenly spreads the liquid material on the bottom film to make a thinner film material, and can be equipped with functions such as lamination and slitting. Pilot-scale filmmakers can be used in the manufacture of products in the pharmaceutical, cosmetic or food industries.
This machine adopts the frequency converter to speed regulation,designed with intergrated automatic control of main machine, electricity, compressed air which strictly meet GMP standard and UL safety standard.
With its function of film making and drying, controlled by PLC panels,it is easy for running. all the technical support, and afterservices is available including commissioning in user site.
Item | Parameter |
Effective Production Width | 120mm |
Roll Width | 140mm |
Mechanical Speed | 0.1-1.5m/min |
Unwinding Diameter | ≤φ150mm |
Rewinding Diameter | ≤φ150mm |
Heating Drying Method | Plate heating, centrifugal fan hot air exhaust |
Temperature Control | Room temperature: -100℃ ±3℃ |
Reel Edge | ±3.0mm |
Voltage | 220V/380V |
Total Power | 5KW |
Dimensions | 1900*800*800mm |
Weight | 300Kg |

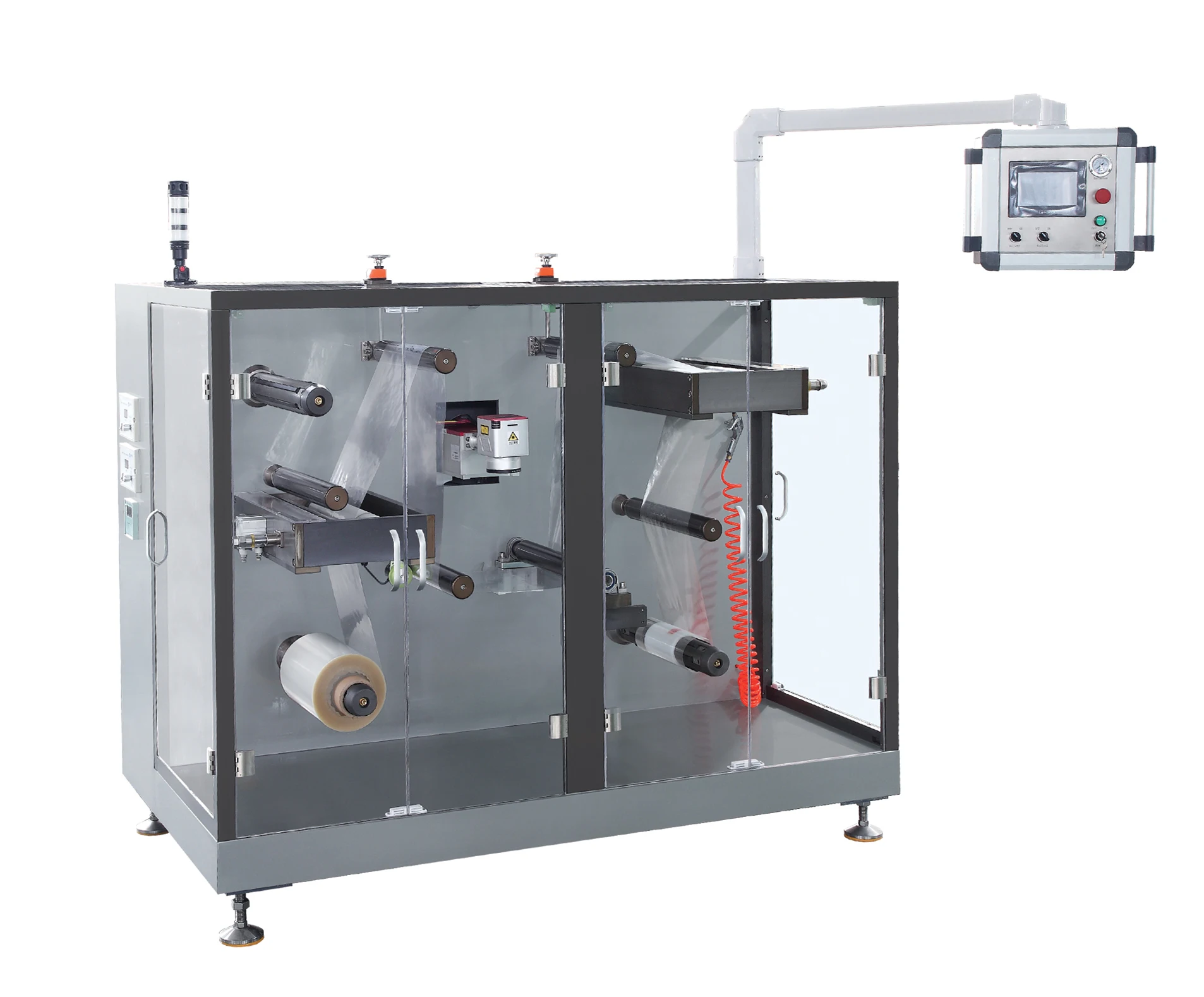

KFG-380 Automatic Oral thin film Slitting & Drying Machine
Automatic sitting and drying machine, used for an intermediate process equipment, works on film peeling from mylar carrier, film drying to keep uniform, slitting process and rewinding process, that ensures its proper adaption to next packing process.
