Rolling Ball Sensor Switch RBS330212T earthquake sensor

Function
- Tilt Angles: 20° within a 360° radius
- Suitable for horizontal PCB

- Vibration Detecting

Specification
Tilt Angle : 20°±10°
Type :
Suitable for Horizontal PCB
Description: Photoelectric

Feature
1. Housing made of high insulation plastic material, free from electric conduction and rust problem.
2. Detecting with photo transistors, generating highly reliable and stable signals.
3. All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
4. Simple ON and OFF signals, easy for design.
5. RoHS compliance, an ideal substitute for mercury switch.
6. A more economical tilt and vibration detection option than IC design solution.

7. All made in Taiwan and examined before shipment.

Current / Voltage Suggested

Mechanical Characteristics

Note

For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

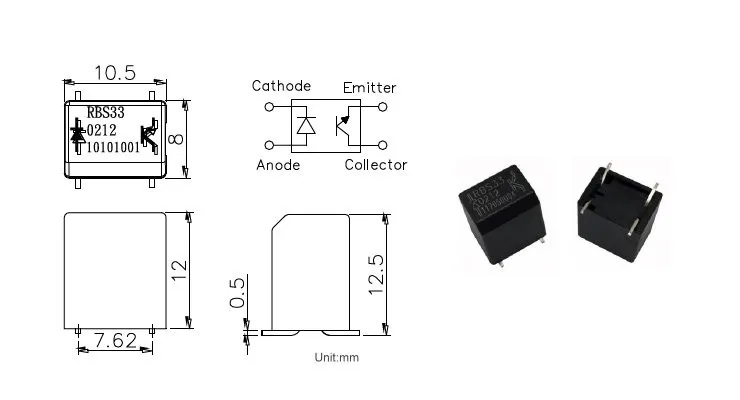

Dimension of RBS330212T
All made in TAIWAN and EXAMINED before shipment

Dimension of RBS330212T

All made in TAIWAN and EXAMINED before shipment

RBS3302 series

Function:

RBS3303 series

Function:
- Tilt detecting within a 360° radius
- Slight Vibration detecting
- Suit for Horizontal PCB
Type: DIP
