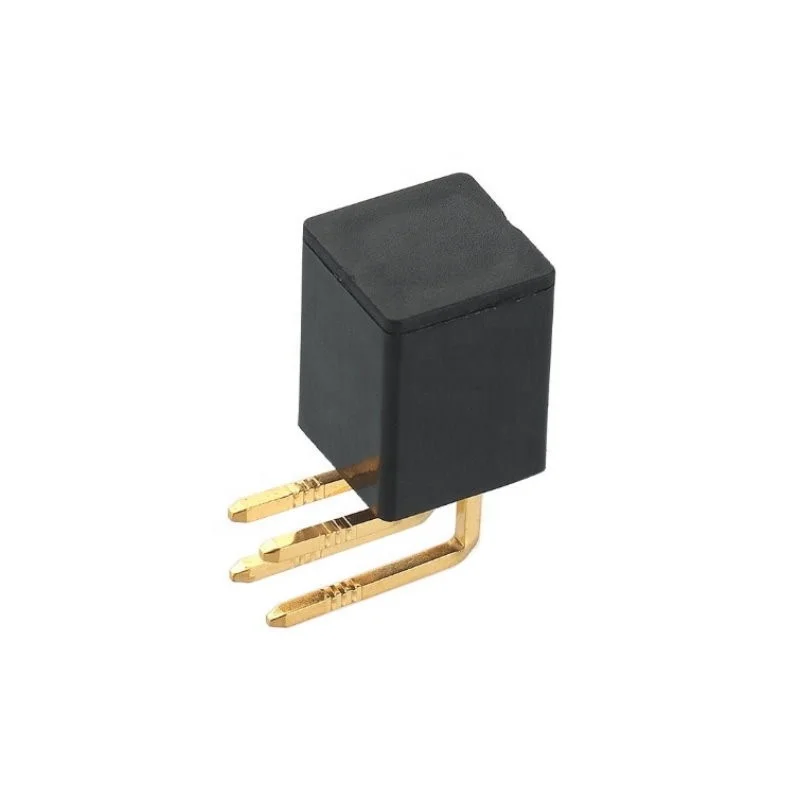

RBS070410 DIP Normal Close Switch State Tilt Angle Sensor
- Category: >>>
- Supplier: ONCQUE CORPORATION
Share on (10000007089215):
Product Overview
Description
Product Description
Function
- 45° Tilt Detecting within a 360° radius
- Up-Side Down detecting
Specification
Tilt Angle : 45° ±15°
Type : DIP
Suitable to use for Vertical PCB
Switch State : Normal Close
Description: Ball-Contact
Feature
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
Current / Voltage Suggested
Input Current (mA) | Operating Voltage (V) | Condition |
1.0 | 5 | -- |
Electrical Characteristics
Contact Rating | 10 mA, 5VDC |
Contact Resistance | 10Ω max. |
Insulation Resistance | 1000 MΩ min., 100 VDC |
Dielectric Strength | 500 VDC min., 1 minute |
Capacitance | 5 pF max. |
Conductive Rate | 90% min. |
Mechanical Characteristics
Operating Temperature | -25°C to 85°C |
Storage Temperature | -40°C to 85°C |
Humidity | 40°C / 95% RH |
Mechanical Life | 2 Hz horizontal 1,000,000 times |
Electrical Life | 100,000 times |
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
Dimension & Packing

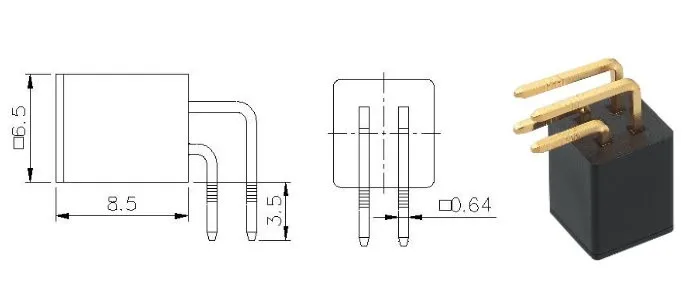

Dimension of RBS070410
All made in TAIWAN and EXAMINED before shipment
Packing of RBS070410
All made in TAIWAN and EXAMINED before shipment
Package | Quantity | Total Q'ty | Dimension |
PE Bag | 500 pcs | 500 pcs | 205L*145W |
Inner Box | 8 PE Bag | 4,000 pcs | 348L*191W*85H |
Carton | 3 Boxes | 12,000 pcs | 364L*278W*213H |
