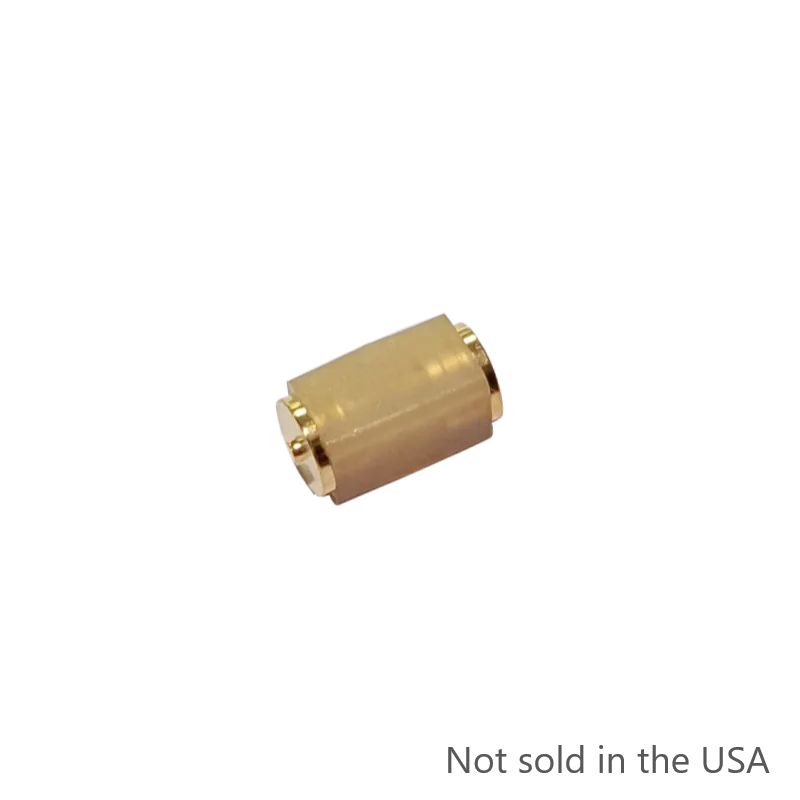

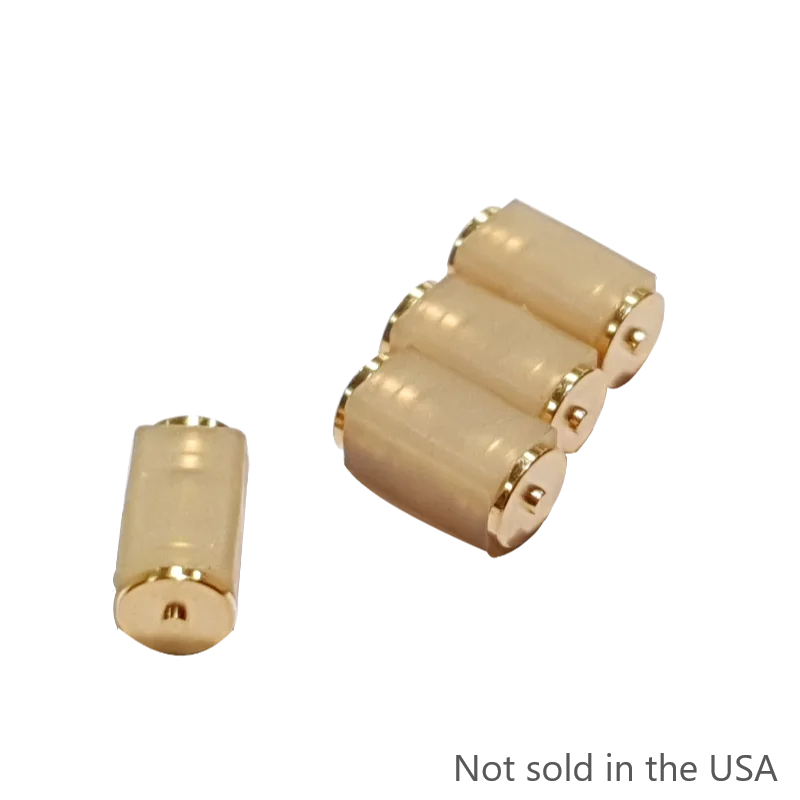

OncQue Ball Contact Roll Ball SMD installation Vibration Sensor Switch

Function
Omni-directional Vibration detecting

Specification
Type : SMD
Both Suitable for Horizontal and Vertical PCB

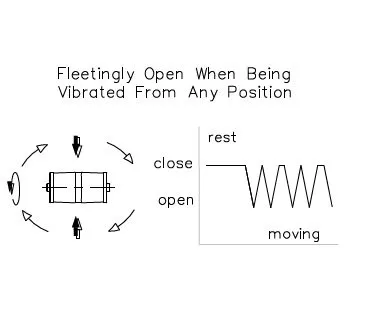

Switch State :
The VBS030600T acts like a Normally Closed switch which chatters open and closed as it is tilted or vibrated. Note that the VBS030600T is not guaranteed to be closed --- occasionally the sensing mechanism may remain open when at rest.
The engineer should design his or her software to look for high-to-low and low-to-high edge transitions rather than an open or closed state of the switch.

Feature
- Tiny size, suitable for small space.
- Wing-shaped terminals, half body of the sensor switch can be buried into PCB to save required room for installation.
- Gold-plated ball and terminals, low possibility of oxidization.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical vibration detection option than IC design solution.
** This model not sold in the U.S.A.

Current / Voltage Suggested

Electrical Characteristics

Mechanical Characteristics

Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

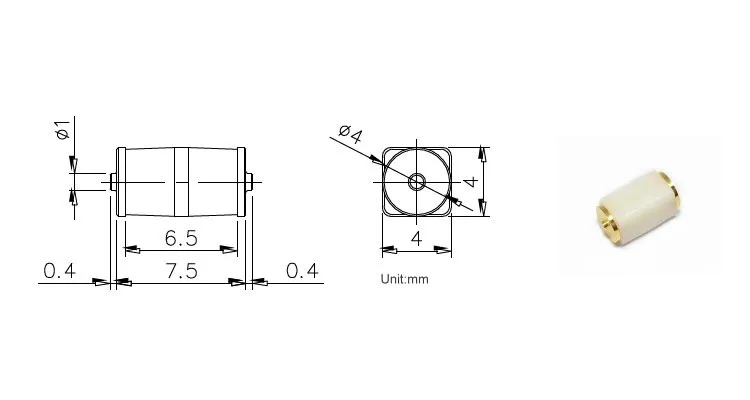

Dimension of VBS030600T
All made in TAIWAN and EXAMINED before shipment

Packing of VBS030600T
All MADE IN TAIWAN and EXAMINED before shipment
