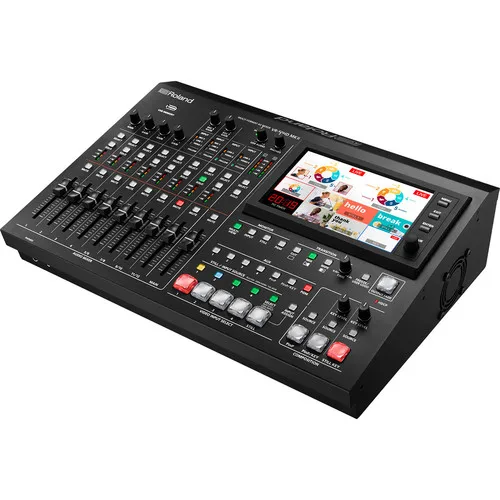

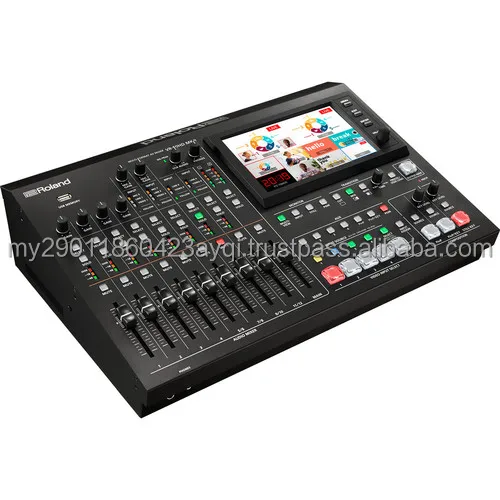

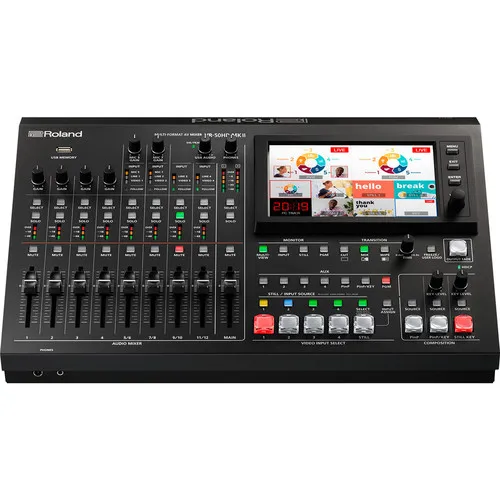

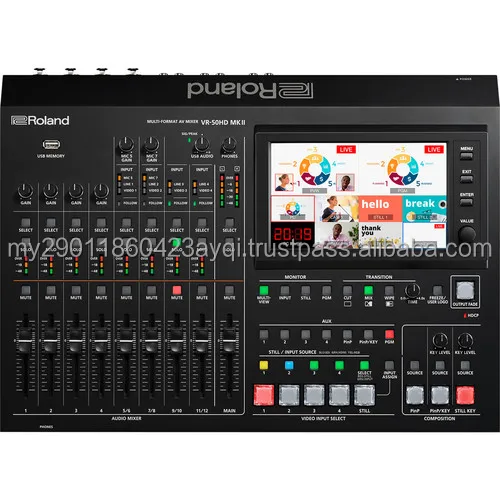

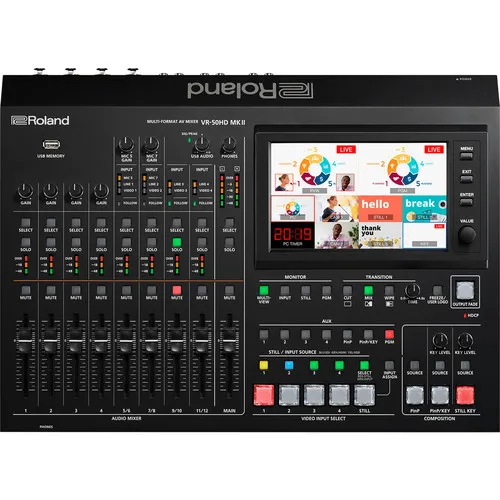

Top Discounts Hot Sales Roland VR 50HD MK II Multi Format AV Mixer with USB 3.0 Streaming
- Category: >>>
- Supplier: ASHEEDA TRADING
Share on (10000007094612):
Product Overview
Description
Roland VR-50HD Specs
Video
| Processing | 4:4:4 (RGB) 10-Bit 4:2:2 (Y/Pb/Pr) 10-Bit |
| Formats | SDI 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 576i: 50480i: 59.94 H D M I 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 576i/p: 50 480i/p: 59.94 1920x1080: 60 1400 x 1050: 60 1280 x 1024: 60 1280 x 800: 60 1280 x 720: 60 1024 x 768: 60 H D M I MULTIVIEW Output 1080p 59.94 Component 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 576i/p: 50 480i/p: 59.94 RGB 1920 x 1080: 60 1400 x 1050: 60 1400 x 1050: 60 1280 x 1024: 60 1280 x 800: 60 1280 x 720: 60 1024 x 768: 60 Composite Out NTSC |
| Input / Output Connectors | Input Digital 3G/HD/SD-SDI: 4 x BNC Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C H D MI (DVI-D): 4 x Type A (19-Pin) HDCP Supported Analog RGB/HD-Component: 2 x HD DB-15-Pin Composite (SD): 2 x BNC Input 1 to 2: Select SDI, HDMI, RGB/COMPONENT, or Composite Using Menu Output Digital HD/SD-SDI: 2 x BNC (PGM, AUX) Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C H D M I: 3 x Type A (19-pin) (PGM, AUX, Multiview) HDCP Supported Analog RGB/HD-Component: 2 x Mini D-Sub 15-Pin (PGM, AUX) |
| Level & Impedance | Composite: 1.0 Vp-p 75 Ohms Analog RGB: 0.7 Vp-p 75 Ohms (H, V: 5 VTTL) Analog HD: 1.0 Vp-p 75 Ohms (Sync-Signal: Bi-Level/Tri-Level) |
Audio
| Processing | Sampling Rate: 24-Bit/48 kHz |
| Formats | SDI: Linear PCM, 2-Bit, 48 kHz, 2 Ch SMPTE 299M, SMPTE 272M-C H D M I: Linear PCM, 24-Bit, 48 kHz, 2 Ch USB-Audio: Linear PCM, 16-Bit, 48 kHz, 2 Ch |
| Input / Output Connectors | Analog Input Inputs 1 to 4: 4 x XLR/TRS Combo (1 GND, 2 Hot, 3 Cold) Power: DC Phantom 48 V (Unloaded Maximum), 5 mA (Maximum Load, Current Value per Channel) Inputs 5 to 8: 4 x 1/4" TRS Jacks (5 and 7 Are Mic-Level Capable) Inputs 9 to 12: 4 x 4 x RCA Jacks Analog Output 2 x XLR (3-Pin) 2 x RCA Jacks Headphone 1 x 1/4" Stereo TRS Jack 1 x Stereo Mini-Jack |
| Level & Impedance | Input XLR/TRS: -64 to +4 dBu (Maximum: +24 dBu) RCA Phono: -10 dBu (Maximum: +9 dBu, 11 Kilohms) Output XLR: +22 dBu (600 Ohms) RCA Phono: -10 dBu (1 Kilohms) 1/4" TRS: (600 Ohms) Headphones: 30 Ohms |
| Residual Noise Level (IHF-A, typ.) | U-92 dBu (All Faders: Min) -89 dBu [MAIN] Fader: Unity, Channel Faders: Unity, Only One Input 1 Channel, Preamp Gain: Min -60 dBu [MAIN] Fader: Unity, Channel Faders: Unity, Only One Input 1 Channel, Preamp Gain: Max * Input 150 Ohms Terminated * Output Connectors: Audio Out Main (L/R) Jacks Audio Out AUX 2/Monitor Jacks -100 dBu (All Faders: Min) -98 dBu [MAIN] Fader: Unity, Channel Faders: Unity Only One Input 1 Channel, Preamp Gain: Min -74 dBu [MAIN] Fader: Unity, Channel Faders: Unity Only One Input 1 Channel, Preamp Gain: Max * Input 150 Ohms Terminated * Output Connector: AUDIO OUT AUX 1 (L, R) Jacks |
Software
| Operating System | Mac OSX: 10.7 or Higher (When Recording Data in the HD Frame Size, Use OS X 10.8.5 or Later) Windows Windows 8.0 or Higher RAM 8 GB USB USB 3.0 |
General
| Connectors | Remote RS-232C: D-Sub 9-Pin Type x 1 LAN: RJ45 100 Base-Tx USB USB Memory Port (Host): USB A-Type for USB Memory (USB Flash Drive, Still Image) USB Port (Host): USB A-Type (Use for Future Expansion) USB Streaming Port (Device): USB B-Type for USB-Video (Super-Speed/Hi-Speed), USB-Audio (Full-Speed) |
| Display | 1 x 7" Touchscreen Graphic Color LCD 800 x 480 Dots |
| Power Supply | Primary: AC Adapter Secondary: AC Adapter, 9 to 16 VDC |
| Current Draw | 2.8 A |
| Power Consumption | 67 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 17.2 x 12.8 x 4.92" / 43.7 x 32.5 x 12.5 cm |
| Weight | 13 lb / 5.9 kg |
