Factory supplier cheap Ho model train wheel
US $1000000-$3000000
High quality special urethane rubber train auto parts guide wheel
- Category: Train Parts & Accessories >>>
- Supplier: Ohtsu-Chemical Co. Ltd
Share on (10000007120603):
Product Overview
Description
Products Description
In many cases, the New Urban Transit is used as an access between airport and city.
Since there are no rails, there are also no iron wheels like ordinary trains.
As shown in the picture, the tire is similar to those of automobiles and supports the vertical load from the train.
However, because the train runs along the guide and there are many trains in a row, the tire is subjected to a large horizontal load especially at high speeds and when travelling along curves.
Since the New Urban Transit travels at 60 kph and above during high speed, the rotational speed of guide wheels reaches 1500 rpm and above. Considering that roller coaster wheels travel around 1000 rpm (The speed may exceed 100 kph, but the wheel diameter is small and so the rotational speed.), they will be subjected to severe load at extremely high-speed rotation.
General urethane rubber cannot withstand these harsh service conditions.
However, we had developed special urethane rubber that makes it possible to use even under such harsh conditions.

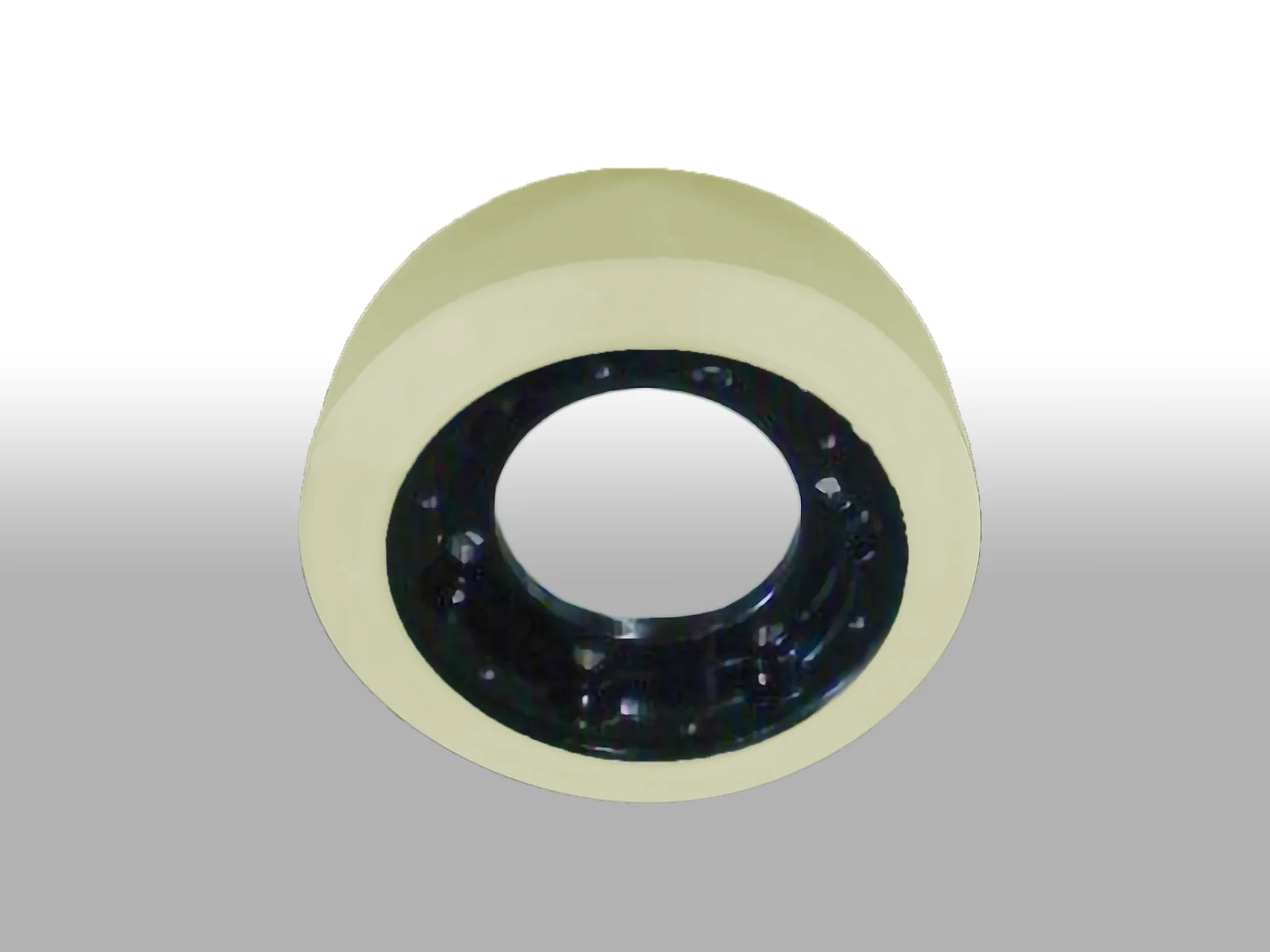

This guide wheel is installed horizontally with respect to the train, and always responsible for the horizontal load.
In addition, even though the urban transit runs along the guide, when the train reaches a junction, the switching wheel supports the load. Although MC nylon may be used for this guide wheel, normally, for switching wheel urethane rubber is mostly used.
This is because MC nylon, as it is hard, is inferior to elastic urethane rubber in terms of noise problems and riding comfort experience.
Since there are no rails, there are also no iron wheels like ordinary trains.
As shown in the picture, the tire is similar to those of automobiles and supports the vertical load from the train.
However, because the train runs along the guide and there are many trains in a row, the tire is subjected to a large horizontal load especially at high speeds and when travelling along curves.
Since the New Urban Transit travels at 60 kph and above during high speed, the rotational speed of guide wheels reaches 1500 rpm and above. Considering that roller coaster wheels travel around 1000 rpm (The speed may exceed 100 kph, but the wheel diameter is small and so the rotational speed.), they will be subjected to severe load at extremely high-speed rotation.
General urethane rubber cannot withstand these harsh service conditions.
However, we had developed special urethane rubber that makes it possible to use even under such harsh conditions.
This guide wheel is installed horizontally with respect to the train, and always responsible for the horizontal load.
In addition, even though the urban transit runs along the guide, when the train reaches a junction, the switching wheel supports the load. Although MC nylon may be used for this guide wheel, normally, for switching wheel urethane rubber is mostly used.
This is because MC nylon, as it is hard, is inferior to elastic urethane rubber in terms of noise problems and riding comfort experience.
Guide wheel and switching wheel (Outer diameter x Inside diameter x Length) | Mighty-Prene Material Code | Hardness (JIS-A) | Properties | |||
Standard sizes: ・200mm x 158mm x 65/67mm | LM2095N2 | 95 | ・Low temperature resistant ・Water resistant ・Alkali resistant ・Abrasion resistant ・Low heat generation ・Heat resistant | |||
LM9395B | 95 | ・Hydrochloric acid resistant ・Alkali resistant | ||||
*Please inquire if you have any request, such as size and material other than listed. | ||||||
Company Profile
A pioneer of urethane rubber technology and quality
Ohtsu Chemical Challenging Towards the Next Generation
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Contributing to the Development of Society through R&D
We manufacture products according to your needs.
