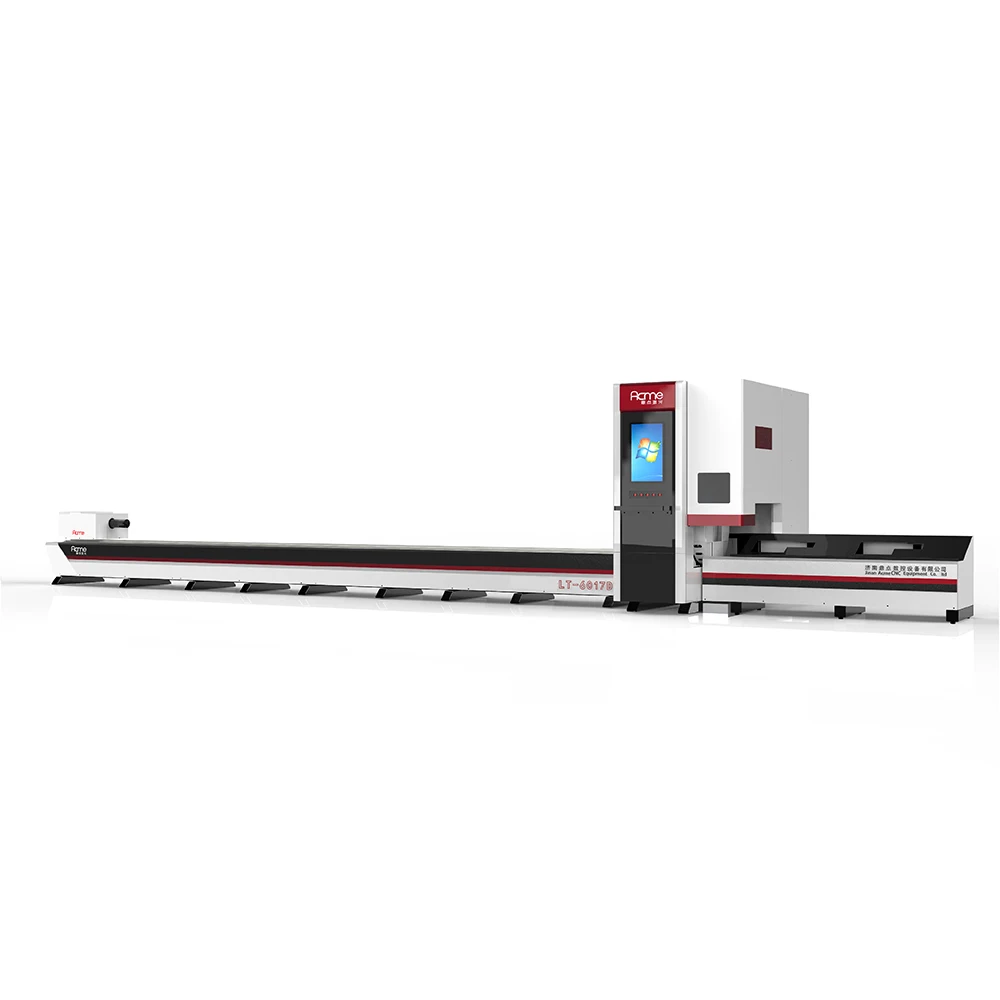

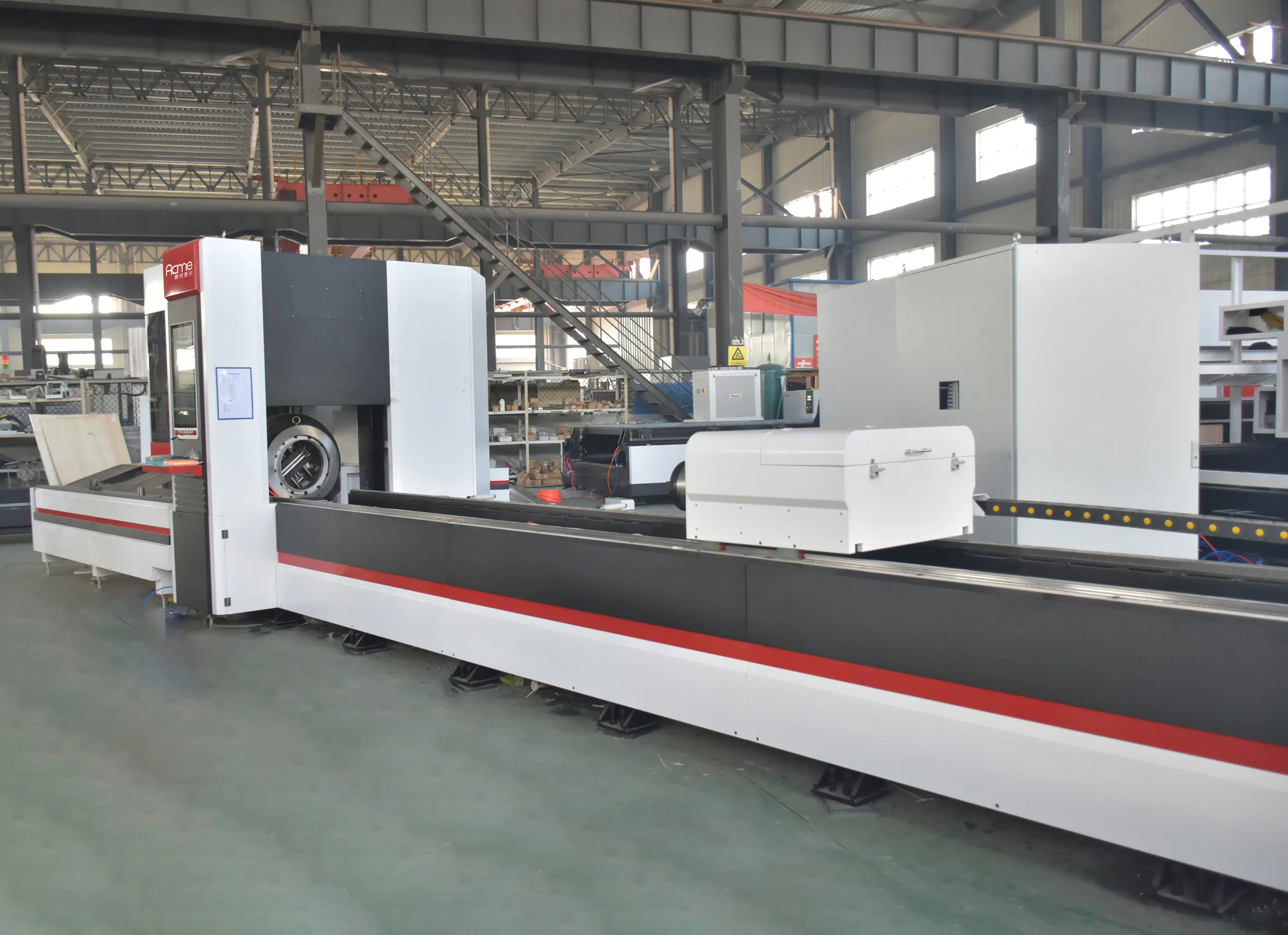

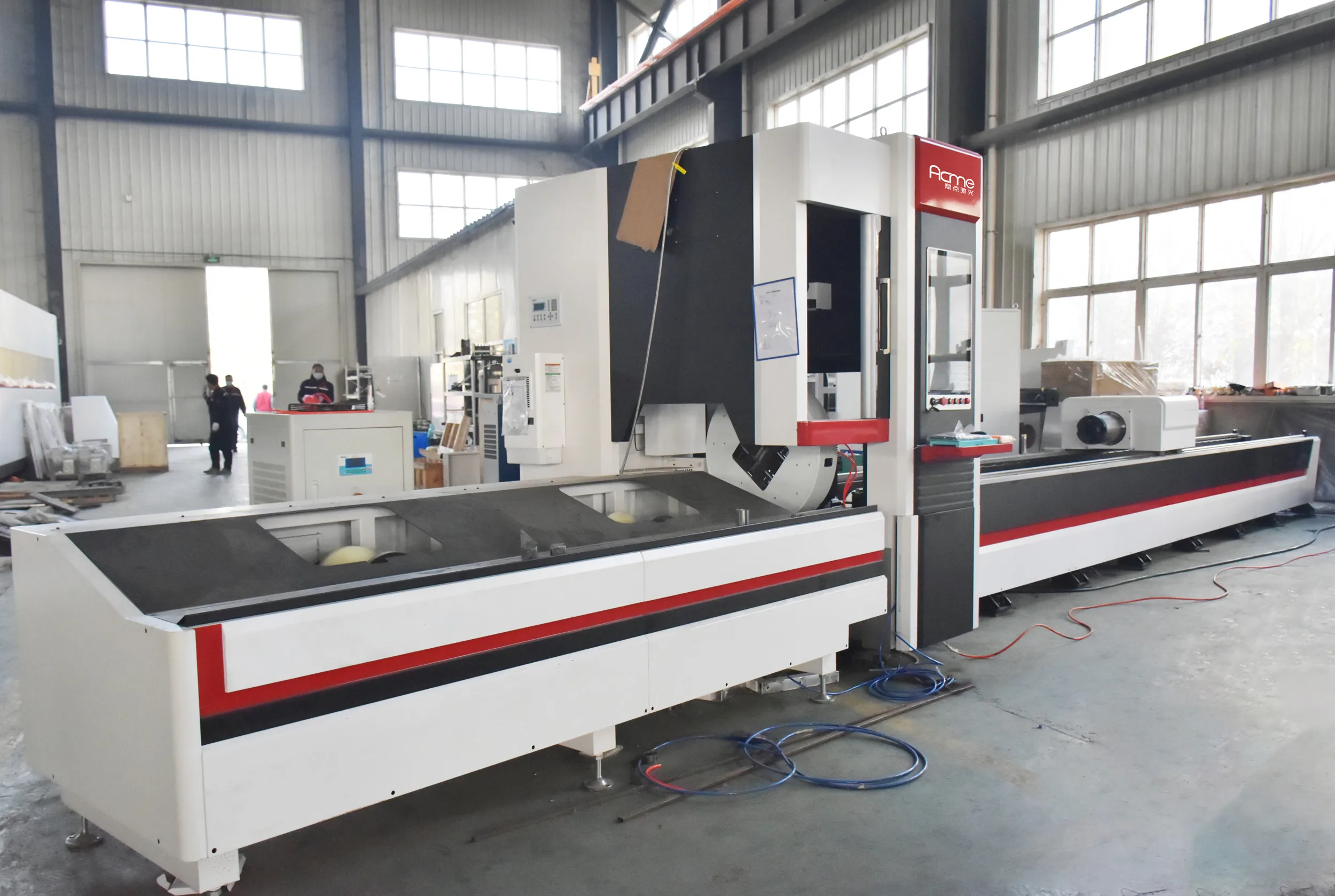

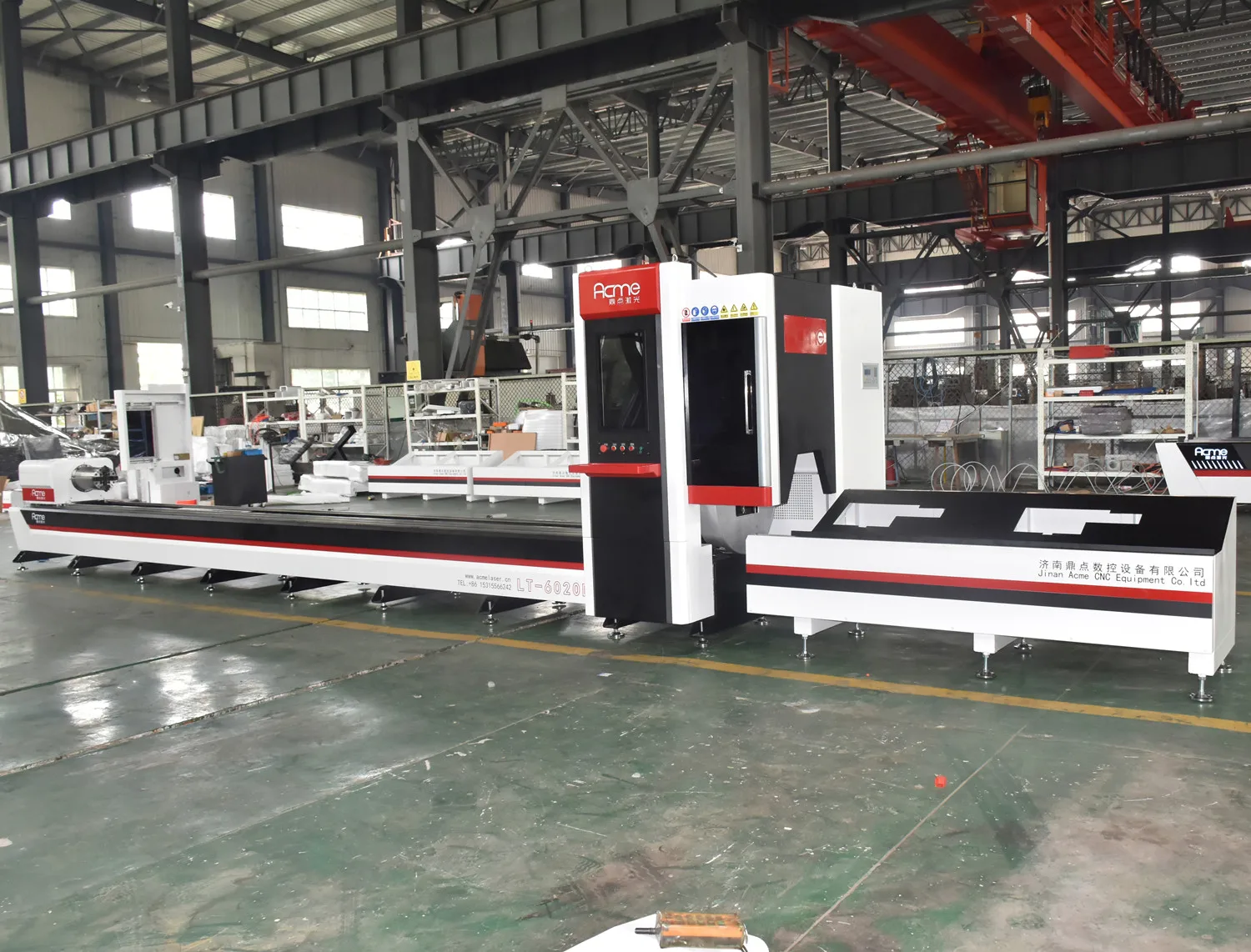

Steel Pipe Metal Tube CNC Fiber Laser Cutting Machine
This is a professional specialized tube laser cutting machine, use fiber laser source to cut metal tubes, such as Round pipe, Square box, Rectangle, Oval Tubes and some special profile like Angle, Channel steel, I, C, U, H beams.Our standard machine cutting length is 6 meters, also can do 8m, 10m, 12m based on your cutting requirement.
Laser power from 1000W to 15000W depend on different material and thickness. Tube size/diameter is 10-120mm/170mm/250mm/350mm/450mm, total 4 level diameter standard can meet different tube size in different industries.
Laser power from 1000W to 15000W depend on different material and thickness. Tube size/diameter is 10-120mm/170mm/250mm/350mm/450mm, total 4 level diameter standard can meet different tube size in different industries.
Video
Machine Details
Laser Power | 1000w to 15000w |
Fiber Laser Source/Generator | IPG/Raycus/Maxphotonics/nLight/RECI |
Laser Cutting Head | Precitec/RayTools Auto-focus head |
Cutting System | FSCUT CypCut TubePro / EtherCAT Bus system |
Nesting Software | TubesT 3D Tube Nesting Software |
Chuck/Rotary Device | Double Pneumatic Chuck Auto Centering |
Servo Motor and Driver | YASKAWA Sigma-7 series/EtherCAT motor |
Reducer/Gear box | SHIMPO Reducer |
Water Chiller | Hanli/Tongfei/S&A |
Liner Guide Rail | HIWIN |
Gear and Rack | YYC |
Lubrication system | Automatic Oil self-lubrication |
Tube Cutting Length | 6000mm/8000mm/10000mm/12000mm |
Cutting Diameter | 10-120/170/250/350/450mm |
Maximum Move Speed | 120m/min |
Positioning accuracy | ±0.03/1000mm |
Repeat Positioning accuracy | ±0.02/1000mm |
Cutting Gas | Air, Oxygen, Nitrogen |
Power Supply | 380V/60 Hz(can do machine depend on your Voltage) |
Machine Size | 11585×4750×2250mm(6000mm cutting length) |
Main Advantages
Different chuck size
10-170mm
10-250mm
10-350mm
10-450mm
Five level cutting size, can meet different tube size in different industries.
Small tube use small 120mm chuck, like Steel furniture industry, fast rotation speed and cutting speed.
Big tube use big 350mm chuck, like elevator industry, more big loading weight can hold big size tubes.
10-250mm
10-350mm
10-450mm
Five level cutting size, can meet different tube size in different industries.
Small tube use small 120mm chuck, like Steel furniture industry, fast rotation speed and cutting speed.
Big tube use big 350mm chuck, like elevator industry, more big loading weight can hold big size tubes.

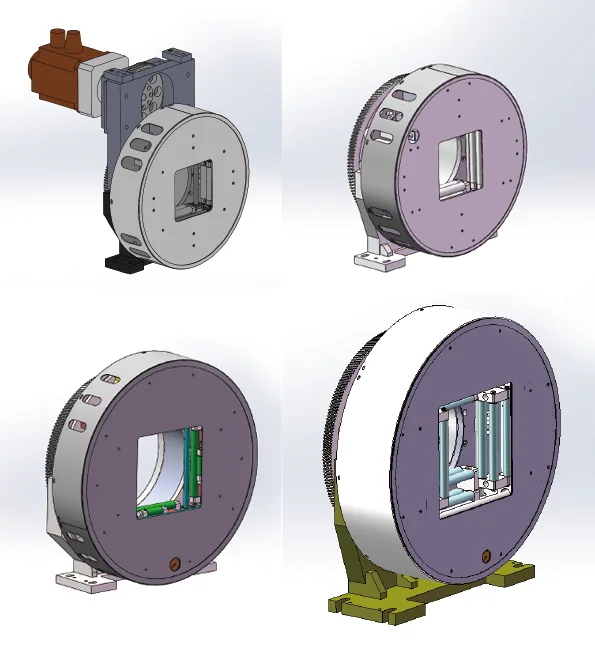

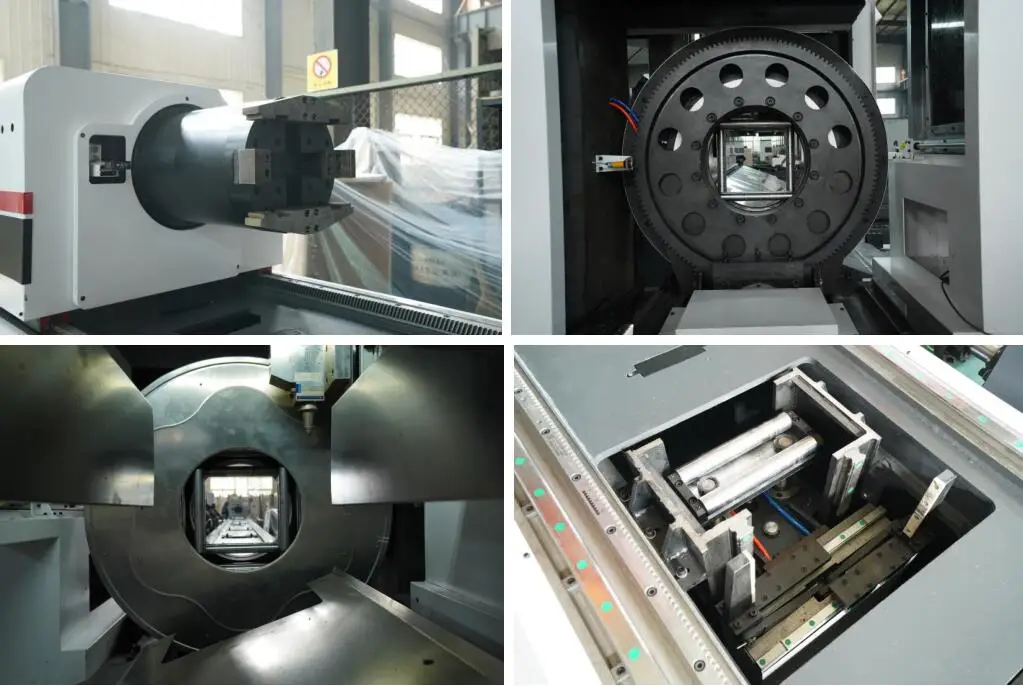

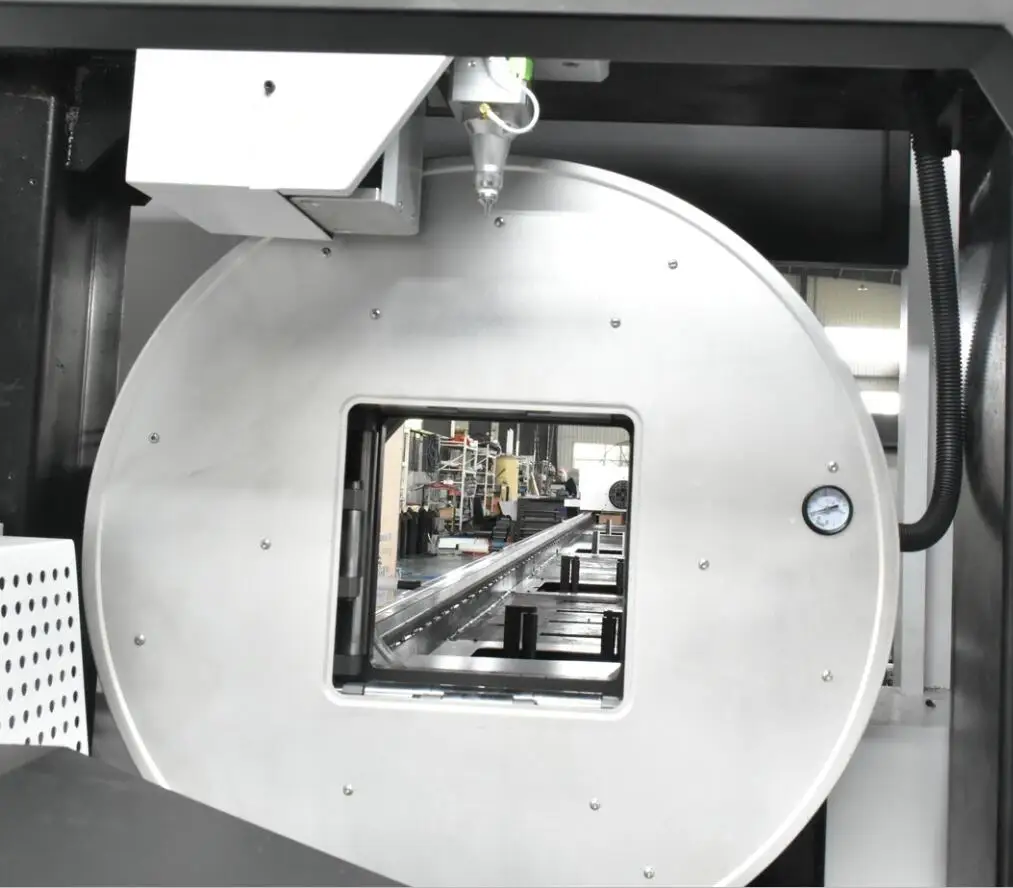

Design and production chucks
Dsign and Production by ourself.Pneumatic chuck and auto centering.
The latest dust-proof patent design.
Super large aperture and super clamping capacity can effectively clamp various types of pipes such as 10-350mm square pipes,round pipes and special-shaped pipes.
Square hole design makes the square tube more tolerant. Compared with round hole chuck of the same diameter, clamping range is wider, clamping capacity is stronger.
Square hole design makes the square tube more tolerant. Compared with round hole chuck of the same diameter, clamping range is wider, clamping capacity is stronger.

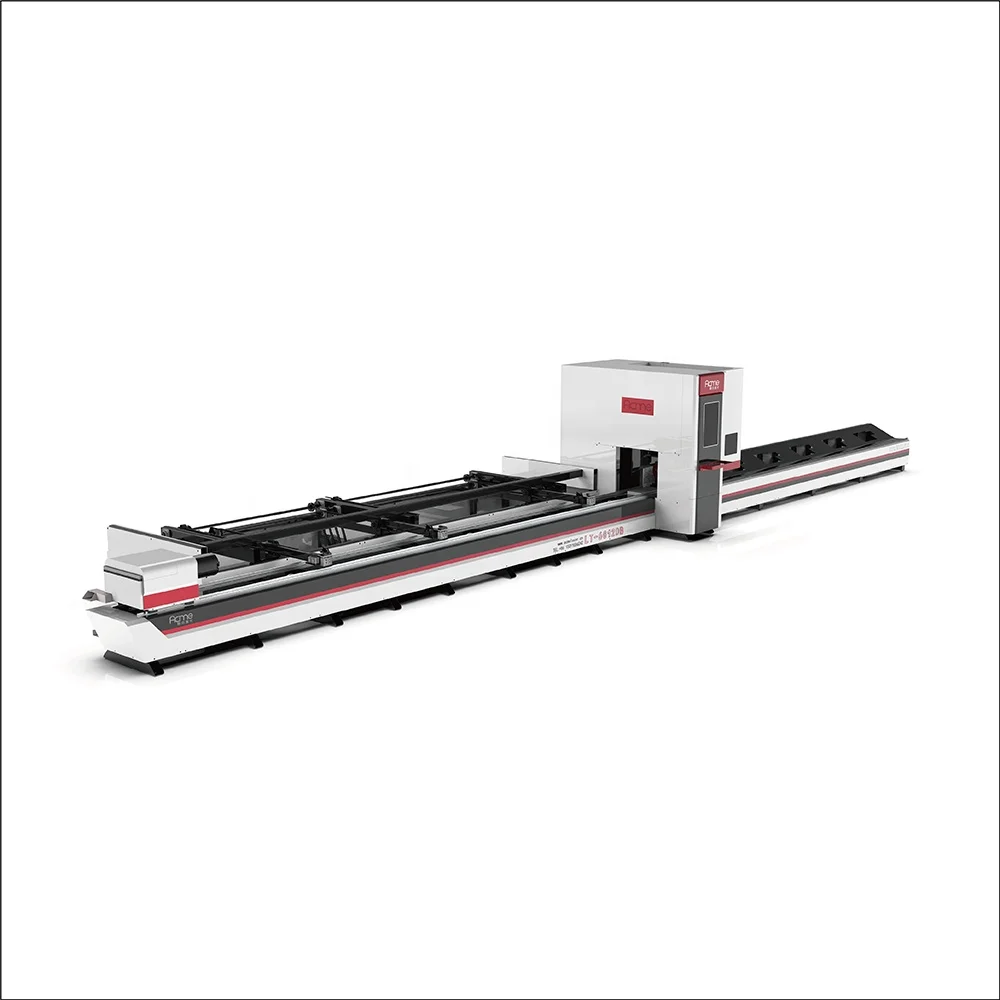

Tube fast loading system
Tube size below 90mm, can do loading from rear chuck
Tube loading while machine is in cutting
Increase 50% loading speed

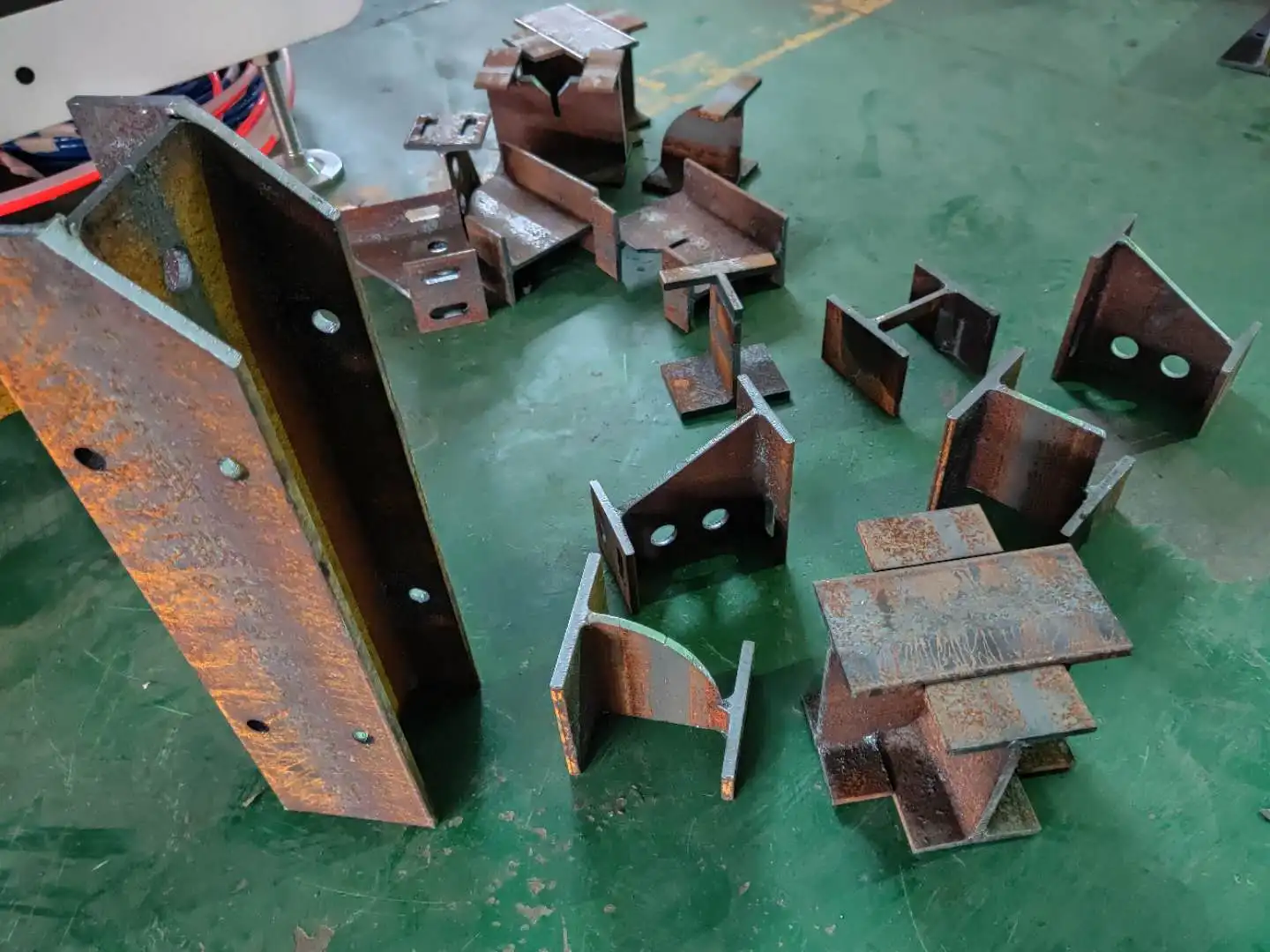

Special Tube Shape/Profile
Special Tube shape/Profile
Angle steel, Channel steel, C, U, I, H beam
Both can be well cutted

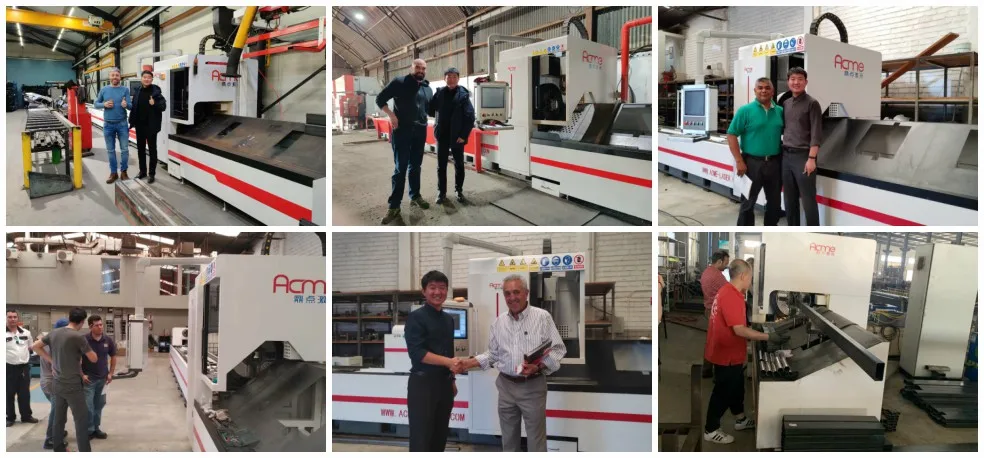

Customer Photos

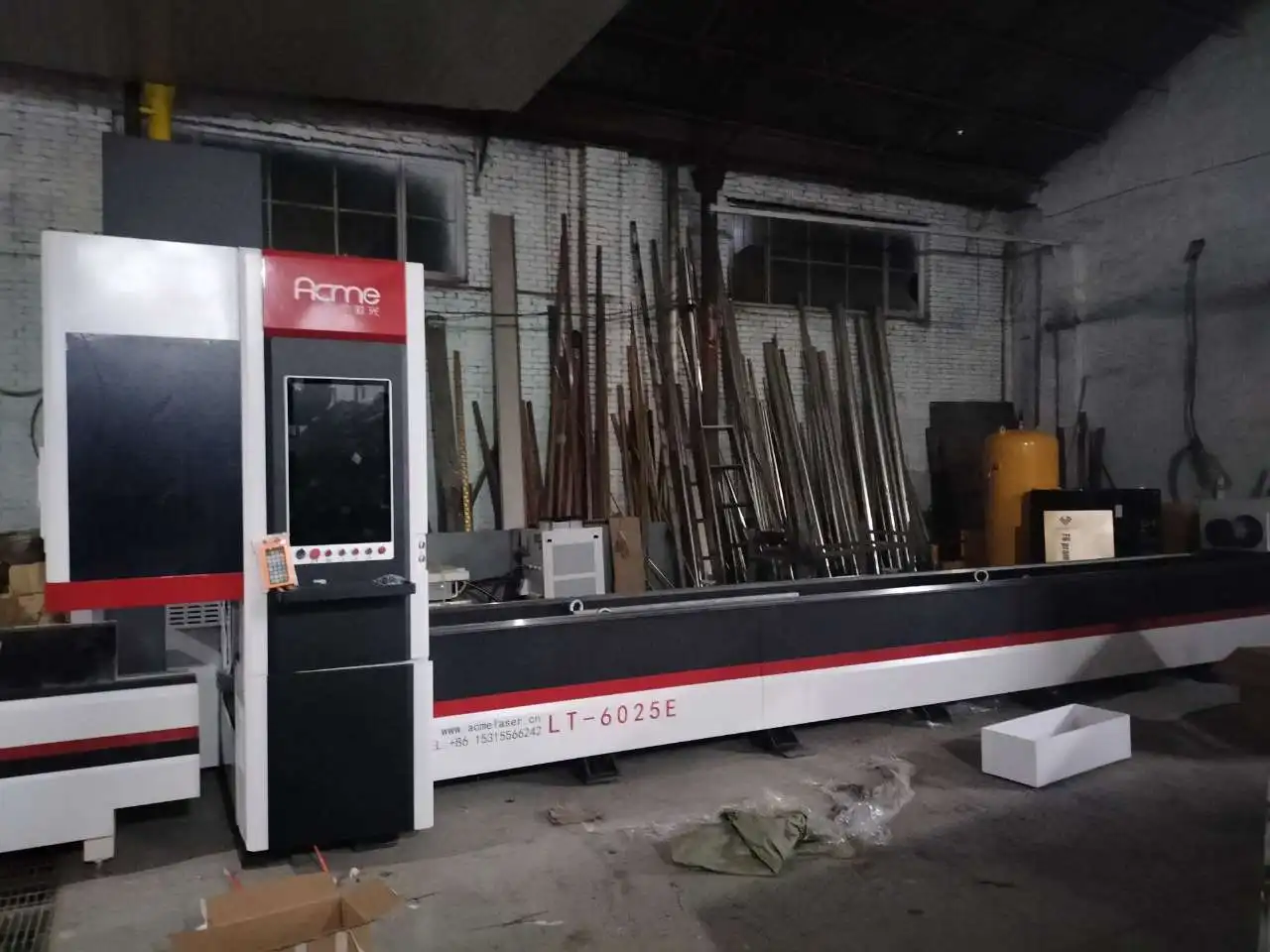

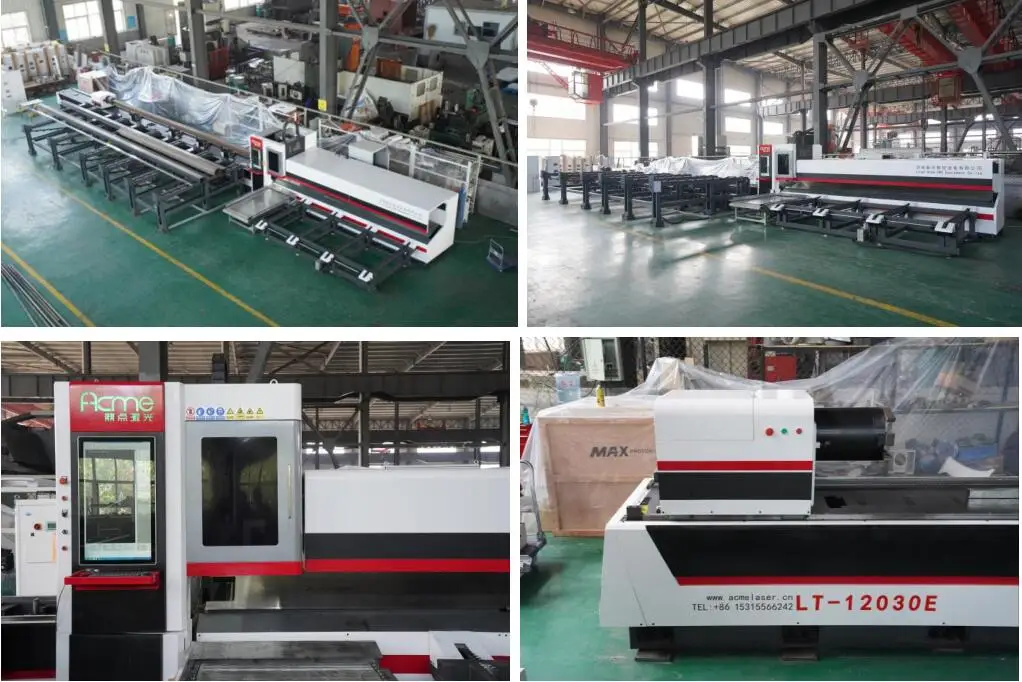

Our machine in customer workshop
Machine in UK, Netherlands, Mexico, Russia, Italy.We have export 60+ countries over the world.
Certificate Support
CE, ISO, China National Patent Certificate, High-tech Enterprise
Applications
Industry Use
Tube laser cuttinig machine widely used in Fitness equipment, Elevator, Automobile, Agricultural machinery, Steel structure, Medical equipment, scaffolding, Electrical equipment, kitchen ware, Steel furniture and so on industries.
