Engineering & Construction Machinery 2210L Tank Capacity Hydraulic Tipping Hopper Concrete Mixing Machine at Best Price

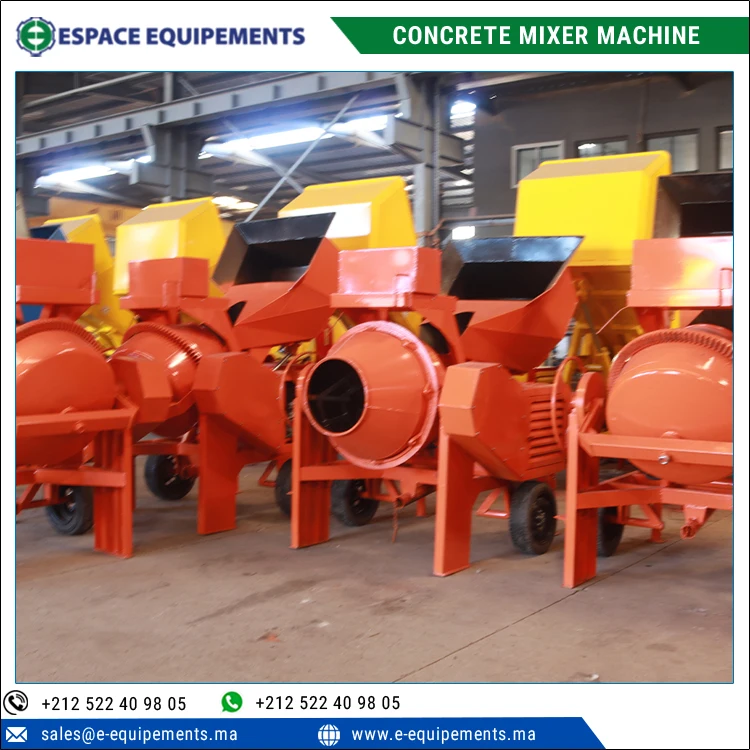

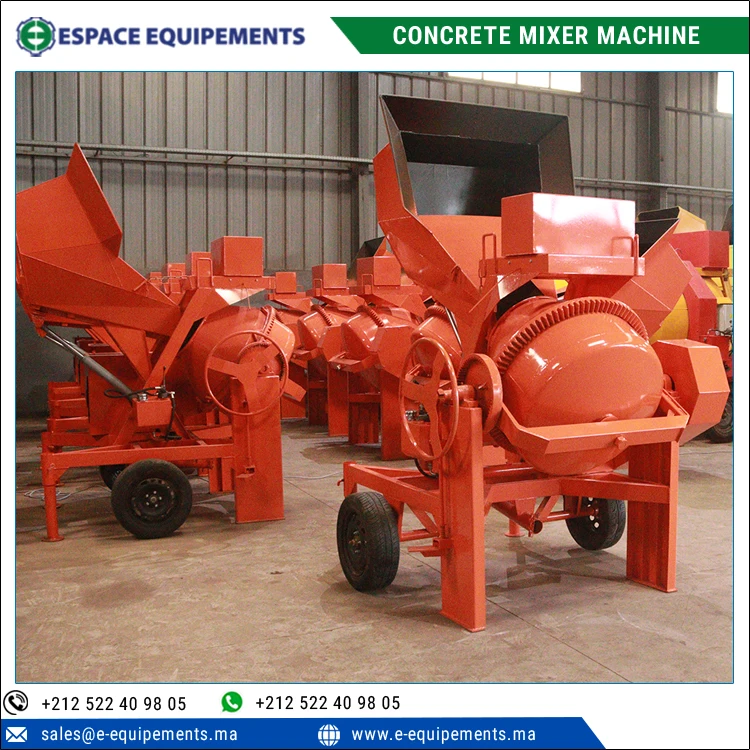

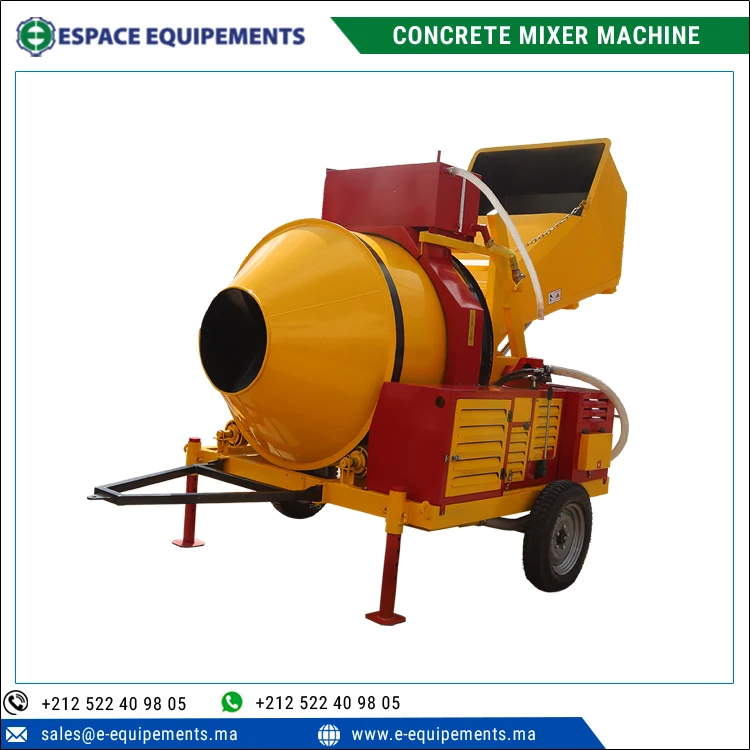

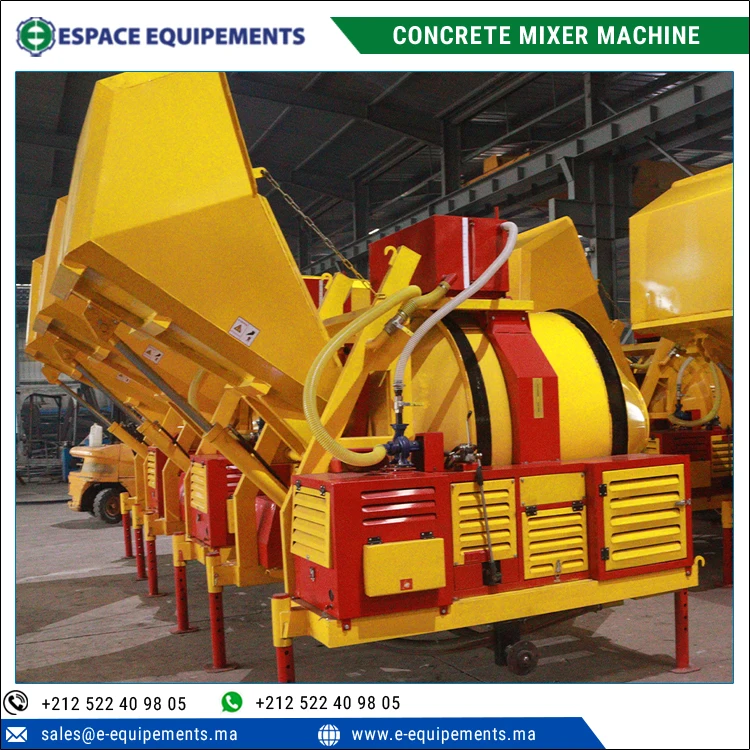

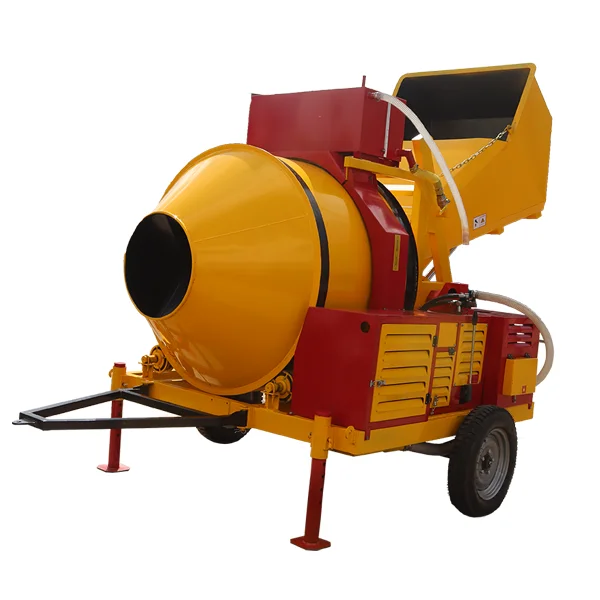

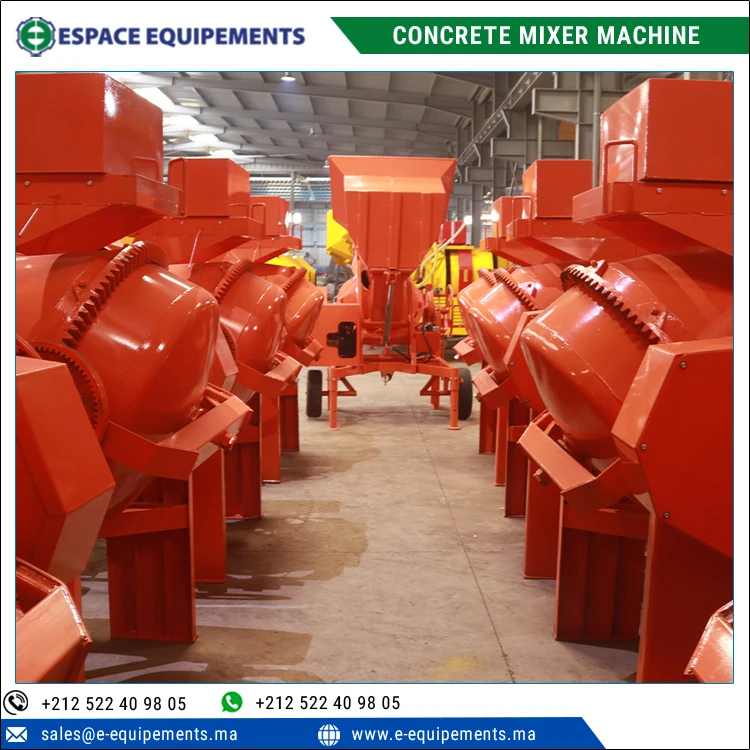

The mobile concrete mixers BTC 2210 DH of the brand ALTRA are the products of Espace Equipement’s new generation point of view to the concrete batching plants.
This Diesel self-loading model can be used in mixing dry hardness, plastic light aggregate concrete with ash, lime mortar widely used in building sites, roads, bridges and concrete factories.
Indicated for large and medium construction sites, particularly solid and very easy to use, especially in countries where there is no specialised workforce.
Depending on the capacity of the models and the type of mortar, it is possible to produce from 8 to 15 m3/3 hour of mix.
Our equipment is ISO 9001 manufactured in Morocco. The machine has the advantage of low cost, mechanically fed and manual tilting drum mixer.
| Model | BTC-2210-DH |
| Tank capacity | 2210L |
| Mixing capacity | 550L* |
| Water reservoir capacity | 115L |
| Diesel engine power | 22HP |
| Diesel engine | ZS1105 |
| Drum Volume | 2210L |
| Capacity of loading | 560L |
| Capacity of discharging | 350L |
| Drum Thickness(mm) | 5mm |
| Hopper Thickness(mm) | 3mm |
| Capacity of water tank | 110L |
| Output m2/hour | 10-14 |
| Drum rotating speed | 13r.p.m |
| Max.towing speed | 20km/h |
| Power | 11kw/13kw |
| Size(L×W×H) | 3250×2240×3200mm |
| Total weight | 1790/1840kg |
| Hopper lifting model | Hydraulic tipping hopper |
