CB U02 Corrugated tube high speed automatic cutter plastic hose pvc pipe shrink pipe hose cutting machine

Product Overview

Description

WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^

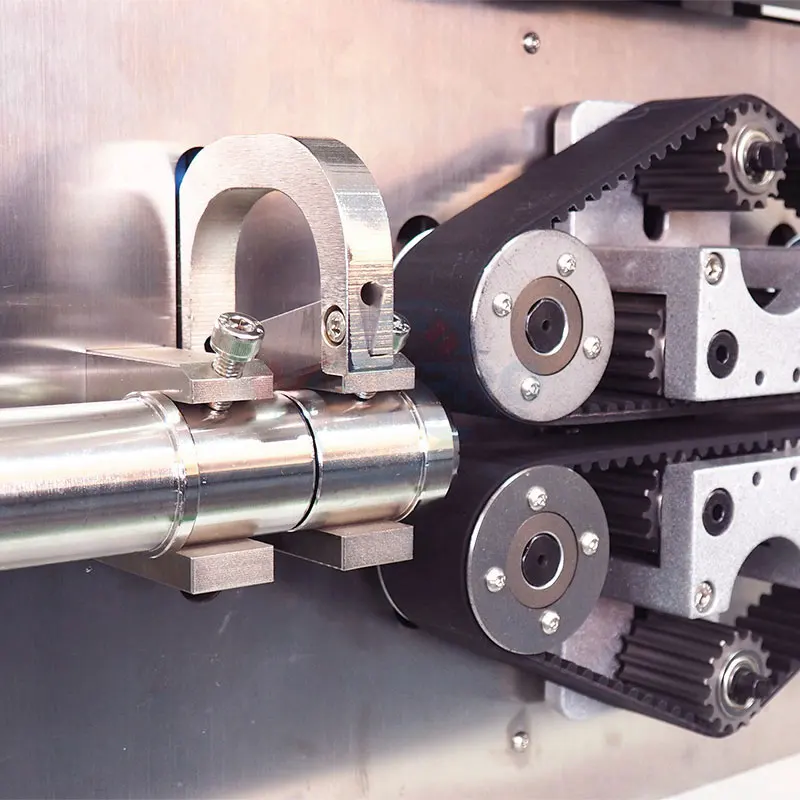

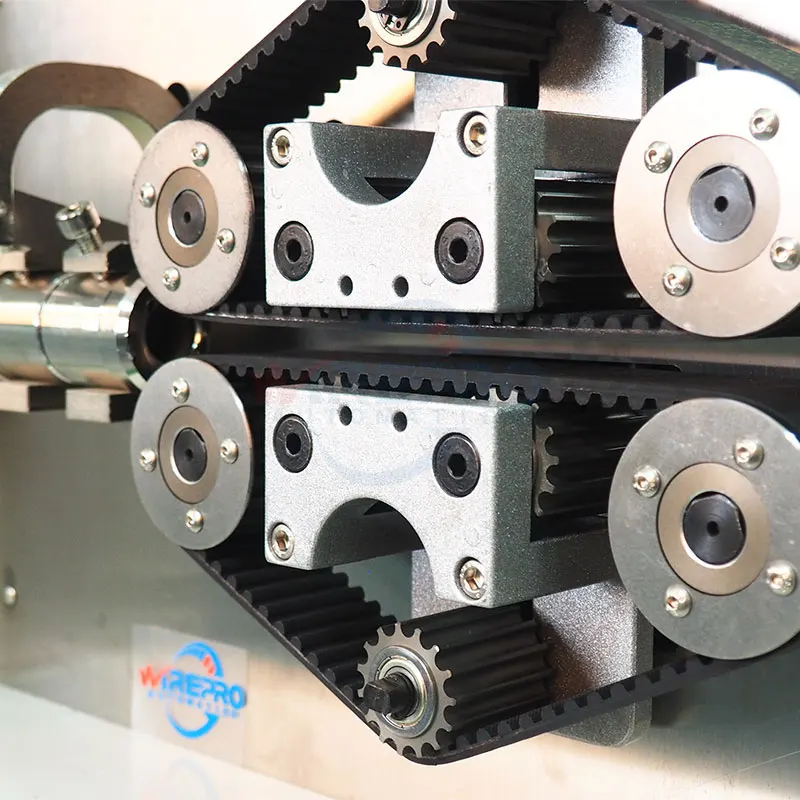

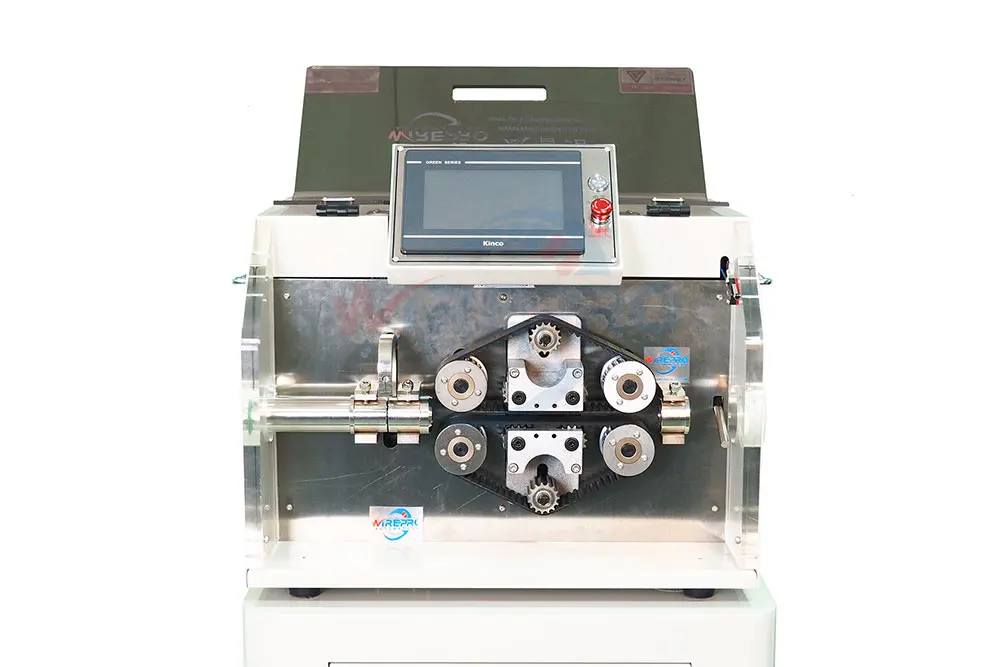

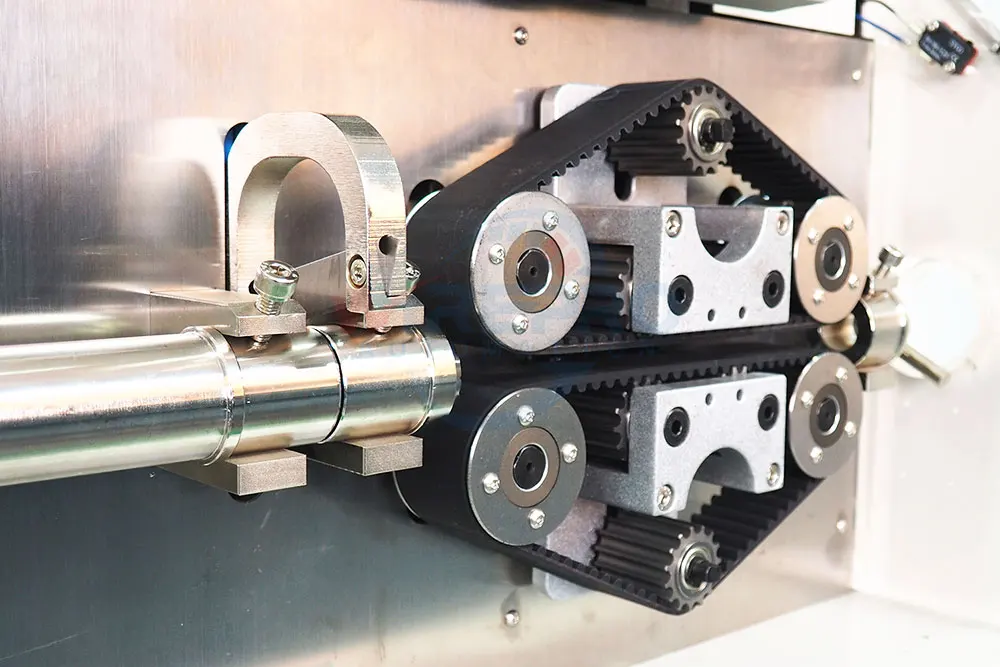

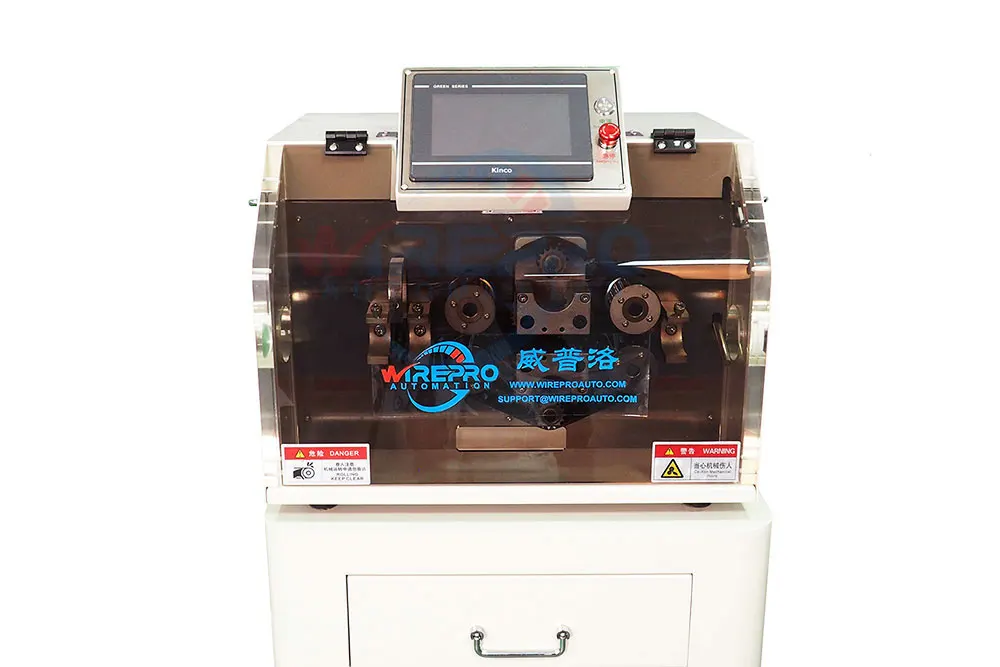

The CB-U02 is designed for cutting corrugated tube and other plastic tubes. It widely used in car harness, the new energy wire harness, the aerospace, the motor train, the urban rail traffic, the high voltage cabinet and other industries.

Feature:
1. Chinese and English interface, easy to use
2. All aluminum machine, stable and durable
3. Touchscreen, convenient control
4. Can custom splitting function

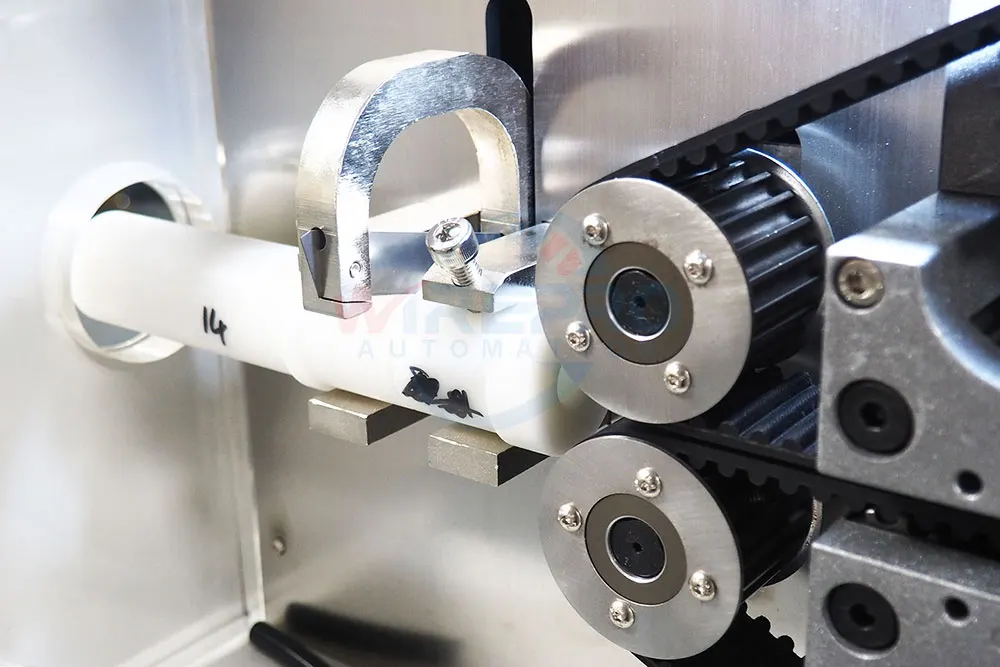

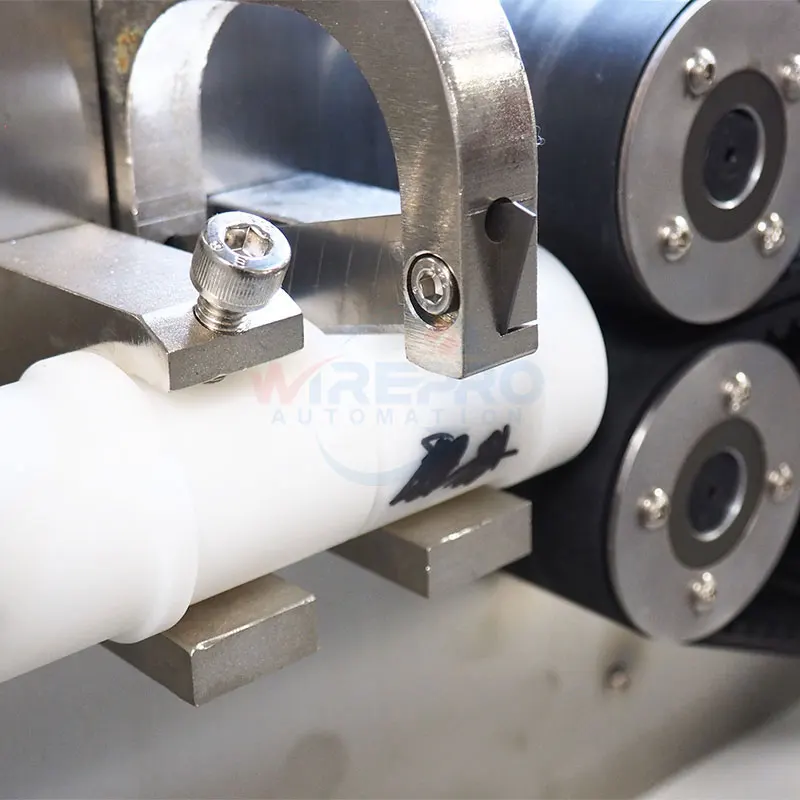

5. No need to change cutting tool, just need to change feeding tube when cutting different size tubes.





Model	CB-U02	CB-R03	CB-A04	CB-M05	CB-P06	CB-V07
Materials	Corrugated tube and common tube	For hard materials tube	For long tube	For thin metal tube or thick material	Corrugated tube
Feature	Precise cut, custom splitting function	Rotary blade	With feeder systerm	Higher power and harder tools	Accurate cut tube wave peak	Accurate cut tube wave valley
Available Diameter	4-30mm (custom available)		4-25mm (custom available)
Cutting Length	5-9999mm	5-9999mm	10-9999mm	0.1-99999mm	10-9999mm
Cutting Speed	10-60pcs/min	60-110pcs/min	10-60pcs/min	5-50pcs/min	10-60pcs/min
Power	220/110V	220/110V	220/110V	220/110V	220/110V	220/110V
Power Supply	1000W	1000W	1100W	1500W	1500W
Dimensions	56*68*62cm	84*54*71cm	140*67*140cm	70*58*45cm	177*66*155cm
Weight	85kg	95kg	230kg	120kg	230kg

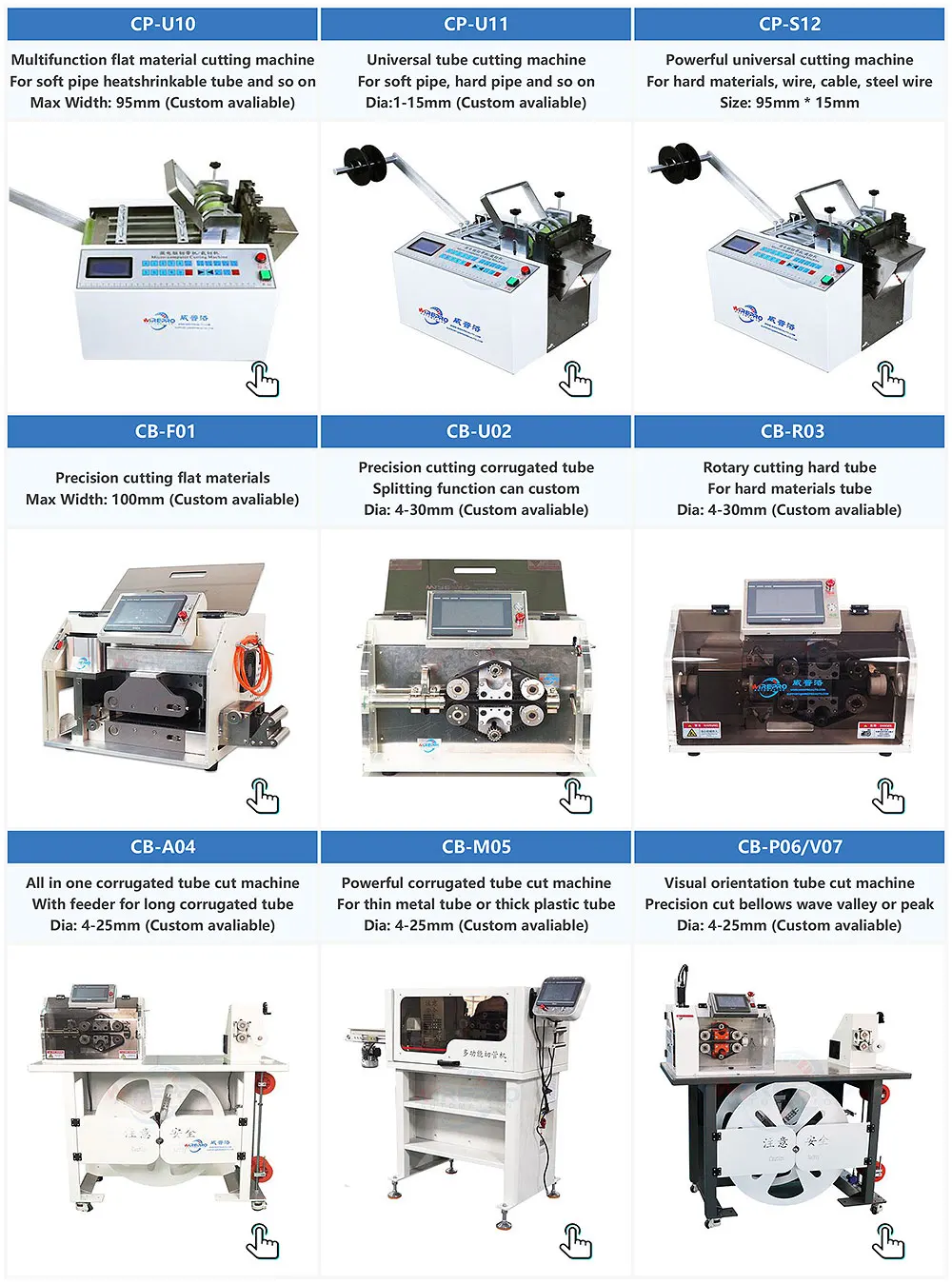

More Cutting Machines



A versatile and reliable machine for cutting to length heat shrink tubing, plastic piping, sleeving,  cable marker tube, small bellows pipe, plastic hose, insulation paper, cable ties, copper foil and so on.



CP-U10:Multifunction flat material cutting machine,for soft pipe heatshrinkable tube and so on

CP-U11:Universal tube cutting machine, for soft pipe, hard pipe and so on

CP-U12:Powerful universal cutting machine,for hard materials, wire, cable, steel wire

CB-F01: Precision cutting flat materials
CB-U02: Precision cutting corrugated tube, splitting function can custom

CB-R03: Rotary cutting hard tube, for hard materials tube

CB-A04: All in one corrugated tube cut machine, with feeder for long corrugated tube

CB-M05: Powerful corrugated tube cut machine, for thin metal tube or thick plastic tube

CB-P06/V07: Visual orientation tube cut machine, precision cut bellows wave valley or peak

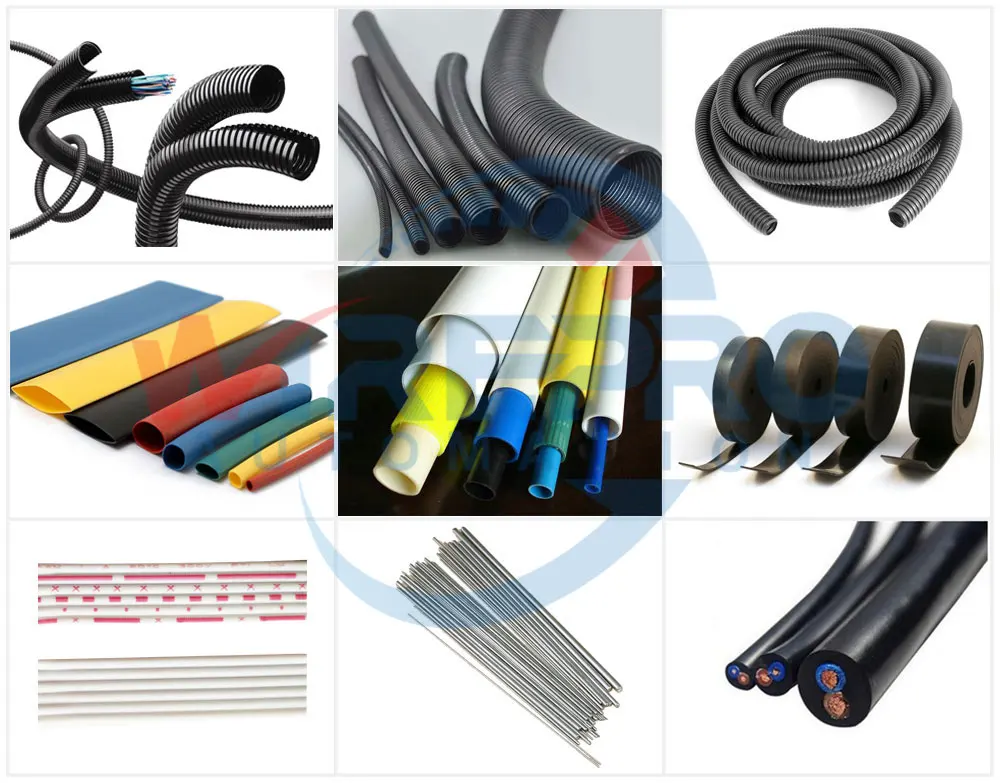

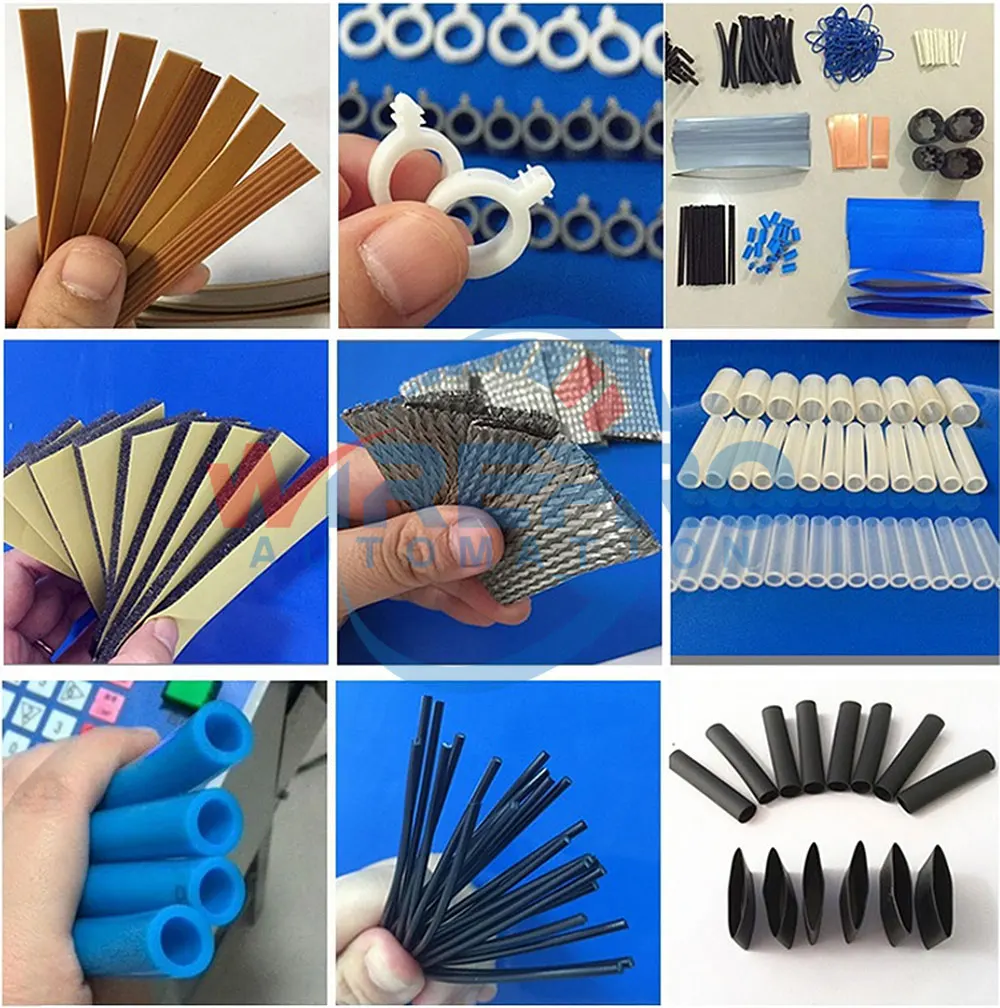

Cutting materials samples:

















Other wire processing machines









1.  What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO.

2.  Operation panel and user manual language? English and Chinese are optional.

3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.   Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.   Transportation: Support shipping via air, sea, and railway many transportation modes.

4. How do we install and operate the machine? Machines, accessories, and manuals will be packed and delivered together, we provide operation and maintenance instructions and parts catalog.   Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).   Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.   We also welcome you to come to our factory for more training.

5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days.
