OEM ODM industrial router manufacture in China LAN LTE FDD 4G WiFi router with SIM card card
- Category: >>>
- Supplier: Xiamen Alotcer Communication Technology Co. Ltd.
Share on (10000007203330):
Product Overview
Description
Product Description
High-powered industrial cellular module | |
Material | High-powered industrial 32bits CPU |
Function | Housing: Iron, providing IP30 protection. |
Package | Power range: DC 5~35V |
Support hardware and software WDT | |
Support auto recovery mechanism to make router always online | |
Ethernet port: 1.5KV magnetic isolation protection | |
RS232/RS485 port: 15KV ESD protection | |
SIM/UIM port: 15KV ESD protection | |
Power port: reverse-voltage and over voltage protection | |
Antenna port: lightning protection (optional) | |
Standard and Convenience | Support standard RS232 and RS485, Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly |
Support standard WAN port and PPPOE protocol that can connect to ADSL directly | |
Support intellectual mode, enter into communication state automatically when powered | |
Parity: none, even, odd, space, mark Baud rate: 110~230400 bps Large serial port data cache:10MB | |
WAN/LAN | 1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection |
LAN | 2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
Antenna | Cellular/GPS: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
Power | 2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection |
Reset | Press this key for 8 seconds to restore the Router to its original factory default settings |
Indicator | “PWR”、”SIG”、”NET”、”APP” 、”Link”(RJ45) |
GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66 5G Sub-6: n2/n5/n7/n12/n14/n38/n41/n66/n71/n78 5G UL MIMO: n77/78/79/41 | |
PPP Protocol | Support PPP Protocol |
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. |
Network Authentication | Support CHAP/PAP Authentication |
TCP Heartbeat | Monitor the server connection |
WIFI(optional)Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
WIFI(optional)Standard | IEEE802.11b/g/n |
WIFI(optional)Security | WEP, WPA, WPA2, etc. WPS (optional) |
Power range | DC 5~35V, Recommended 12VDC/1.5A |
Communication Current | <500mA (@12VDC) |
Standby Current | <250mA（@12VDC） |

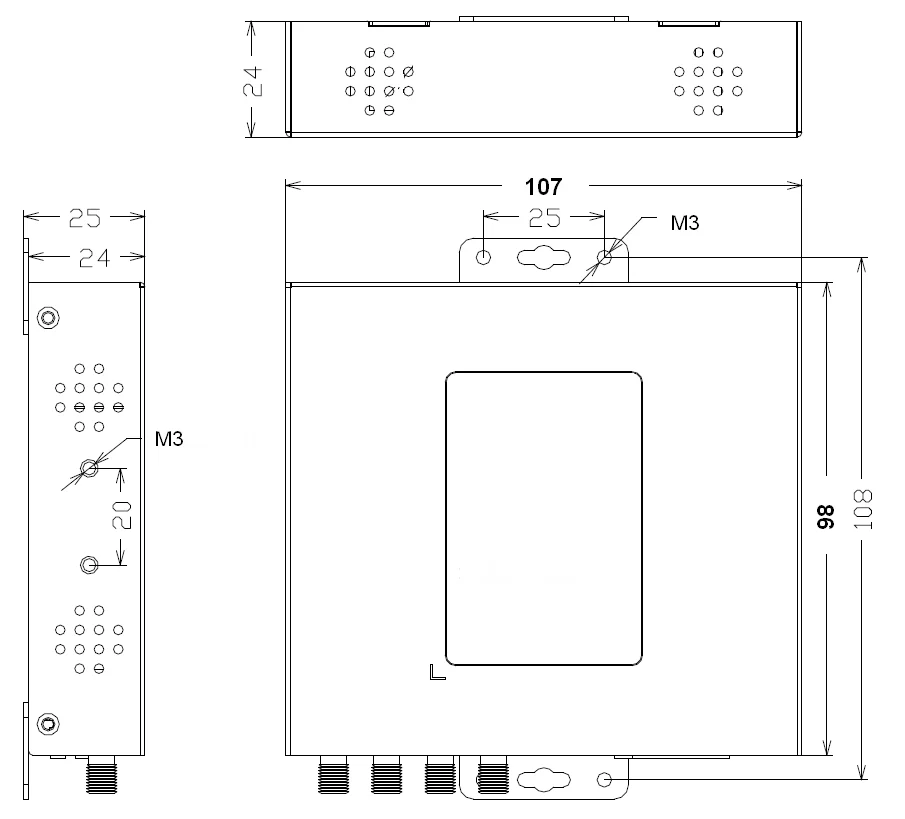

Dimensions | 107x98x24mm |
Weight | 350g |

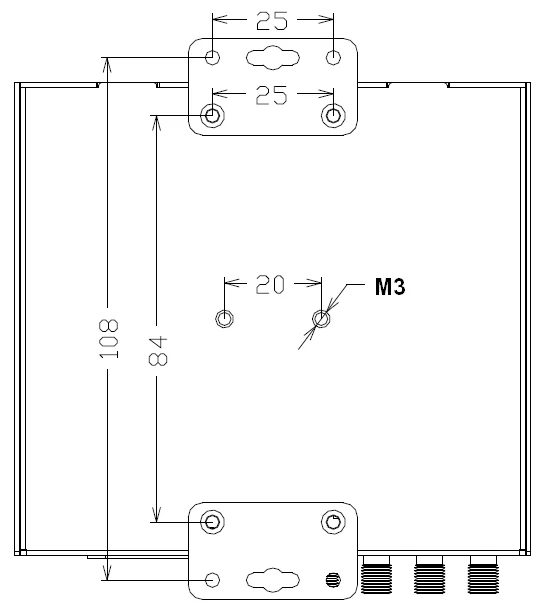

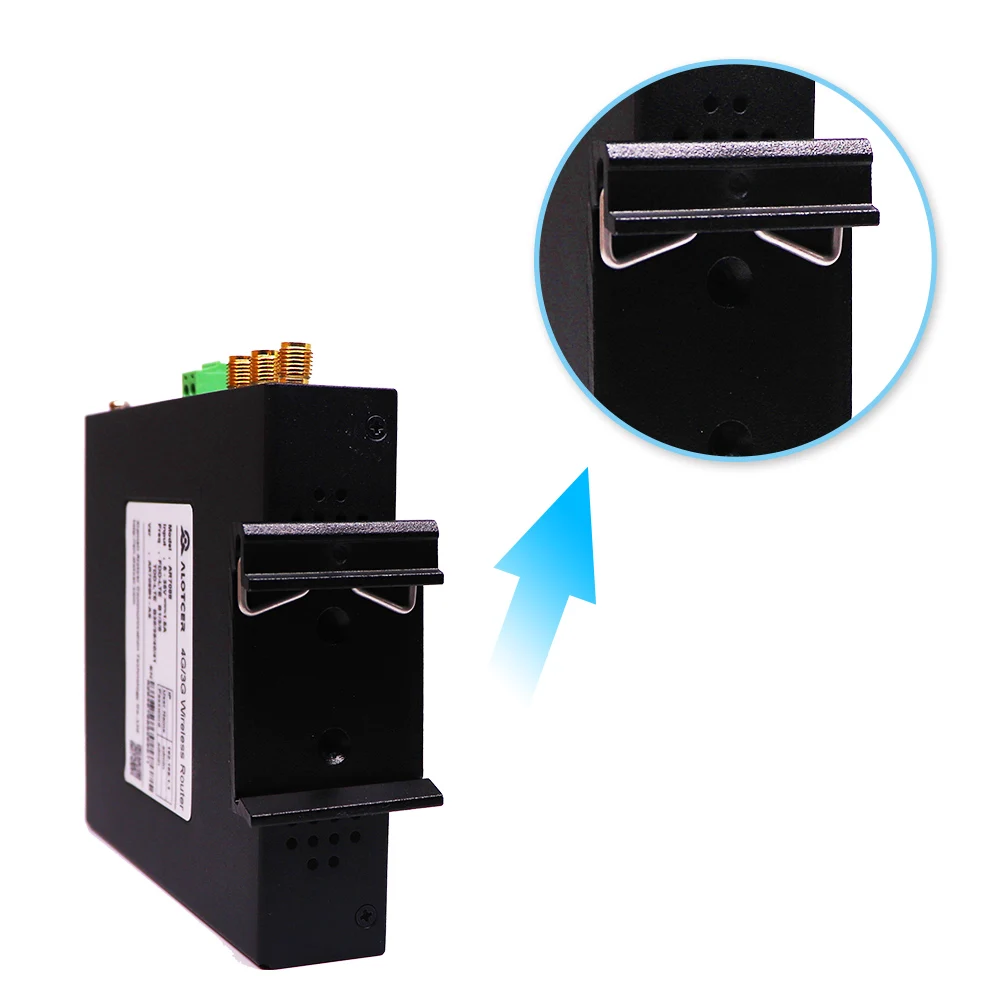

Installation | Mount Kit or DIN Rail 35mm (optional) |
Operating Temperature | -35~+75ºC (-31~+167℉) |
Storage Temperature | -40~+85ºC (-40~+185℉) |
Operating Humidity | 95% ( unfreezing) |
General
AR7088H ROUTER is a kind of terminal device that developed based on 2G/3G/4G/5G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 and RS485, Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

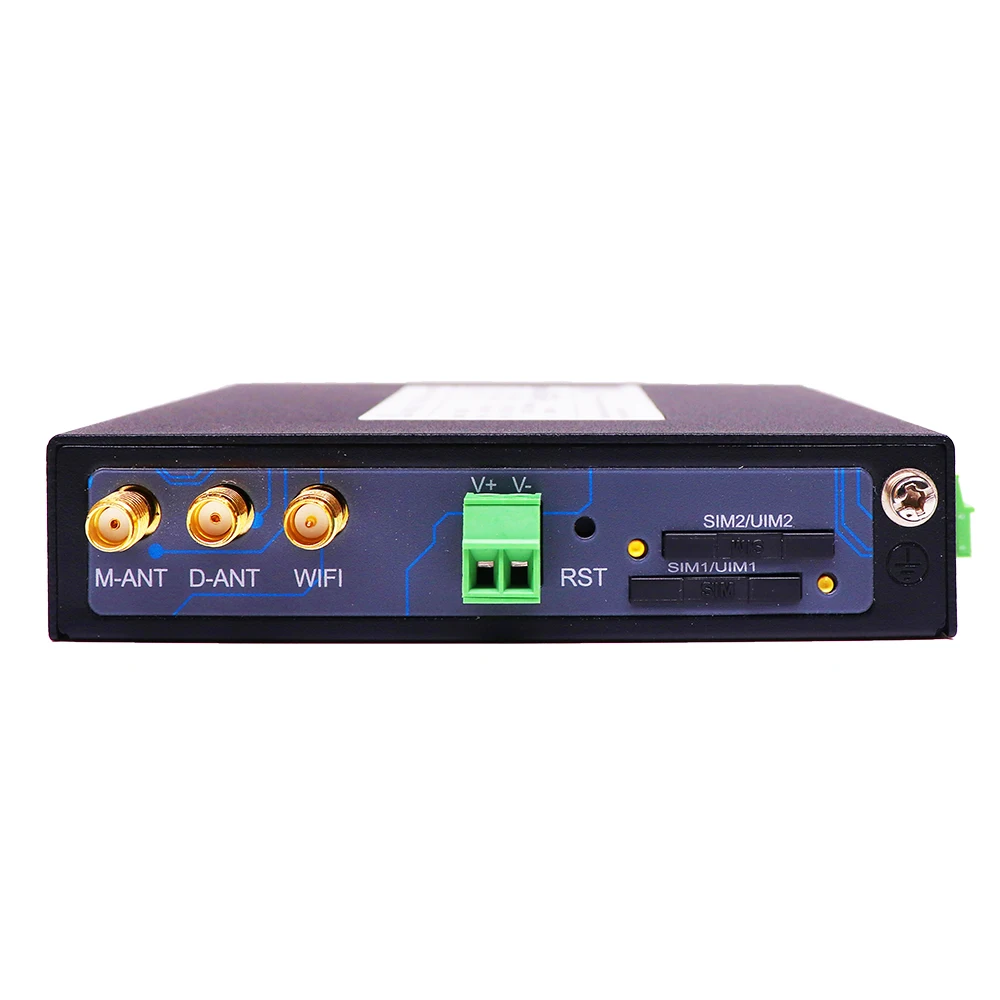

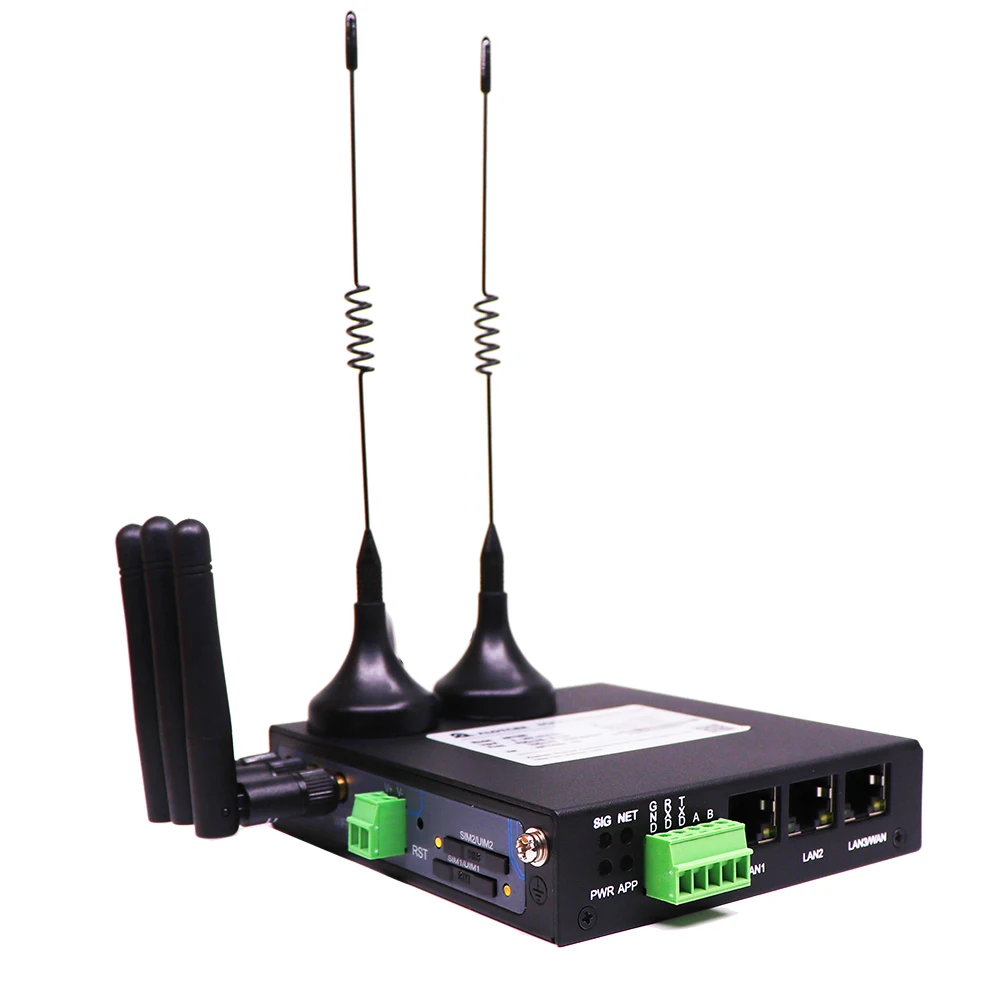

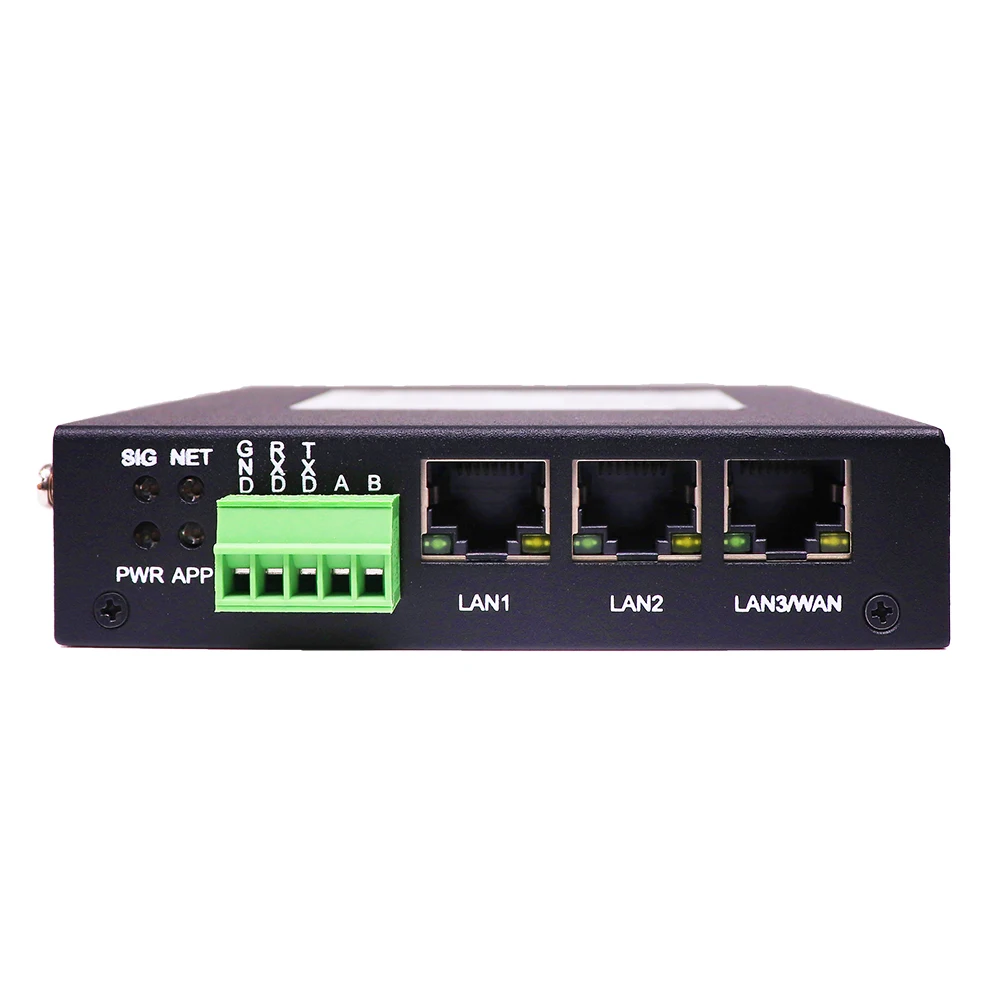

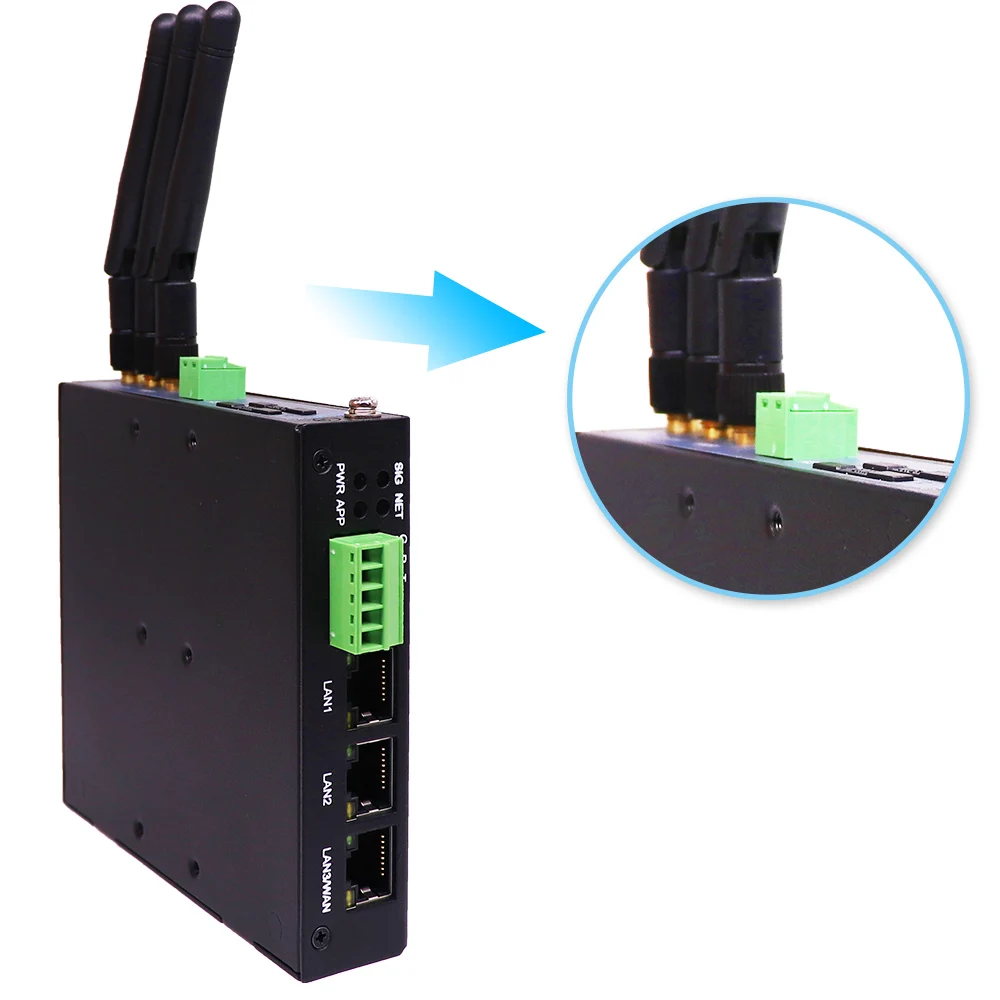

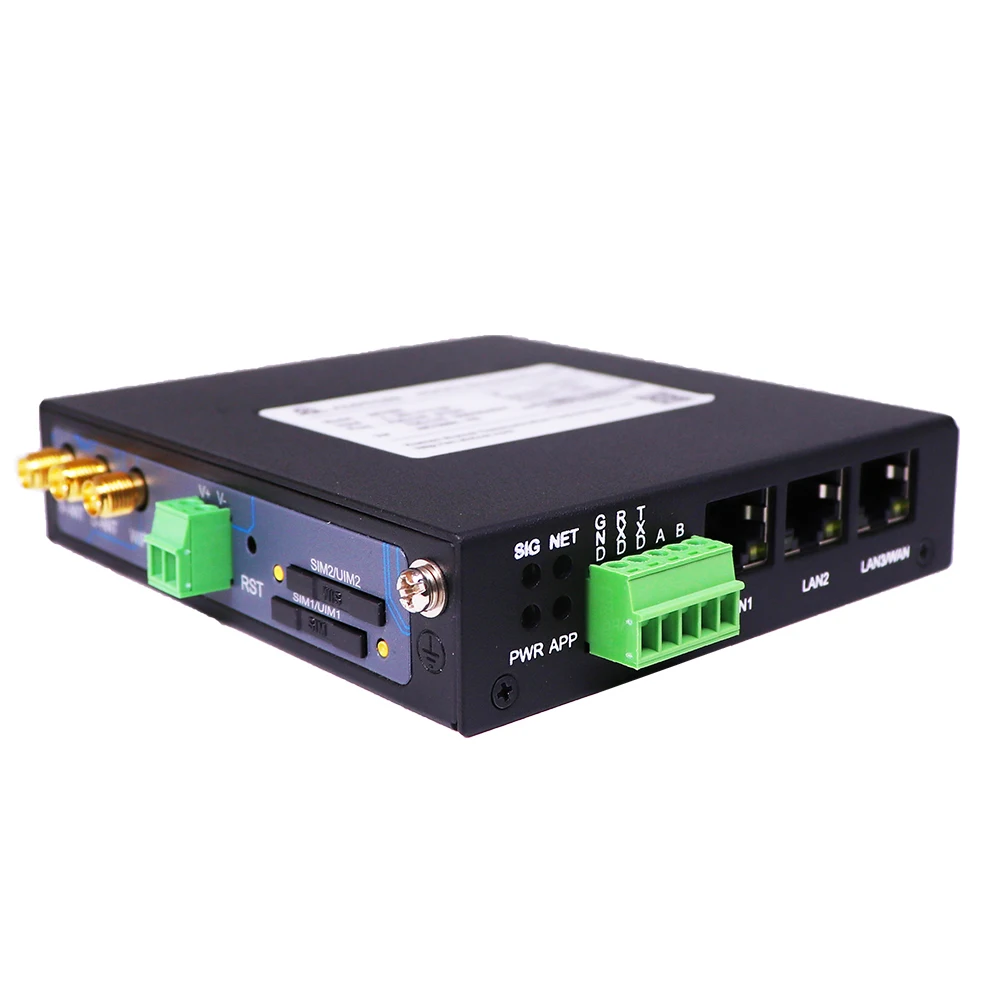

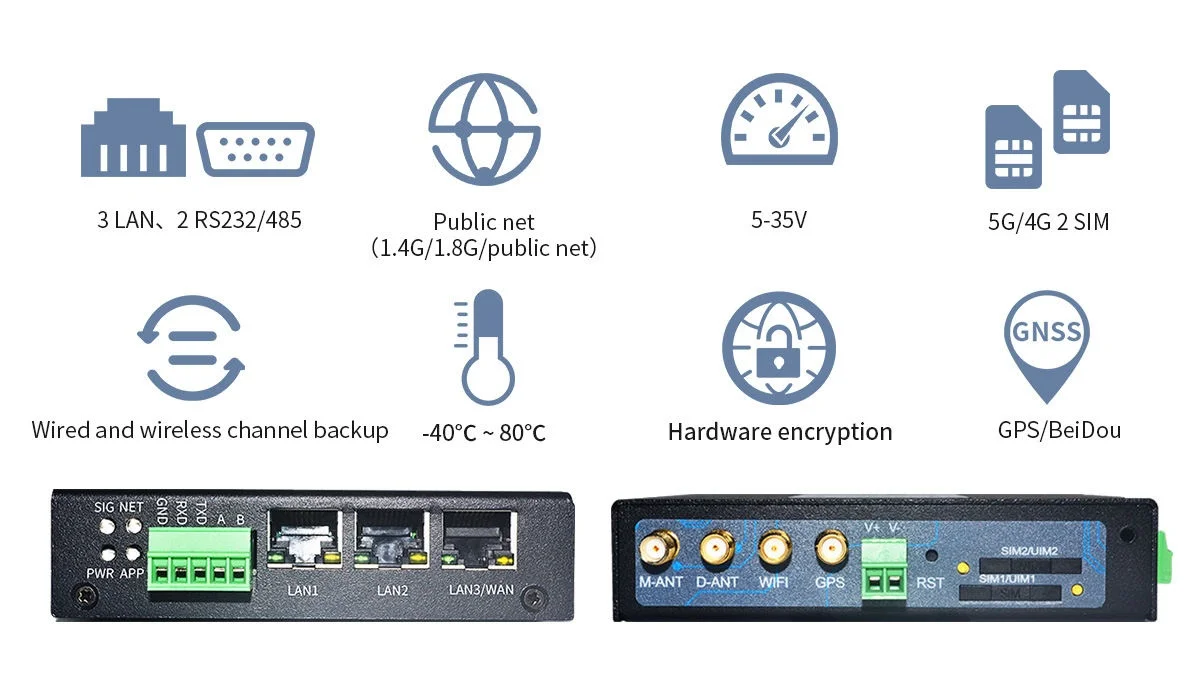

Details Images
Product Accessories
Cellular antenna（Standard）
Network cable（Standard）
Related Products
Packing&Shipping

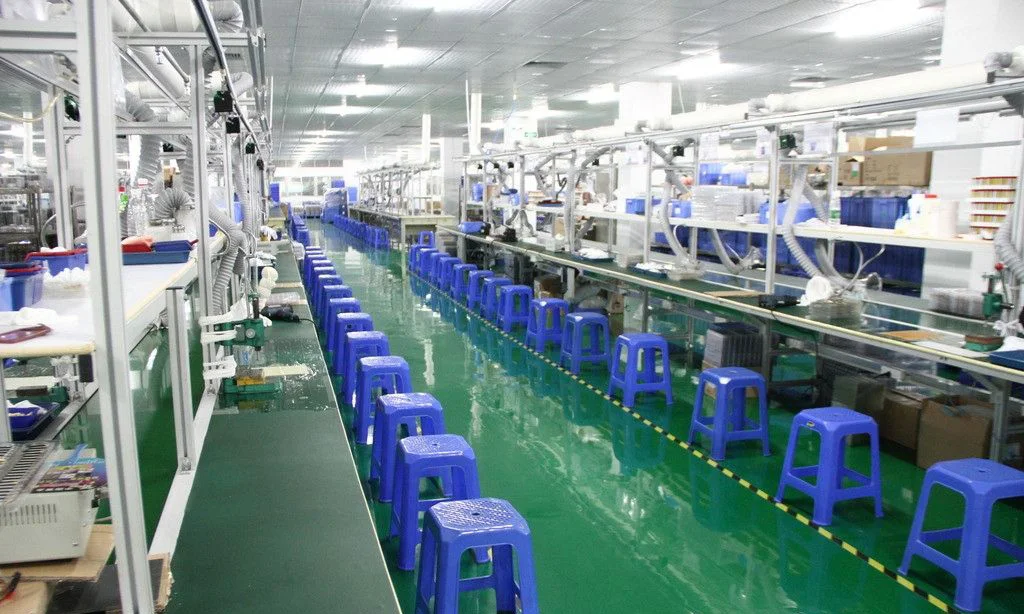

Company Introduction
As a senior networking experts, Xiamen Alotcer Communications Technology Co., Ltd. is a professional M2M, Things communications products and solutions provider. Deep rooted Networking Wireless Communications for many years, both from the quality of the product and the company's scale are in the industry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, environmental testing and National Network Center certifications.
FAQ
1.What's the shipping cost?
Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL.
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
5.Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
5.Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
