Product Overview

Description





YUK700-2003
Multi Channel DVB S S2 S2X DVB-T T2 Tuner to HD SDI HDM I Receiver Decoder IRD










Product Overview

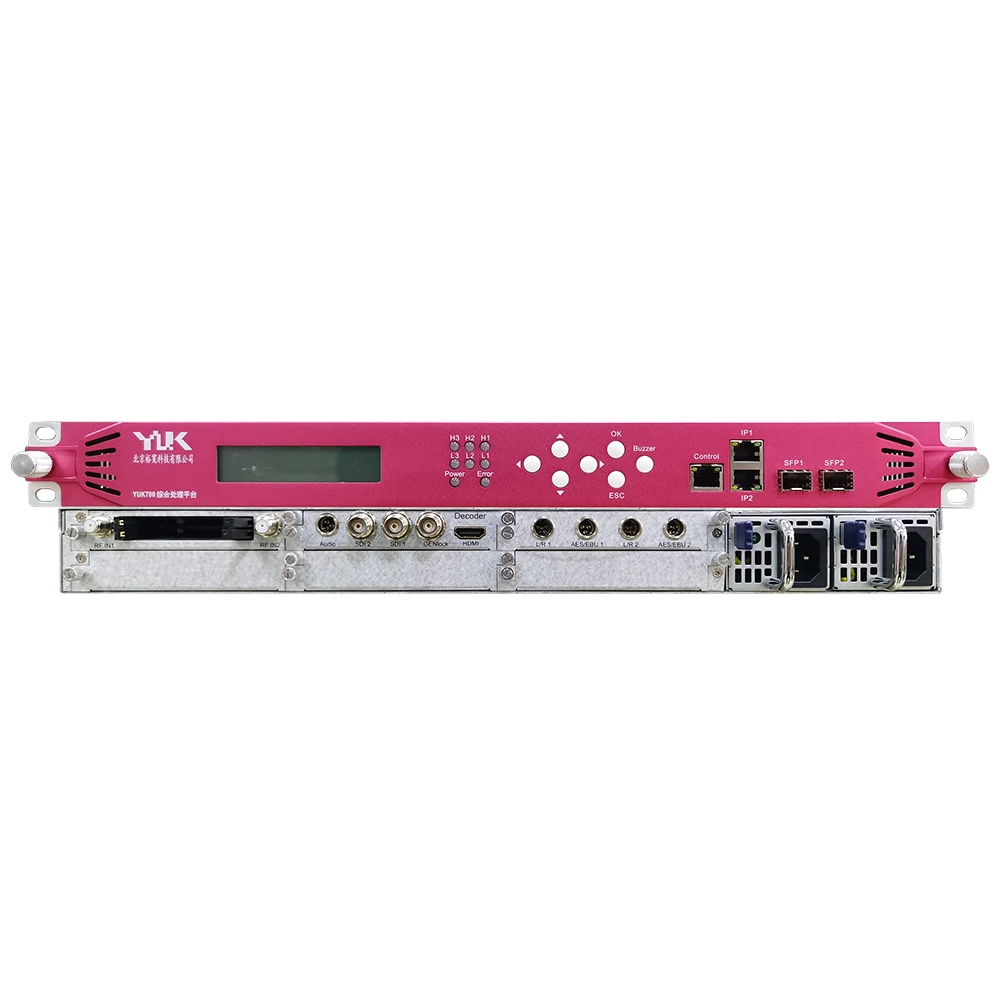

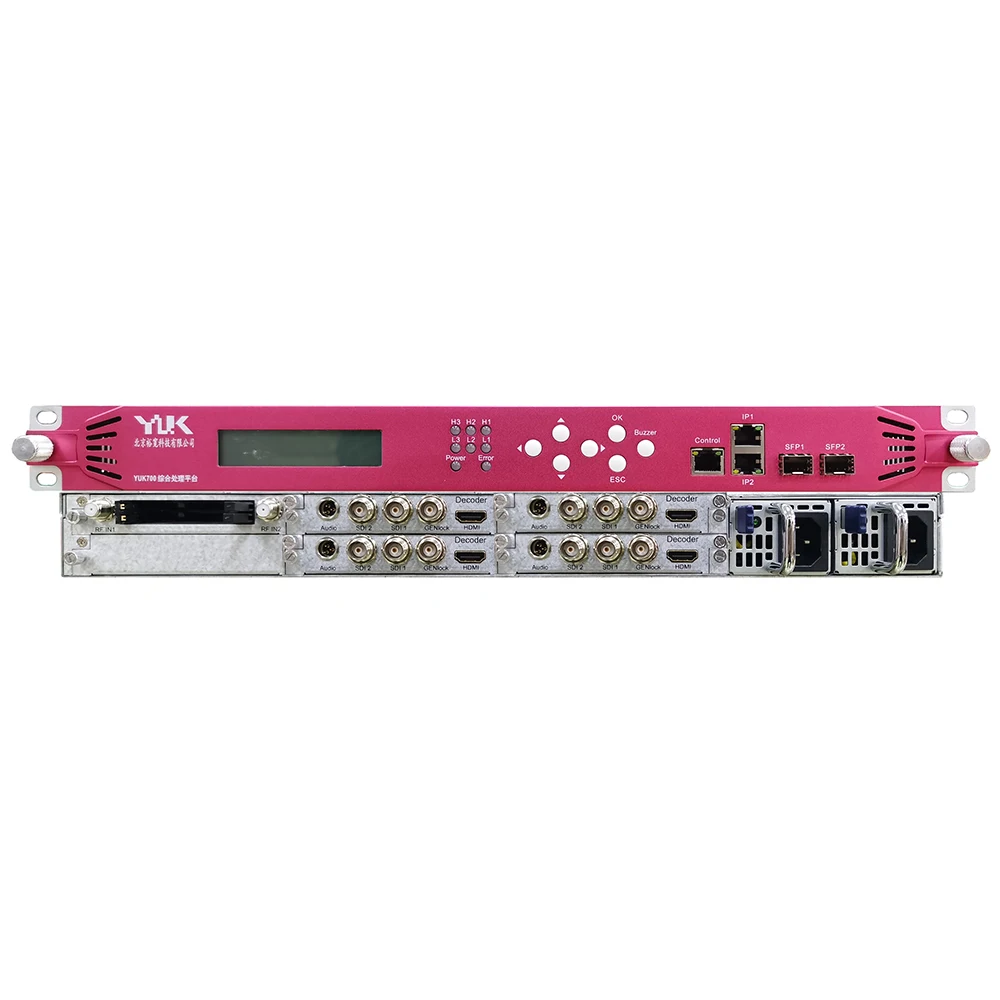

YUK700 Integrated digital content processing platform is designed with board module structure and 1U rack mount. It integrates a variety of advanced video processing functions, including coding, decoding, multiplexing, satellite receiving, adaptation,modulation, fiber transmission, distributor,cable receiving. The platform supports maximum 12 channels HD/SD-SDI/HD-MI/CVBS signal or 12 channels analog stereos or 12 channels digital audio signal encoding. And it supports maximum 18 channels ASI input multiplexing and 12 channels ASI output, 12 channels unidirectional or 6 channels bidirectional HD/SD-SDI/ASI, 24pcs frequency modulation,12 channels satellite receiving, 12 channels analog stereos and 12 channels digital audio decoding, 2 channels Gigabit IP input output and 2 channels SFP fiber input output.


Product Feature


* Each device supports 6 module slots

* Support program multiplexing output and modulated RF signal output

* Support ASI input/output, SDI output can choose any input and output function

* Gigabit IP input/output and SFP fiber output

* Support HD input and SD output(with down-transformation function)

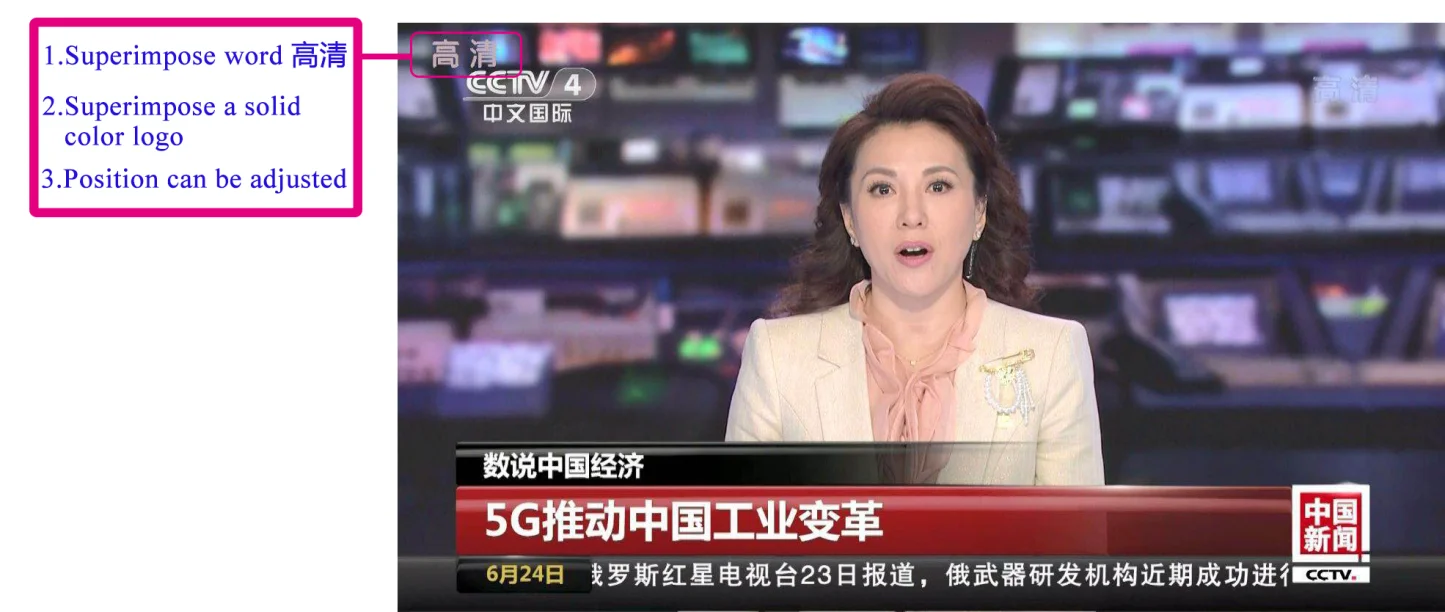

* Support logo superposition and signal generator automatic output

* IP input support RTP or UDP, support 64 MPTS or 64 SPTS input

* IP output support RTP or UDP, support 4 MPTS and 64 SPTS output

* Local monitoring: button and LCD display

* Remote control: TCP/IP, XML

* Suppport power cut memory function

* Standard 1U rack (485mm×450mm×44mm)

* Plug in Module, dual power supply, buzzer alarm


Specification


YUK700 Integrated Digital Content Process Platform
YUK700 Chassis
IP/Fiber
2×RJ45 10/100/1000Mbps IP data port（input/output）
2×SFP, synchronize with the IP output
Web Network
Management
1×RJ45 10/100/1000Mbps Base-T
(only network management)
Module Option
4K Encoder Module
Input
1×12G-SDI or 4×3G-SDI(4K) or 1×3G/HD-SDI
Encoding Format
H.265
4K Decoder Module
Output
4×3G-SDI, 1×12G-SDI, 1×HD-MI
Decoding Format
H.265, H.264, MPEG-2, AVS2, AVS+
HD/SD Encoder
Module
Input
2×HD/SD-SDI, 2×HD-MI, BNC/HD-MI, 75Ω
Encoding Format
MPEG-2/H.264
Video Decoder Module
Output
2×HD-SDI, 1×HD-MI, 1×analog/digital audio,1×GENlock
Support Function
1 channel decoding
DVB Reception Module
Input
2×RF (DVB-C/T/T2, DVB-S/S2)
Descrambling
2×CAM card slots to descramble two different signal, support BISS-1 and BISS-E decryption
ASI Multiplexer
Module
Input
3×ASI, BNC, 75Ω
Output
2×ASI, BNC, 75Ω
SDI to Fiber Transmission
Module
Input
2×12G/HD/SD-SDI/ASI, BNC/HD-MI, 75Ω
Fiber
Single mode single fiber
Fiber Connector
LC/PC(standard)
Analog Audio Video Encoder Module
Video
2×CVBS, BNC, 75Ω
Audio
2×stereo
Audio Encoder
Module
Audio
2×AES/EBU or 2×analog stereo
Audio Decoder Module
Output
2×analog stereo and 2×AES/EBU
Distributor Module
Input
1×12G/HD/SD-SDI/ASI
Output
4×12G/HD/SD-SDI/ASI，one of them can also output when power off
Modulator Module
Interface
1×ASI input, 2×ASI loop out, 1×RF output ,1×-20BD RF-TEST
DVBC
Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 38.0M
DVBT
Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 31.7M
DMBT
Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 31.2M
Physical Specification
Physical Parameter
Dimension
19 inches standard 1U chassis(485×450×44mm)
Power
Dual power supply redundancy hot standby
AC 100V~240V 50/60HZ
Weight
5KG

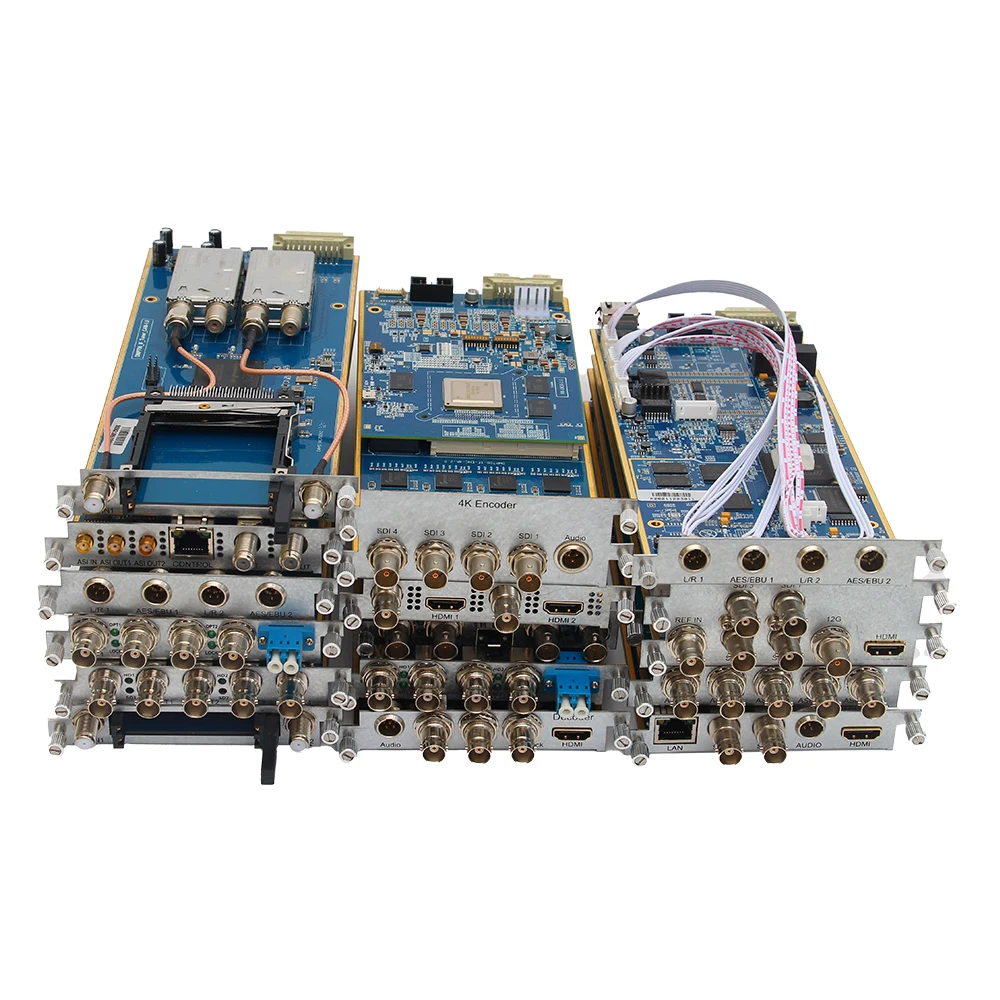

Module Option




4K Encoder Module
* Support 1×12G-SDI or 4×3G-SDI(4K) or 1×3G-SDI
video encoding
* Encoding format: H.265
* Input resolution: 4K 1080P@50/59.94/60
720P@50 /59.94/60/ 576I/50 480I/60
* Output bitrate: VBR, CBR
* Audio input: SDI embedded audio
4K Decoder Module
* Output: 4×3G-SDI, 1×12G-SDI, 1×HD-MI
* Support 1×12G-SDI or 4×3G-SDI and 1× HD-MI 2.0
decoding
* Decoding format: H.265, H.264, MPEG-2, AVS2, AVS+











HD/SD Encoder Module
* Input: 2×HD/SD-SDI, 2×HD-MI
* Video input format: NTSC/PALadaptive
* Input resolution:1080I@50/59.94/60
720P@50/59.94/60/576I/50 480I/60
* Encoding: MPEG-2/H.264optional
* Output bitrate: VBR, CBR
* Video bitrate: HD8-20M, SD 2-15M
* Audio input：SD/HD-MI embedded audio
* Encoding rate：64Kto 384K




Audio Encoder Module
* Support 2×stereo or 2×AES/EBU
* Compression method: MPEG-1 LayerII, AAC audio coding
(sampling frequency 48KHz)
* Audio interface: small XLR
* Audio bitrate: 64to 384K




DVB-C/T/T2 Reception Module
* Input: 2RF
* Support 2 channels DVB-C/T/T2input
* Support 2 sets decoding cards to descramble the signal
DVB-S/S2 Reception Module
* Input: 2 RF
* Support 2 channels DVB-S/S2input
* Support 2 sets decoding cards to descramble the signal
* Support BISS-1and BISS-E decryption








Modulator Module
* Support 1×ASI input , 2×ASI loop out
and 1×RF output
* Support DVBC, DVBT, DMBT
* Support 16/32/64/128/256/64B/256B QAM
* Each Module support modulation of four adjacent
channels
* Output level: 120dBμV
* Support stream re-multiplexing
* Support PSI/SIautomatic/manual insert edit function
(PAT, PMT, CAT, NIT, SDT/BAT information sheet)
* Program, PIDfiltering and re-image




Multiplexer Module
* Spport 3×ASI input or 2×ASI output
* Support 2×GbE IP input/output
* Single ASI bitrate: 0to 200MPS
* IPcan support multicast and unicast, multicast can
contain 8 different MPTS and 64 SPTS
* IPinput support 16 channels MPTS and 128 channels
SPTS




Video Decoder Module
* Output: 2×HD-SDI, 1×HD-MI, 1×analog/digital audio,
1×GENlock
* Decoding format: AVS2, AVS+, H.265, H.264, MPEG-2
* Each Modulesupport 1 channel decoding




Audio Decoder Module
* Support 2×analog stereo or 2×AES/EBUdecoding
* AES/EBU: 3-pin small XLR connector
* Analog stereo: 5-pin small XLR connector




Modulator Module
* Support 1×ASI input , 2×ASI loop out
and 1×RF output
* Support DVBC, DVBT, DMBT, ISDBT
* Support 16/32/64/128/256/64B/256B QAM
* Each Module support modulation of four adjacent
channels
* Output level: 120dBμV
* Support stream re-multiplexing
* Support PSI/SIautomatic/manual insert edit function
(PAT, PMT, CAT, NIT, SDT/BAT information sheet)
* Program, PIDfiltering and re-image




Multiplexer Module
* Spport 3×ASI input or 2×ASI output
* Support 2×GbE IP input/output
* Single ASI bitrate: 0to 200MPS
* IPcan support multicast and unicast, multicast can
contain 4 different MPTS and 64 SPTS
* IP input support 64 channels MPTS or 64 channels
SPTS




SDI/ASI Distribution Module
* Support 1×12G/HD/SD-SDI/ASI input
* Support 4×12G/HD/SD-SDI/ASI output
* If the power is off, one of the SDI OUT1
can still output SDI input(IN1) normally
Stream Media Decoder Module
* Support multiple IP input
* Multiple output, HD-MI/SD/HD-SDI/AES/EBU/Analog
stereo
* Support AVS+/H.265/H.264/MPEG2 decoding
* Support RTMP/RTSP/HLS/HTTP/SRT
* Support DRA/AC3/EAC3/AAC/MPEG
* Compatible with HD/SD signals






Analog Video Encoder Module
* 2×analog video+ 4×analog audio
* Video compression format: MPEG-2/H.264
* Audio compression format: MPEG-1 LayerII audio coding
* (sampling frequency 48KHz)
* Interface video bitrate 3to 15M
* Video interface: BNC
* Audio interface: RCA
* Audio bitrate: 64to 384K




SDI Fiber Extender Module
* Input: 2×12G/HD/SD-SDI/ASI
* Input format: SDI/ASIadaptive
* Fiber: single mode single fiber
* Fiber connector: LC/PC(standard)
* Transmission distance: 0-120kmoptional


TV Logo


















To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
