Japanese coupler Regular type plug_coupling
- Category: >>>
- Supplier: HUI BAO ENTERPRISE CO. LTD.
Share on (10000007261951):
Product Overview
Description

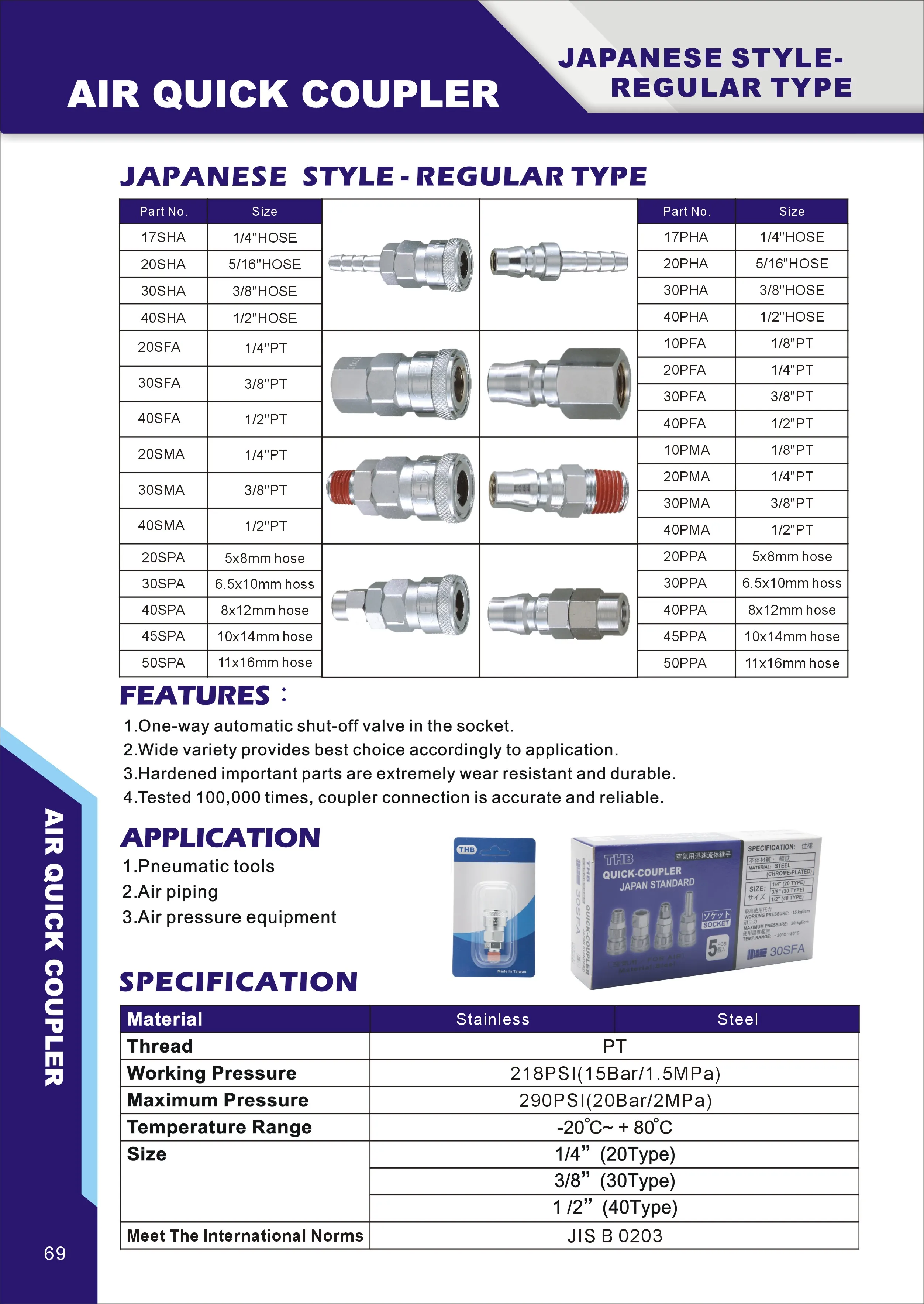

Products Description
Material | Steel |
Thread | PT |
Working Pressure | 218PSI (15Bar/1.5MPa) |
Maximum Pressure | 290PSI (20Bar/2MPa) |
Temperature Range | -20℃ ~ +80℃ |

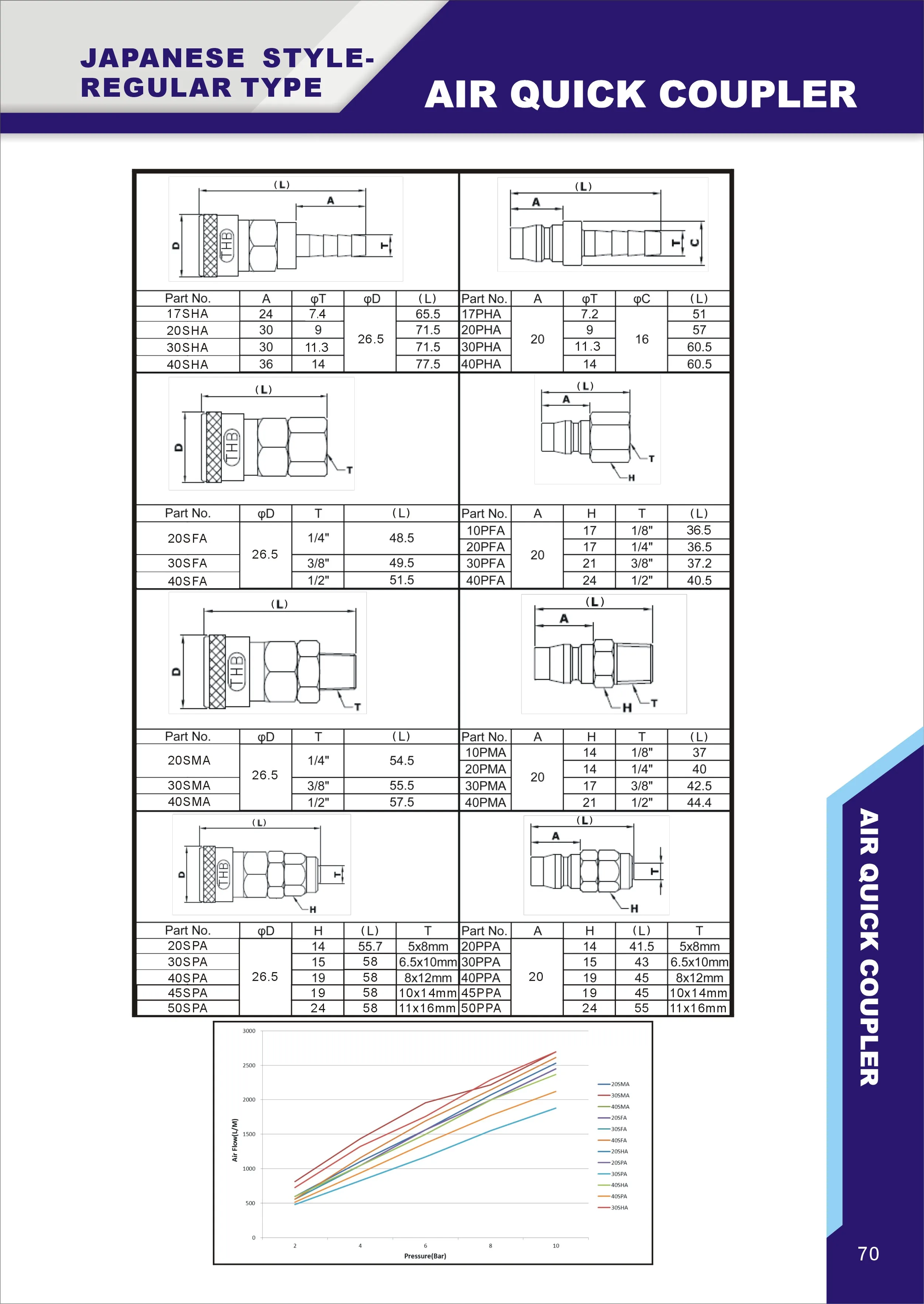

Size | 1/8" PT (10PMA) 1/4" PT (20PMA)3/8" PT (30PMA) 1/2" PT (40PMA) |

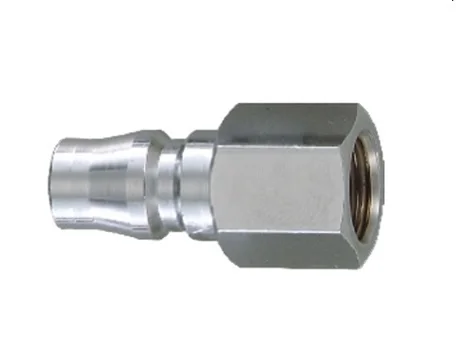

1/8" PT (10PFA) 1/4" PT (20PFA) 3/8" PT (30PFA) 1/2" PT (40PFA) | |

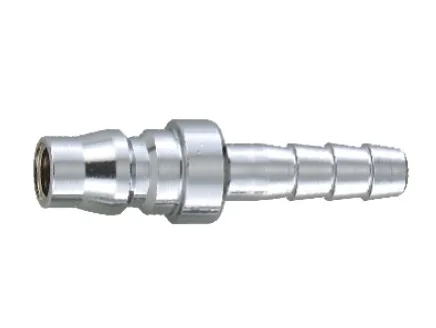

1/4" HOSE (17PHA) 5/16" HOSE (20PHA) 3/8" HOSE (30PHA) 1/2" HOSE (40PHA) | |
5*8mm HOSE (20PPA) 6.5*10mm HOSE (30PPA) 8*12mm HOSE (40PPA) 10*14mm HOSE (45PPA) 11*16mm HOSE (50PPA) |
＊Meet The International Norms : JIS B 0203
FEATURES：
1. One-way automatic shut-off valve in the socket.
2. Wide variety provides best choice accordingly to application.
3. Hardened important parts are extremely wear resistant and durable.
4. Tested 100,000 times, coupler connection is accurate and reliable.
2. Wide variety provides best choice accordingly to application.
3. Hardened important parts are extremely wear resistant and durable.
4. Tested 100,000 times, coupler connection is accurate and reliable.
