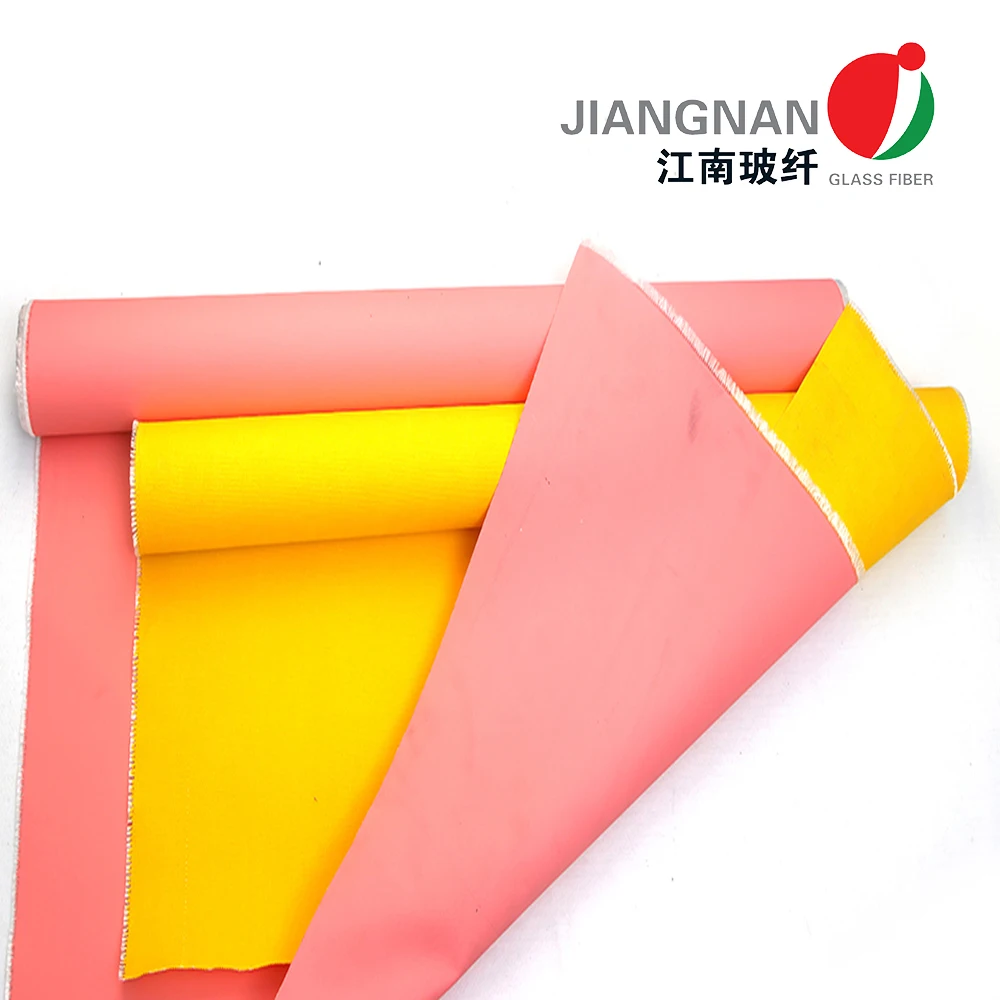

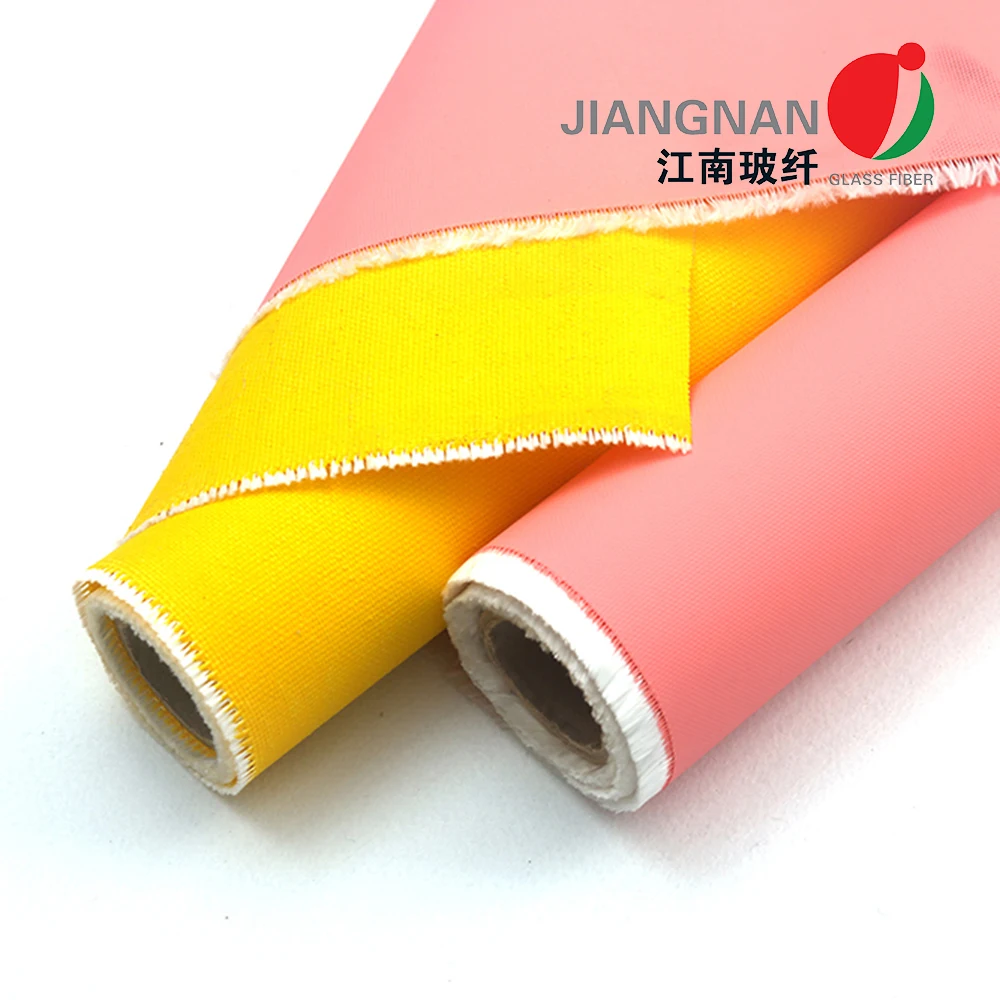

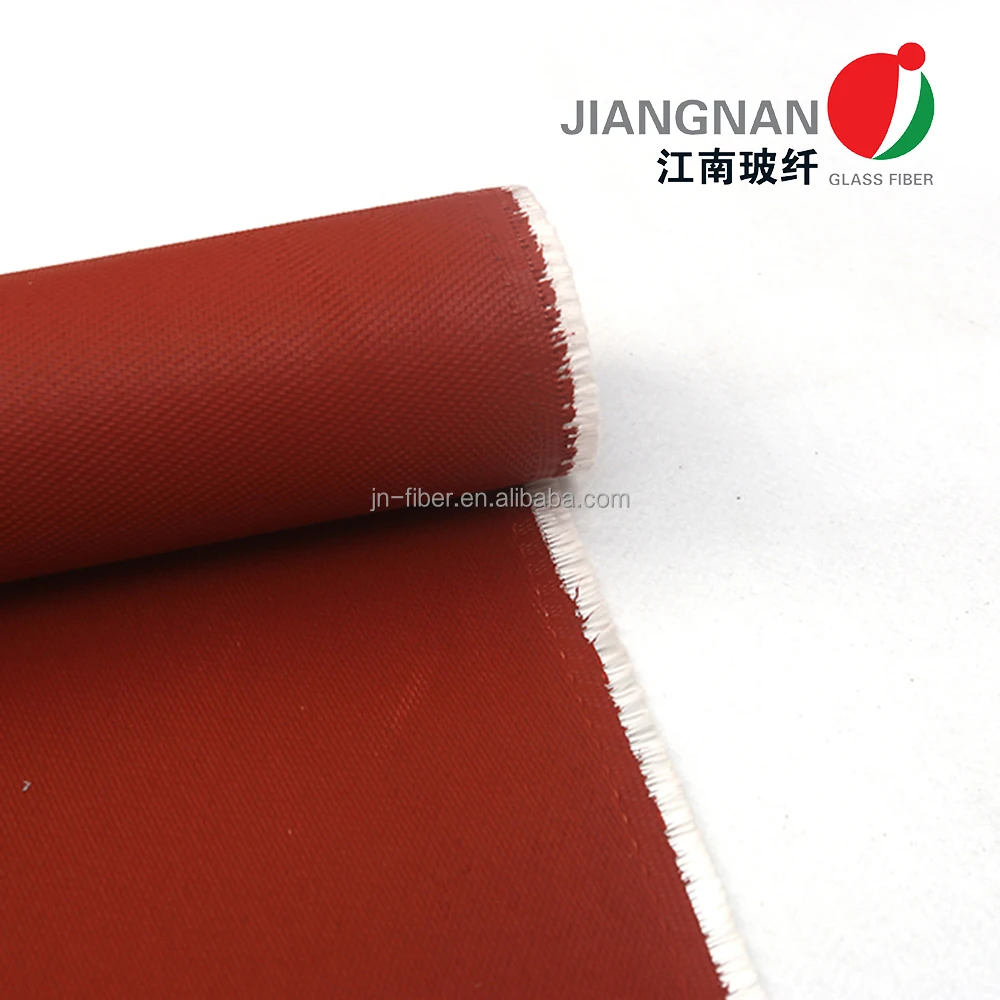

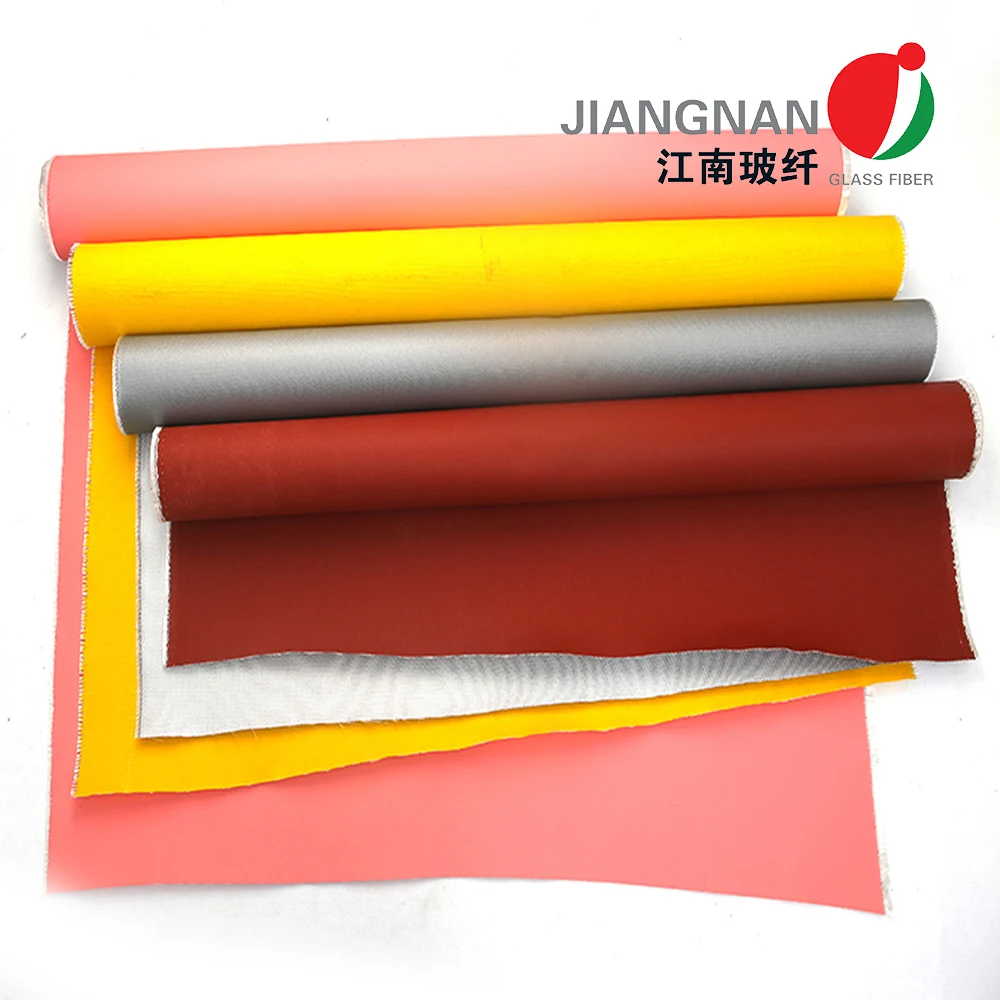

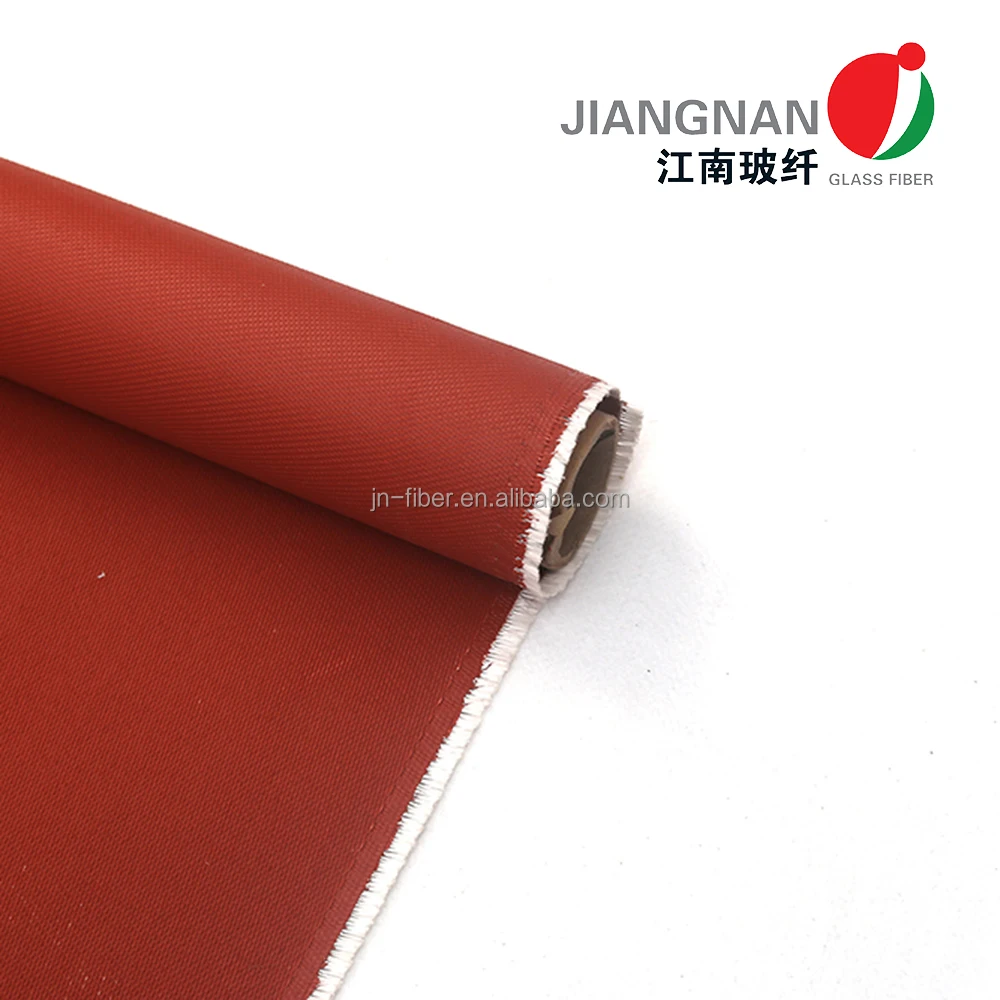

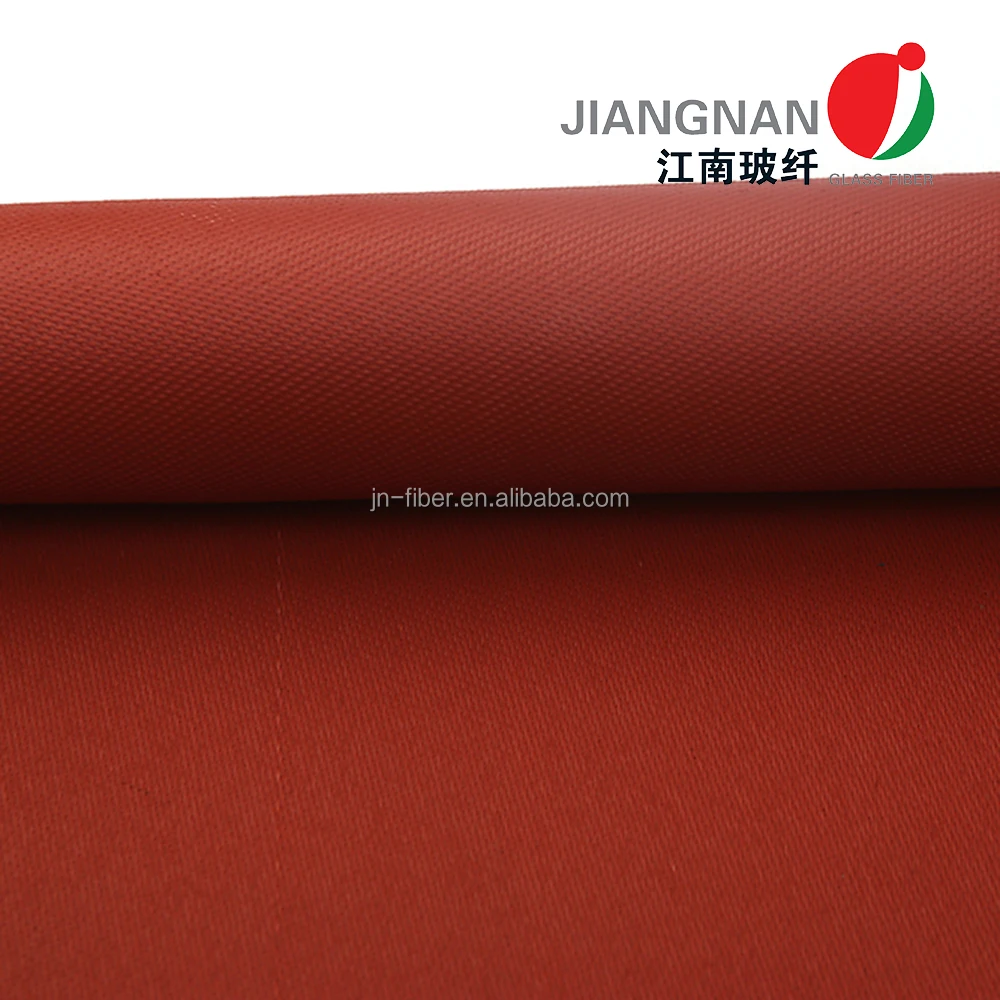

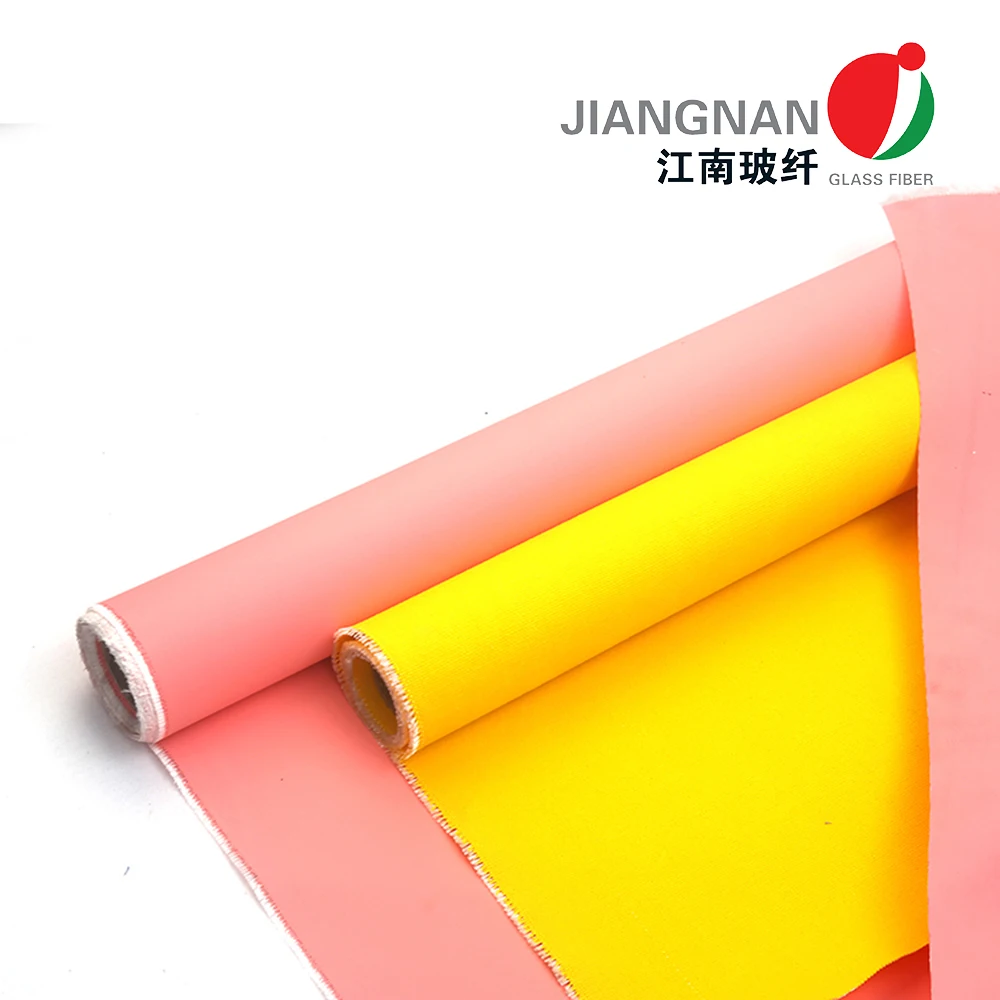

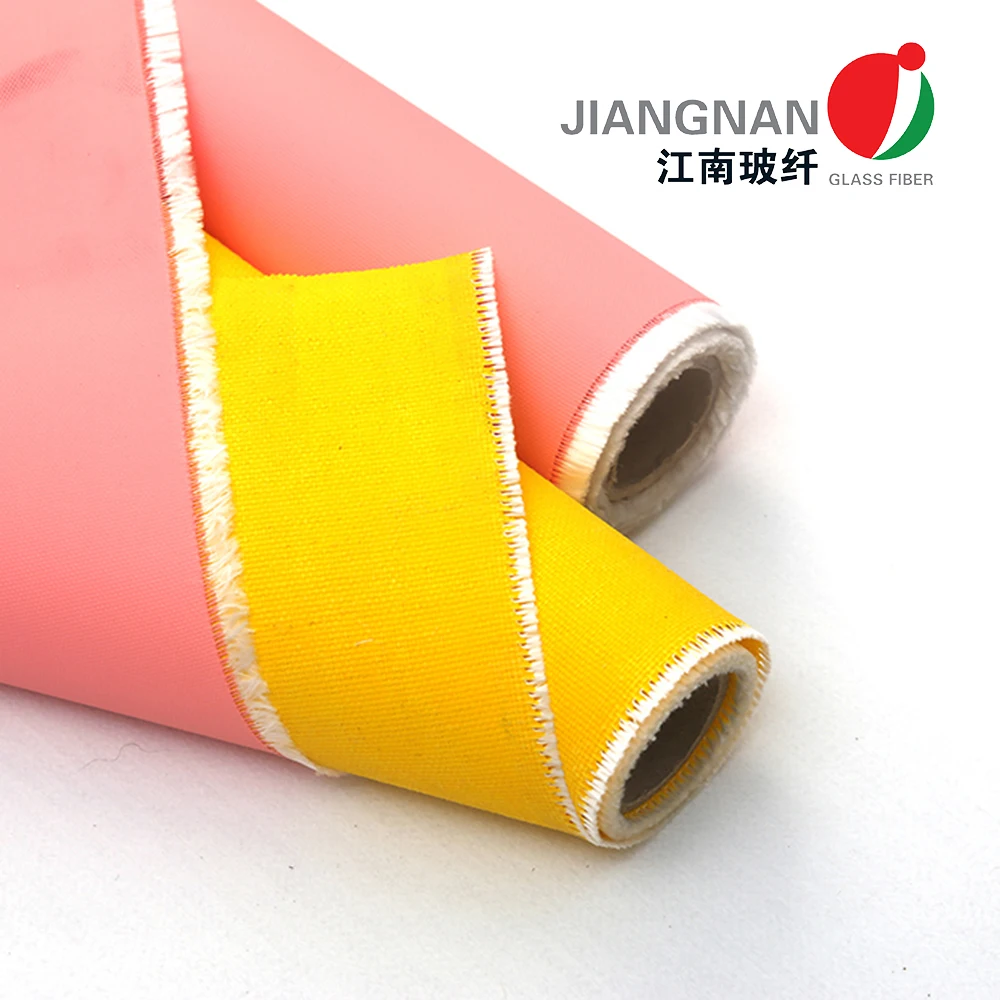

30oz Satin Weave Fiberglass Cloth With Silicone Coating Fiberglass Cloth On One Side
- Category: >>>
- Supplier: Changshu Jiangnan Glass Fiber Co. Ltd.
Share on (10000007267487):
Product Overview
Description
Product Introduction
30 Oz With Silicone Rubber Coating On Two Sides | ||||||||
Item Model | 0.6mm Thickness Silicone Coating Cloth | |||||||
Description | E-glass Industrial Fabric | |||||||
Weave Structure | 8H Satin | |||||||
Cloth Weight | 850±30gsm | |||||||
Silicone Coating Weight | 200g/m2 | |||||||
Thickness | 0.8mm | |||||||
Yarn Type | Warp | EC9 136 1*2 | ||||||
Weft | EC9 136 1*2 | |||||||
Thread Count | Warp | 16±1 ends/cm | ||||||
Weft | 13±1 picks/cm | |||||||
Breaking Strength | Warp | 10000N/5cm | ||||||
Weft | 5000N/5cm | |||||||
Loi | < 5% | |||||||
Working Temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. | |||||||
Color | Black, Grey, Red | |||||||
Fire Resistance | Non-Flame | |||||||
Products Description
What is silicone coating fiberglass cloth?
Silicone-coated fiberglass fabrics are highly flexible and offer excellent weatherability in a limited high-end temperature range. This material is coated with silicone rubber on one or both sides and comes in different colors. 3784 30oz is a glass fiber fabric coated with 80g silicone rubber on both sides, the weight after coating is 1010g/m2, and the thickness is 0.85mm. As an ideal construction engineering material, fiberglass cloth is mainly used to reinforce cement, roofing, wall materials, stone, etc. We can produce any size according to customer's requirements, such as width, color, coating type and weight per square meter. The quality of our products is recognized by SGS, TUV, BSI and LPCB
Properties
Type: E-glass
Coating: 200g on both side
Structure: silicone+glass fiber
Weight:830gsm
Flammability: ≤25%
Thickness: 0.65mm
Weave: Satin Weave
LifeTime: 10 Years under normal environment
Dielectric Constant: 3-3.2
Breakdown Voltage: 20-50 KV/MW
Coating: 200g on both side
Structure: silicone+glass fiber
Weight:830gsm
Flammability: ≤25%
Thickness: 0.65mm
Weave: Satin Weave
LifeTime: 10 Years under normal environment
Dielectric Constant: 3-3.2
Breakdown Voltage: 20-50 KV/MW
Silicone Coating Features
1.High resistance to weathering and flexing
2.Superior chemical resistant
3.Excellent temperature resist, range from -100°F to +500°F
4.Moisture absorption rate: <5%
5.Low thermal conductivity
2.Superior chemical resistant
3.Excellent temperature resist, range from -100°F to +500°F
4.Moisture absorption rate: <5%
5.Low thermal conductivity
Application
Duct Connection
Soft Connection
Connector for Air Duct
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal
insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be
applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large
amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
4.Application in filtration: gas filtration and liquid filtration
insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be
applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large
amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
4.Application in filtration: gas filtration and liquid filtration
How to choose Knife Coating Silicone Coating Fiberglass Fabric?
Knife Coating Silicone Coating Differences between Premier and Industrial Quality | ||||||
Premier Quality | Industry Quality | |||||
1 | Loomstate | High-speed Rapier Weaving Machine | Normal Dornier (small weaving defects might occur occasionally) | |||
2 | Silicone | Wet, High-Quality Silicone Rubber | Dry, Standard Silicone Rubber | |||
3 | Appearance | Shiny and Tacky | Dull but Smooth | |||
4 | Performance | Strong Adhesion Strength Between Silicone Fabric, High Abrasion Resistance | Normal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances | |||
5 | Application | Mostly for Removable Insulation Jackets | Mostly for Welding, But Also for Economic Removable Insulation Jackets | |||
Related Products
Premier Quality | Thickness (mm) | Weight (g/m2) | Weaving | |||
E7628-LG1 | 0.2MM | 230 | Plain | |||
E7628-LG2 | 0.23MM | 280 | Plain | |||
E3732-LG1 | 0.4MM | 510 | Twill | |||
E3732-LG2 | 0.45MM | 590 | Twill | |||
E666-LG1 | 0.65MM | 750 | Satin | |||
E666-LG2 | 0.7MM | 850 | Satin | |||
E3784-LG1 | 0.85MM | 950 | Satin | |||
E3784-LG2 | 0.9MM | 1050 | Satin | |||
Other Thickness and Weight Can be Customized | 0.9mm | 1050 | Satin | |||
Industrial Quality | Thickness (mm) | Weight （g/m2) | Weaving | |||
E7628-SG1 | 0.2MM | 230 | Plain | |||
E7628-SG2 | 0.23MM | 280 | Plain | |||
E3732-SG1 | 0.4MM | 510 | Twill | |||
E3732-SG2 | 0.45MM | 590 | Twill | |||
E666-SG1 | 0.65MM | 750 | Satin | |||
E666-SG2 | 0.7MM | 850 | Satin | |||
E3784-SG1 | 0.85MM | 950 | Satin | |||
E3784-SG2 | 0.9MM | 1050 | Satin | |||
Other Thickness and Weight Can be Customized | ||||||
More Related Products
Company Information
Changshu Jiangnan Glass Fiber Co., Ltd is one of the leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials in China. The Company was established in 1956 and it is located in the famous Chinese cultural and historic city –Changshu. The plant covers a total area of more than 70,000 square meters. It is only 80km from Shanghai port and 200km from Ningbo port. The superior location makes it enjoy pleasant climate all year around and convenient transportation facilities, such as by the Highway along the Yangtze River, Sujiahang Highway, and Changshu Port.
Presently, we have adopted the advanced high-speed rapier weaving machine, three twist yarn machines equipped with variable frequency unit controllers, and two-meter-width coating equipment to ensure the leading supplier to the market with powerful output and guaranteed quality. Jiangnan produces over 8,000 tons of fiberglass yarn, 50 million square meter alkali-resistant fiberglass-mesh, 2.4 million pieces of fire blankets, 10 million meters of fiberglass cloth with silicone, polyurethane, Acrylic, EPDM coating, and 8 million square-meter of fabric used in electronic industry and fireproof. The products are widely used in the field of construction, transportation, electricity, insulation material, wind power generation, and smoke curtains.
Moreover, our production and quality control team has more than 30 years of development and research experience in various fiberglass products. Meanwhile, Jiangnan has its own fire-test laboratory, according to the latest fire blanket standard. We have routine and extensive cooperation with the world leading testing organizations. We also have our own fiberglass yarn raw material subsidiary in Shandong - Shandong Jinming Glass Fiber Co., Ltd. Additionally, Jiangnan have R&D investment and production capacity for blended fiberglass fabrics and special glass fiber fabrics.
Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.
Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.
Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
