Product Overview
Description
Products Description
Product Name | A65 SERIES WiFi Temperature & Humidity Controllers TA652FC-W |
Application | Apartment, Air-conditioner Control, Water Heating/Electric Heating/Water boiler/, Underfloor Heating |
Operating Voltages | 110VAC ~ 240VAC 50/60HZ 24VAC 50 /60HZ |
Control Signal | Modulating, On/Off |
Load Capacity | Fan: Resistive Load 3A & Inductive Load 1A Valve: Resistive Load 2A |
Protection Rating | IP20 |
Temperature Setting Range | 10 ~ 35°C |
Operating Temperature | 0 ~ 50°C |
Relative Humidity | 5 ~ 95% R.H. non-condensing |
Terminal | 2mm2 cable |
Package | Box |
Application
Product Description
* Slim frame measures 13mm in thickness
* High contrast LCD and user-friendly interface
* Manual or automatic fan speed selection
* Anti-freeze protection
* Temperature display selection in Celsius / Fahrenheit
* 7-day schedule programming
* Modulating valve control
* Supports remote/external temperature sensor
* Supports energy saving by dry contact (room key)
* Flush-mounting. 86-86 wall-mount installation box
* Gloss white/black available for selection
* Touch keys on LCD x5
* High contrast LCD and user-friendly interface
* Manual or automatic fan speed selection
* Anti-freeze protection
* Temperature display selection in Celsius / Fahrenheit
* 7-day schedule programming
* Modulating valve control
* Supports remote/external temperature sensor
* Supports energy saving by dry contact (room key)
* Flush-mounting. 86-86 wall-mount installation box
* Gloss white/black available for selection
* Touch keys on LCD x5
The A65 Series thermostats and humidistats are optimized for residential and office buildings. Easy to install and operate, A65 can be used for 2-pipe application, with 3-speed FCUs and ECM fans, modulating valves, AHUs, humidity controllers, etc.
With temperature set, A65 provides modulating signal for valve control to regulate chilled or heated water to the occupants’ desired comfort. Monitoring both relative humidity and temperature, A65 maintains consistent indoor climate conditions, keeping your property comfortable and healthy.
The A65 Series features a minimalist design and a small form factor that matches your modern interior décor and details.
With temperature set, A65 provides modulating signal for valve control to regulate chilled or heated water to the occupants’ desired comfort. Monitoring both relative humidity and temperature, A65 maintains consistent indoor climate conditions, keeping your property comfortable and healthy.
The A65 Series features a minimalist design and a small form factor that matches your modern interior décor and details.

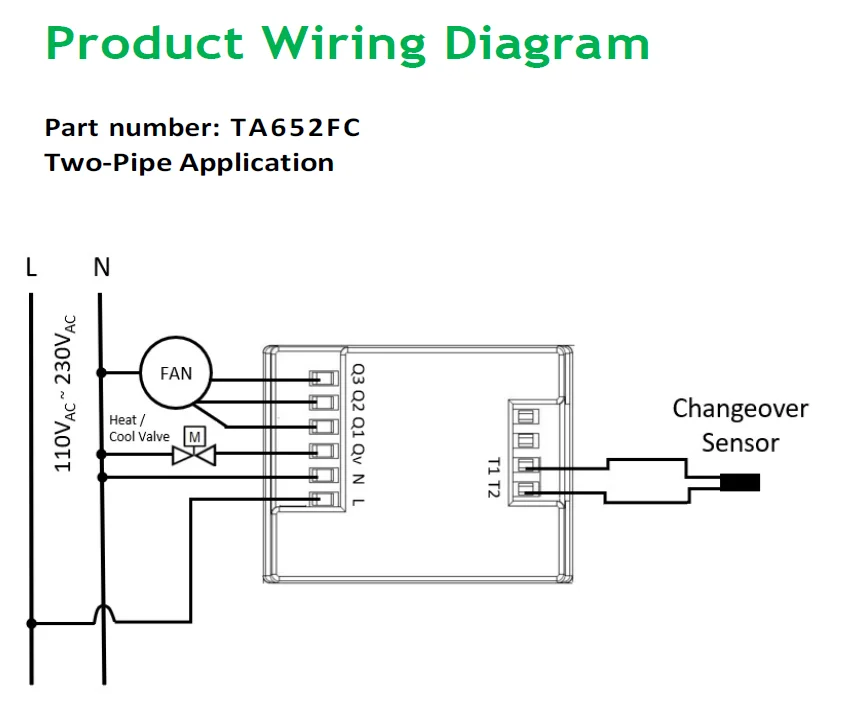

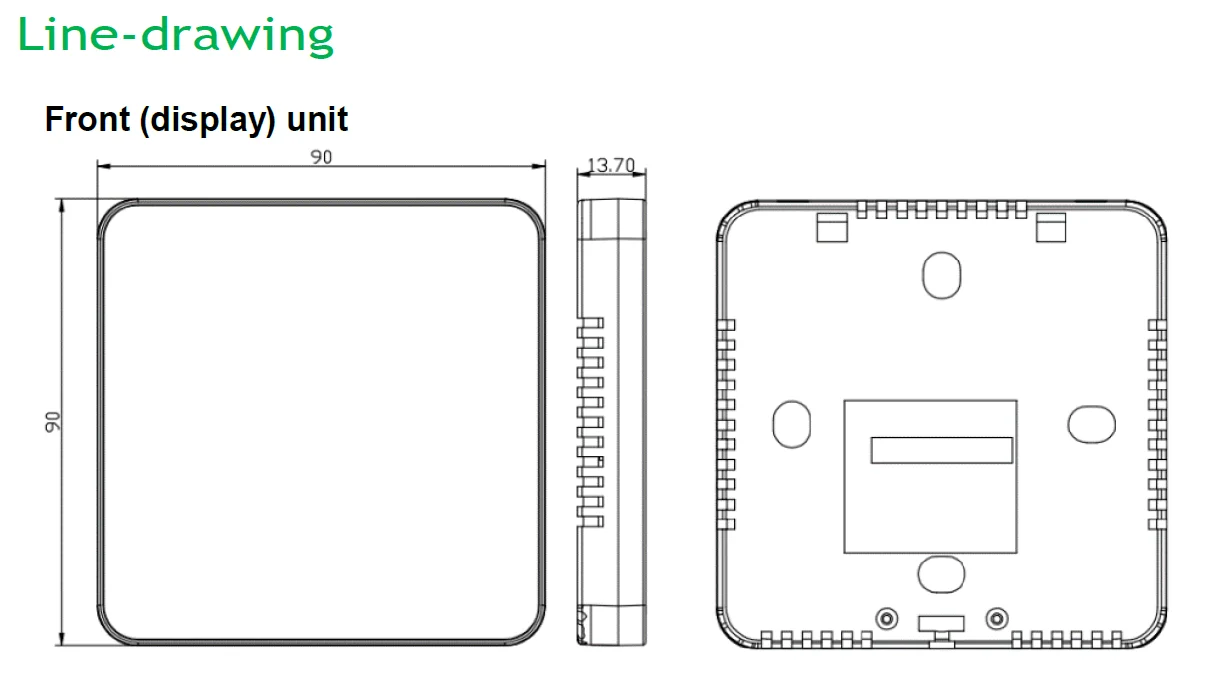

Product Wiring Diagram & Line Drawing
Different versions available for various applications and use cases, contace us for the other versions.
