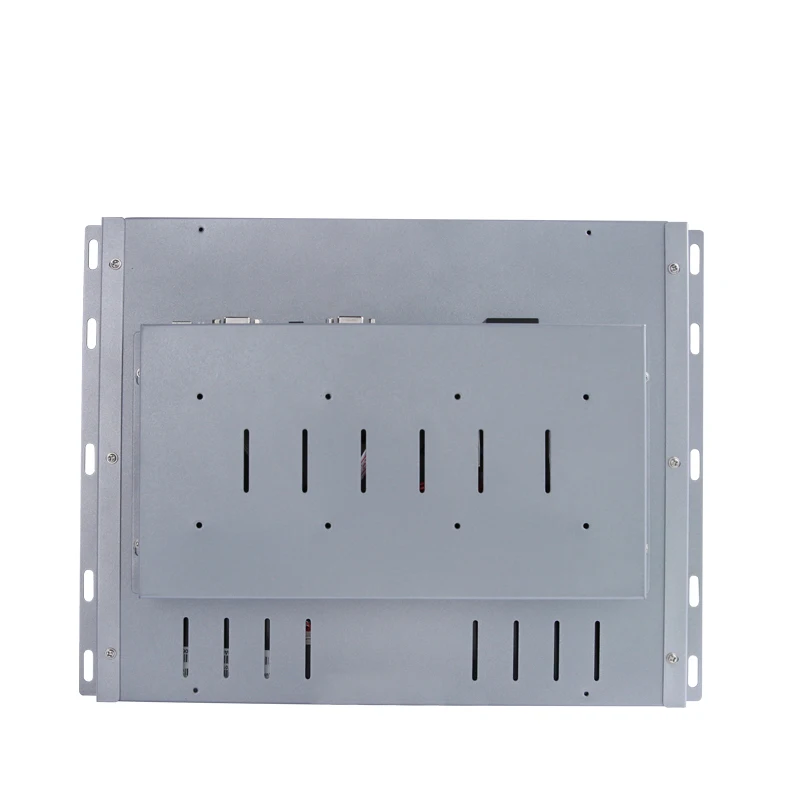

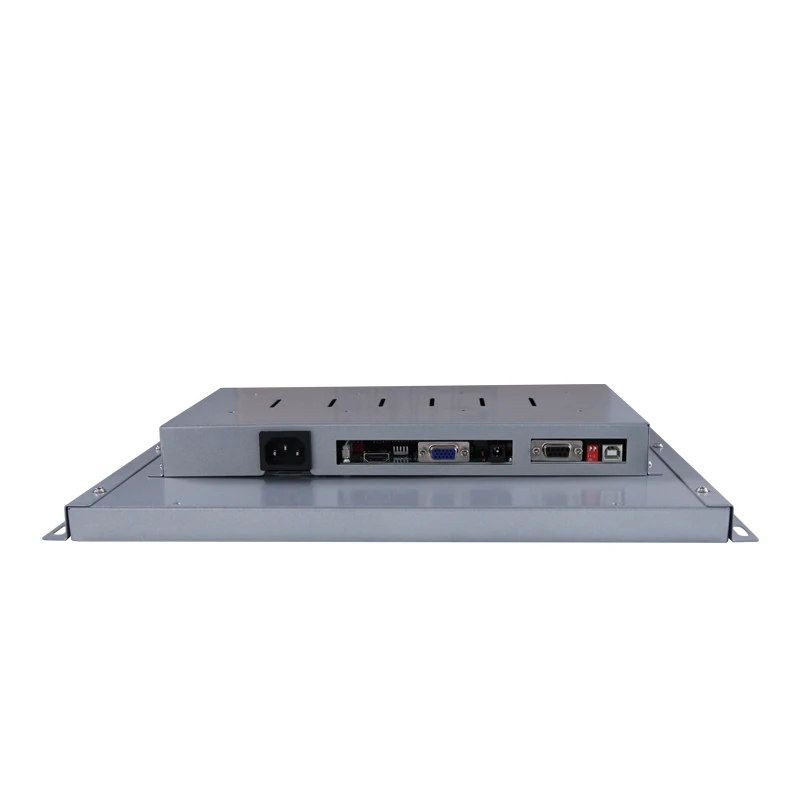

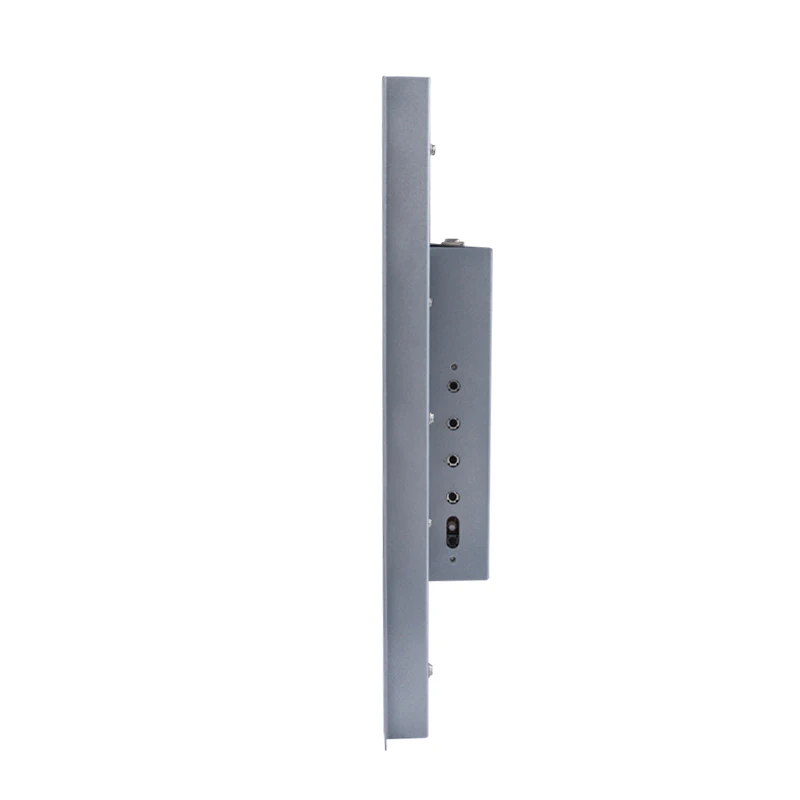

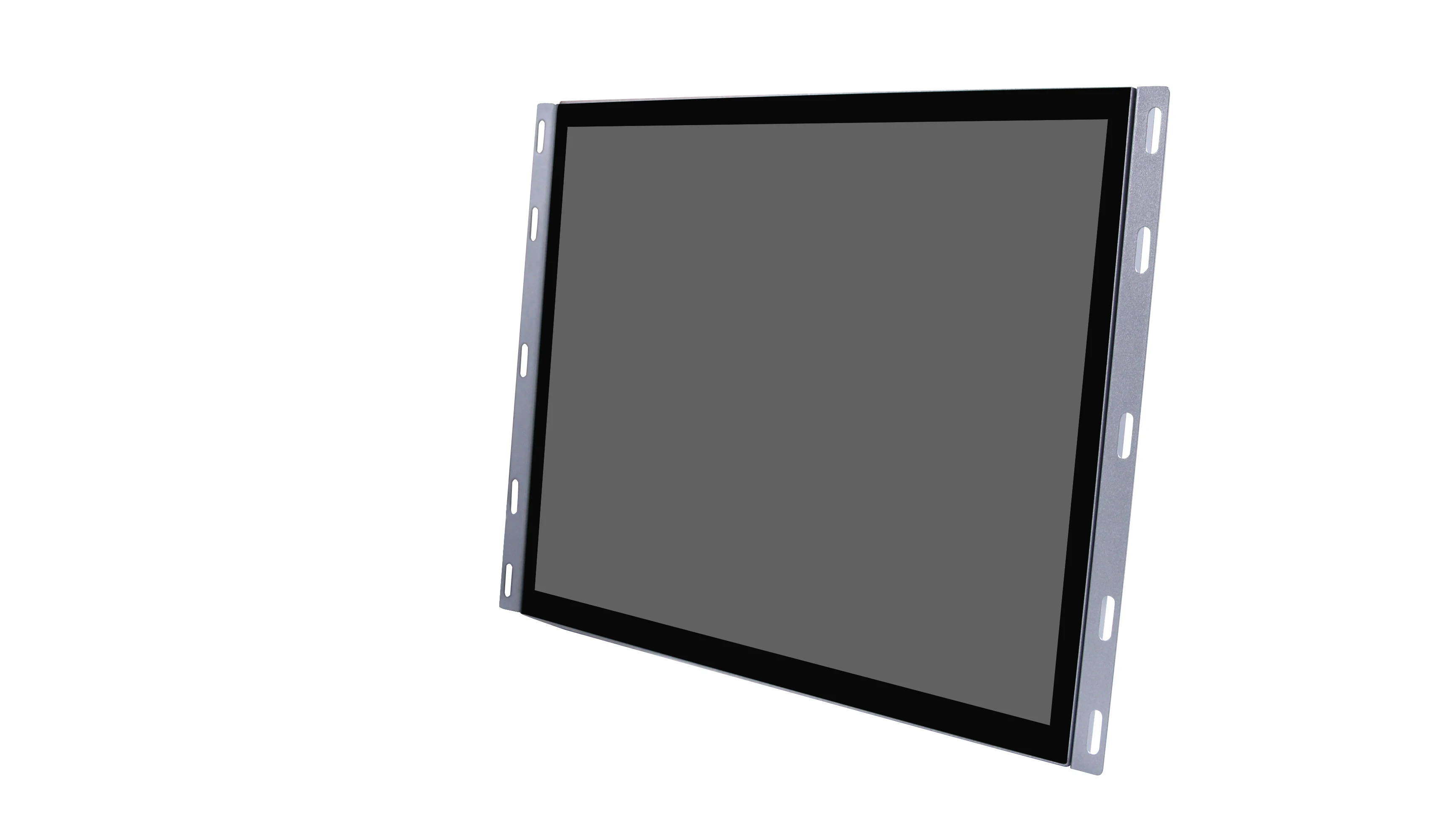

17 inch LCD monitor capacitive touch screen with usb





Parameter List
| Size | 17 Inch |
| Panel | Sharp |
| Resolution | 1280(RGB)*1024(SXGA) |
| Display Size | 337.92×270.336mm (H×V) |
| Opening size | - |
| Brightness(cd/m2) | 400cd/m2(Typ.) |
| The Best Angle | IPS |
| Viewing Angle | 88/88/88/88(Typ.)(CR≥10) |
| Color Threshold | 16.7m,90%[CIE1931] |
| Interface | DC/HDM1/VGA/(USB/RS232 Optional)/DVI Optional |
| Refresh Rate | 60Hz |
| Signal | LVDS(2 ch,8-bits), Terminals,30 Pins |
| Supply voltage | 12V |
| Maximum Rated Temperature | Storage:-35 ~ 80°C; Working:0 ~ 80°C |
| Screen | LCD module,a-Si TFT-LCD |
| Pixel Arrangement | RGB Vertical Strip |
| Dimension | 368×302×56mm(H×V×D) |
| Surface | Fog face, Hard-coating(3H) |
| Contrast | 1000:1(Typ.)[Transmission] |
| Display Mode | ASV,Normally Black,Transmission-type |
| Response Time | 30(Typ.)(Tr+Td) ms |
| Backlight Type | WLED, 50K Hours, LED Driver |
| Touch Screen | Capacitive Touch |
| Touch | USB/RS232/3M RS232/None |
