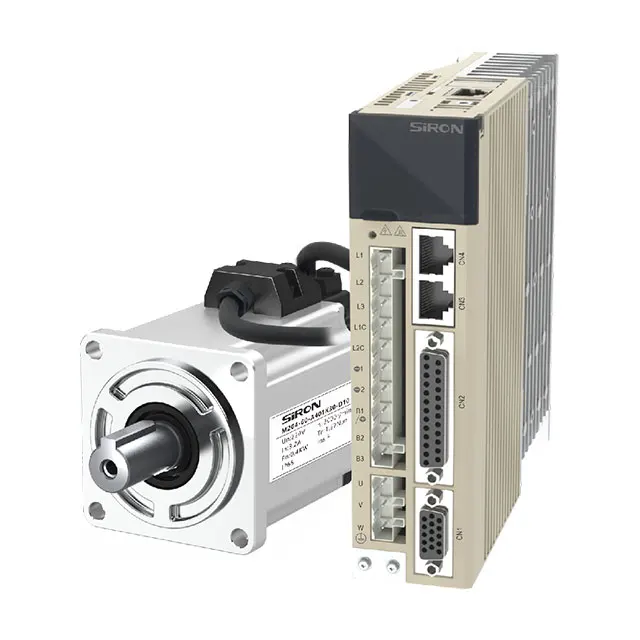

SiRON M214 Ac Servo Drive Of High Accuracy With 0.4kw To 3kw Servo Motors

Name

M214 series servo drive

Input power

Control method

Three-phase PWM converter sine wave drive

Main circuit power supply

Three-phase 220V AC (-15～+10%, 50～60Hz)

Control power

Single-phase 220V AC (-15～+10%, 50～60Hz)

Rated current

0.4kW/2.8A，0.75kW/5.5A，1.5kW/10A，2.2kW/12A，3kW/16A

Encoder feedback

Serial encoder, supports Tamagawa protocol

Temperature and humidity environment

Use environment temperature

0～45℃

Storage temperature

-20～65℃

Use environment humidity

20～85%RH or less (no condensation)

Storage environment humidity

20～85%RH or less (no condensation)

Use to preserve ambient air

Indoor (no direct sunlight), no corrosive gas, flammable gas, oil mist, dust

Altitude

Altitude below 1000m

Vibration

5.8m/s2 (0.6G) or less 10～60Hz (can not be used continuously at resonance frequency)

Insulation withstand voltage

AC1500V between primary-FG for 1 minute

Function introduction

IO input

8 inputs (DC24V optocoupler isolation) Input functions can be selected according to parameters: servo ON, P action, forward
rotation prohibited, reverse rotation prohibited, alarm reset, forward torque limit, reverse torque limit, control mode switching,
zero position Fixed, deviation clear, internal set speed switching*2, motor selection direction switching

IO output

4-way optocoupler isolation output; output functions can be selected according to parameters: alarm output, positioning approach,
speed detection consistent, motor rotation detection, servo preparation, torque limit, speed limit, brake release,

Pulse input

Differential input: 500K; open collector: 200K; support pulse + direction, AB quadrature pulse, CW + CCW pulse

Internal speed command

A-phase, B-phase: differential output, can be arbitrarily divided; Z-phase: differential output or open-collector output

Overload capacity

Three-stage speed distribution through input terminals

Analog input

Maximum 3 times the torque

Communication function

Modbus communication; custom CAN

Control mode

12 control modes: position control, speed control, torque control, internal speed, position/speed control, position/torque
control, speed/torque control, internal speed/position, internal speed/speed, internal speed/torque , speed/zero clamp, position
control/command prohibition

Regenerative resistance

400W: No External regenerative resistor; Above 750W: Yes
