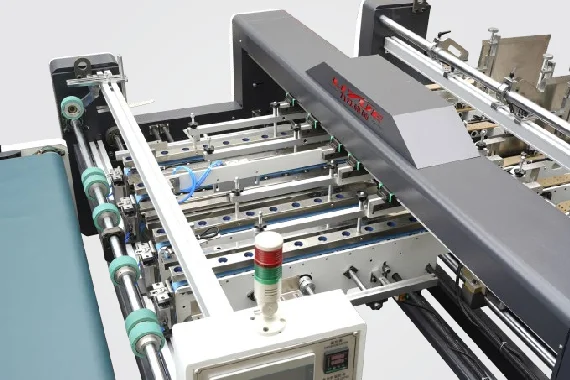

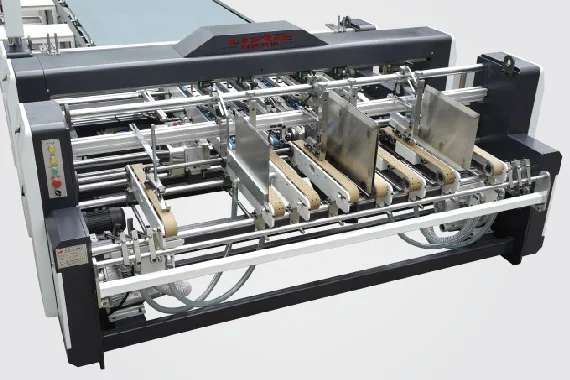

High Speed Double Pieces Semi auto corrugated board folder gluer
- Category: >>>
- Supplier: Wenzhou Feihua Printing Machinery Co. Ltd.
Share on (10000007343575):
Product Overview
Description
Product Overview
Model | LY2300 |
Max Paper Size (Single) | 1100x1150mm |
Min Paper Size (Single) | 350x200mm |
Max Height Paper Stack | 450mm |
Main Motor Power | 2.2kw |
Total Power | 9kw |
Total Weight | 2.8-3.5t |
Dimensions | 3500x3100x1400mm |
Packing & Delivery
Product Configuration
USAGE AND FEATURES
1. The semi-automatic double-chip folder gluer is a new type of "people-saving, high-efficiency"
and "performance" developed by our company based on the changes in domestic and foreign
market demand, a comprehensive analysis of similar products at home and abroad, and on the
basis of in-depth research on processing, manufacturing and production technology. "Excellent"
two-piece folder gluer.
2. The machine adopts double servo feeding to ensure the stability of the equipment in
high-speed feeding and the synchronization of high-speed feeding, and the servo feeding
allows A- and B-sheet products to independently set the feeding size, thus solving the problem of
size. film problem.
3. Double-layer gluing is used for gluing, namely hot melt adhesive and ordinary sealing glue, to
ensure 100% bonding of the product after entering the container and cold storage.
and "performance" developed by our company based on the changes in domestic and foreign
market demand, a comprehensive analysis of similar products at home and abroad, and on the
basis of in-depth research on processing, manufacturing and production technology. "Excellent"
two-piece folder gluer.
2. The machine adopts double servo feeding to ensure the stability of the equipment in
high-speed feeding and the synchronization of high-speed feeding, and the servo feeding
allows A- and B-sheet products to independently set the feeding size, thus solving the problem of
size. film problem.
3. Double-layer gluing is used for gluing, namely hot melt adhesive and ordinary sealing glue, to
ensure 100% bonding of the product after entering the container and cold storage.
4. The double-servo aligning paper is also used when the two pieces are butted and positioned,
which provides the machine with constant precision and consistency in low-speed bonding and
high-speed bonding.
5. This machine can be used as a flat box and a special-shaped box, and the former is used for
two purposes, which shortens the time for changing the machine and changing orders.
6. This machine is a dual-purpose machine, both double-piece boxes and single-piece boxes can
be produced, which can be quickly converted from double-piece to single-piece.
7. The movement of the machine adopts the upper and lower integrated electric movement
(optional memory mode)
which provides the machine with constant precision and consistency in low-speed bonding and
high-speed bonding.
5. This machine can be used as a flat box and a special-shaped box, and the former is used for
two purposes, which shortens the time for changing the machine and changing orders.
6. This machine is a dual-purpose machine, both double-piece boxes and single-piece boxes can
be produced, which can be quickly converted from double-piece to single-piece.
7. The movement of the machine adopts the upper and lower integrated electric movement
(optional memory mode)
FEEDER
860mm wide rubber feeding belts, driven by independent dual
servo motors.
Two cardboard stacking positions are set, and the stacking
positions can be adjusted according to the size of the cardboard.
Four feeder knives, adjust the asymmetric length according to
the actual sample.
The downward suction structure is adopted to improve the
accuracy and efficiency of paper output, and no waste products
will be generated. The feeder part of the machine is equipped
with a downward suction vortex suction pump to ensure high
paper conveying stability and uniform frequency
servo motors.
Two cardboard stacking positions are set, and the stacking
positions can be adjusted according to the size of the cardboard.
Four feeder knives, adjust the asymmetric length according to
the actual sample.
The downward suction structure is adopted to improve the
accuracy and efficiency of paper output, and no waste products
will be generated. The feeder part of the machine is equipped
with a downward suction vortex suction pump to ensure high
paper conveying stability and uniform frequency
GLUING PART
Mechanical roller gluing is adopted, and there are two kinds of
bonding methods, hot and cold. (optional glue spray system)
There are two sets of glue and paste cylinders, both of which
are hot and cold, and a double glue system is installed on the
side to solve better secondary positioning.
bonding methods, hot and cold. (optional glue spray system)
There are two sets of glue and paste cylinders, both of which
are hot and cold, and a double glue system is installed on the
side to solve better secondary positioning.

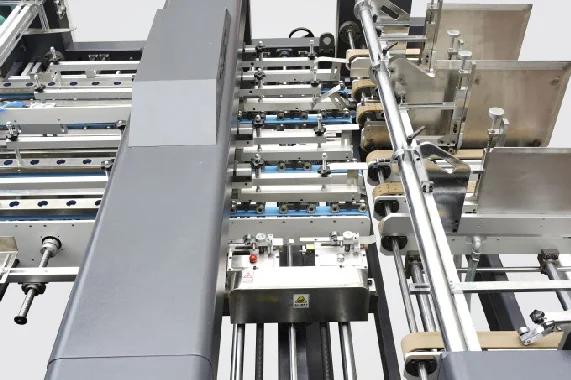

STITCHING PART
Use 5pcs(4pcs big, 1pcs small) guide plate structure, each big
guide plate is with leading screw, eletirc adjustment and easy to
pperate.
4pcs of 50mm delivery belt, with double servo motor drive, make
the stitching with higher precision.
Use the steel balls to press cardboard with plastic cover, reduce
the noise.
Stitchibg interface use cold and hot double coating, make the
adhesive more fifirmly.
With the photoelectirc device, make the cylinders stitching
accuratly.
guide plate is with leading screw, eletirc adjustment and easy to
pperate.
4pcs of 50mm delivery belt, with double servo motor drive, make
the stitching with higher precision.
Use the steel balls to press cardboard with plastic cover, reduce
the noise.
Stitchibg interface use cold and hot double coating, make the
adhesive more fifirmly.
With the photoelectirc device, make the cylinders stitching
accuratly.

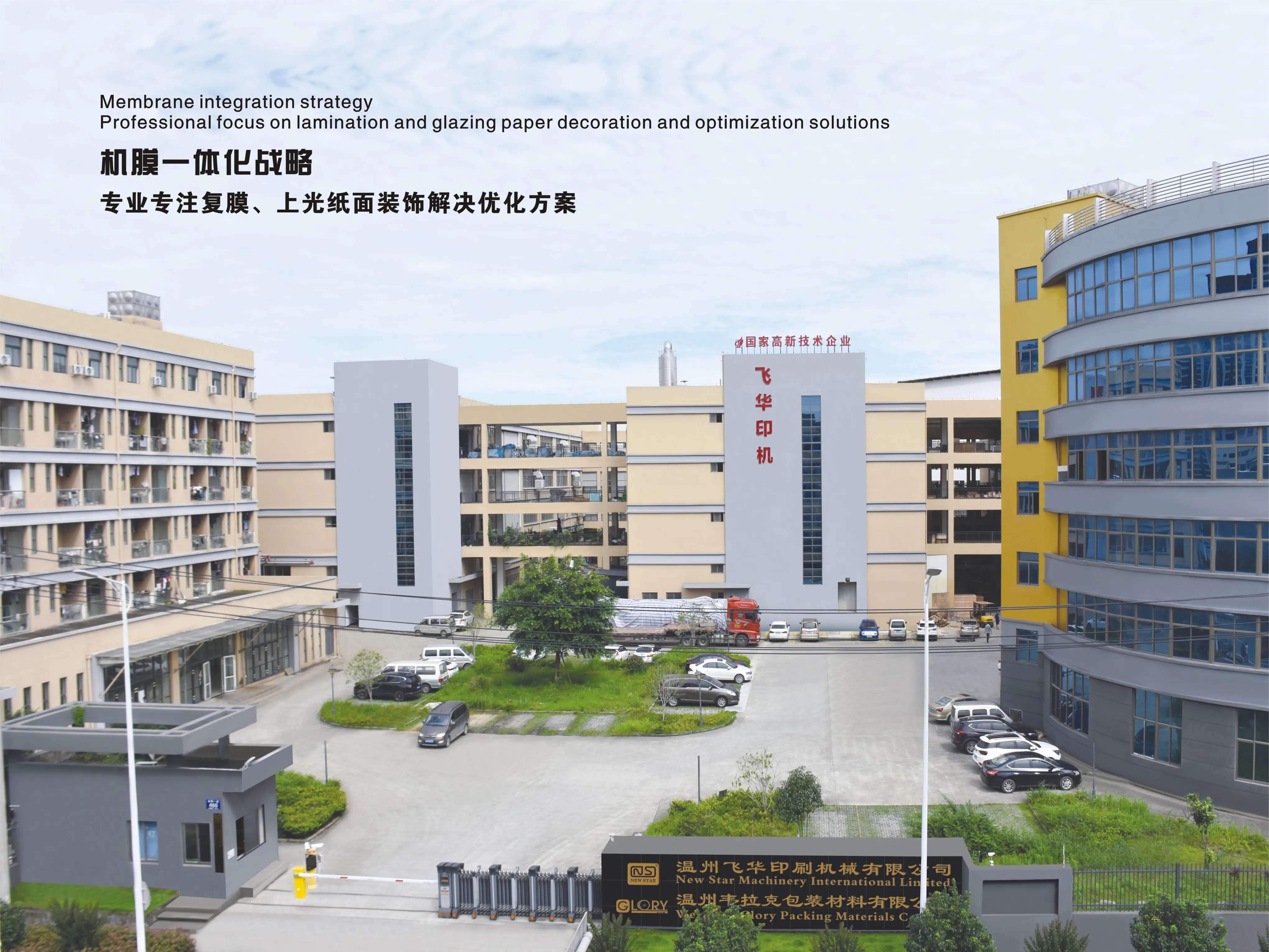

Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Laminating Machine
Coating Machine
Vertical Laminating Machine
Folder Gluer
Die Cutting Machine
Hot Stamping Machine
Flute Laminating Machine
Rigid Box Machine
Paper Tube Machine
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
