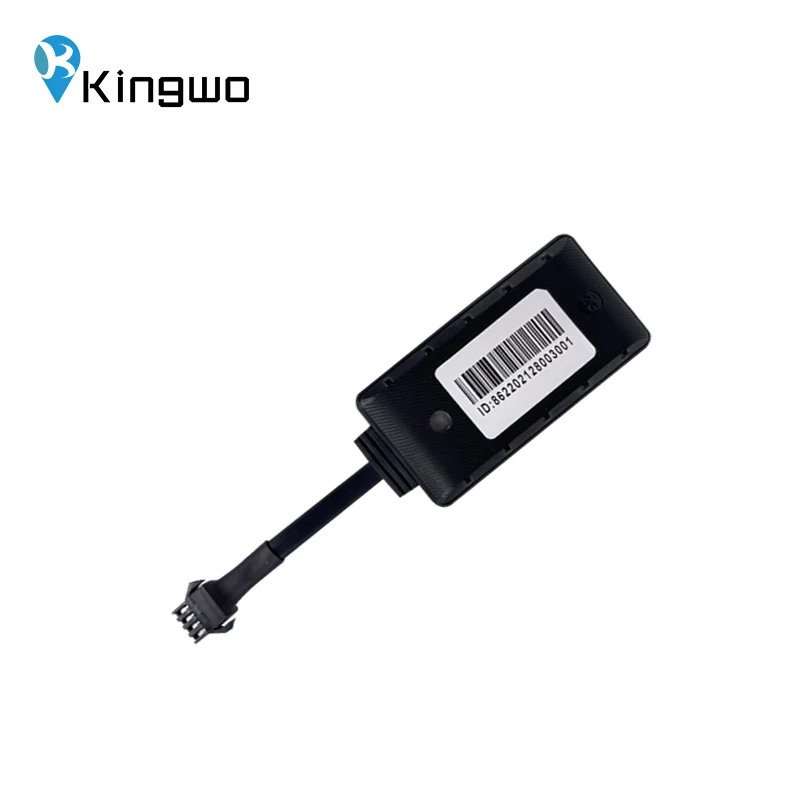

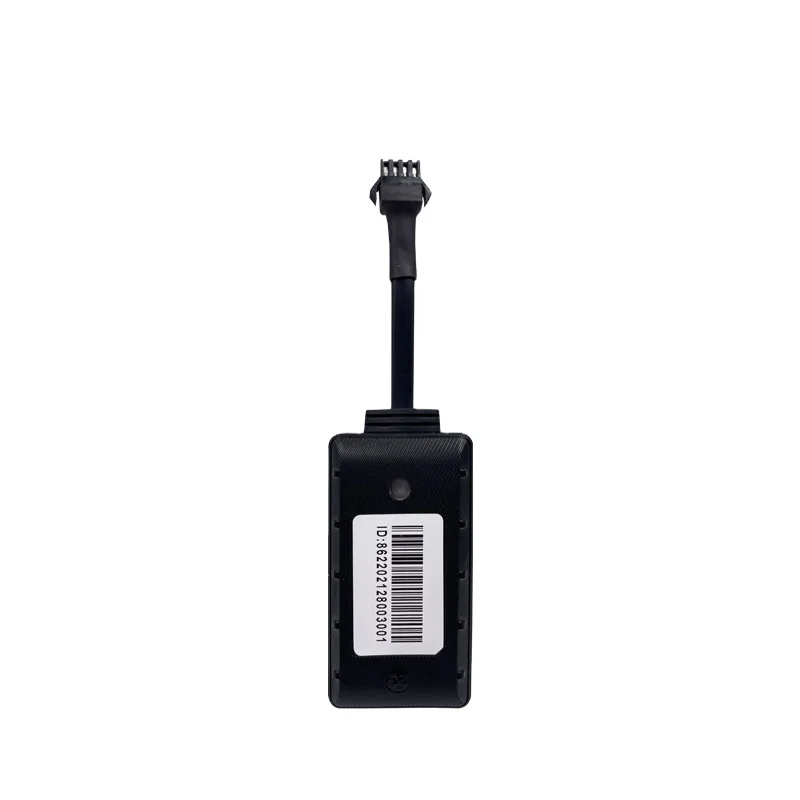

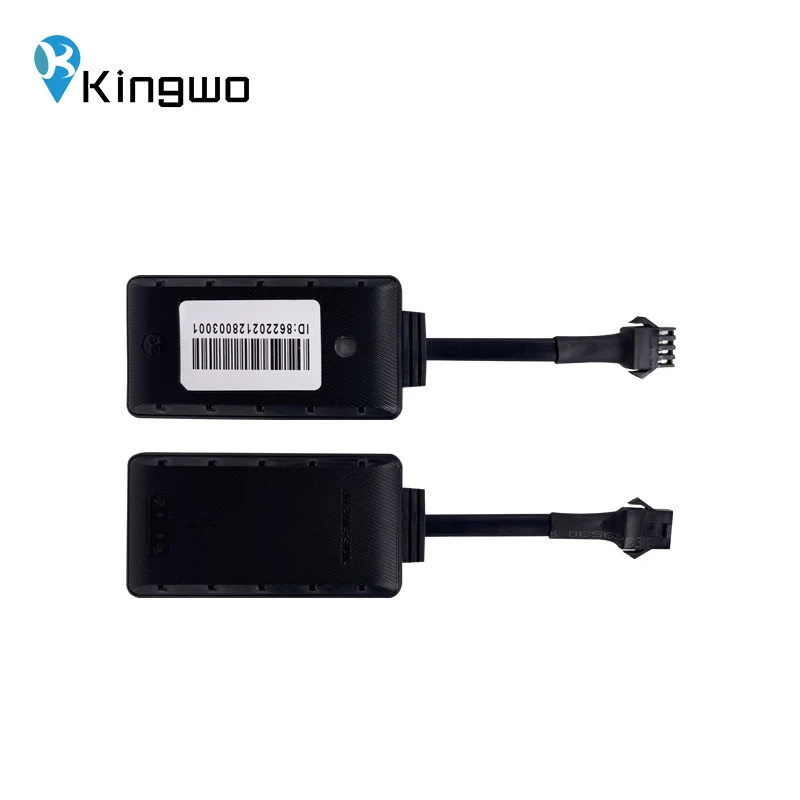

smart mini vehicle gps tracker acc ignition support BLE sensors 2g gps car tracking system in uae
- Category: >>>
- Supplier: Shenzhen,Kingwo,Iot,Ltd.
Share on:
Product Overview
Description
Physical | Dimension | 75*40*13mm |
Weight | 45±3g | |
Cellular &GPS | Module | Quectel MC25 |
GSM | Quad-band 850/900/1800/1900MHz GPRS multi-slot class 12/10 GPRS mobile station class B Compliant to GSM phase 2/2+ –Class 4 (2 W @ 850/900MHz) –Class 1 (1 W @ 1800/1900MHz) GPRS class 12: max. 85.6 kbps (downlink/uplink) PBCCH support Coding schemes CS 1, 2, 3, 4 PPP-stack USSD | |
GPS | Receiver type -33 tracking /99 acquisition -channel Sensitivity -Tracking: -167 dBm -Reacquisition: -161 dBm -Cold starts : -149 dBm Time-To-First-Fix – -Cold starts: 28s (typ.) -Hot starts: <1s Warm starts: 22s Accuracy -Horizontal position : <2.5M CEP | |
Bluetooth | Bluetooth | 5.0 |
Power | Input voltage | 9-100V |
Battery | NI-MH AAA 3.6V/90mA, 2hours working time based on 2-3 minutes upload | |
Power consumption | Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) | |
Interface | Digital input 1 | Ignition detect |
Digital output 1 | Relay | |
GSM antenna | Internal High Gain | |
GPS antenna | Internal High Gain | |
SIM | Microsim | |
Indicator | 2 status LEDs, Green: GPS, Red: GSM | |
Memory | 1000 pcs | |
Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
Humidity | 5% ~ 95% (no fog) | |
Ingress Protection Rating | IP65 |
Products Recommended
FAQ
Q1.Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
Q2:Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
Q3:What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
Q4: What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.
Q5:Do your have your own platform?

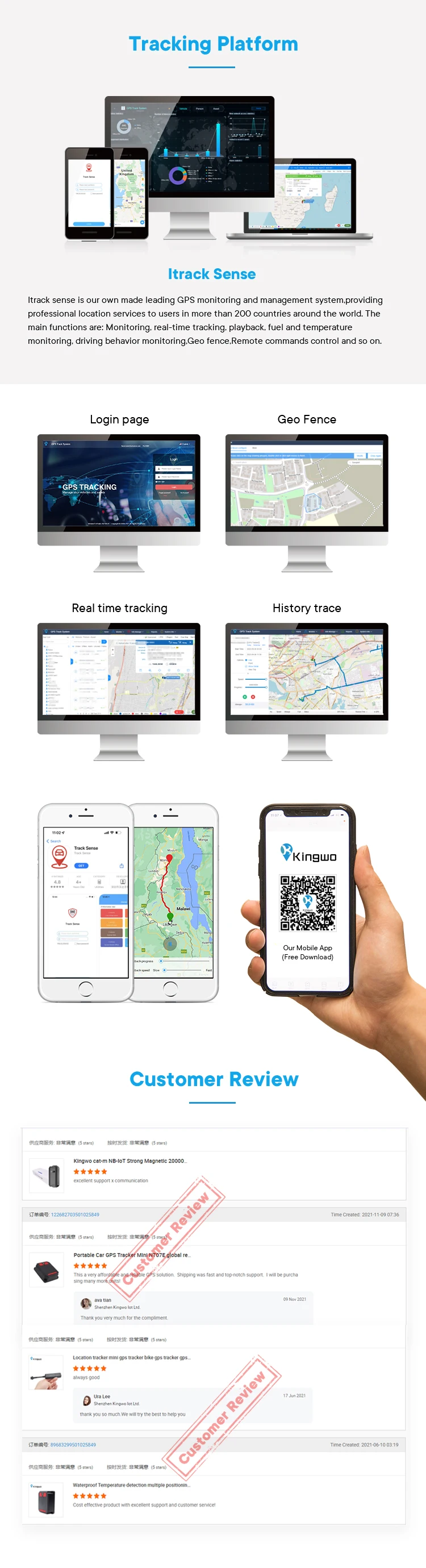

A.Yes, we have our own platform and mobile app.It's named itracksense.com and app named Track sense.
Q6:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
