Chips Tortilla Nachos Making Machine Corn Flour Snacks Manufacturer Equipment
- Category: >>>
- Supplier: Jinan DG Manchinery Co. Ltd.
Share on (10000007446352):
Product Overview
Description
Product Description

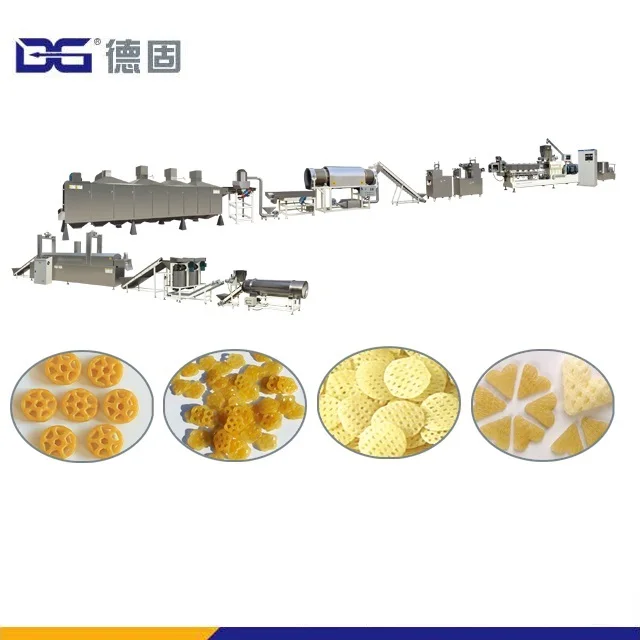

- The production line uses wheat flour,corn flour,corn starch,tapioca starch ,potato starch as raw material .
- By cooking ,cutting etc process to produce spiral,tube,onion ring,waved chips etc 2D snack pellet.Also can equip with pattern pressing machine and compound machine to produce burgles ,net crispy,pani puri etc 3D snack pellet.
- By drying,frying and flavoring ,the snack pellet can be made to be crispy ,vivid instant-eat twice extrusion puffed food.Combinations of unit screw and precise control of processing ,that achieve higher quality and various products with more chosen for raw material.
- Mixer:mix raw material equally according to the recipe
- Spiral Conveyor: take the raw material to the extruder
- Extruder : cook and extrude the raw material with certain pressure and temperature to make different shapes of snacks
- Cooling vibrator :cool down and vibrate the snacks to avoid them stick together

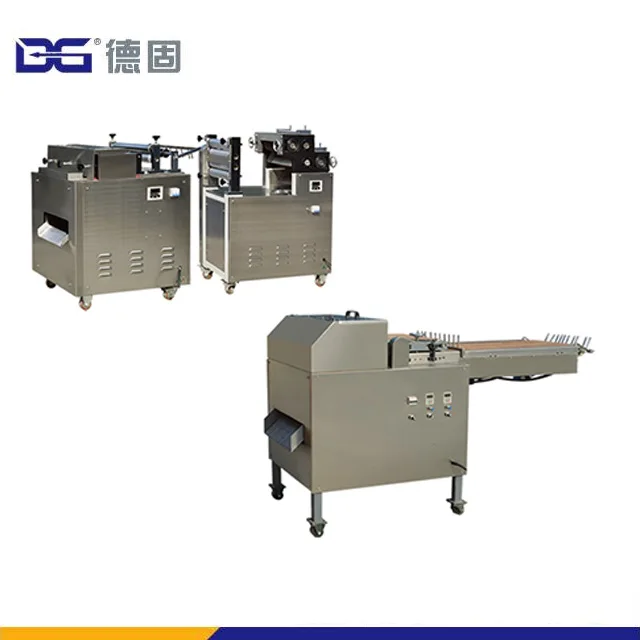

- Punching shaper : this machine is used to make round chips
- Pulling&cutting machine : to make tubes shape
- Low temp dryer: dry the pellets to take away the surface moisture and store the pellets for a certain time
- oven(circulating): dry the snack pellets for more than 2 hours with circulating conveyor
Optional machines :
- Pattern presser : emboss pattern on the snack sheets
- 3d shape cutter : press 2 pieces snack sheets together and cut them into different 3d shapes with shaping roller
- Frying machine : fry the snack pellets to make them puff and crispy
- De-oiling machine : take away the moisture content
- Flavoring line : flavor the snacks with different seasonings

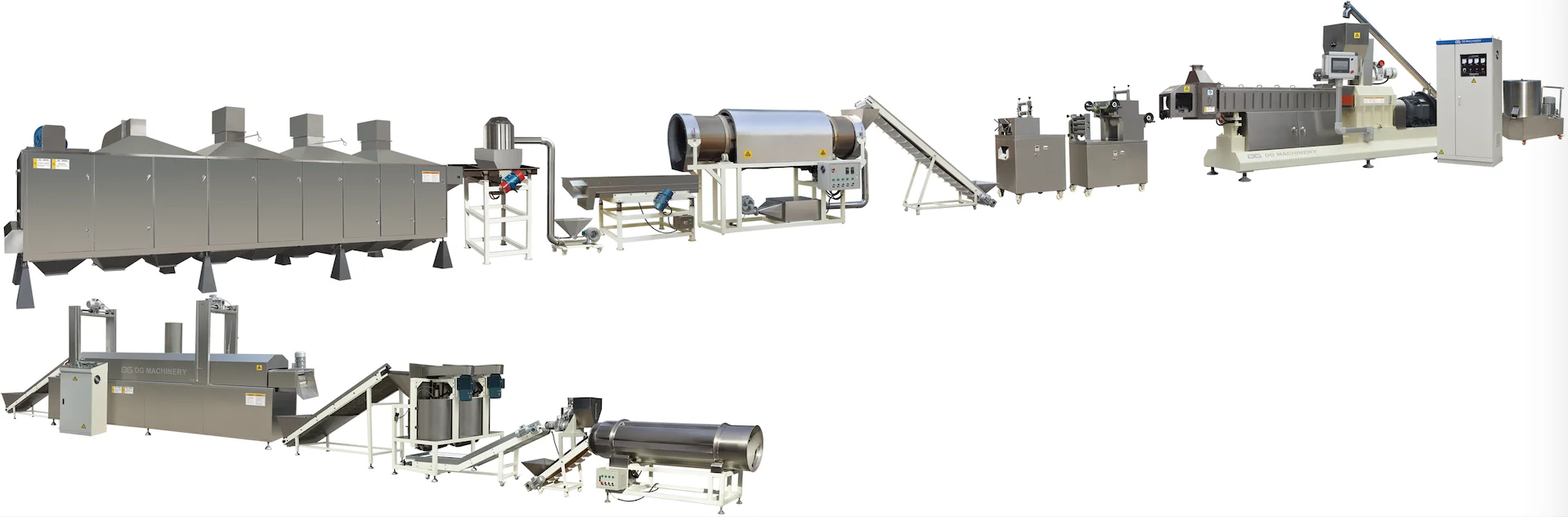

Production Flow
Technical Parameter
Advantages
Main characters of advanced new type DG twin screw extruder
- Swiss Technology,made in China;
- PLC touch screen for Centralized ,accurate,convenient control
- Fully automatic control system for heating and circulated cooling accurately
- Direct transmission of motor and distribution box reduces energy loss.
- Imported bearing group with higher bearing capacity
- Equip with water injecting device on barrel to meet require of various raw material and quality.
- High-speed tool steel with hardness HRC≥62 to ensure a longer service life.
- Modular combination of screws at will to meet require of different raw material.
- Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate
All barrels inlaid alloy sleeve, easy to replace and extend the life span of screw. All barrels inlaid cooling water through, spread around alloy sleeve, and can accurate constant temperature required
All screw sleeves is kneading, ensure that not accumulate material. The screw is installed by blocks, and can be replaced optionally ratio to achieve requirements for product. Screw sleeve is installed by spline, and it is convenient and efficient. Quality of screw sleeve according to different prices is divided into: Cr12MoV, 38CrMoAl38, W6Mo5Cr4V2.
Applied to make all kinds of extrusion products such as corn flakes , cereal snacks ,puff snacks ,wheaten snacks , 2d /3d snack pellets , pet food ,fish feed ,soya protein ,nutritiobal powder ,modified starch and so on .
Samples
Brand of spare parts
- Machine shield : 201 ss / 304 ss as required
- Parts contact with food : 201 ss / 304 ss as required
- Screw / barrel and cutter of the extruder : special alloy to bear high temp and pressure
- Main motor: Siemens brand
- Touch screen : Wenview brand
- Miniature circuit breaker : ABB brand
- Alternating current contactor: ABB brand
- Thermal Relay: ABB brand
- Moulded case circuit brake : CHNT brand
- Small relay: Weidmuller brand
- Inverter: Delta brand
- PLC system: Delta brand
- Burner: Baltur brand
- Bearing : NSK/ SKF brand
Packaging & Shipping
Our Services
I. DG has professional team to design the whole production line according to your requirements
II. we also help our client to develop the old production line and carry out new products
III. Custiomized factory layout designed is provided by our professionals
IV. Overseas technicians are available to help the clients for installation and adjustment
V. 12 months warranty for the machines , 24 months for some parts
Our Prestigious Reputation Got form the World
Our machines are exported to more than 90countries and areas and got high praise of customers. Some of them have become our agents in their area. We hope to hold long friendly business relationship with more clients all over the world in the future.
Who We Are
We, Jinan DG Machinery Co., Ltd. is located in the famous industry city-Jinan city, capital of Shandong Province.
We are professional manufacturer of food extruder and mainly deal with the manufacture, research and development of the inflating food machine. According to the clients’ different requirements, we could offer the whole complete processing line for all kinds of expanded snacks, corn flakes, nutrition powder, and pet food and so on. Our technical assistance will help clients produce high quality products all the time.
As a leading manufacturer of inflating food machinery, we are selling and marketing the machines to many countries in the world. We keep improving our machines and upgrading techniques to satisfy the requirements of all the clients. Depending on our rich experience and professional experts on the extruded food industry, we could offer the most suitable and complete program to assure that your investment will get biggest profit.
We are Reliable and Certified
Since the establishment of our company, we have always manufacturing our machines according to the authorized standards, by now ,we have got several certificates including CE and we are 2 Years Alibaba Golden Supplier.
