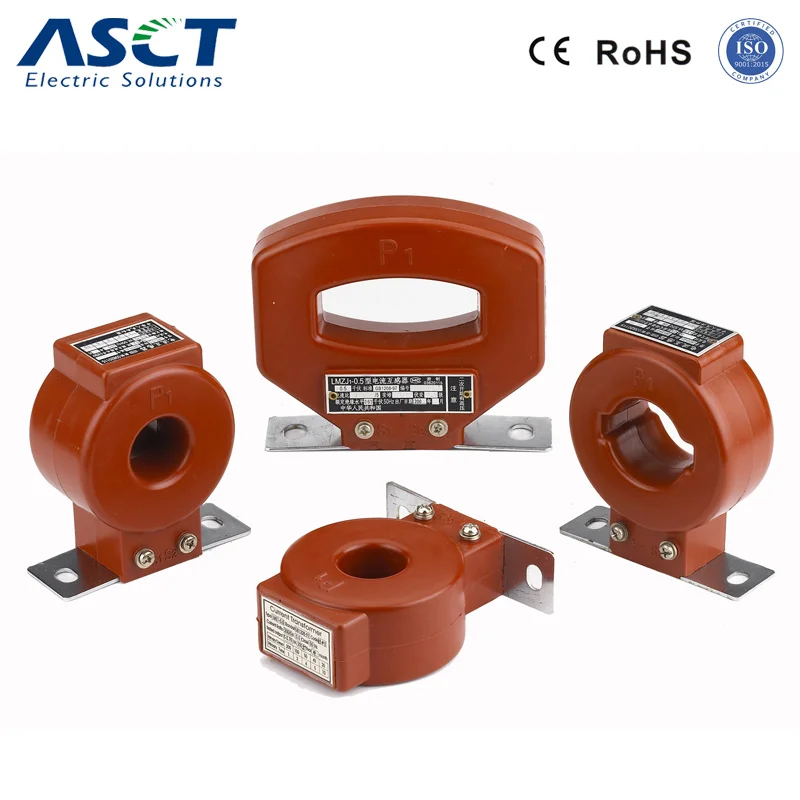

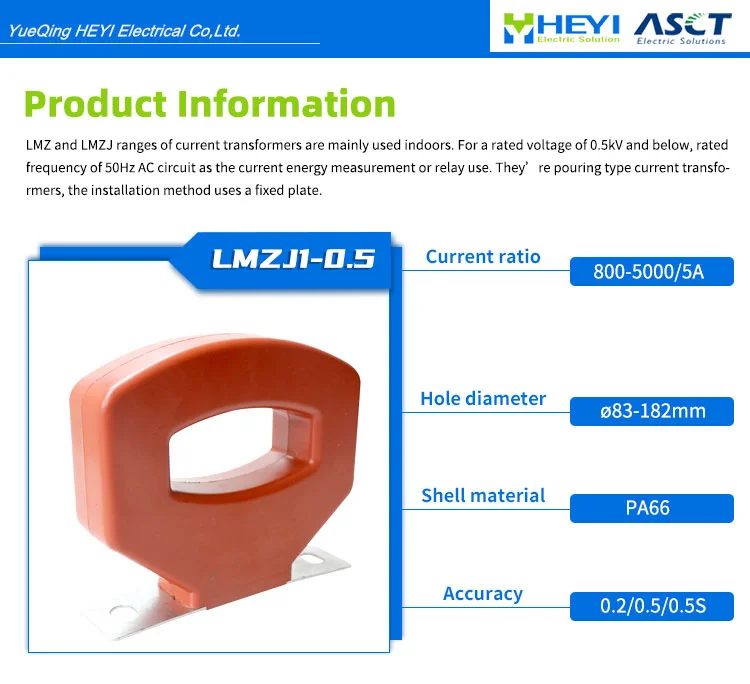

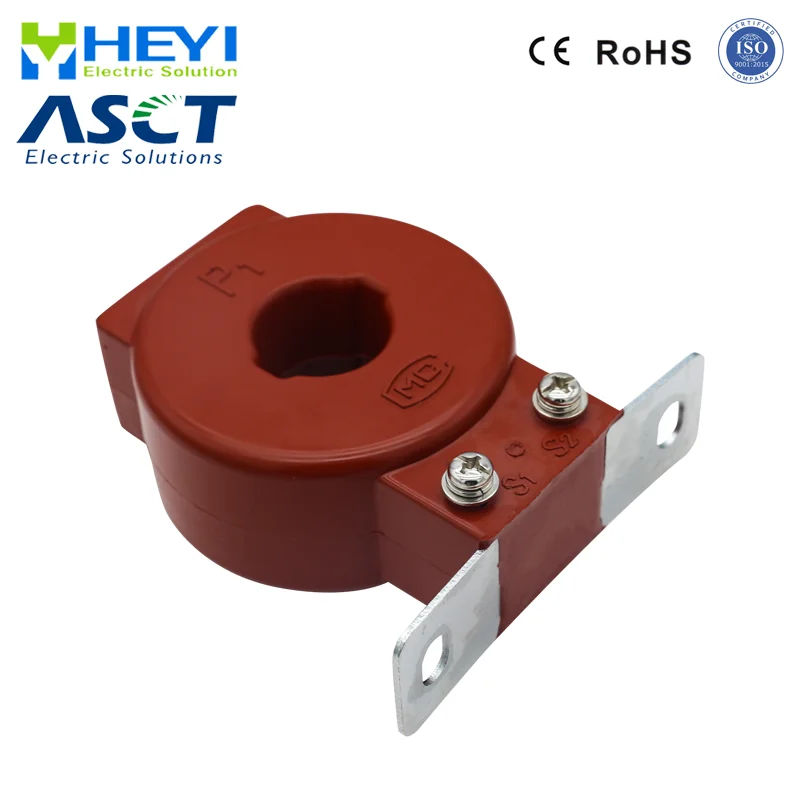

LMZJ1 0.5 750 5000A/5A current transformer cl 0.5s indoor 83 182mm

Product Overview

Description



Technical Parameter
Type	Rated current(A)	Rated load(VA)			Rated Voltage(kV)	Rated Frequency(Hz)
		Class:0.5	Class:0.2	Class:0.2s
LMZ1-0.5	800/5~5000/5A	5~30	5~30	5~30	0.5	50/60

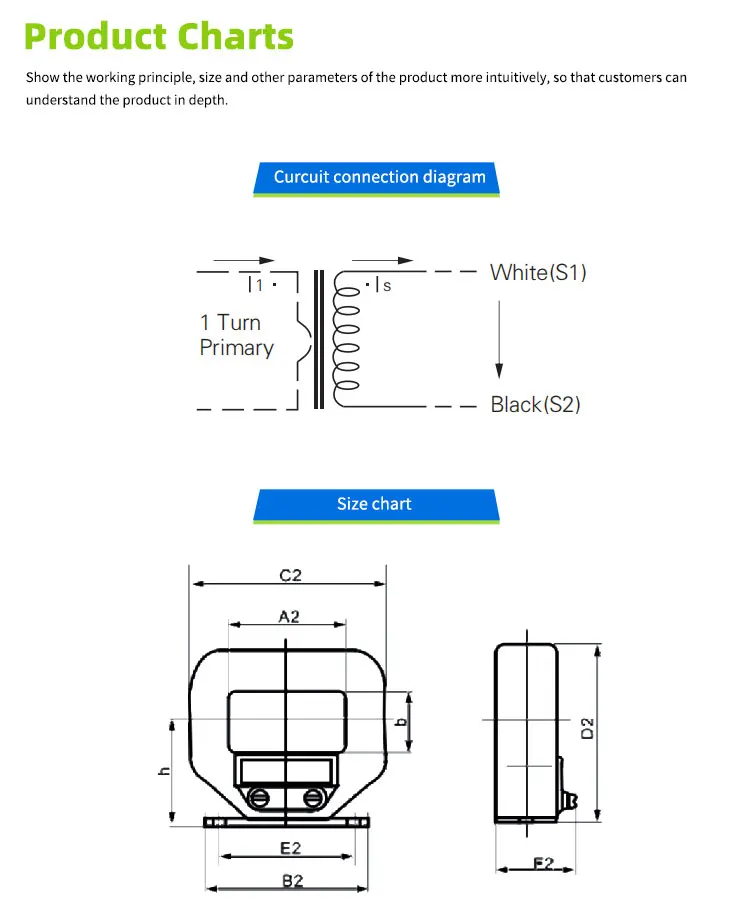

Installation size
Type	Rated current(A)	A2	B2	C2	D2	E2	F2
LMZJ1-0.5	750/5~800/5A	83	145	125	100	115	45
	1000/5~1500/5A	102	175	143	120	123	45
	2000/5~4000/5A	142	210	162	150	150	45
	5000/5A	182	260	185	190	162	45





Technical date

Note: any special requirements can be negotiated with us

Type description
